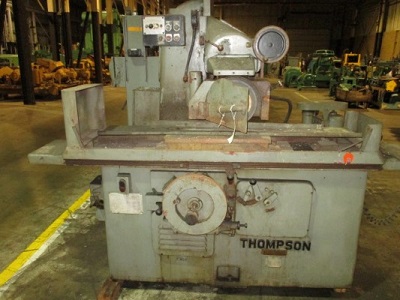

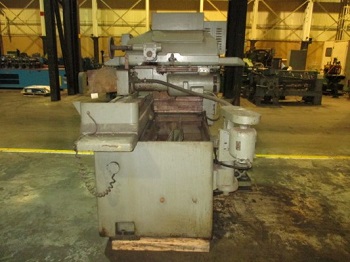

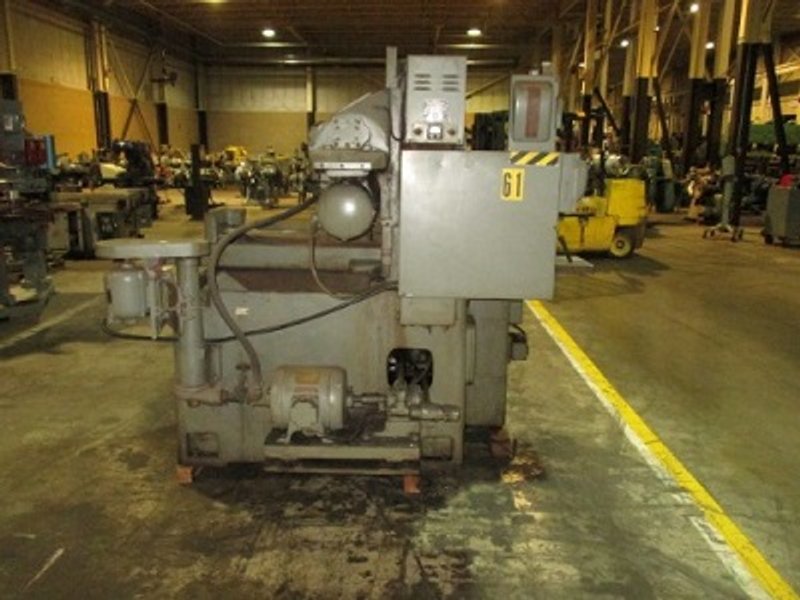

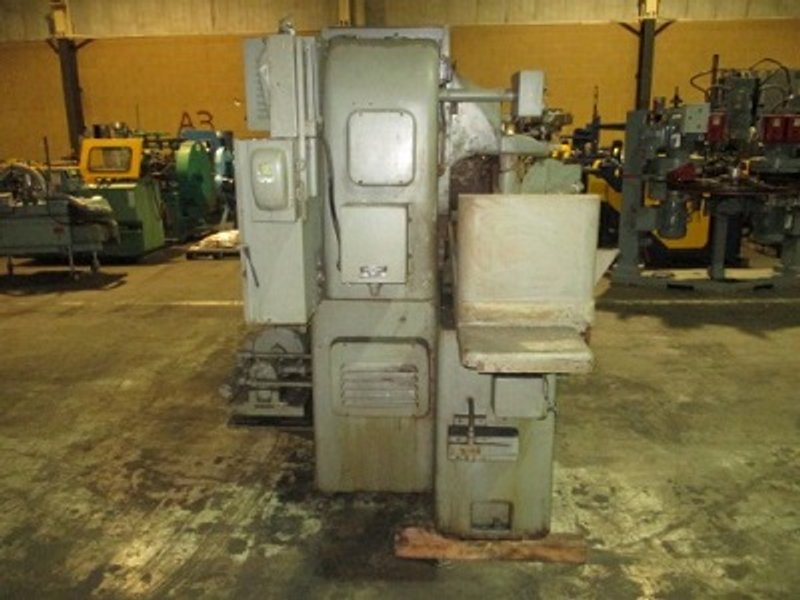

THOMPSON # B SURFACE GRINDER

TABLE WORK SURFACE .... 12" X 39"
TABLE TRAVEL, MAX ..... 29"
CLEARANCE UNDER NEW WHEEL ...... 12"
WHEEL SIZE ............ 12" X 2" X 5" (HUB SIZE)
MAG CHUCK SIZE ........ 12" X 24" X 3-3/4"
WHEEL SPEED ........... 1800 RPM
TABLE SPEED RANGE ..... 10 - 100 FPM
VERT. FEED, HAND WHEEL ........ .0005" GRADUATED
CROSS FEED, HAND WHEEL ......... .001" GRADUATED
CROSS FEED, HYDRAULIC AUTO ..... 1/32" TO 1/2" REVERSIBLE
HYDRAULIC RAPID TRAVERSE ....... 240" / MIN
SPINDLE MOTOR .................. 5HP, 220/440/3/60, 1800 RPM
HYDRAULIC MOTOR ................ 2HP, 220/440/3/60/50CYC, 1165/975 RPM
COOLANT MOTOR .................. 1/8 HP, 220/440/3/60
ELEVATION MOTOR ................ 1/4 HP, 220/440/3/60

OVERALL SIZE: 54" F-B x 94" L-R x 6'6" H
WEIGHT: 5,500#

EQUIPPED WITH:
12" X 24" MAG CHUCK & NEUTROL CONTROL
COOLANT TANK & PUMP
SPLASH GUARDS
