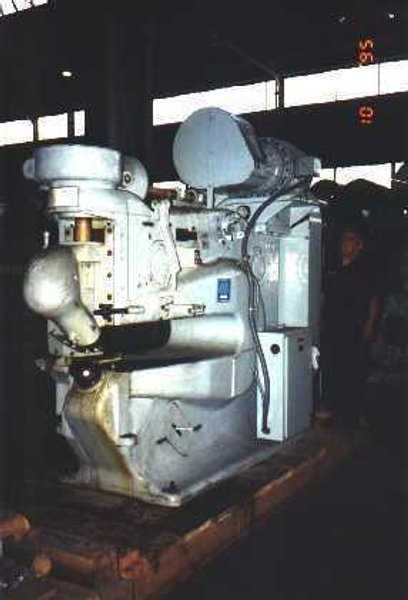

1/2" QUICKWORK-WHITING # 40-A CIRCLE SHEAR
Brand
Category
Model
40-A
Stock #
101789
Year
1956
Condition
Used
Location
Ohio
|
CAPACITY, MAXIMUM....................... 1/2" MILD STEEL
FLANGES CIRCLES ........................ 3/8" THICKNESS X 2-1/4" DEPTH
JOGGLES ................................ 3/8" METAL THICKNESS
THROAT DEPTH ........................... 48"
SHEAR BLADES ........................... 6" DIAMETER
CUTTING SPEED, STANDARD ................ 5 - 10 FPM
O.A. DIMENSIONS ....(LR X FB X HIGH).... 11'3" X 4'6" X 9'2" ON SKID
TOTAL WEIGHT - ~16,000LBS (SHEAR) + ~14,000LBS (CLAMP) = ~30,000LBS
EQUIPPED WITH: 15 HP 3/220-440/60-50 (1160 RPM) MOTOR
WITHN CONTROLS, WIRED FOR 230 VOLTS
THREE SPEED TRANSMISSION
CLAMP WITH 6'10" THROAT, PNEUMATICALLY OPERATED
(O.A. DIMENSIONS 16'5"
MANUAL GREASE GUN LUBE
|
