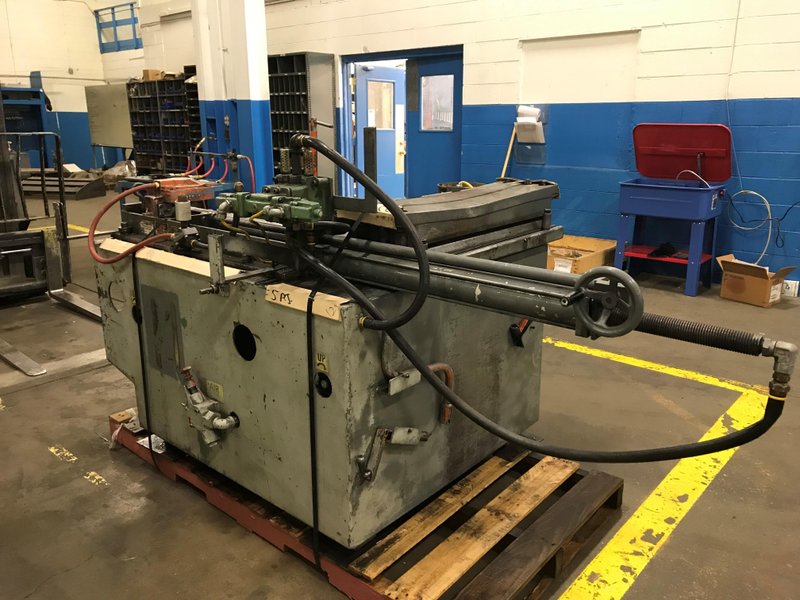

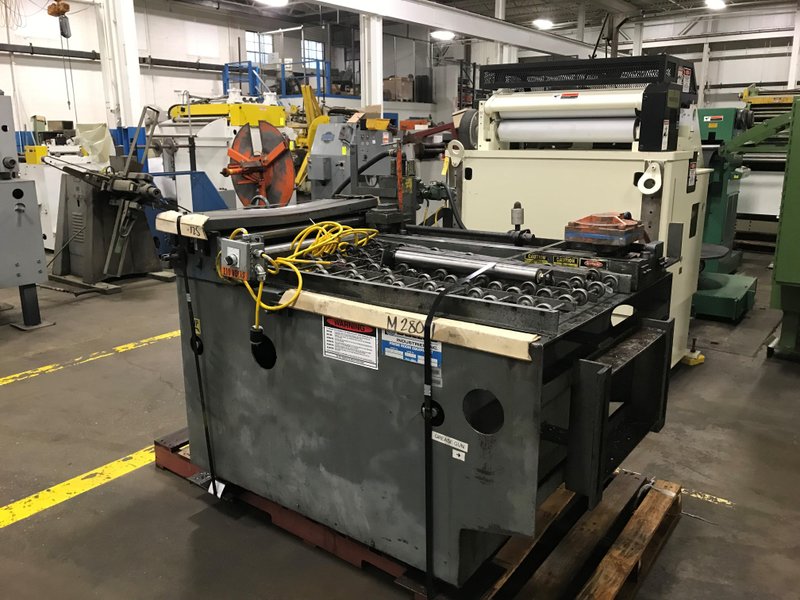

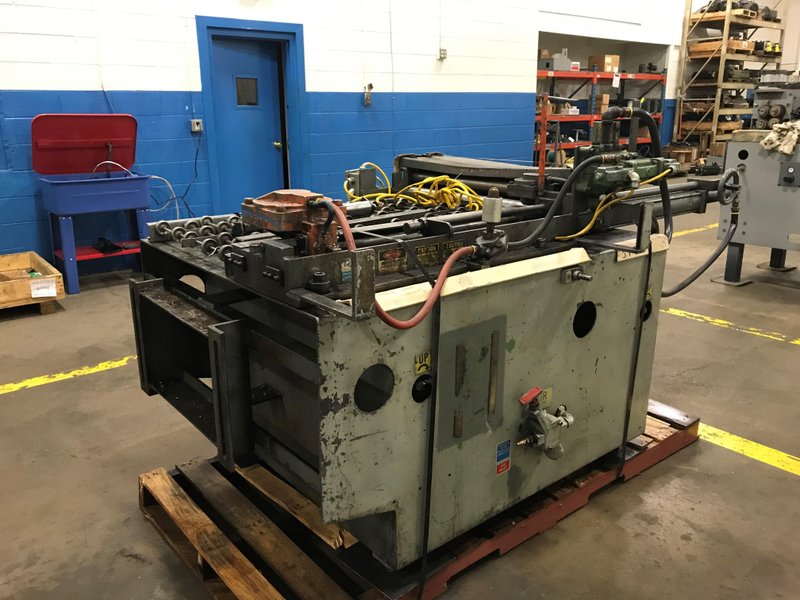

Dallas Ind. Air Feed Straightener Combination Press Feed 30" Wide
Brand
Category
Type
Model
D325-3030LH
Stock #
5137
Year
Not specified
Condition
Used
Location
Michigan
| Bore | 3.25 inches |
| Stock Width Capacity | 30 inches |
| Max Stock Thickness Capacity At Full Width | .074 inches |
| Stroke | 30 inches |
|
Dallas Ind. Air Feed Straightener Combination Press Feed Specifications:

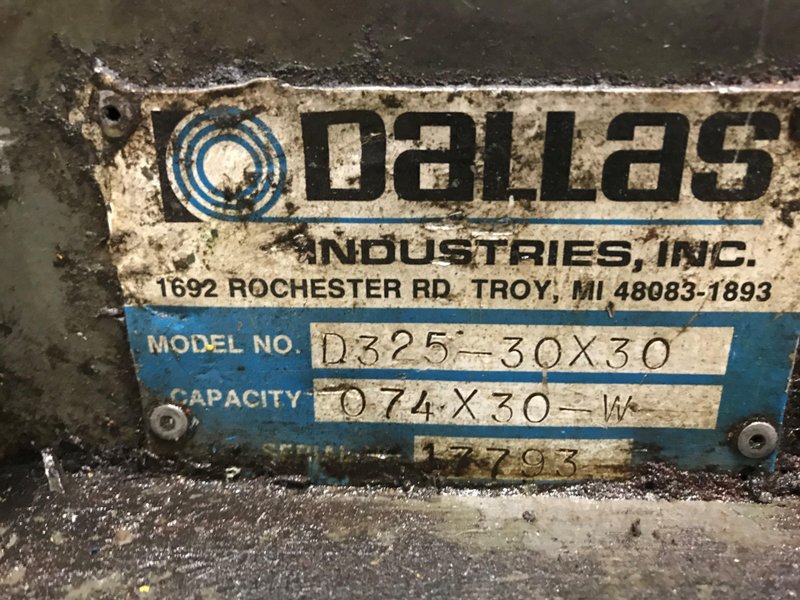

Stock width capacity: 30" Stock thickness capacity: .074" x 30" Wide Stock thickness capacity: .170" x 12" Wide Stroke (feed) length capacity: 30" Serial #: 17793 Dallas Ind. Air Feed Straightener Combination Press Feed Equipment and Features: Five air feed pull thru straightener rolls x 2-1/4 inch diameter Individual upper air feed pull thru straightener roll adjustments Manual air feed pinch roll assembly (Stock threading) Manual upper air feed pinch roll adjustment Adjustable stock width edge guides Air saver cylinder (adjustable) air consumption and speed Right angle handle for stroke length adjustments Numatics brand pneumatic solenoid control valve Dual quick exhausts Pilot pin circuit Horizontal and vertical cabinet base adjustments Auto/Run cycle 110 Volt |
|
