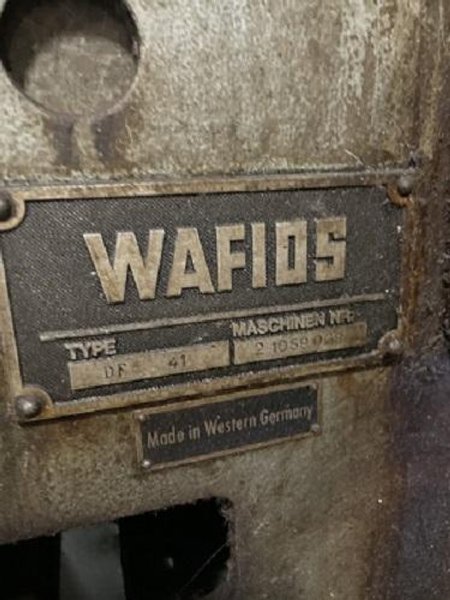

WAFIOS MODEL DF-41 CHAIN LINK FENCE WEAVING MACHINE
Brand
Category
Model
DF-41
Stock #
115318
Year
Not specified
Condition
Used
Location
Not specified
|

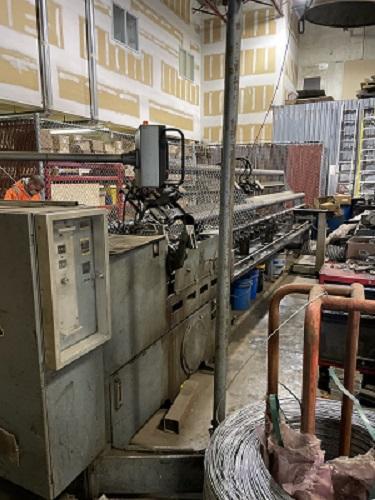

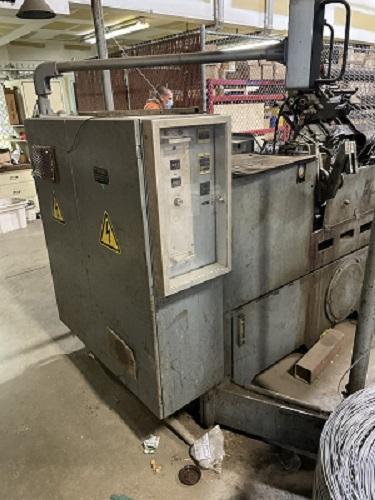

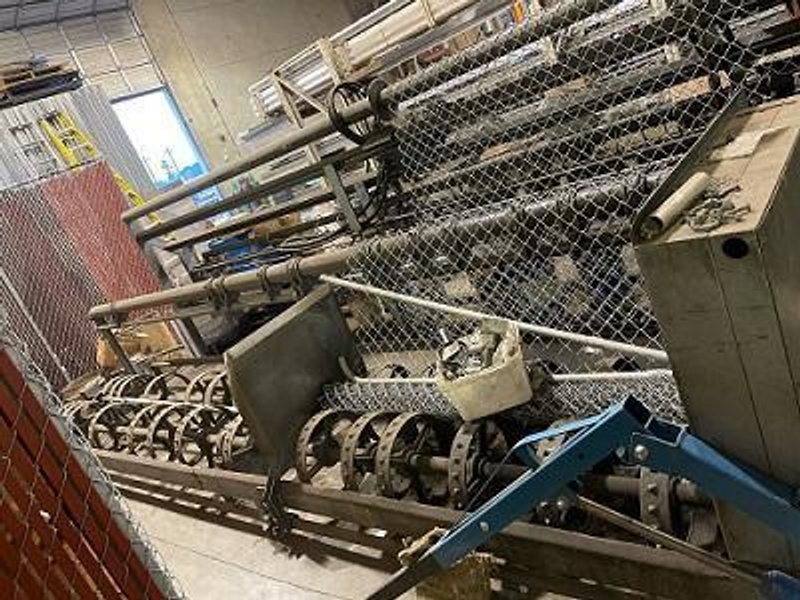

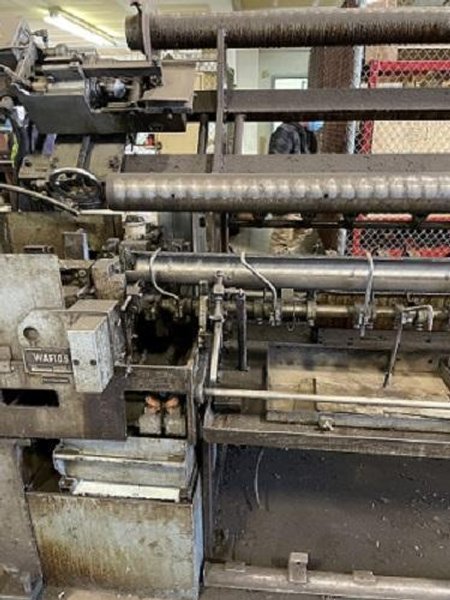

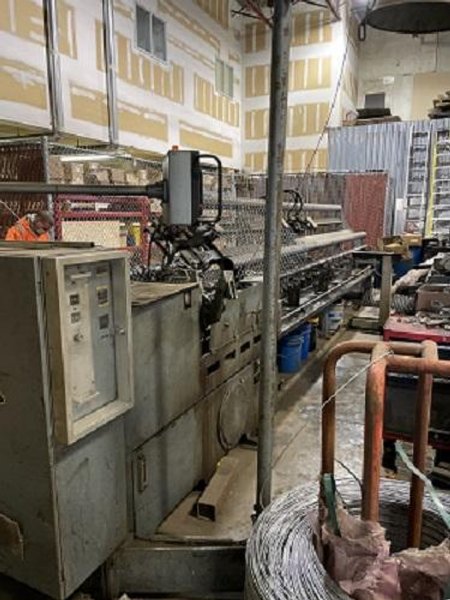

WAFIOS MODEL DF-41 CHAIN LINK FENCE WEAVING MACHINE
- HYDRAULICALLY DRIVEN PRODUCING DOUBLE SPIRAL (TWIN HELIX)
- KNUCKLING TWISTING BOTH ENDS
- MAXIMUM WEAVING WIDTH: 13 FT. (4M)
- WORKING RANGE: WIDTH OF MESH: 3/4" - 4" ( 20-100 MM)
- WIRE DIAMETER RANGE: .047"-.196" (1.5-5.0 MM), FOR 500 N/SQ. MM. 4 MM FOR 800 N/SQ. MM
- PLASTIC, PVC COATED .047" -.196" FOR 500 N/SQ. MM
- WIRE DIAMETERS FOR REQUIRED FOR RELEVANT MESH WIDTHS
WIDTH OF MESH:
20 - 25 - 30 - 40 - 50 - 60 - 70 - 80 - 90 - 100 MM
WIRE MIN. 1.5 1.6 1.8 1.8 1.8 1.8 2.2 2,5 2.5 2.8 MM
WIRE MAX. 2.5 3.1 3.8 4.5 5.0 5.0 5.0 5.0 5.0 5.0 MM
- SPEED OF NETTING TOOL: THE SPEED OF THE NETTING TOOL IS INFINITELY VARIABLE BETWEEN 70 AND 900 MIN-1
- STANDARD ROLL TAKE-UP UNIT
- DIMENSIONS WITH TAKE-UP UNIT INSTALLED: 27 FT. LONG X 16 FT. WIDE X 10 FT. HIGH

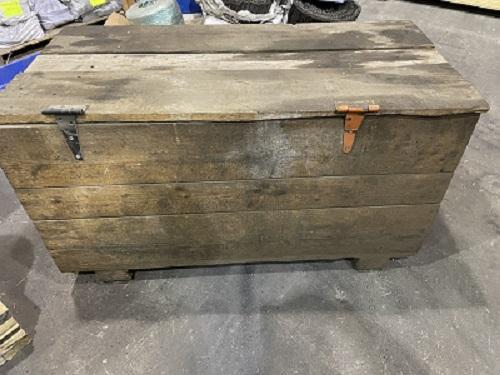

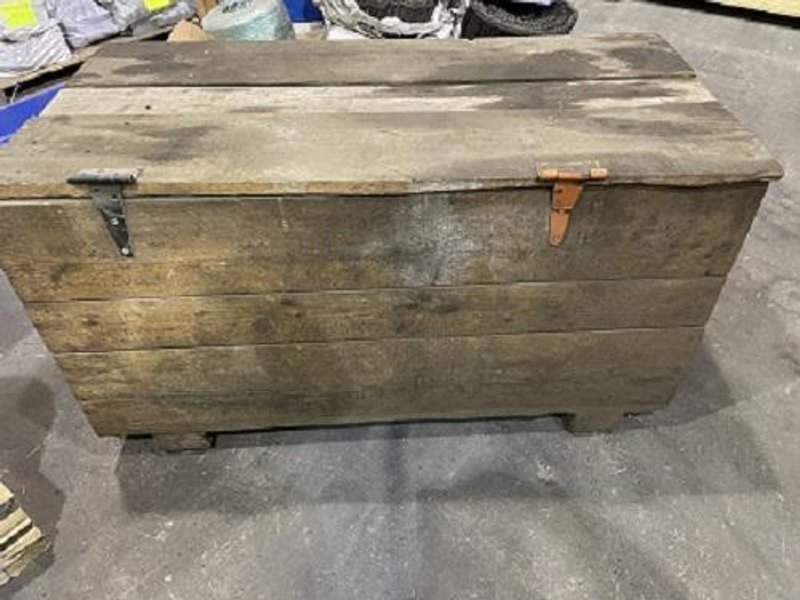

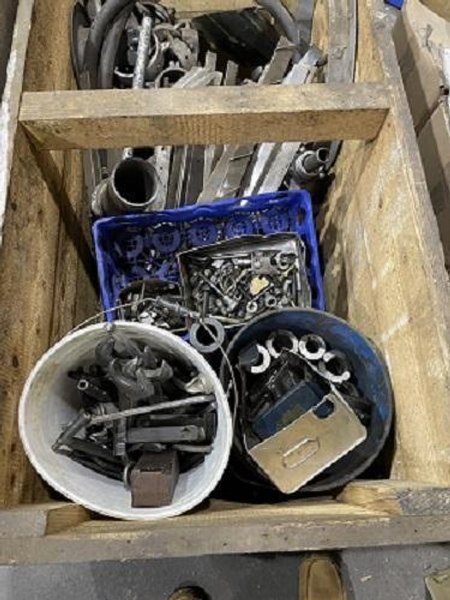

- ASSORTMENT OF TOOLING AND SPARES, WORMS, BLADES |
