THROAT .............. 18"

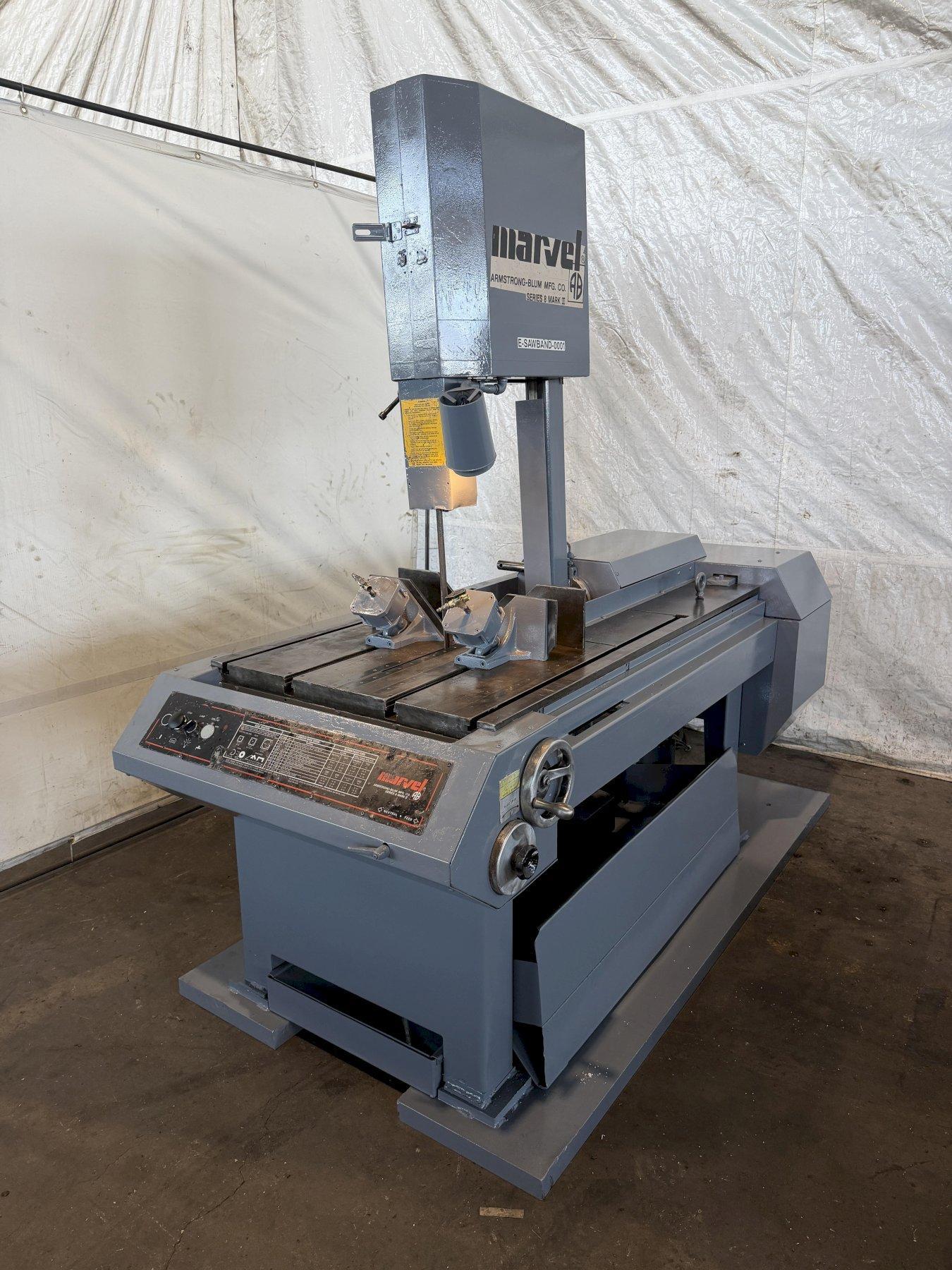

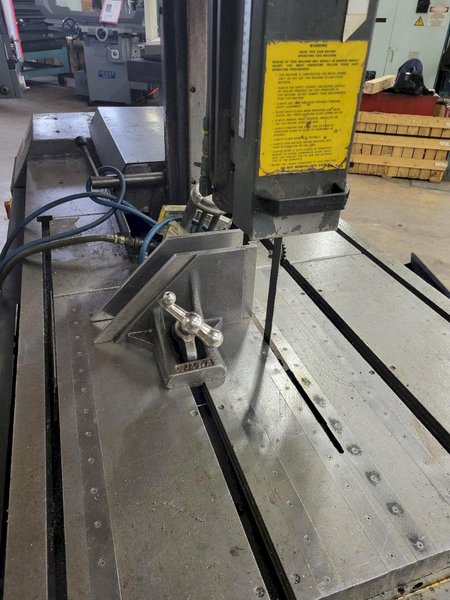

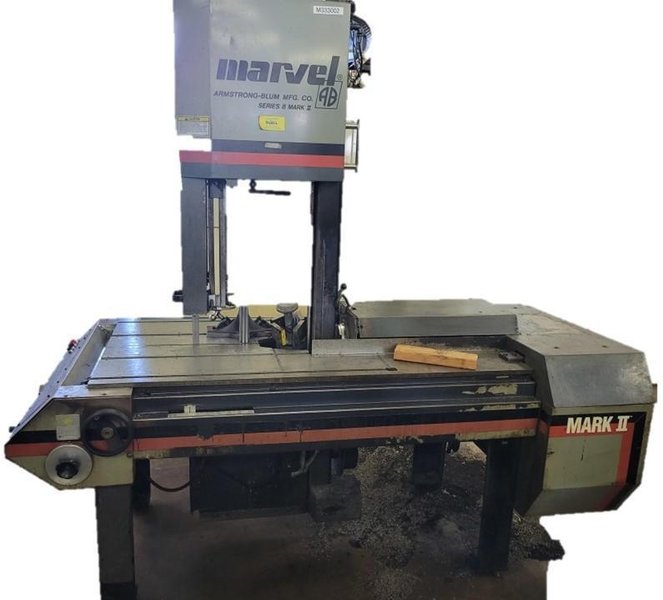

WORK HEIGHT ......... 22" POWER ............... 2 HP BLADE WIDTH ......... 1" BLADE LENGHT ........ 174" FPM ................. 450 DIMENSIONS .......... 55" X 96" X 88" HIGH WEIGHT .............. 2,700 LBS. Capacity: Nominal 18" x 20" Maximum 18" x 22.5" Blade at 45 degrees (Nominal) 18" x 12.25" Blade at 45 (Maximum) 18" x 13" Blade: Welded Endless Length 14'6" Width/ Gauge 1" x .035 Table: Working Surface 33" x 24.25" Height 34.5" Tee Slots- Number 4 Vise: Open (Max.) 21" Height of Jaw 6" Drive: 2 HP, 1800 RPM TEFC Motor Blade Speeds 50- 450 ft/min Floor Space: 54.5" x 95" Height 88" Shipping Weight 2700 LBS. Equipped With: Vises, 45 Degree Tilt Left/Right, Blade Guides Support Blade, Coolant Tank & Pump, Coolant Guards 18" x 20" Marvel Vertical Band Saw, Series #8, Model- Mark-II, Quick-Acting Vise w/ Large T-Slotted, Miter Cutting, Blade-Carrying Column Permanently Aligned to Ensure Sawing Accuracy. All New Belts, Bearings as needed, wear plate, Switches as needed, Control panel Face and lots more |
