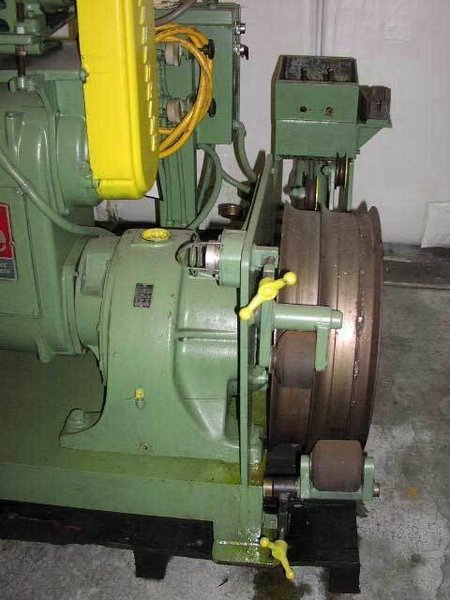

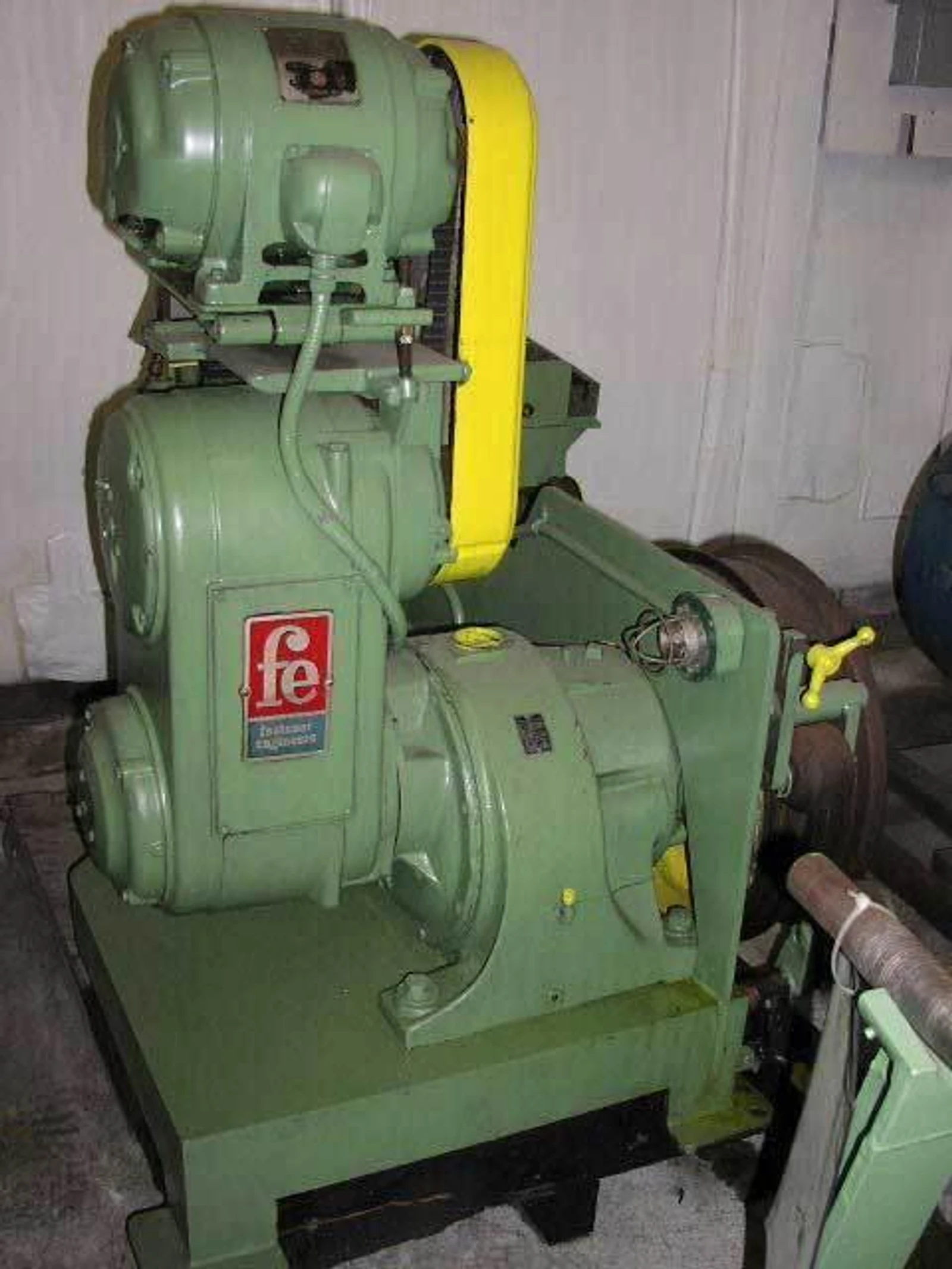

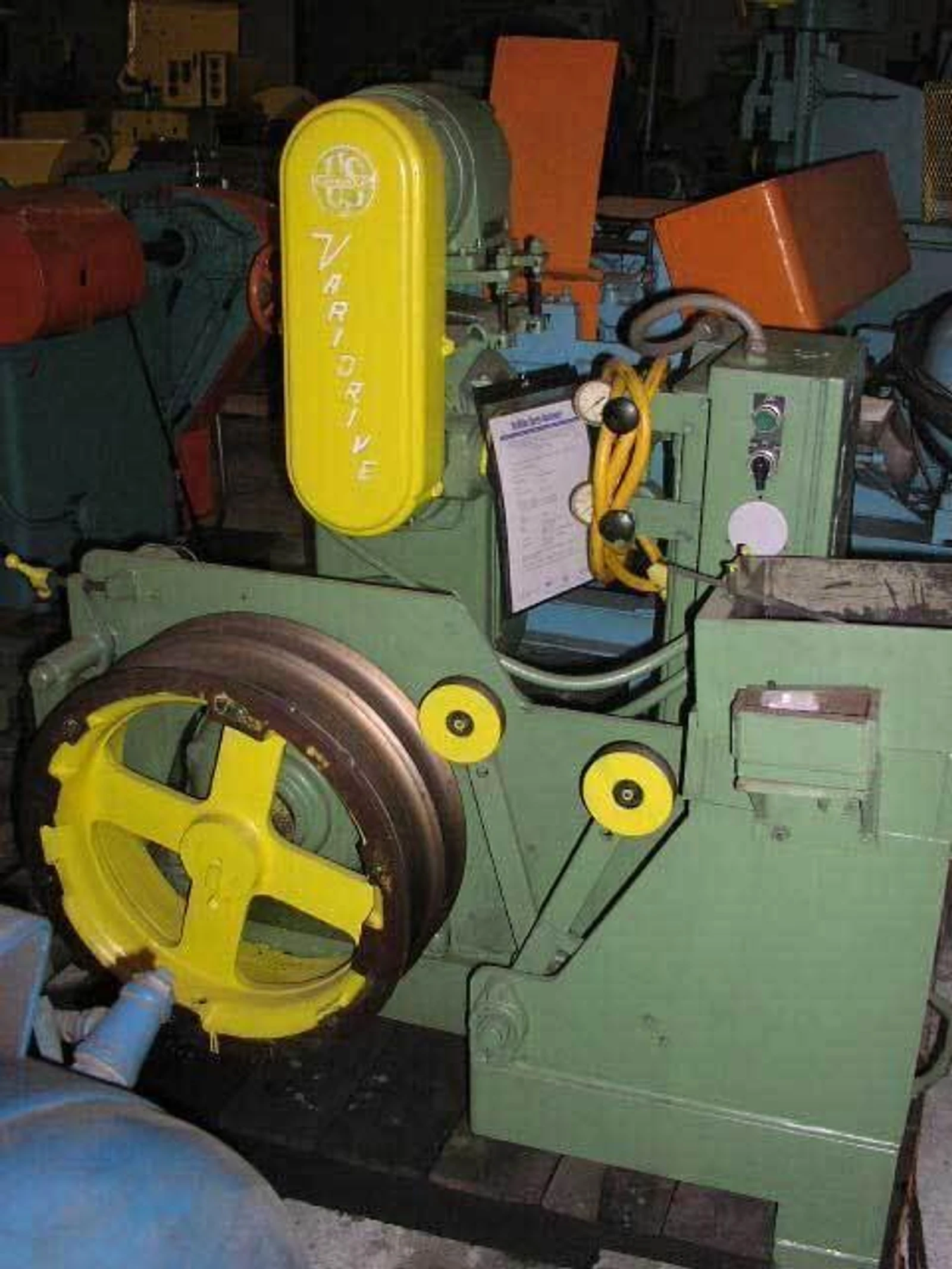

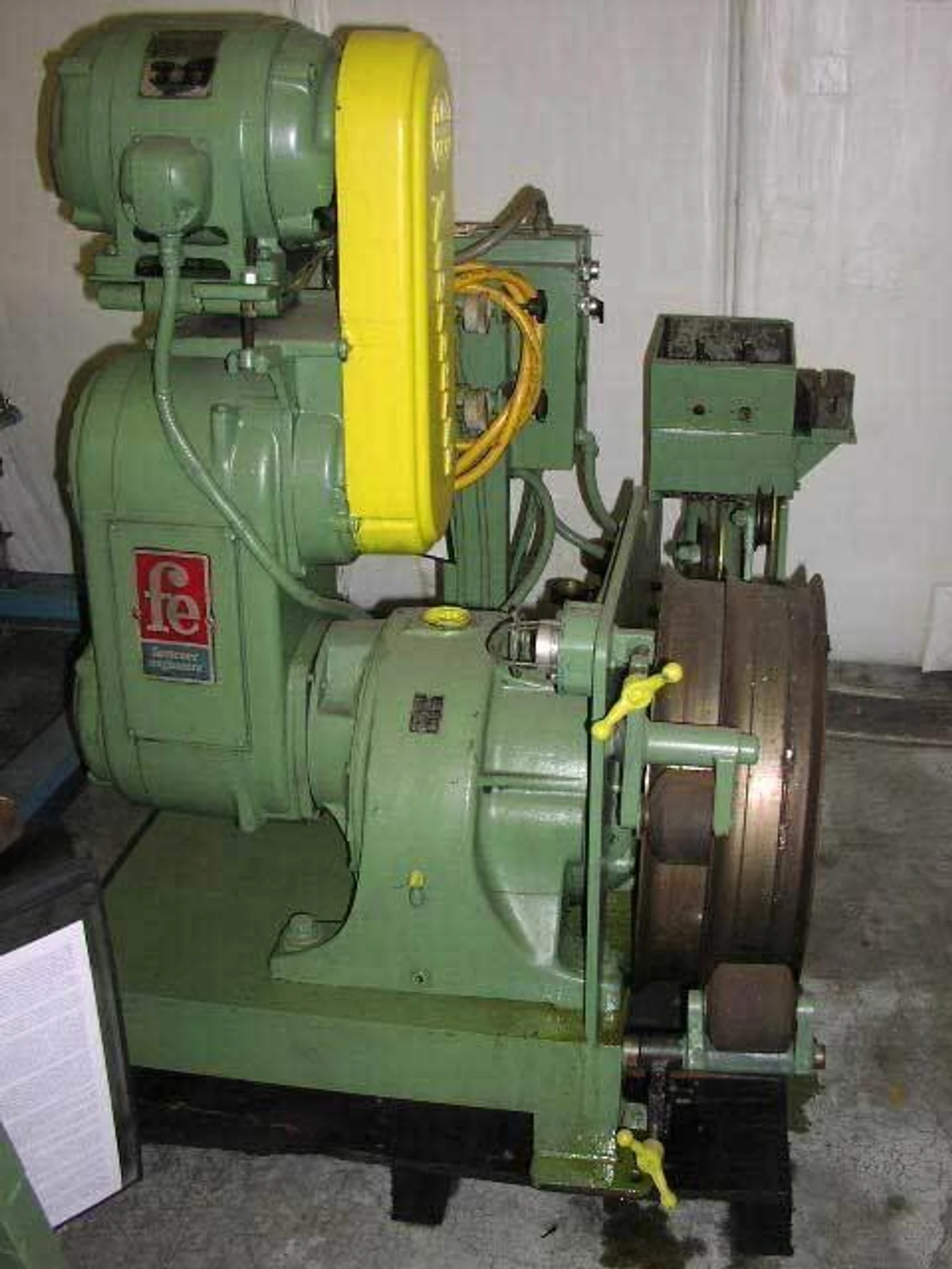

20" Fastener Engineers Model DA-03-2020 In-Line Wire Drawer

Brand
FASTENER ENGINEERS
Category
Wire Machinery
Type
Wire Drawers
Model
DA-03-2020
Stock #
8140
Year
Not specified
Condition
Used
Location
Pennsylvania
Capstan Diameter 20" Double Capstan
Speed Range 4 - 35 FPM
Reduction Capability:
-60,000 PSI Tensile:  .024 Sq/In Maximum
-80,000 PSI Tensile: .021 Sq/In Maximum
-100,000 PSI Tensile:  .017 Sq/In Maximum

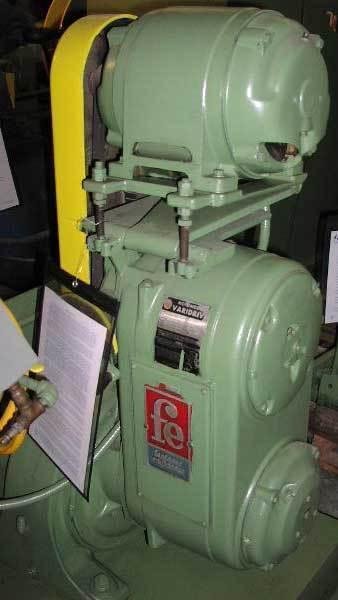

Drive:  US Motors Vari-Drove
-Motor:  3 HP (US Motors) / 1000/2000 RPM  / Frame 215
-Voltage:  208/220/440 Volts 3 Phase 60 Hertz

Equipped with Manually Operated Pressure Rolls and Controls for Forward/Reverse/Jog

NOTE:  Machine is capable of drawing two wires at one time
