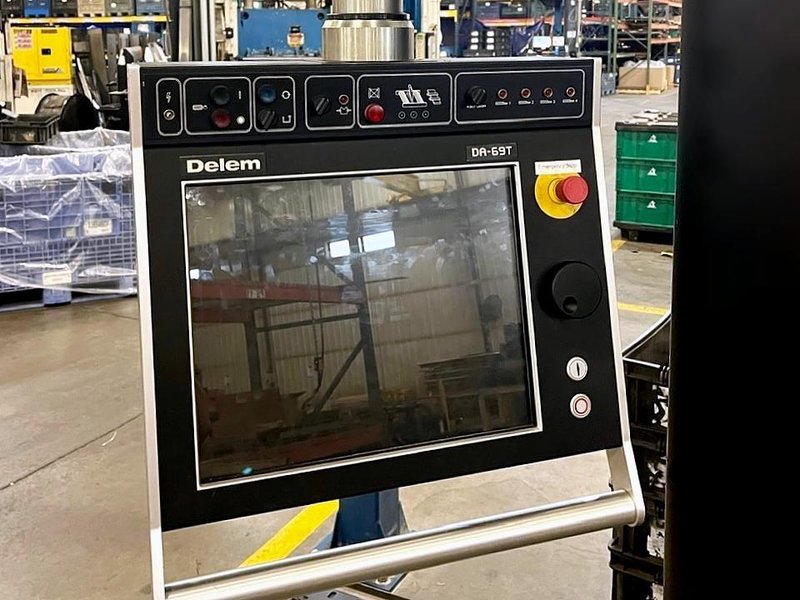

Control | Delem DA-69T |
Capacity | 225 Tons |
Max. Working Length | 118.11” |
Distance Between Housings | 100.39” |
Max Stroke | 10.23” |
Max. Open Height w/o Tools | 19.68” |
Throat Depth | 15.74” |
Tool Type | American |
Motor Power | 20 HP |
Approach Speed | 5.118 IPS |
Working Speed | .314 IPS |
Return Speed | 4.724 IPS |
Stroke of Axis X | 24.60” |
Speed of Axis X | 31.49 IPS |
Stroke of Axis R | 7.874 |
Speed of Axis R | 7.874 IPS |

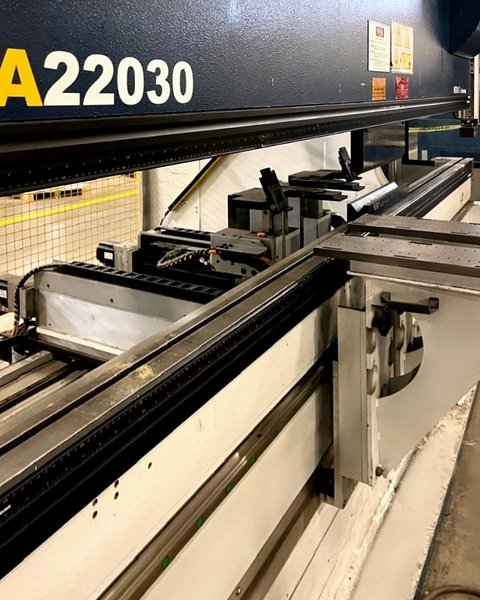

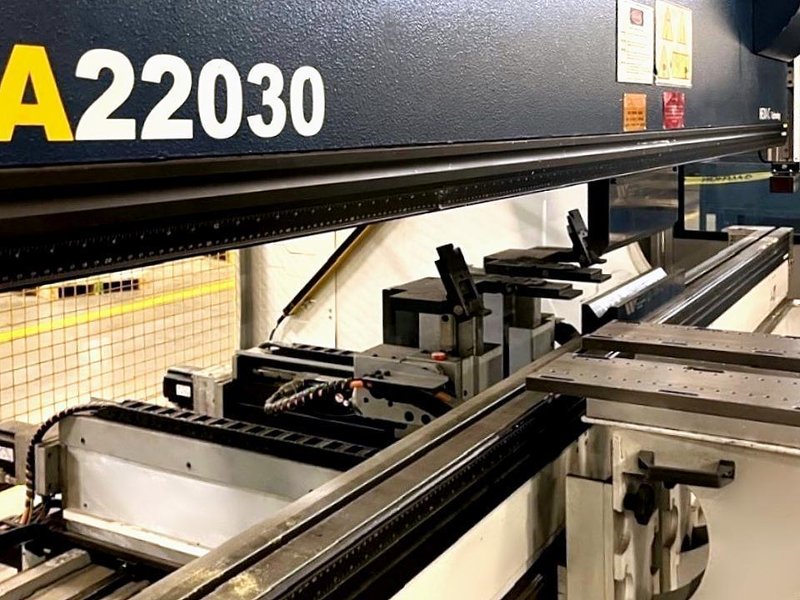

Stroke of Axes Z – Z1/Z2 | 3.54” – 84.64” |
Speed of Axes Z – Z1/Z2 | 47.24 IPS |
Stroke of Axis X1 | ±3.937 |
Speed of Axis X1 | 3.937 IPS |
Electrical | 480 Volts / 3 Phase / 60 Hz |
Dimensions | L 148.42” x W 72.83” x H 116.33” |
Weight | 21,000 Lbs. |

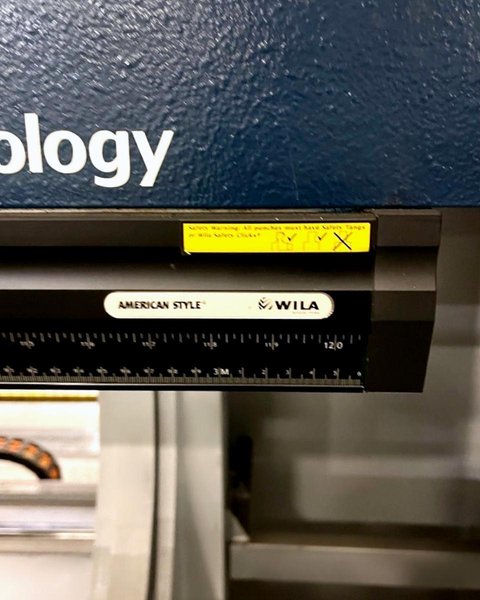

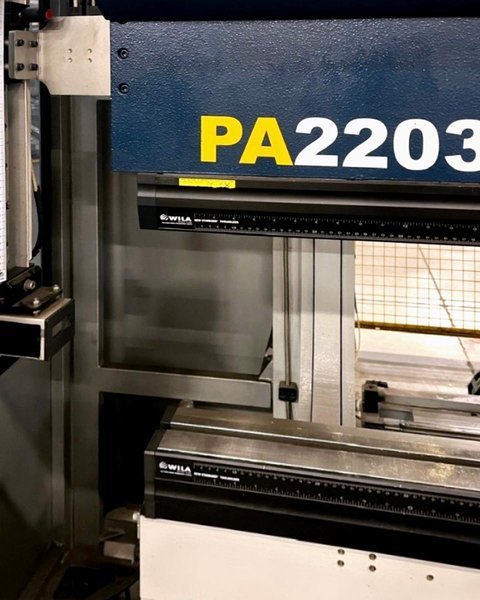

Equipped With: Delem DA-69T Control 17” Color LCD Touch Screen Display Full Windows application suite 256MB Product & Tools Memory Wila American Style Tooling Upper Ram 6 Axis Back Gauge CNC Crowning Table HEXA-C Frame Design 2 Support Arms on Rail ZS- LG Laser Safety Foot Pedal All Available Manuals |
