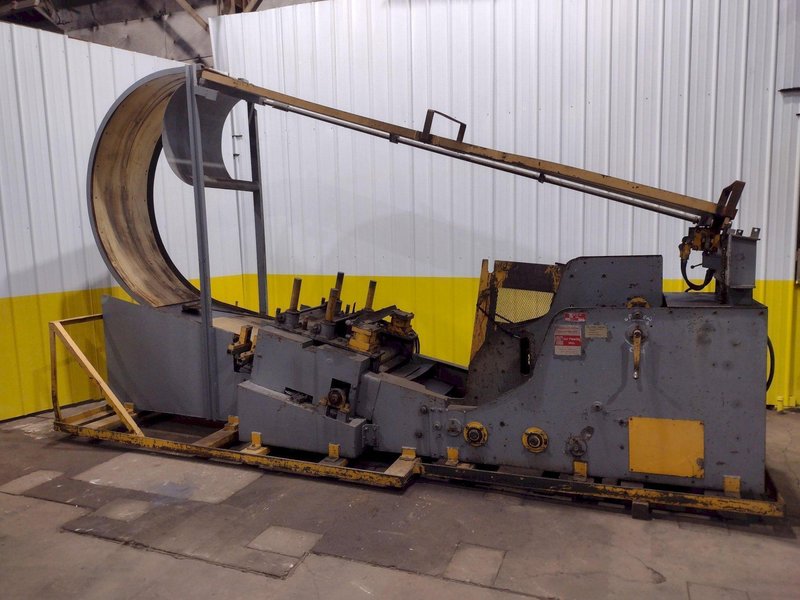

AIR FEEDS Inc. Coil Cradle Straightener Combination Uncoiler 10,000 Lb. x 24" Wide
Brand
Category
Model
CCS-100-2460
Stock #
5385
Year
Not specified
Condition
Used
Location
Ohio
| Coil Weight Capacity: | 10000 pounds |
| Stock Width Capacity | 24 inches |
| Max Stock Thickness Capacity At Full Width | .187 inches |
| Coil O.D. Capacity: | 60 inches |
|
AIR FEEDS INC. Coil Cradle Straightener Combination Uncoiler Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 24"
Stock thickness capacity: .187" x 24" Wide
Stock thickness capacity: .250" x 12" Wide Coil OD capacity: 60"
AIR FEEDS INC. Coil Cradle Straightener Combination Uncoiler Equipment and Features: Coil cradle straightener entry and exit pinch rolls
Air operated adjustable coil cradle straightener entry pinch roll Straightening rolls x four inch diameter
Hand crank upper coil cradle straightening roll adjustment via screw jacks
Inline (Floor Mounted) coil cradle straightener powered straightener
Coil nesting rollers Dual adjustable coil cradle straightener side plates
Reverse loop stock deflector
Over head guide chute (air operated)
Controls |
|
