220 TON AIDA #CF1-220 STRAIGHT SIDE LINK MOTION COLD FORGING SINGLE POINT PRESS

Brand
Model
CF1-220
Stock #
115302
Year
2014
Condition
Used
Location
Ohio
Preliminary Specifications

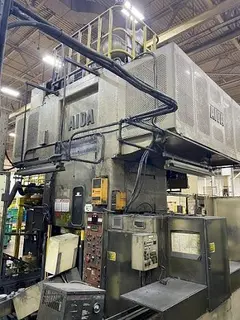

Aida Straight Side Link Motion Cold Forging Single Point Press
Model CF1-220
Year 2014
220 Ton Force
11.81" Stroke (300mm)
19.68" Die Height (500mm)
1.18" Slide Adjustment (30mm)
29.53" LR x 29.53" FB Bolster Area (750mm x 750mm)
29.53" LR x 29.53" FB Slide Area (750mm x 750mm)
25-40 SPM Variable
Equipped With
Allen Bradley PanelView Plus 700

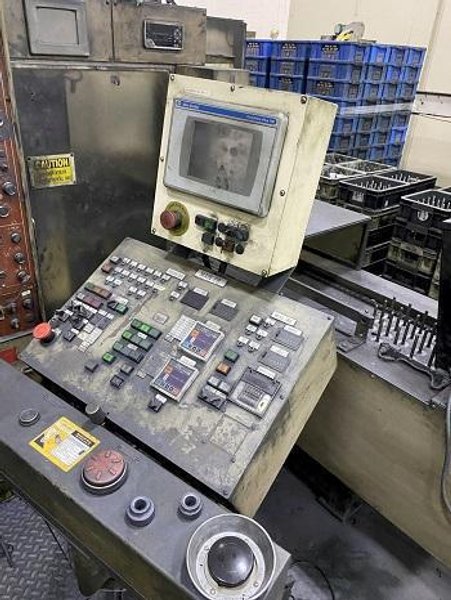

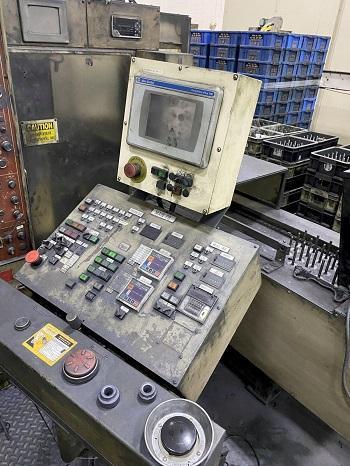

Press Console Controls
Operator Palm Stand
