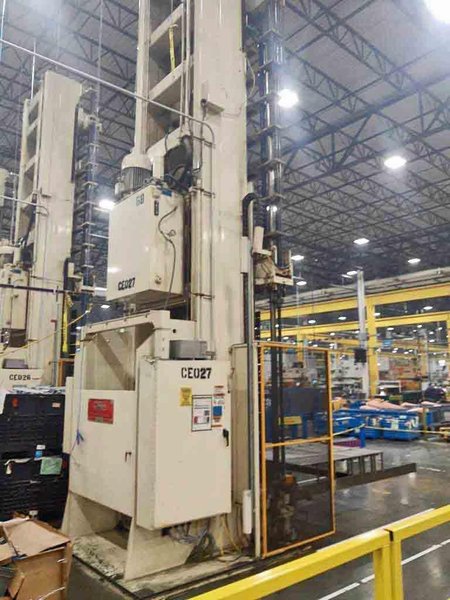

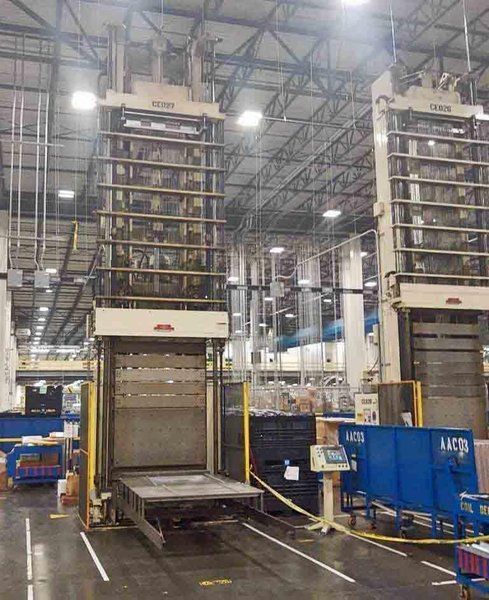

Oak Vertical Expander

Model: CSE-M590-950

Capacity:  108" Max. Coil between End Plates

            48" Min. Coil between End Plates

            50" Max. Fin Length

Pattern:  0.375" - 1.000" x 0.866" Staggered

          2 Rows, 49/50 holes per row (99 Total)

Options:  Compact Single

          Standard Lift with Fixed Enclosures

          Self-Storing Back Plates with Powered Height Adj.

          Carbide Bullets

          1 + 1 Coil Expansion

          Automatic Coil Height Control

          Rod Short-out System (3) plates

          Finial Expander Support Mechanism

          Quick Change Receiver

          Coil Ejector

          Hydraulic System Cooling (oil to air)

          End Sheet Detector

Power:  Machine:  480 Volt, 3 Ph, 60 Hz.

Control:  24 VDC Input, 110 VAC Output

Air:  8 CFM @ 90 PSI

Weight: 39,000 lbs.

Removed and in storage: Toledo, OH.
