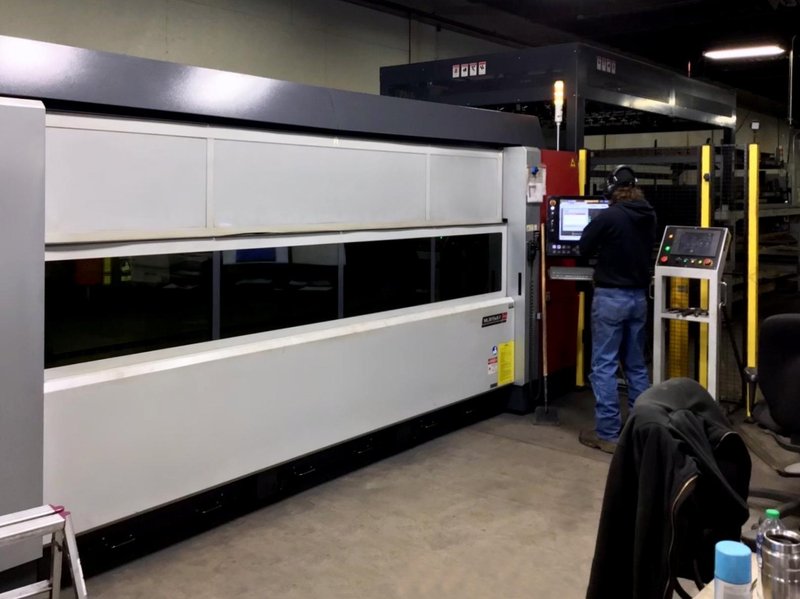

Mitsubishi ML3015eX-F80 (D) Fiber Laser
Brand
Category
Type
Model
ML3015eX-F80 (D)
Stock #
100349
Year
2018
Condition
Like New
Location
Not specified
| Laser Type | Fiber Optic |

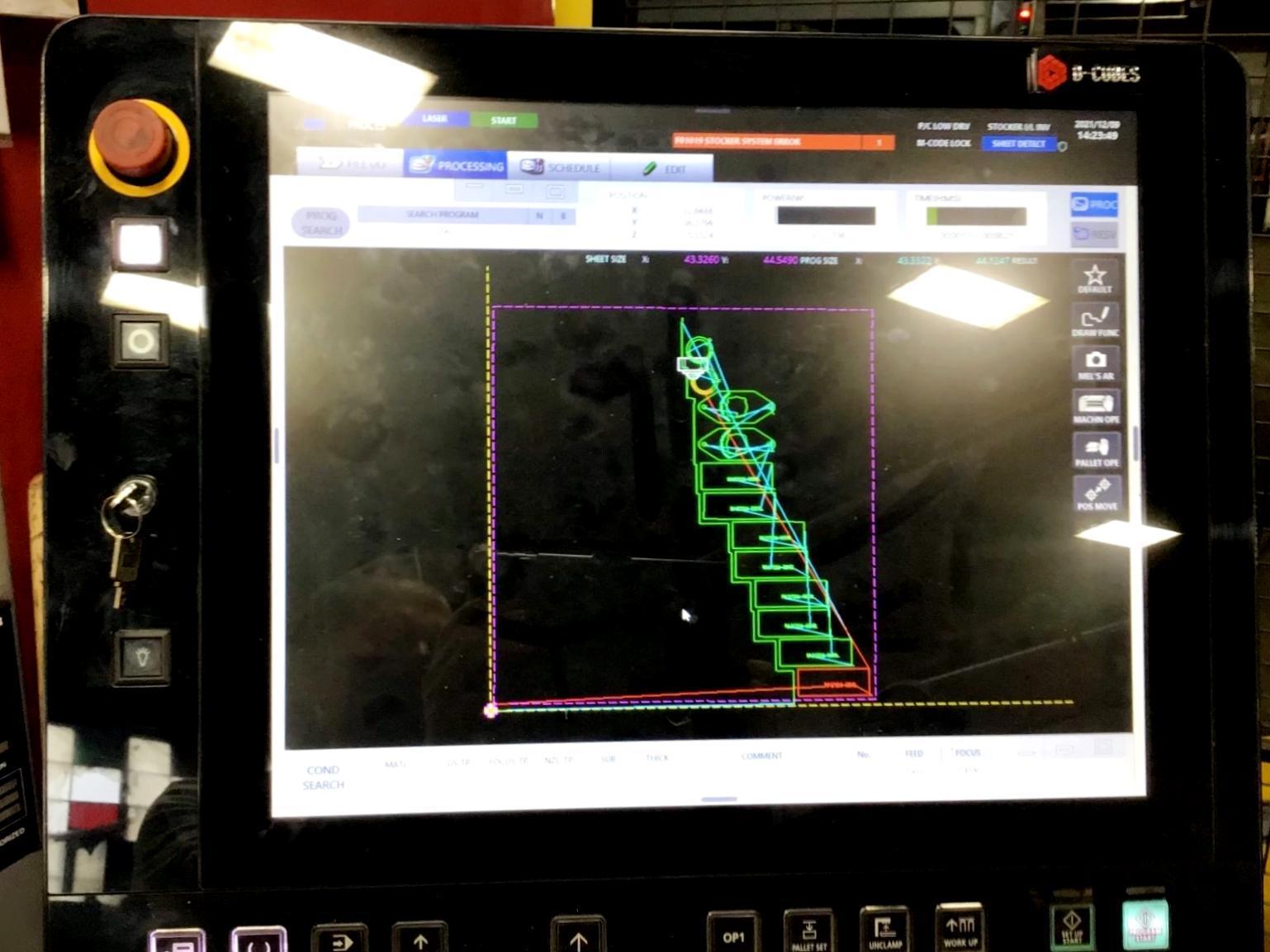

| Control | Mitsubishi M800 CNC |
| Display | 19” Mitsubishi-Electric Touch Screen |
| Machine Design | Flying Optics |
| Machine Structure X/Y | Precision Rack & Pinion |
| Machine Structure Z | Precision Ball Screw |
| Max. Workpiece Size | 120.1” x 60” |
| Table Pass Height | 34.6” |
| X-axis Stroke | 122” |
| Y-axis Stroke | 61” |
| Z-axis Stroke | 5.9” |
| Rapid travel speed (X,Y) | 3,940 Single Axis |
| Rapid Travel Speed (X,Y) | 5,550 Simultaneous |
| Max. Processing Federate | 3,937 IPM |
| Repeat Accuracy | ± .00039" |
| Drive Motor Type | Intelligent AC Servo |
| Max. Workpiece Weight | 2,050 lbs. |
| Processing Head | Zoom-Head |
| Max.Material Thickness - Mild Steel | 1.10" |
| Rated Power Output | 8 KW |
| Power Source | IPG Fiber |
| Max. Material Thickness - Stainless Steel | .98" |
| Max. Material Thickness - Aluminum | .98" |
| Machine Dimensions | L 408.3” x H 88.6” x W 115.2” |
| Machine Weight | 28,090 lbs. |
|
Equipped With: IPG 8000 Watt Fiber Resonator/Engine Mitsubishi M800 19” Control All In One Zoom Head Design Magnetic Breakaway Head One Button Press Automatic Safety Door Two High Pressure Assist Gas Ports HPP Pierce Technology Autofocus (Focal Range From 3.75” - 10”)
|
|
