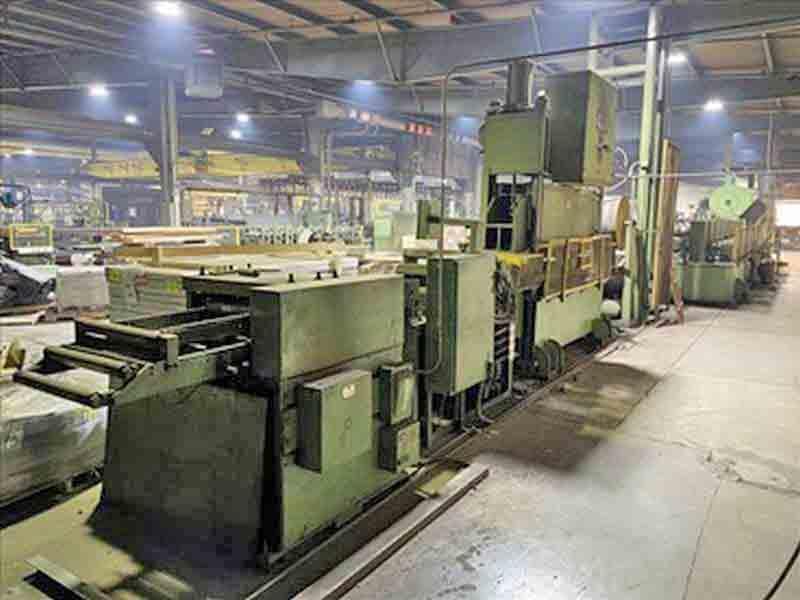

12 Stand 30.00" x 4.00" Bradbury Rollforming Line STOCK #3035
Brand
Category
Type
Model
D3-30-12
Stock #
3035
Year
1977
Condition
Good
Location
Ohio
|
-Model: D3-30-12
-Number of Stands: 12
-Roll Space: 30"
-Arbor Diameter: 4"
-Arbor Center to Center Distance: 28"
-Upper Arbor Adjustment: 6 1/2"
-Line Speed: 80 FPM
-Overall Line Length: 110'
-Line Direction L-R
-9" H x 2.75" Flange "Zee Purlin" Tooling - 12 Ga.-16 Ga. Thick
-6.5" H x 2.50" Flange "Zee Purlin" Tooling - 12 Ga. - 16 Ga. Thick
Consisting of the following:

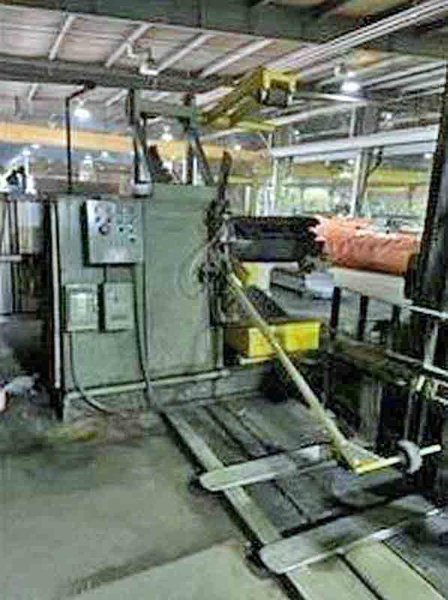

-Bradbury Powered Uncoiler with Coil Car:
Model: 420-36
Coil Capacity: 10,000 lbs.
Coil Width: 36"
Coil I.D. Range: 17.5" - 25" x 60" OD
Pneumatic Holddown
Loop Control
15 HP Main Drive with Electric Brake
Sliding Base
Hydraulic Expansion
Hydraulic Lift & Travel

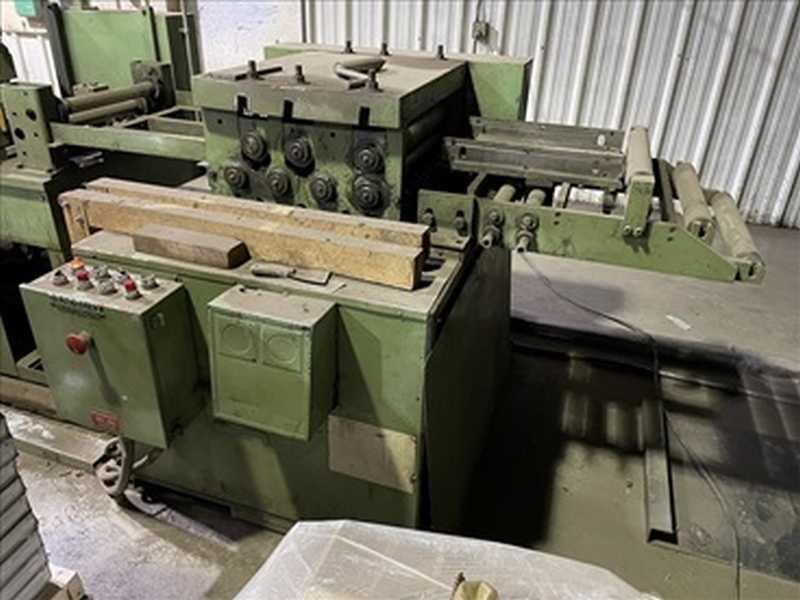

-Bradbury Powered Straightener:
Model: RS4-25-5
Number of Rolls: 5
Powered Driven Pinch Rolls
4" Diameter Straightening Rolls
25" Maximum Width
2 Speed Reducer
7.5 HP Main Motor
-Digital Length Control:
2 Presets, One for Length and Batch

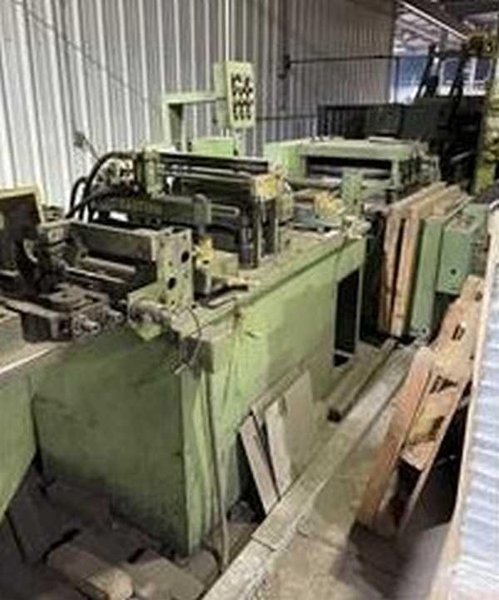

-Lee Schafer Shear end Welder:
Model: H40F
0.028"-0.134" Thickness Capacity
Hydraulic squaring shear and Welding clamps
Auto Tig Weld Cycle
Adjustable Side Guides

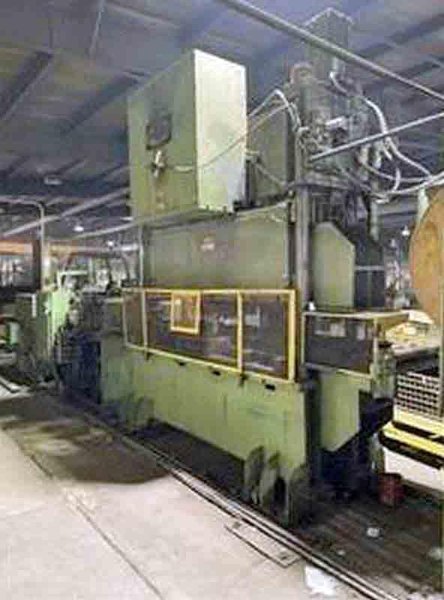

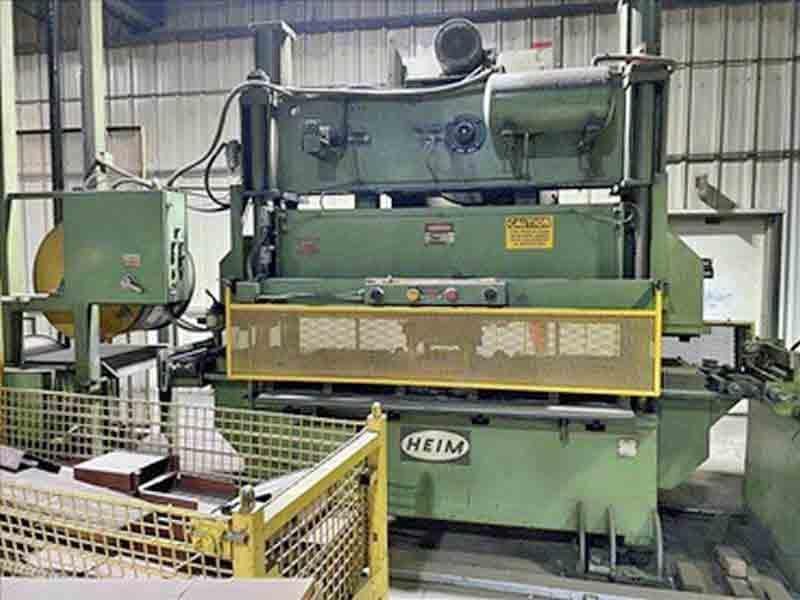

-Heim S100-30-80 Straight Side notch and Pre-Punch Press:
Capacity: 100 Tons
Bed Area: 80" x 30"
10 HP Main Motor
Punch Die with Manual Gauges to change pattern
Air Clutch

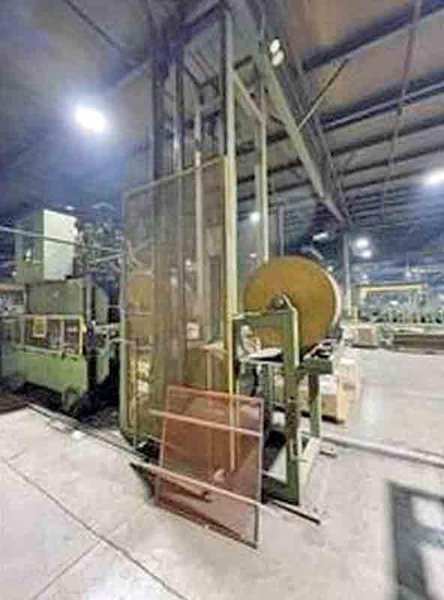

-3 Drum Air Actuated Accumulator:
Allows Rollformer to run continuous during punchng sequence.

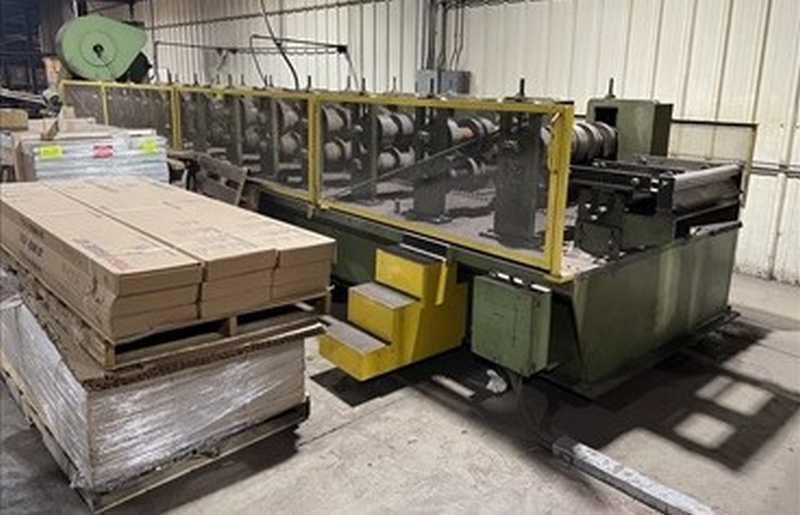

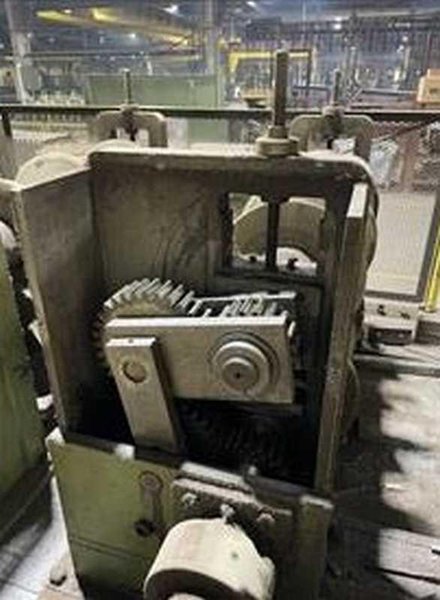

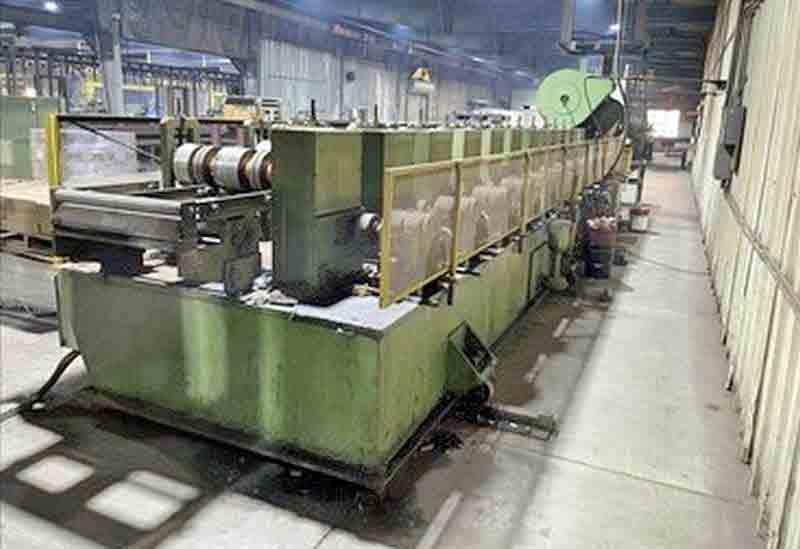

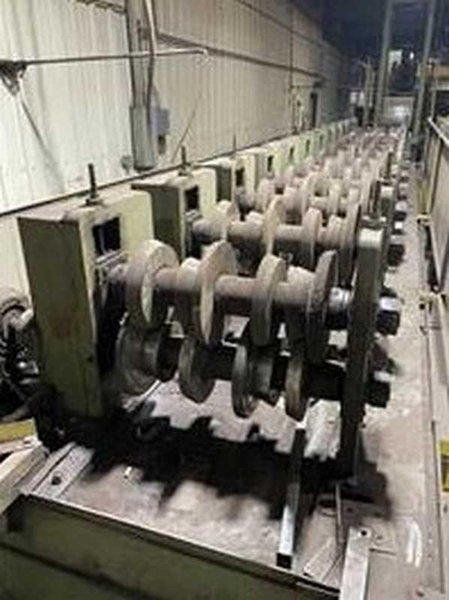

-Bradbury Rollformer:
D3-36-12
12 Stand x 30" Roll Space
4" Arbor Shafts
7" - 13.50" Vertical Adjustment
28" Horizontal Center Distance
60 HP Drive Motor, 1750 RPM
4 Speed Transmission 2.6/1.9/1.33/1.00:1
Air Clutch/Brake
All Lower Arbors Power Driven
Upper Arbor Stands 1, 2, 11, 12 Power Driven

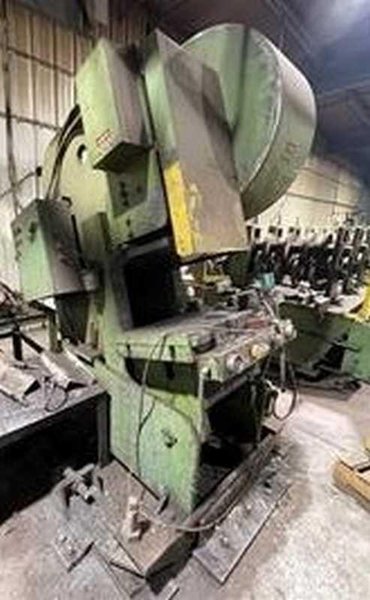

-Heim 7A Cutoff Press:
70 Ton OBI
Tooled with Flying Cutoff Die
Air Cylinder Die Return
4 Total Dies
-30' Runout Conveyor
Dump Section with pins

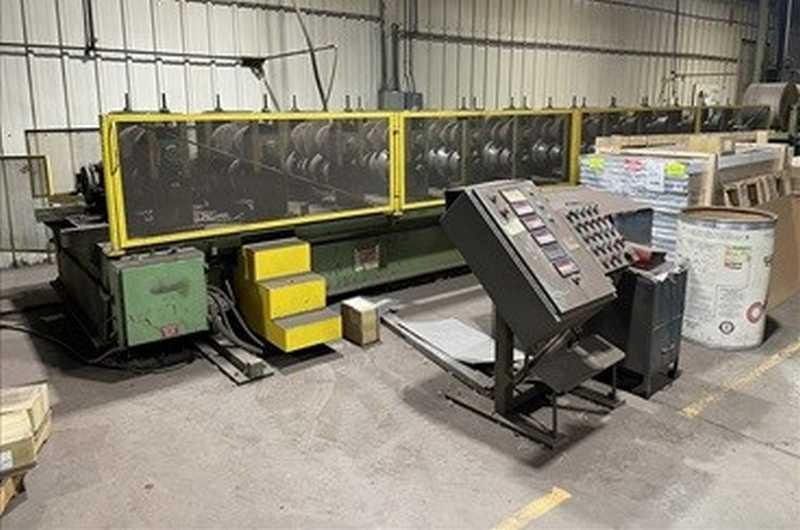

-Complete control system with oporators desk |
