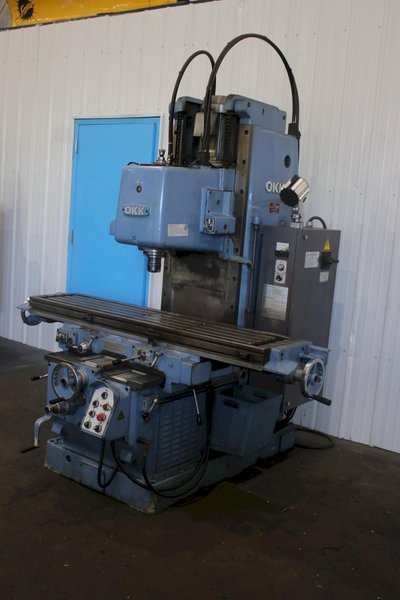

OKK VERTICAL MILL MODEL #MH-3V: STOCK #75084
Brand
Category
Type
Model
MH-3V
Stock #
75084
Year
Not specified
Condition
Not specified
Location
Ohio
|

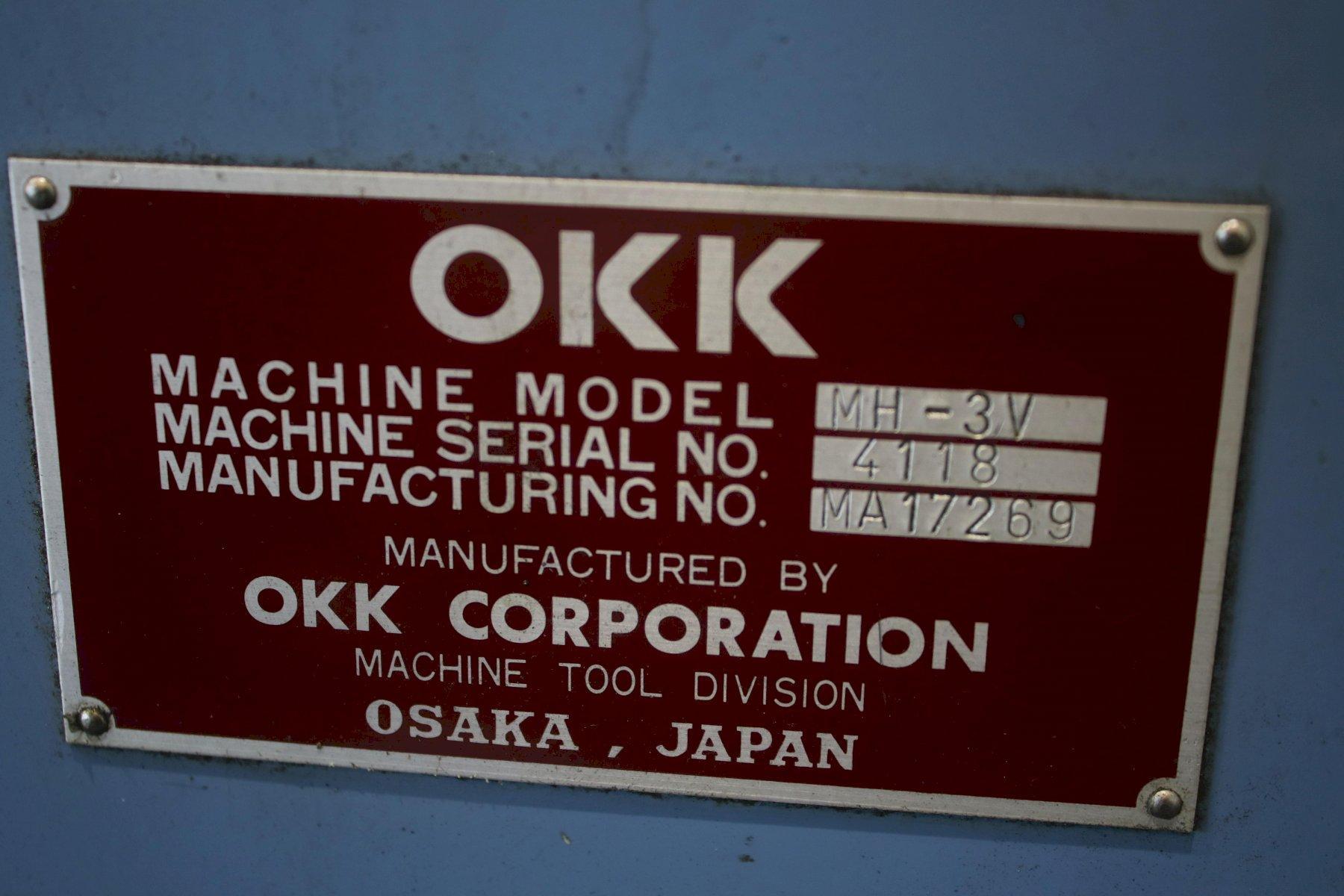

SERIAL ........................... 4118 MODEL ............................ MH-3V TABLE SIZE ....................... 65" x 14 1/4" LONGITUDINAL TRAVEL .............. 36-1/4" SADDLE CROSS TRAVEL .............. 11-3/4" SPINDLE SPEEDS ................... 19 TO 1900 RPM (24) TABLE FEEDS ...................... (12) 1/2 TO 86 1/4 IPM VERTICAL FEEDS ................... (12) 1/5 TO 34 1/2 IPM POWER RAPID TRAVERSE ............. 125 IPM VERTICAL TRAVEL OF HEAD .......... 15-3/4" SPINDLE TO TABLE ................. 3-1/8" TO 18-7/8" SPINDLE TAPER .................... #50 NS POWER FEEDS ...................... 3 AXIS COOLANT SYSTEM ................... YES AUTO LUBE ........................ YES DIGITAL READOUTS ................. YES SPINDLE MOTOR HORSEPOWER ......... 10 FEED MOTOR HORSEPOWER ............ 2 |
