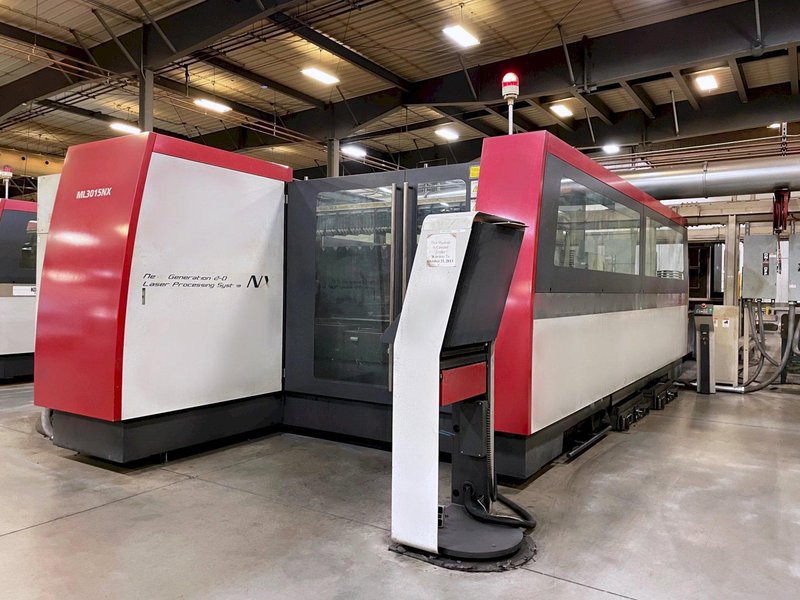

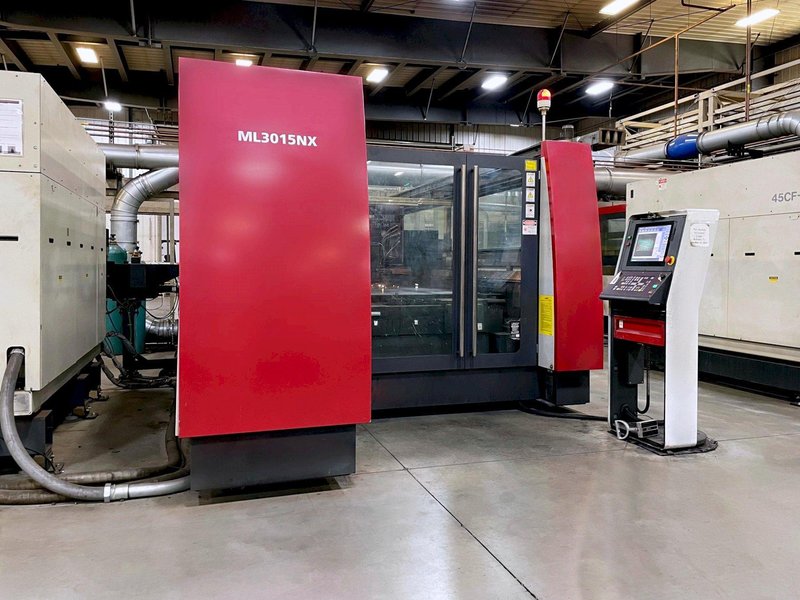

Mitsubishi ML3015NX-45CF-R (2011) 4,500 Watt CO2 Laser
Brand
Category
Type
Model
ML3015NX-45CF-R
Stock #
100347
Year
2011
Condition
Not specified
Location
Illinois

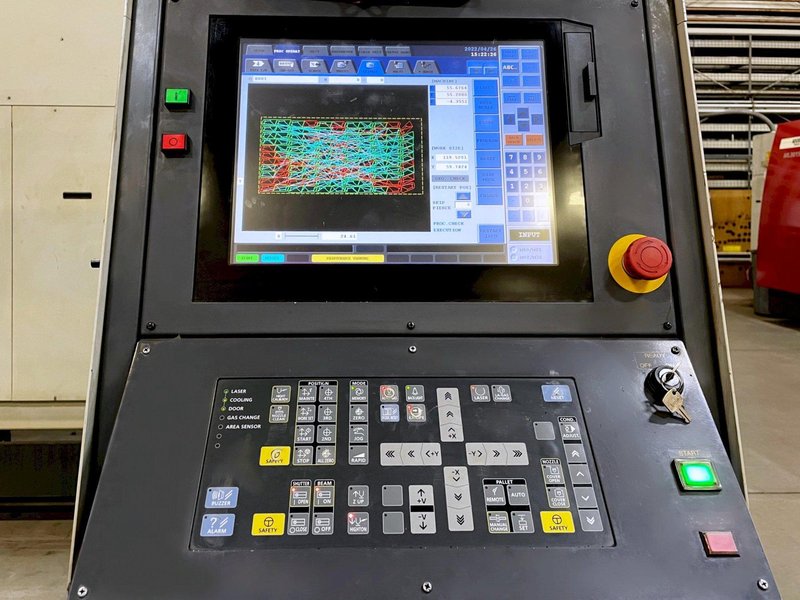

| Control | Mitsubishi 700 Series CNC |
| Display Unit | 15” TFT Color LCD Touch Screen |
| Laser Type | CO2 |

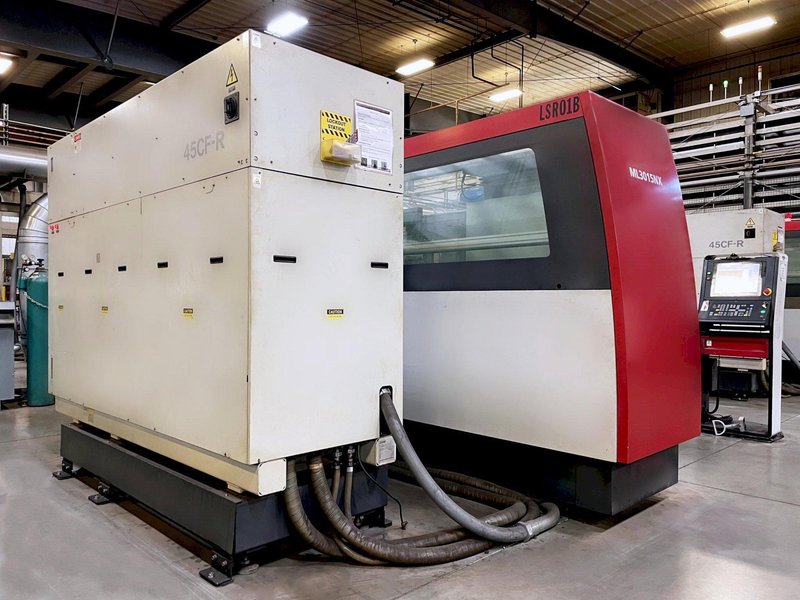

| Resonator Model | ML45CF-R |
| Laser Output Power | 4500 Watts |
| Travel Drive Method | X,Y,Z Sim. 3 Axes |
| Control Method | X,Y, & Z Sim.3 Axis Control |
| X-Axis Stroke | 125.98” |
| Y-Axis Stroke | 62.99” |
| Z-Axis Stroke | 4.7” |
| Max. Work Piece Size | 120” X 60” |
| Table Pass Height | 33.5” |
| Max. Processing Feed Rate | 2360 IPM |
| Sim. Processing Feed Rate | 6680 IPM |
| Max. Work Piece Weight | 2050 Lbs. |
| Min. Command Input | .0001” |
| Drive Motor Type | Intelligent AC Servo |
| Pallet Change Time | Approx. 35 Seconds |
| Position Detection Method | Encoder |
| Machine Structure X,Y Axis | Precision Rack & Pinion |
| Machine Structure Z Axis | Linear |
| Pallet Drive Mechanism | Chain |
| Program Input Method | USB, Computer Link, Ethernet LAN |
| Electrical Requirements | 208 Vac +/- 5%, 3 Phase, 60 Hz |
| Power Requirements | 71 KVA/202 Full Load Amps |
| Installation Dimensions | 489” X 346” |
| Machine Unit Dimensions | L 444” x W 194 x H 94.5” |
| Total System Weight | 34,836 Lbs. |
|

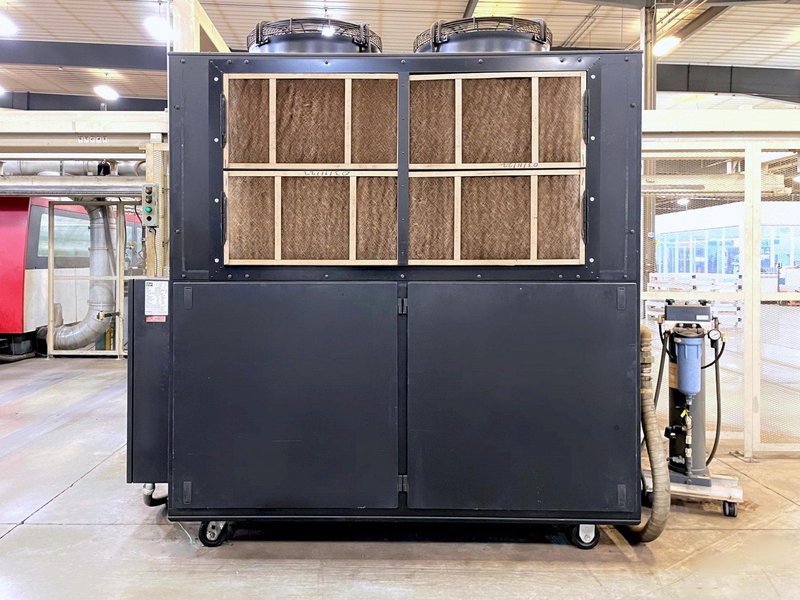

Equipped With: Mitsubishi 700 Series CNC Control 15.0” TFT Color LCD Touch Screen Mitsubishi ML45CF-R 4500 Watt Resonator Duel Pallet Table System Chiller Unit |
|
