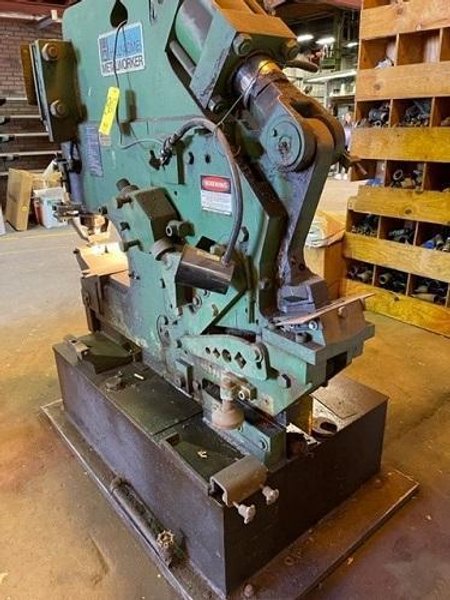

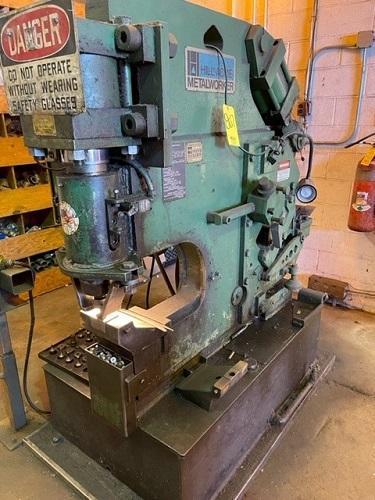

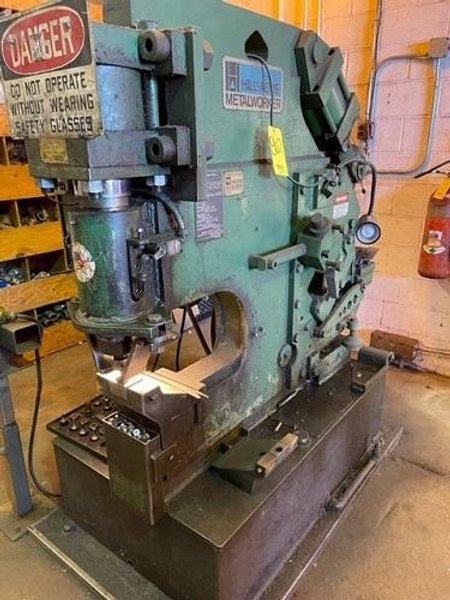

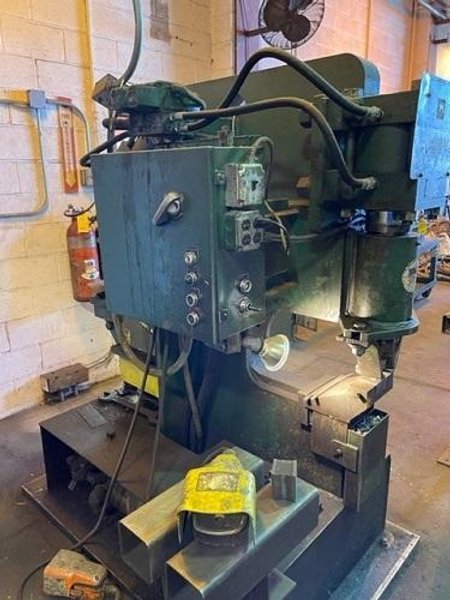

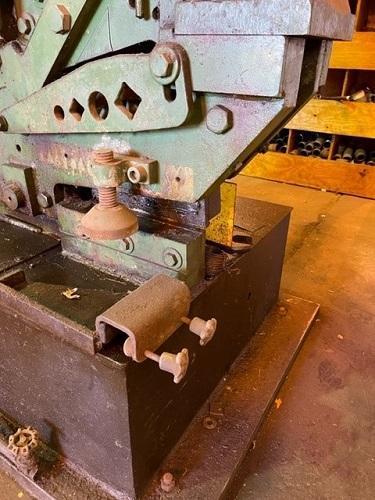

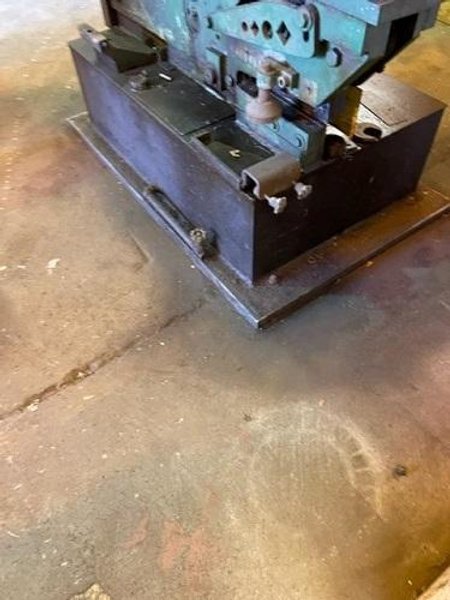

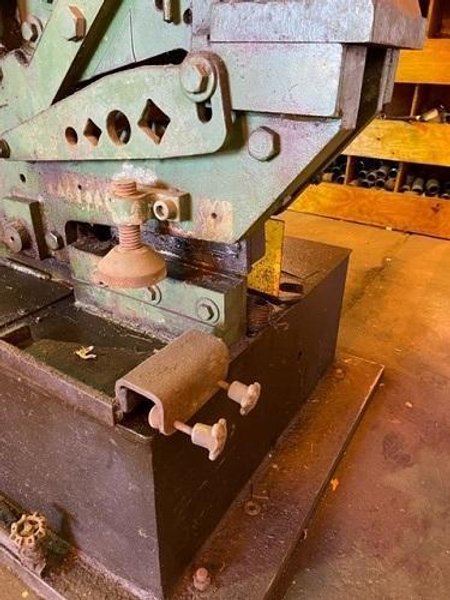

60 TON HILL ACME #4 IRON WORKER
Brand
Category
Type
Model
#4
Stock #
115306
Year
Not specified
Condition
Used
Location
Ohio
| Weight | 60 tons |
|

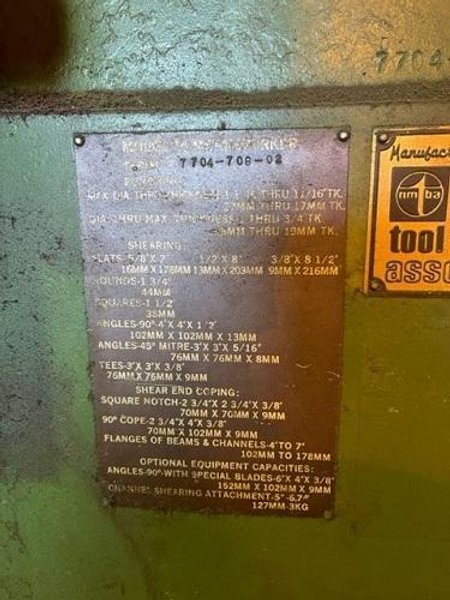

PUNCHING CAPACITY:
60 TONS
MAX. DIA THRU THICKNESS : 1 - 1/16" THRU 11/16" TK
DIA. THRU MAX. THICKNESS : 1" THRU 1"
DEPTH OF THROAT : 20"
MAX LENGTH OF STROKE : 1 1/2"
SHEARING CAPACITY:
FLATS / MAX THICKNESS : 5/8" X 7", 1/2 X 8" WIDTH: 3/8" X 8 1/2"
BLADE LENGTH : 12"
ROUNDS : 1 3/4"
SQUARES : 1 1/2"
ANGLES : 4" X 4" X 1/2"
ANGLES WITH SPECIAL BLADES : 6" X 4" X 3/8"
ANGLES 45DEGREE MITRE : 3" X 3" X 5/16"
TEES : 3" X 3" X 3/8"
CHANNELS WITH OPTIONAL ATTACHMENTS : 5" - 6.7"
SQUARE AND MITRE SHEARING CAPACITY SHOWN WITH LEG UP OR LEG DOWN
NOTCHING CAPACITY:
SHEAR END (STANDARD)
RECTANGULAR NOTCH : 3/8" X 2 3/4" X 4 1/4"
90DEGREE V NOTCH : 3/8" X 1 15/16" DEEP
BEAMS & CHANNELS : 4" TO 7"
PUNCH END (OPTIONAL)
90DEGREE V NOTCH : 5/16" X 2 3/4" DEEP
FLANGES OF BEAMS : 3" TO 6"
FLANGES OF CHANNELS : 3" TO 5"
GENERAL:
HORSEPOWER & RPM : 7 1/2 @ 1200
STROKES PER MIN. PUNCH END
MAX : 60 STROKES @ 1/2" LENGTH
MIN : 30 STROKES @ 1 1/2" LENGTH
OIL REQUIRED : 35 GALLONS
DIE WORKING HEIGHT : 34 1/2"
CUBIC DIMENSION : 39" X 69" X 77"
NET SHIPPING WEIGHT: 6170 LBS
** CATALOG SPECS ** |
|
