CNC solution for Punching, Marking, Drilling and Shearing large volumes of Angles and Flat Bars

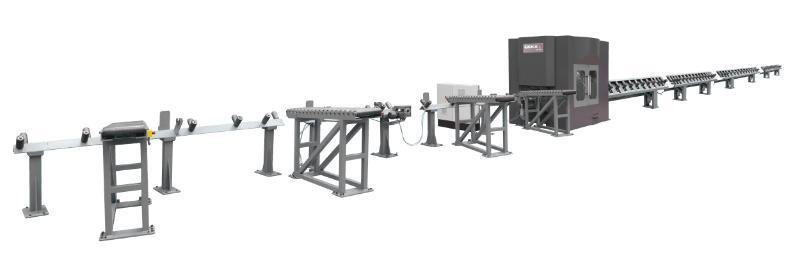

The Gamma Roller 150-2P-DPS is one of the models available in Geka’s Gamma Series of CNC Lines for punching, shearing, marking, and drilling angles automatically. It features a punching unit of up to four punches (two punches per wing) and an angle drill bit. Geka also offers a wide range of optional peripheral equipment that allows customers to configure the Gamma Roller 150-2P-DPS to their specific manufacturing needs.

Some of the benefits of using an automated CNC line is that it speeds up your manufacturing workflow and that they can perform a large variety of processing functions. The Gamma Roller 150-2P-DPS follows the highest standards of precision and complies with all the EC regulations.

• Capacities based on a material resistance of 65,000 tensile.
• The manufacturer reserves the right to make modifications without prior notice.

PULL TYPE FEEDING.

Servo motor driven tracking unit with independent encoder units at both ends of the machine.

PUNCHING UNIT.

Two punches per wing. Diameters up to 1-1/4″. Hydraulic hold-down. CNC-controlled gauge.

SHEARING UNIT.

Clean cuts without waste. Easy and quick access to blades.

USER-INTERFACE.

PC on Windows 10 platform. Network Connectivity. USB ports. Graphic interfaces. Remote Assistance via internet.
