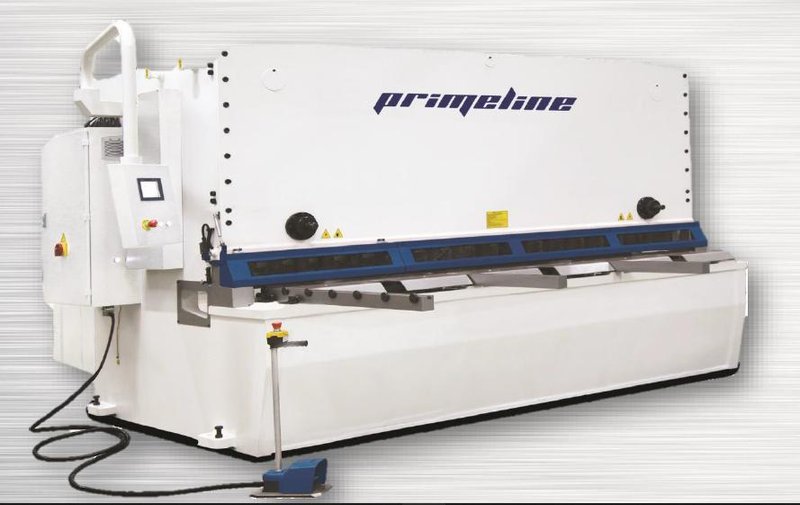

1/4" x 10 ft. New Primeline Hydraulic Shear Model 10H250
Brand
Category
Model
10H250
Stock #
4375
Year
Not specified
Condition
New
Location
New York
|
New Primeline Hydraulic Shear
Model 10H250 FEATURES:
Swing-beam design with streamline appearance
All steel frame, featuring box-type welded construction of the
main frame and blade beam, with dimensions optimized
by computer-assisted design to guarantee maximum rigidity
Accurate upper blade beam guiding system
Swivel-mounted hydraulic cylinders for maximum durability.
Hydraulic unit located for convenient and easy access
High-pressure hydraulic holddowns
Low rake-angle of upper blade (minimizing distortion of narrow
cut-offs)
Rapid, single-point blade-clearance (blade-gap) adjustment device
Easy blade re-setting
Slow-stroking device (inching) to check blade clearance
Easy adjustment of cutting length for shortening stroke when
desirable for cutting narrow materials. When the stroke is
shortened, the number of strokes per minute increases
proportionately.
Elgo go-to control with 200 steps of memory
Deep gap (throat) to allow shearing of plates longer than the length
of the blades, using slitting technique
Double-acting cylinders for return of blade beam
Ball transfers in machine table
Little maintenance required as there are very few moving parts,
the main ones being self-lubricated
Rear bottom side of shear completely open for addition of stacking
and conveying devices
Light beam shearing gauge
Jack bolts in machine frame for blade adjustment after sharpening,
eliminating the need for shims Low voltage at the controls Standard equipment:
The complete hydraulic system with motor and controls
Goto Back Gauge, 39" Range - Swing Up Type Elgo "touch" control for go-to and sequential programming
Rapid, single-point blade-clearance (blade-gap) adjustment device
Special shock-resistant blades (59-60 HRC) suitable for cutting
quantities of mild steel and stainless steel to the indicated capacities
Hydraulic fluid
Finger guard
Left-hand squaring arm, 40", with scale in inches, fitted with two
squaring guides and one retractable stop
2 Support arms with scale and flip stops
Light-beam shearing gauge
Hydraulic pump with three-year replacement warranty
Electrics for 3/60/220 or 3/60/440. Low voltage at the controls.
Key-lock switch for On/Off for the power supply. Emergency
stop palm button.
Electric foot switch on a trailing lead
Operating manual, maintenance tools
SAFETY:
The cost of bodily injury and poor moral, significantly increase operating expenses.
Comprehensive training programs, which include safety instructions, are your best protection
against employee injury. For operator safety programs to be successful, they must be applied with
the addition of safety systems. PRIMELINE Shears are designed with the operator's safety in
mind. PRIMELINE shears offer ADDITIONAL FEATURES, which that can be purchased to enhance
the safety of your operators. See the various Safety options listed in this quotation.
10H250 SPECIFICATIONS:
Capacity - mild steel up to 80000 PSI with yield
strengths at or below 50% of tensile strength for maximum
capacity shown - 10' x 1/4"
Capacity - mild stainless steel - 10' x 5/32"
Cutting Length - 122"
Throat depth (gap) - 9.84"
Rake angle of upper blade - 1 1/2 degrees
Strokes per minute - full length at full capacity - 21
Strokes per minute - full length at 50% capacity - 26
Backgauge range - 39", swing-up type
Hydraulic holddowns - 14
Motor HP - 16
Overall Dimensions - (L x W x H) 144" x 104" x 63"
Approximate weight - 13,200#
Primeline Hydraulic Power Squaring Shear, Swing Beam Design with Manual Blade Gap Adjustment and Goto Backgauge FOB: Maryland |
