Weight | 20000 pounds |
SERIAL ...................... 1185/3539

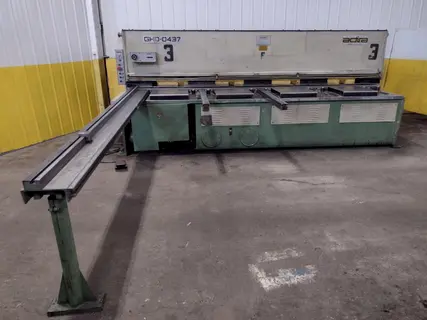

MODEL ....................... GHO-0437
CAPACITY MILD STEEL ......... .156" (9 GA)
LENGTH OF BLADES ............ 145"
POWERED BACK GAUGE .......... 36"
BACK GUAGE READOUT .......... YES DEPTH OF GAP ................ 13"
STROKE PER MINUTE ........... 11 @ FULL STROKE
BLADE CLEARANCE ADJUSTMENT .. MANUAL
BLADE CLEARANCE READOUT ..... DIAL INDICATOR CLADE RAKE ANGLE ............ ADJUSTABLE NUMBER OF HOLD DOWNS ........ 11
LENGTH OF SQUARING ARM ...... 12' (144") LENGTH OF FRONT SUPPORTS .... 2 @ 60" PASSLINE HEIGHT ............. 33"
OPERATING MODES ............. SINGLE OR CONTINUOUS
ELECTRIC FOOT PEDAL TRIP .... YES E-STOP BUTTON ............... YES BACKGUAGE MOTOR ............. 1 HP MAIN HYDRALIC MOTOR ......... 10 HP |
