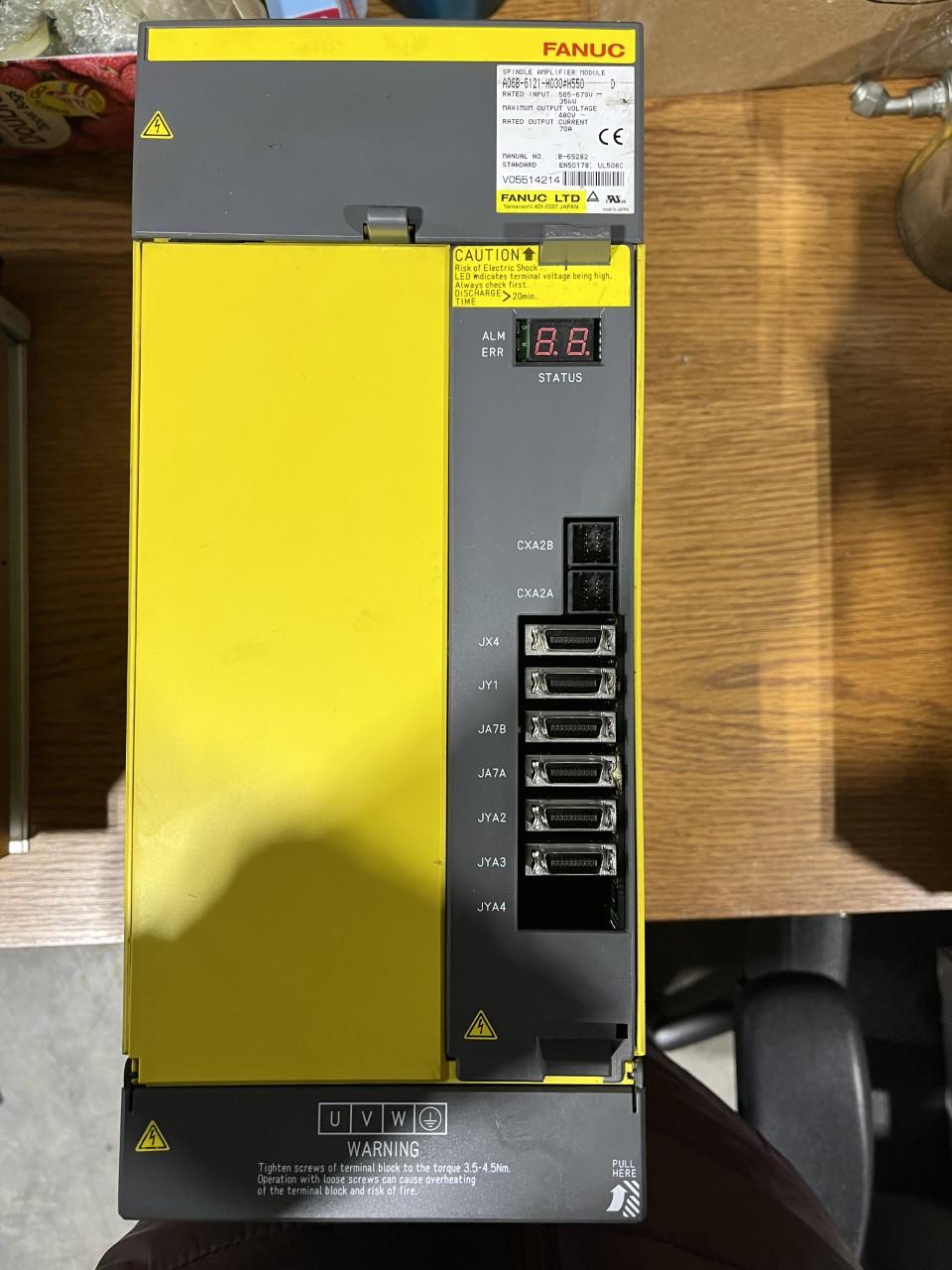

FANUC SPINDLE AMPLIFIER MODULE REFURBISHED
Category
Type
Stock #
FAN550
Condition
Reconditioned
Location
Iowa
Brand
Fanuc
Quantity
1
Description

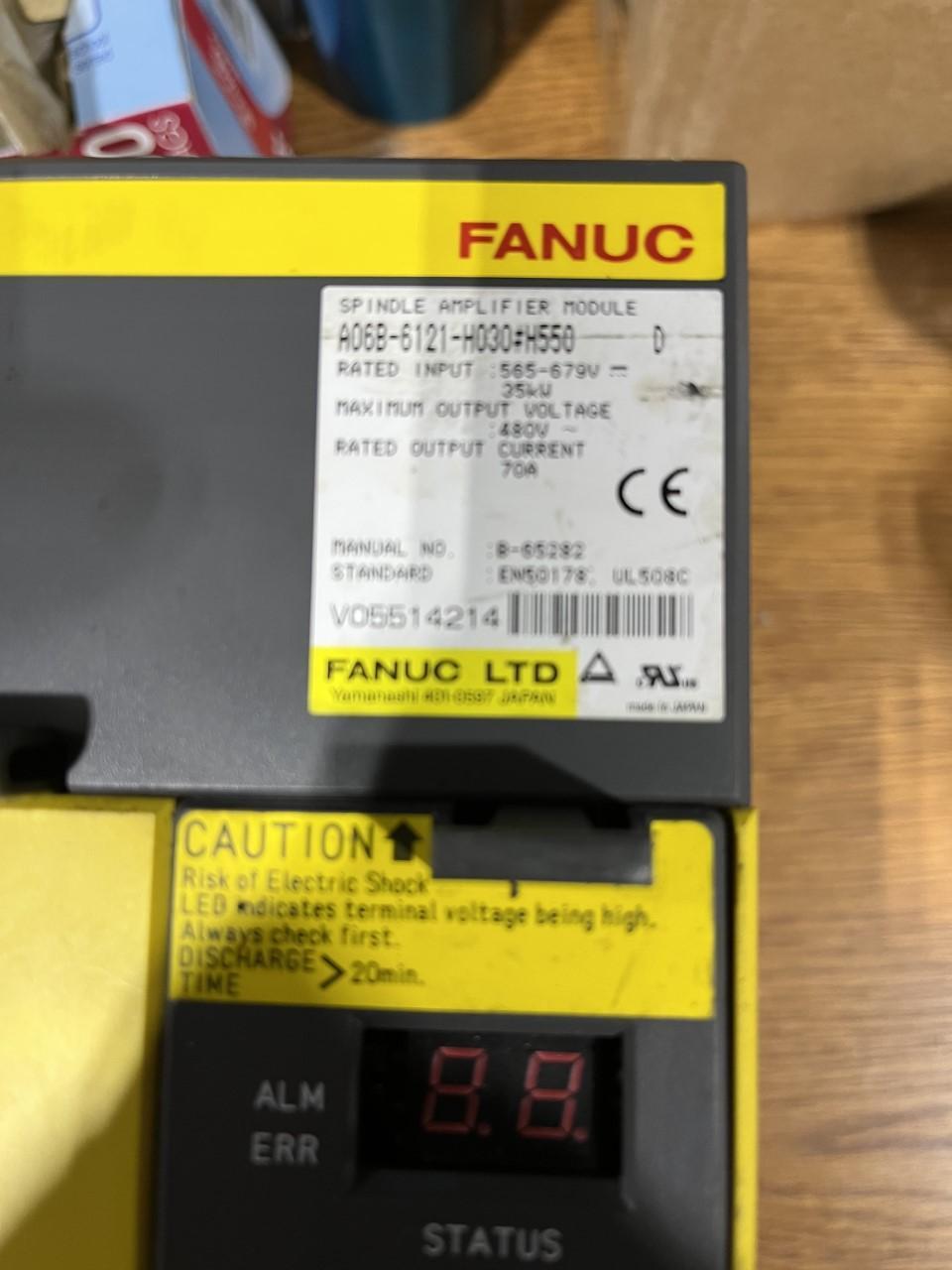

A06B-6121-H030#H550
|
Features of the A06B6121H030#H550
The CNC Fanuc servo amp A06B6121H030#H550 module is a three-phase 400 CAC to 480 VAC main power supply unit. The αi SPM-30HVI has a rated output of 170 A and works with αi I 60HV motors. Applicable CNCs for this unit are 16i-B, 18i-B, 21i-B, 0i-B/C/D, and 30i/31i/32i. The speed control range for the A06B6121H030#H550 is speed ratio 1:100. The speed variation rate is 0.1% or less of maximum speed. It has a -15% to +10% allowable voltage deviation. The power frequency for the A06B6121H030#H550 αi SPM-30HVI is 50/60Hz, ±1Hz. The operation of the unit should be at an ambient temperature of 0 to 55°C. The humidity where the unit is operating should be at 90% RH or below and the vibration should be below 0.5 G.
The A06B-6121-H030#H550 is a Servo MODULE MDL SPM-30HVi that is manufactured by FANUC. These products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage.
The Fanuc servo amp A06B6121H030#H550 αi SPM-30HVI must be installed in a cabinet that is sealed for environmental requirements operating in an environment with an ambient temperature of 0 to 55°C during operation and -20 to 60°C when storing or transporting. Other environmental conditions to be aware of include humidity which should be 90% RH or below, and condensation-free. While in operation, the vibration should remain below 0.5G. To avoid damage, the unit should be free of foreign matter or corrosive materials. It should be kept from water droplets and mist.
Installation should be in a magnetic cabinet
In order to prevent heat from building up behind the Fanuc servo amp A06B6121H030#H550 αi SPM-30HVI unit and causing damage, appropriate measures should be taken. Installation should be in a magnetic cabinet with a heat sink at the rear of the unit. The heat sink dissipates the heat generated by semiconductors. Keep the servo amp A06B6121H030#H550 αi SPM-30HVI installed where it can be inspected through removal easily, making remounting simple. The unit must be installed in a vertical position.
ALPHA I SERVO MODULE MDL SPM-30HVI
The servo amplifier module A06B6121H030#H550 is an αi SPM-30HVI module manufactured by Fanuc for the αi SP series as a 1 servo sensor input unit. The αi SP is one of two types in the αi SP series. The two types are the 200-V input series and the 400V input series. The 200-V series drives a servo motor of the 200-V input series. The 400-V input series drives a servo motor of the 400-V input series. The Fanuc A06B6121H030#H550 is an amplifier that supports 400-V input.
|
