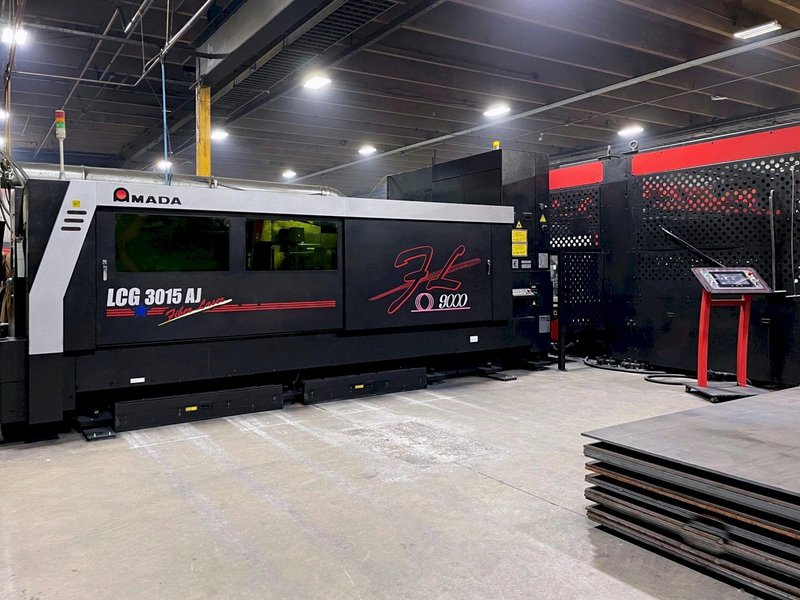

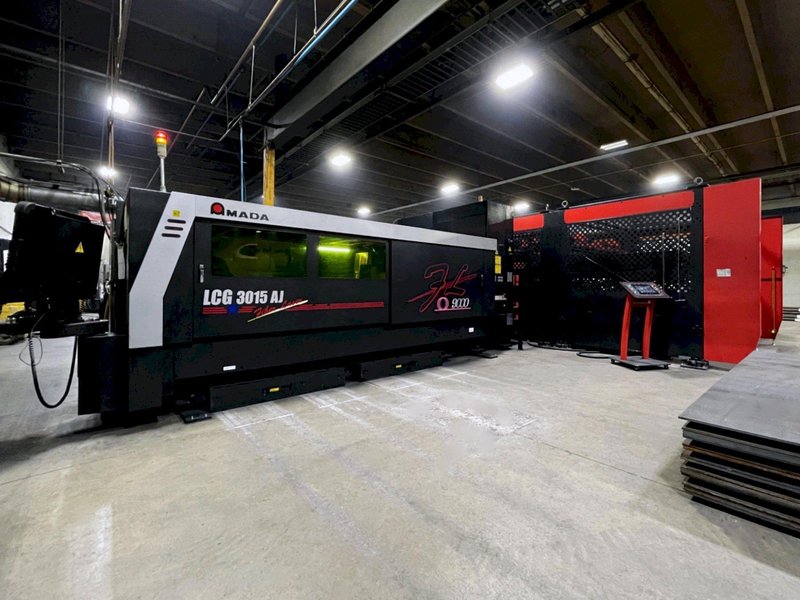

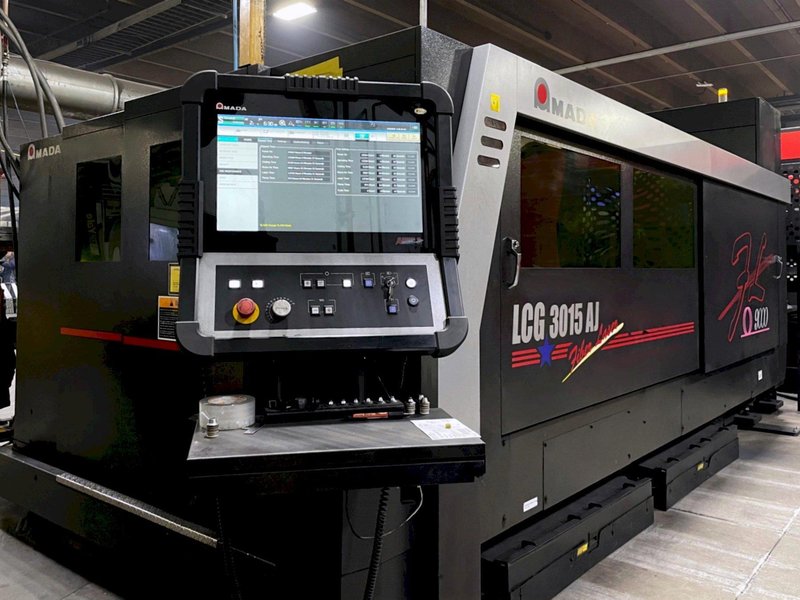

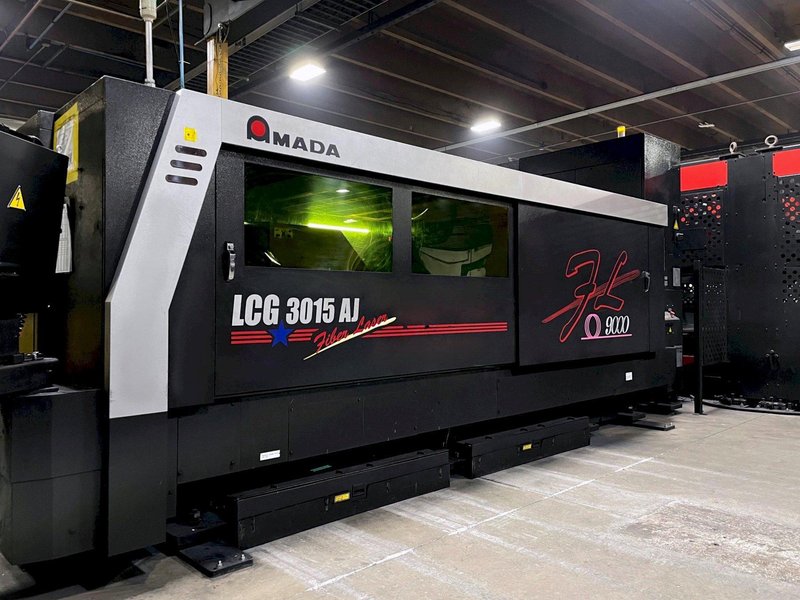

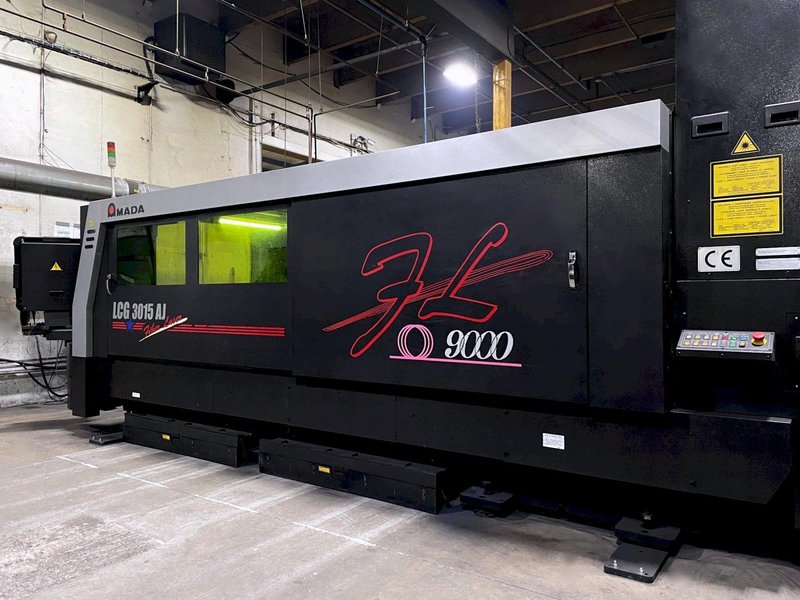

Amada LCG-3015 AJ 9KW Fiber
Brand
Category
Type
Model
LCG-3015 AJ Fiber
Stock #
100325
Year
2017
Condition
Excellent
Location
Not specified

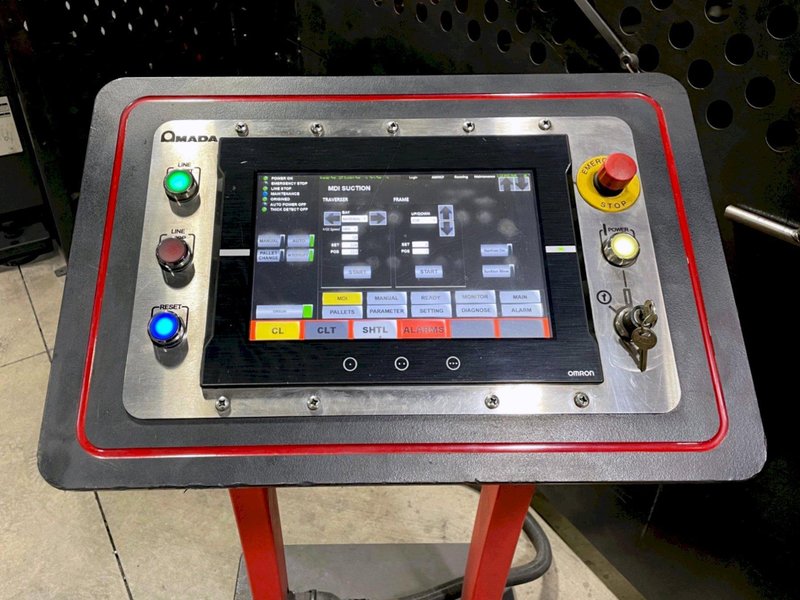

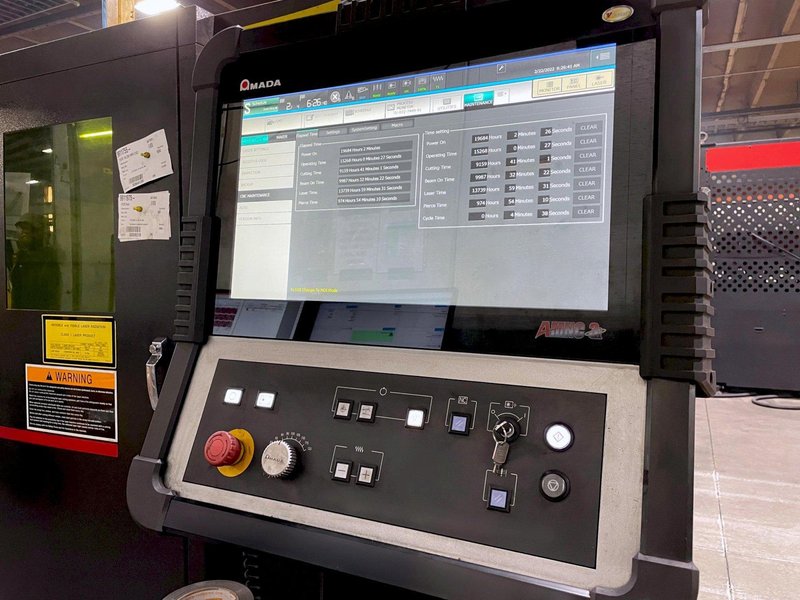

| Control | AMNC 3i CNC |
| Display | Touchscreen Color LCD |
| Control Function X,Y,Z | Sim. Focus Lens B-Axis |

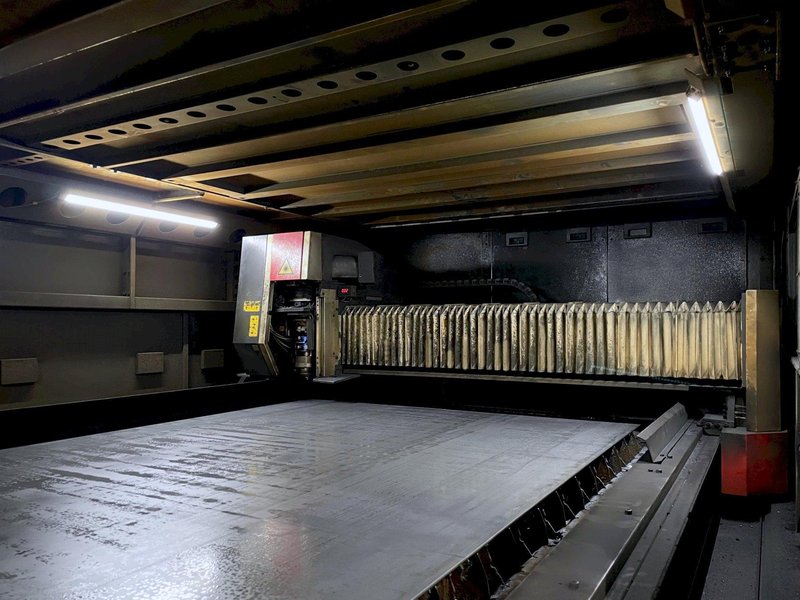

| Max. Sheet Size X,Y | 120" x 60" |
| Max. Axis Travel X,Y,Z | 121" x 61" x 3.93" |
| Travel Method | X,Y-Axis Stationary Table |
| Travel Method | Z-Axis Movement Cutting Head |
| Control Method X,Y,Z | Sim. 3-Axis Control |
| Drive Motors | Fanuc AC Servo Motors |
| Max. Axis Pos. Speed X,Y | 4,724"/min. Per Axis |
| Max. Axis Pos. Speed X,Y | 6,693"/min. 45° Vector |
| Max. Z-Axis Speed | 4,724"/min. |
| Repeatability | 0.0002" |
| Max. Material Weight | 2,000 lbs. |
| Data Storage | Compact Flash Drive |
| Resonator Type | Fiber |
| Resonator | LD Excited YB Fiber |
| Power Output | 9KW |
| Laser Wavelength | 1.08 m |
| Power Stability | ±2% |
| Beam Divergence | < 3mm-mrad |
| Pulse Frequency | 1–10000Hz |
| Pulse Duty | 0–100% |
| Assist Gas | 4 Ports w/ NC Pressure Control |
| Electrical Req. | 200V, 3-Phase, 60Hz, 65kVA Max |
|

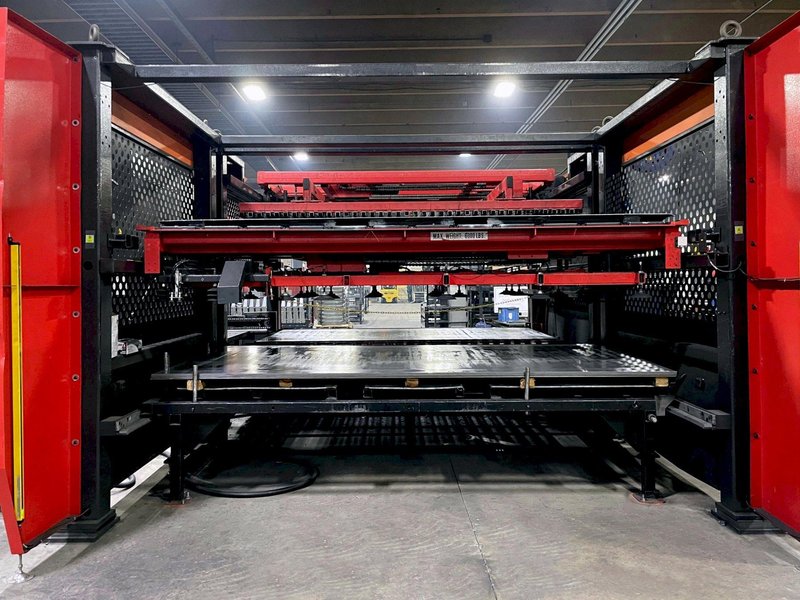

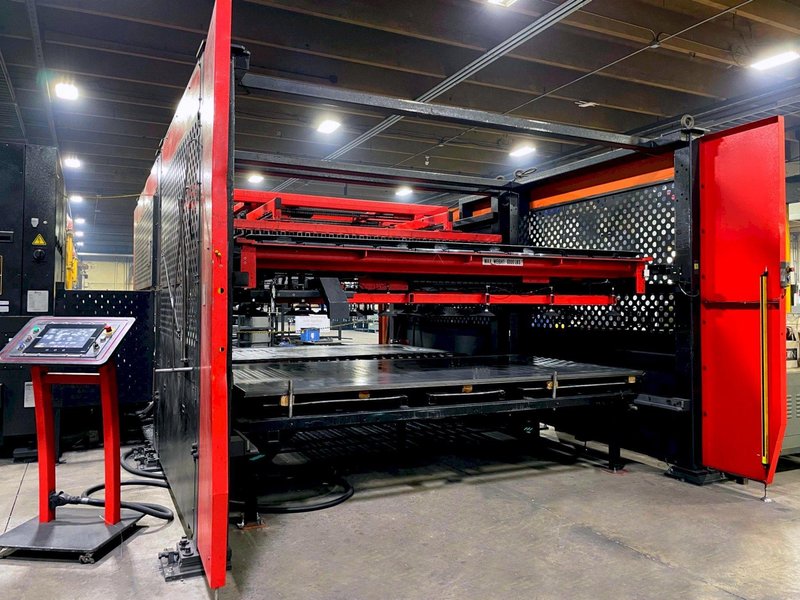

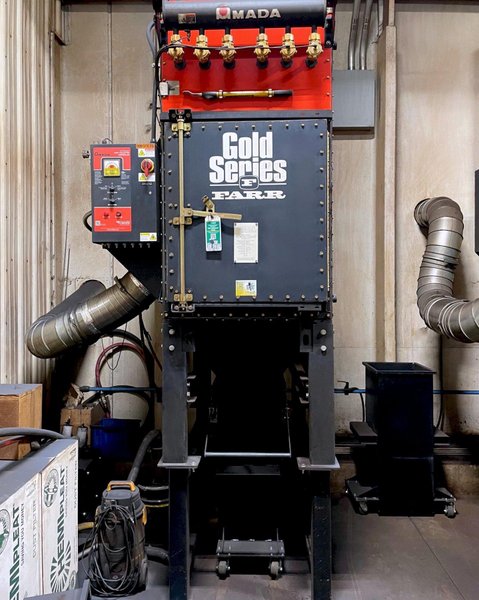

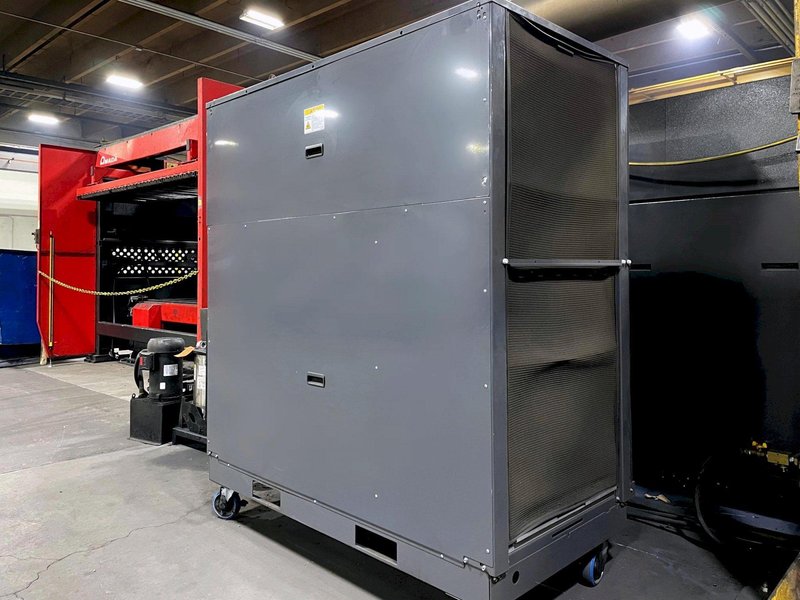

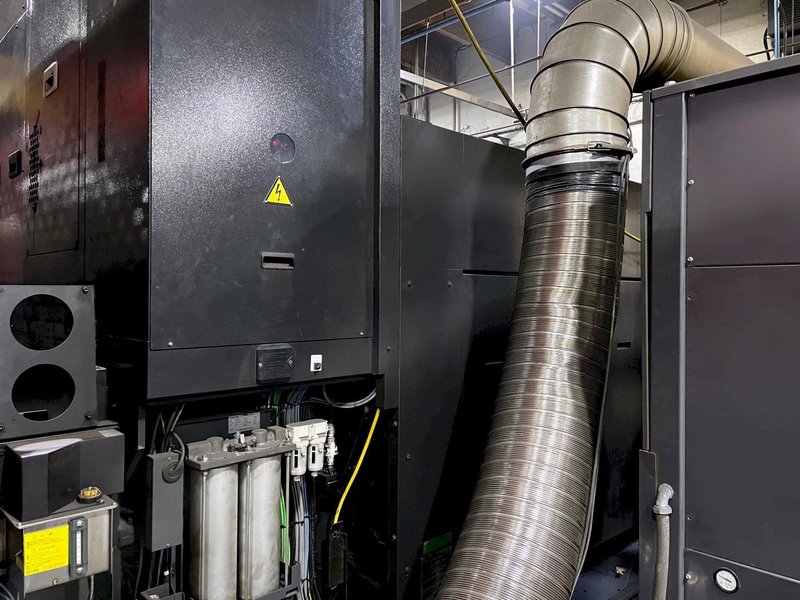

Equipped With: AMS 3015 CL Auto Load/Unload LD Excited YB 9kW Fiber Power Source Interlocked Enclosure NC Assist Gas B-Axis NC Focus Integrated Beam Purge 150 MM Lens, 190 MM Lens High-Speed Cutting Head Active Cut™ Camfil Dust collector Orion Chiller Unit |
|
