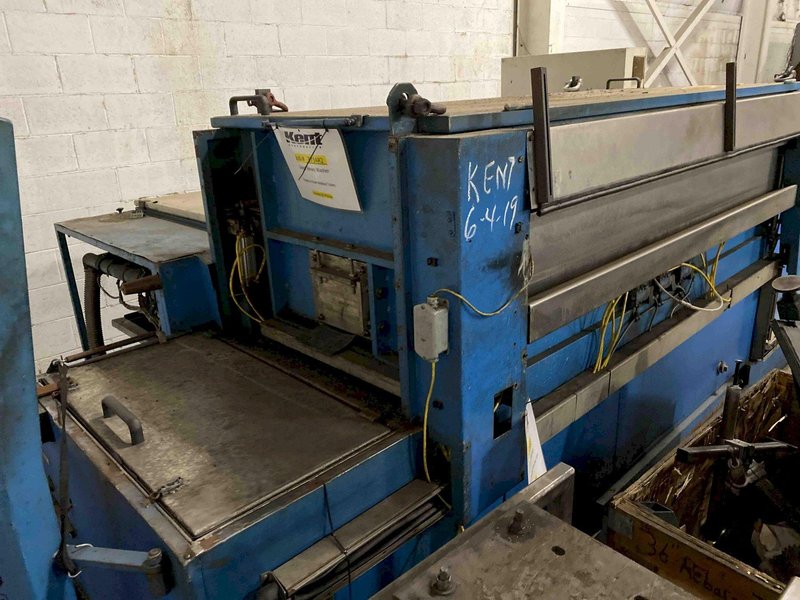

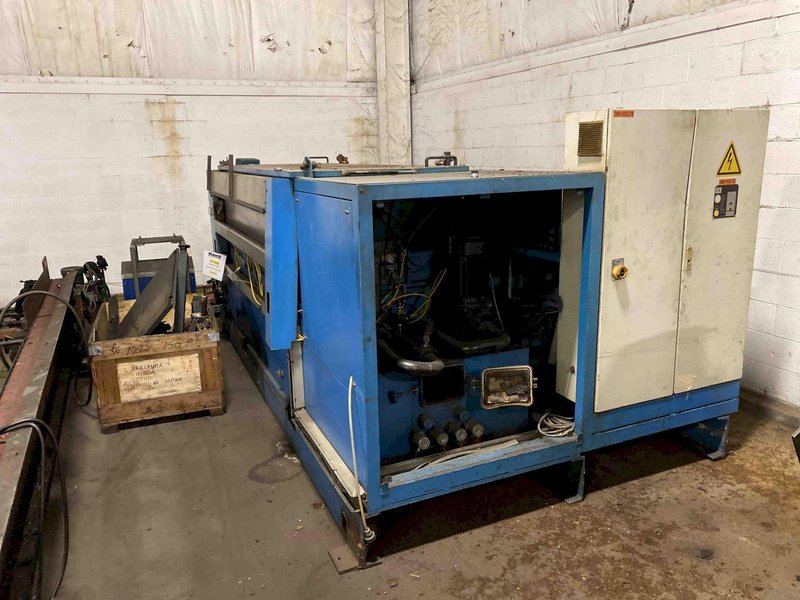

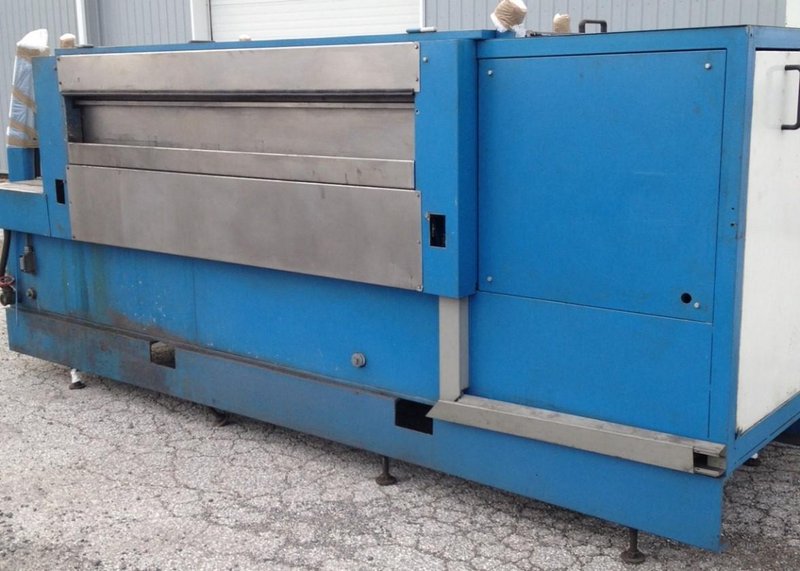

3734R2 Used BEWO Washer

Technical Data:

Round tubes                                          : 3” OD Max

Max. Product length                                : 80”

Cycle time                                              : from 2 - 100 s. / Drum 21 B

Washing liquid                                        : watery solution (ph 7 to max. ph 11)

                                                           Temperature + 60 ° C to max. + 70° C.

                                                           It must be assumed that the selected washing liquid solution

                                                           is able to loosen oil grease and other soil from the parts to be

                                                           cleaned

Fill-in quantity                                         : ca. 1100 l

Power for heating                                   : ca. 30 kW stainless steel (2,5 m, 3 m)

Power for pump                                      : ca, 1x 7.5kW (for 3m)

Power for drive of drum                           : ca. 0,55 kW

Power for drive grease separator             : ca. 0,14 kW

Filter element                                         : ca. 5 mm MW/1 mm MW

Tension                                                 : 230/400 V, 50 Hz

Control voltage                                       : 24 V DC

All specs are approximate and buyer must inspect the machine before delivery

Not Included Items (Outside Quoted Scope of Supply)

·        Import duties, tariffs or taxes

·        Machine installation labor or supervision (unless otherwise purchased)

·        Installation materials (i.e., foundation fasteners, grouting materials, conduit, etc.,)

·        Power supply leads main disconnect

·        Air supply line to FRL on unit

·        Materials to test machine in our facilities

·        Spare parts

·        Washing liquids

·        Degreaser

·        Installation and Training
