2,400 TON MULLER WEINGARTEN PSM 4.360 SCREW PRESS
Brand
Category
Type
Model
PSM 4.360
Stock #
114104
Year
1990
Condition
Used
Location
Ohio
|

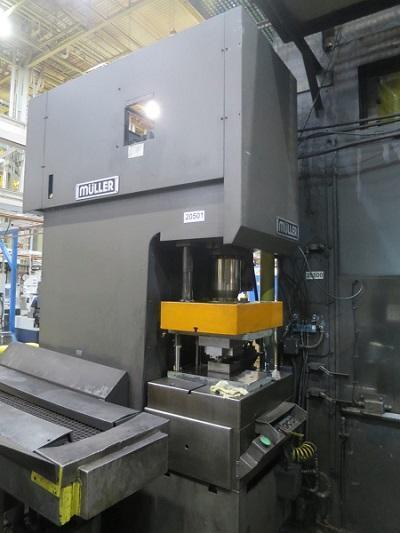

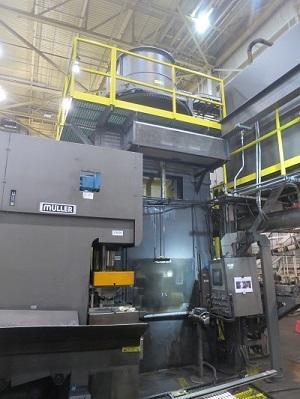

2,400 TON MULLER WEINGARTEN PSM 4.360 SCREW PRESS
Manufacturer - Muller Weingarten (Schuler)
Year - 1991, New Roller & Thrust Bearing 2013
Type - screw press
Model number - PSM 4.360
Tie rods - 4
Screw diameter - 360MM
Gross working energy - 140 kNm
Nominal force - 13,000 Kn (1400 ton)
Continuously Permitted Force - 21,000 Kn (2400 ton)
Die-to-Die Blow Force - 26,000 Kn (2800 ton)
Strokes per minute - 24
Stroke of slide - 180MM - 520MM
Distance Between Table & Ram - 1000MM (Stroke Down)
Distance between Table & Ram - 1520MM (Stroke Up)
Width between guides - 950MM
Clamping Area - 930MM (l-r)
Clamping Area - 1000MM (f-b)
Includes:

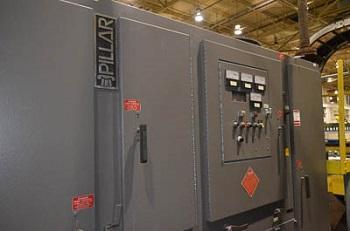

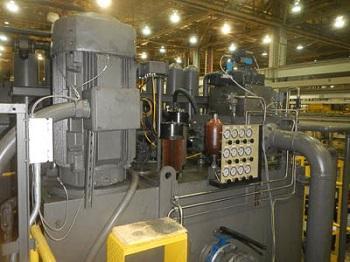

Press Controls, Motors and Electrics
Approximate dimensions:
Height Above the Floor - 6300MM
Press Weight - Approximately 160,000 lbs
|
