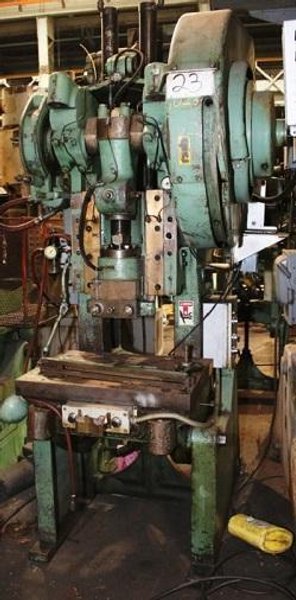

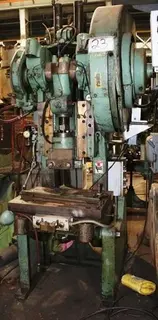

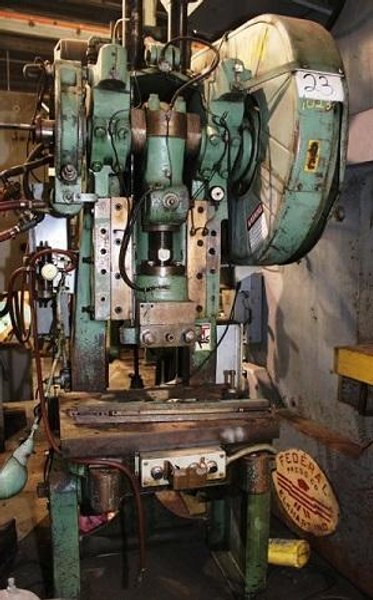

35 TON BLISS Mdl# C-35 OPEN BACK INCLINABLE PRESS
Brand
Category
Model
C-35
Stock #
112285
Year
1959
Condition
Used
Location
New Jersey
| Link To Our Website Listing | http://uen.hsix.com/q/webinv/005700=x,112285 |
|
RATED CAPACITY .......................... 35 TONS
STROKE .................................. 3" BED AREA ........(LR X FB)............... 26.5" X 17" BOLSTER AREA ....(LR X FB X T)........... 26.5" X 17" X 2" SLIDE AREA ......(LR X FB)............... 12.75" X 8.75" RAM ADJUSTMENT .......................... 2.5" SHUT HEIGHT .....(S.D.A.U.).............. 11-1/4" THROAT DEPTH ............................ 9" SHANK HOLE DIAMETER ..................... 2" FLOOR TO BED ............................ 32" (APPROX) STROKES PER MINUTE ...................... 120 EQUIPPED WITH: - AIR CLUTCH WEIGHT (APPROX) 5,500# O.A. DIMENSIONS (APPROX) 55"LR X 70"FB X 93"H |
|
