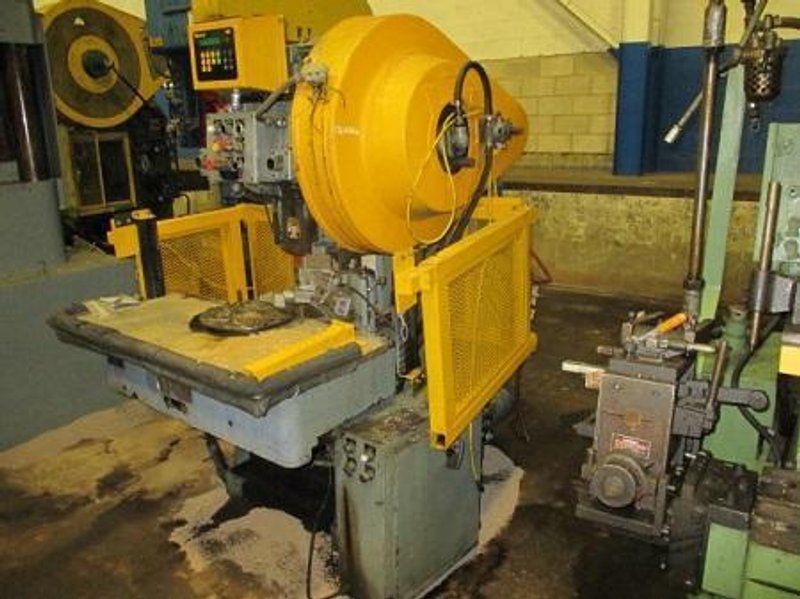

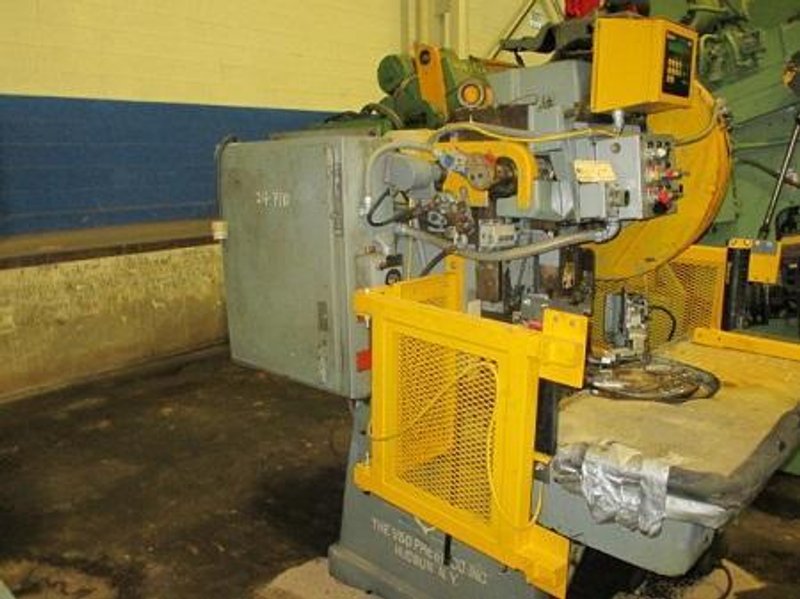

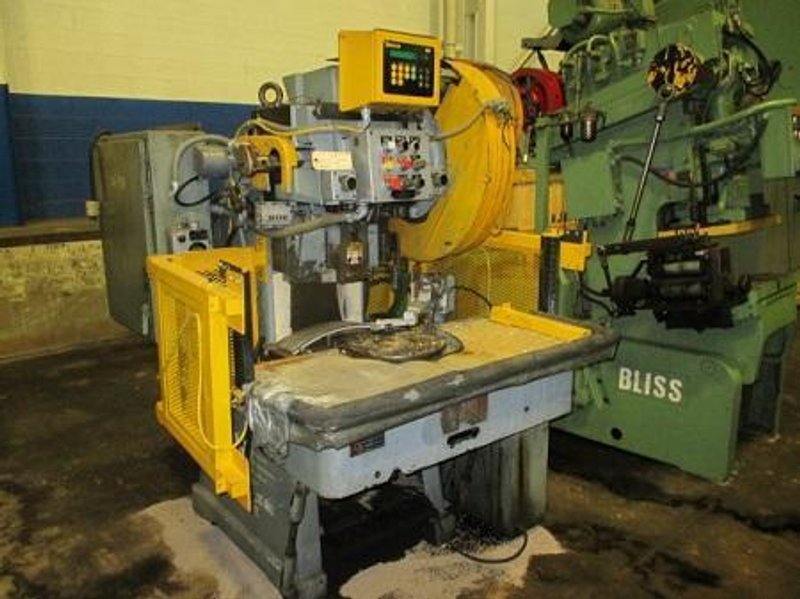

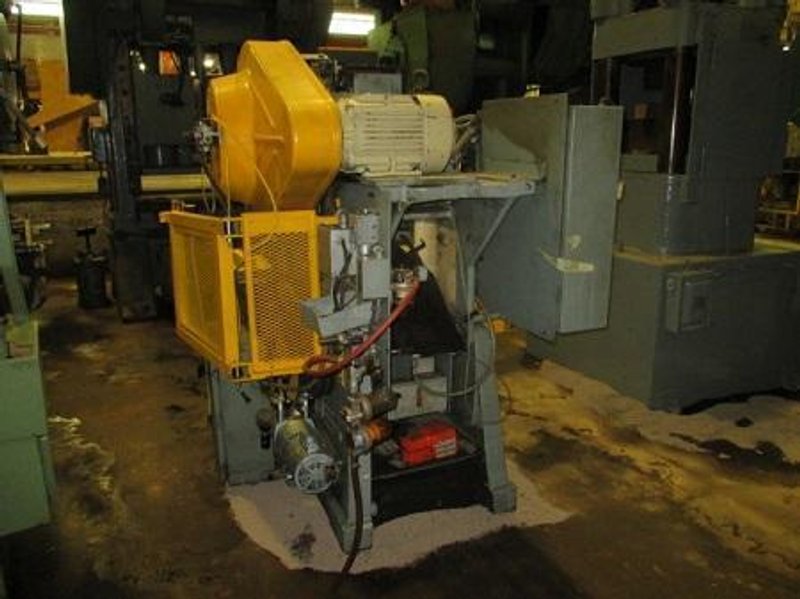

15 TON, V & O MODEL #15 OPEN BACK INCLINABLE SINGLE CRANK PRESS
Brand
Category
Model
#15
Stock #
106253
Year
Not specified
Condition
Used
Location
Ohio
| Link to our website listing | http://uen.hsix.com/q/webinv/005700=x,106253 |
|
RATED CAPACITY ....................... 15 TONS
STROKE ............................... 3"
ADJUSTMENT ........................... 2"
SHUT HEIGHT .......................... 8-1/4"
THROAT ............................... 4"
BED AREA .... (L-R x F-B) ............ 22" x 12"
RAM AREA .... (L-R x F-B) ............ 15" x 6-3/4"
BOLSTER ..... (L-R x F-B x THICK) .... 22" x 12" 1-3/4"
WIDTH BETWEEN UPRIGHTS ............... 9-1/2"
CLUTCH TYPE .......................... AIR
GEARING .............................. FLYWHEEL
DRIVE ................................ D.V.M.D.
SPEED ................................ 125 SPM
EQUIPPED WITH: PALM BUTTON, FOOT PEDAL ACTIVATION
AUTO LUBE, MODEL P20 FEED -0- MATIC AND
MERLIN MODEL M2112 - CT CONTROL
MOTOR: 3 HP, 3/60/230/440, 870 RPM
WITH CONTROLS
OVERALL DIMENSIONS: 4'9" L-R x 5'9" F-B x 6'5" HIGH |
|
