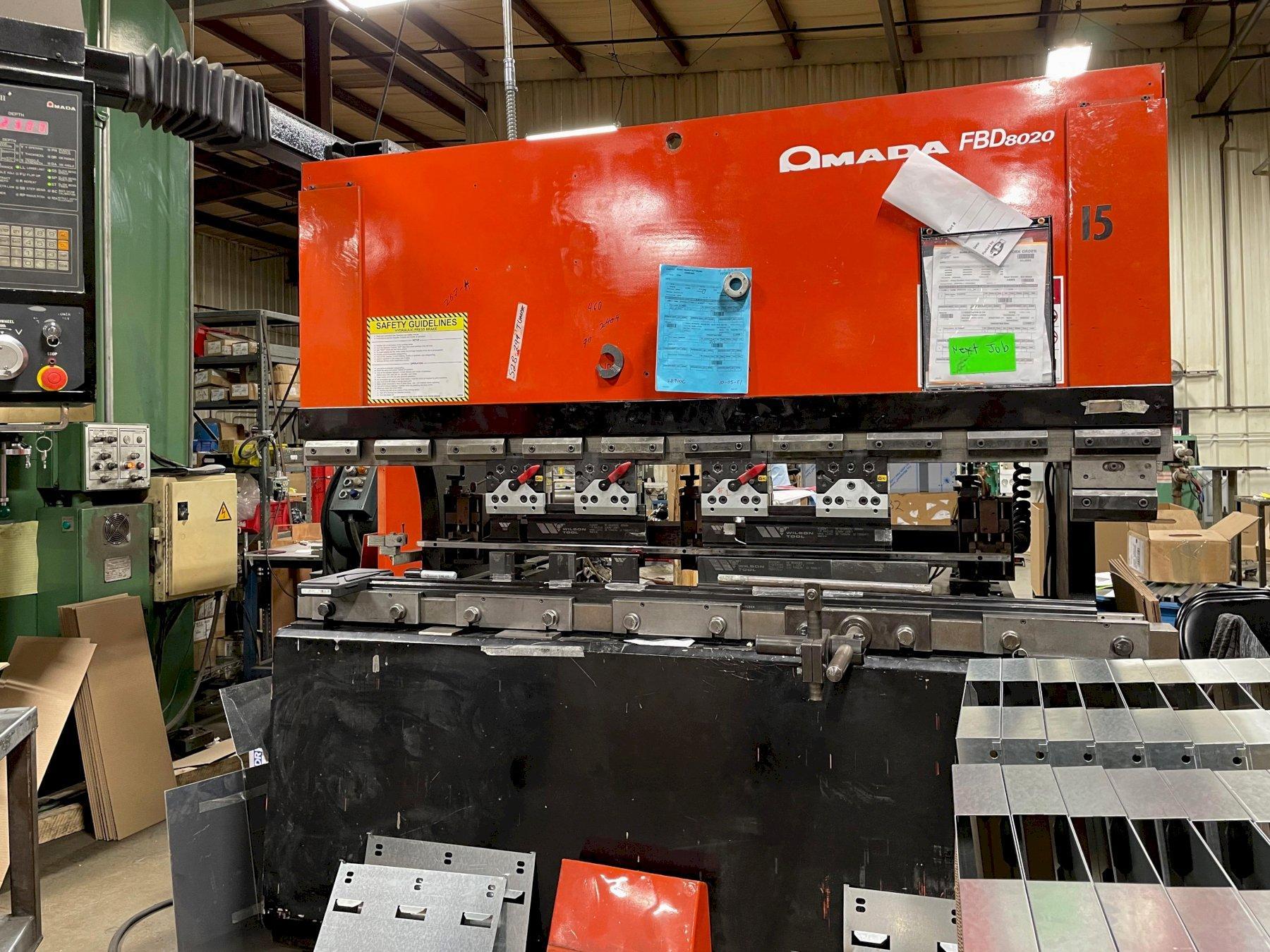

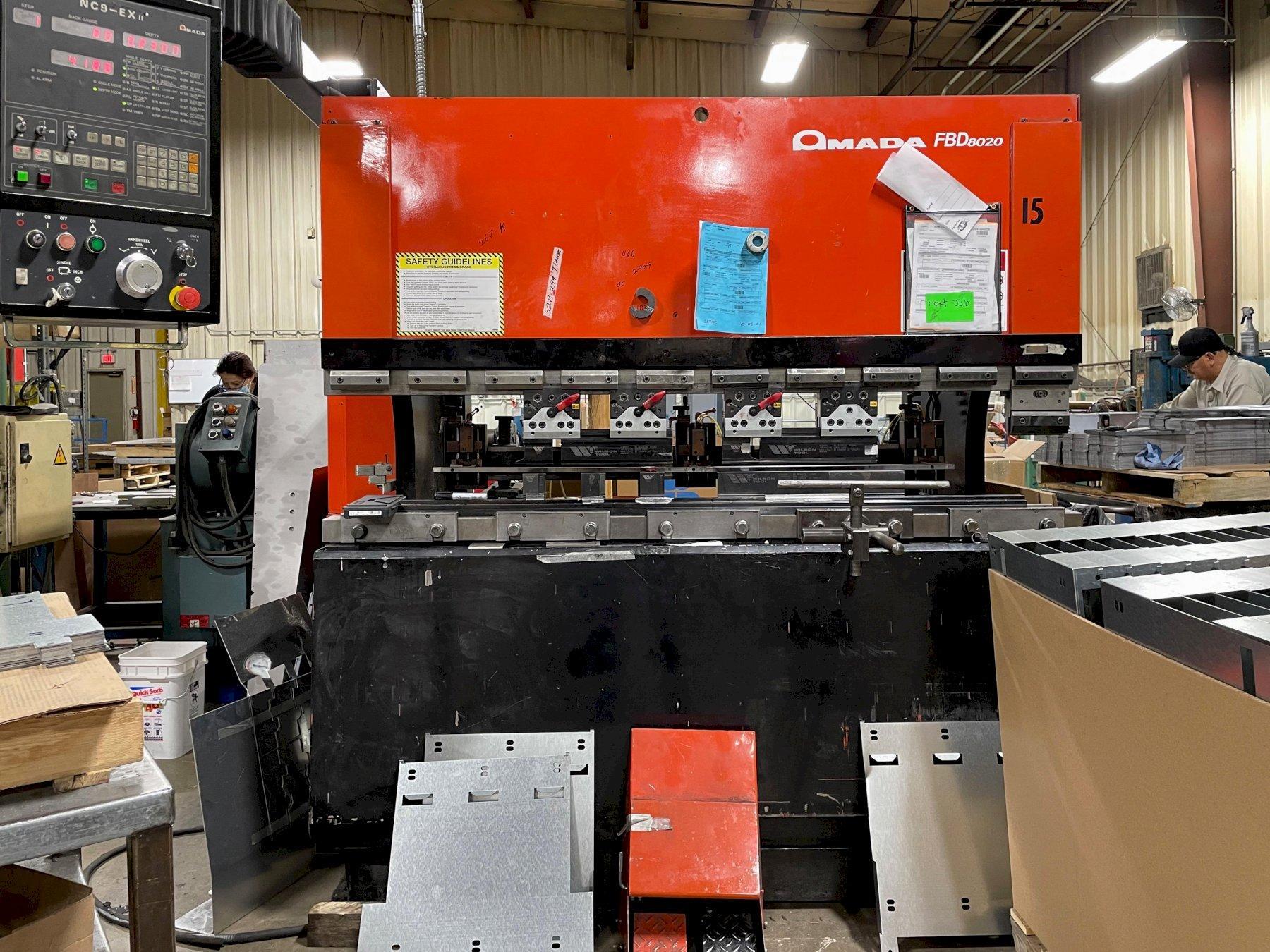

Amada FBD-8025 Hydraulic CNC Press Brake
Brand
Category
Type
Model
FBD-8025
Stock #
100316
Year
1991
Condition
Good
Location
Not specified
| Capacity | 88 Ton |
| Overall Length Bed/Ram | 98.4” |
| Distance Between Housings | 86.6” |

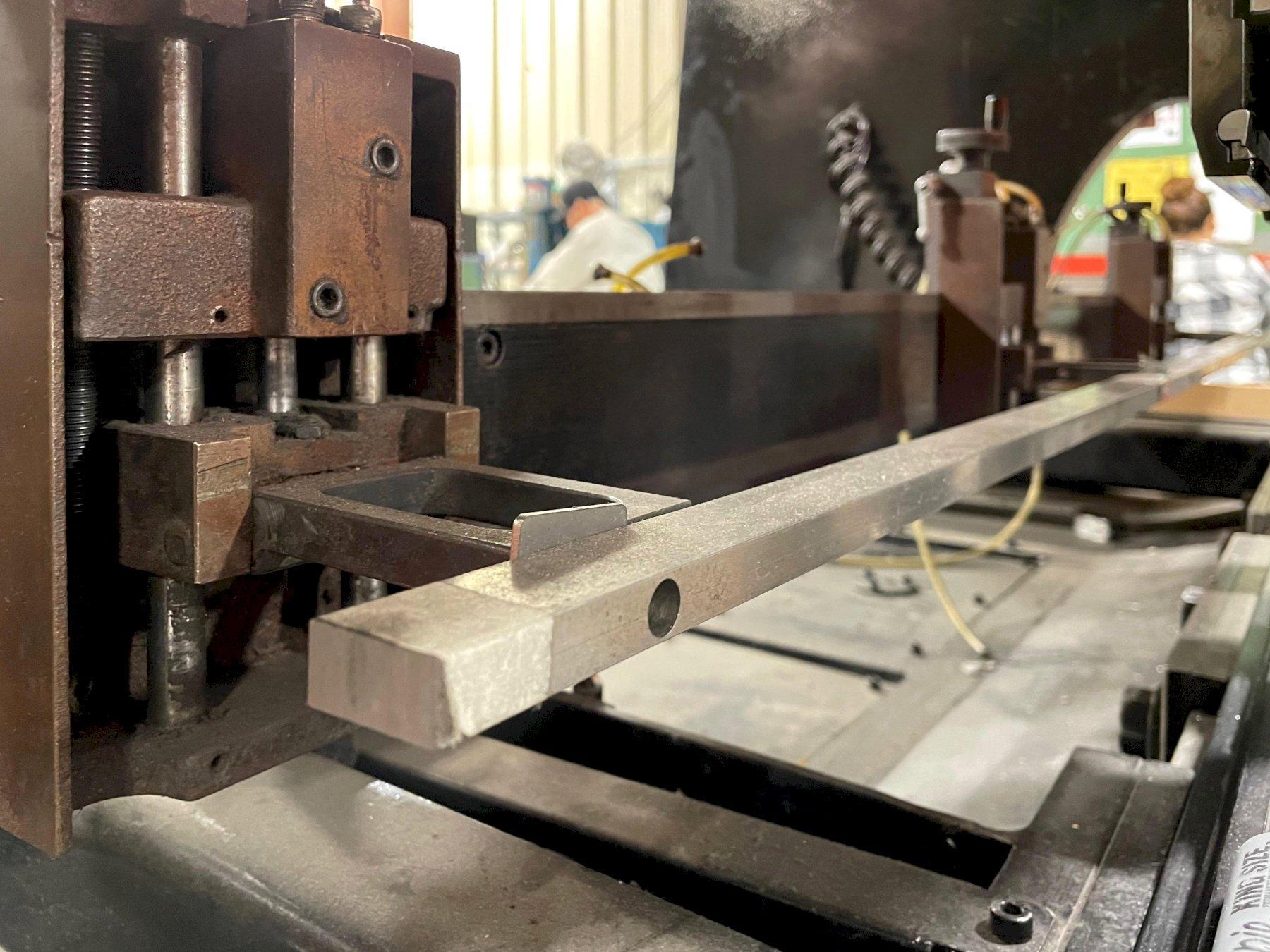

| Backgauge Range | 20” |
| Number Of Gauging Axis | 3 |
| Backgauge Speed | 1,100 IPM |
| Number Of Backgauge Fingers | 4 |
| Stroke Length | 3.94” |
| Throat Depth | 15.75” |
| Die Space (Open Height) | 14.57” |
| Die Space (Closed Height) | 10.63” |
| Number Of Cylinders | 2 |
| Advance Speed | 180 IPM |
| Pressing Speed | 17 IPM |
| Return Speed | 175 IPM |
| Main Motor | 7 H.P. |
| Voltage | 220 / 440 Volt 3 Phase |
| Dimensions | 115” X 58” X 90” |
| Weight | 12,000 Lbs. |
|
Equipped With: Sectionalized Ram Clamps
|
|
