USED MET-FAB 3/8 X 10 SHEAR CONVEYOR WITH PNEUMATIC SHEET SUPPORTS, Stock# 10925
Brand
Category
Type
Model
3/8 X 10
Stock #
10925
Year
Not specified
Condition
Used
Location
Michigan
|
Brand: Met-Fab

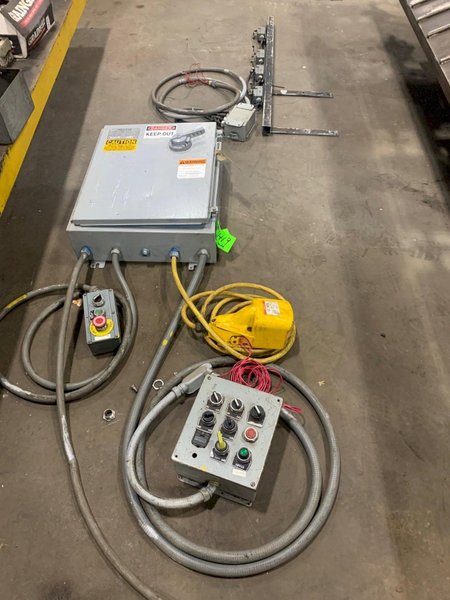

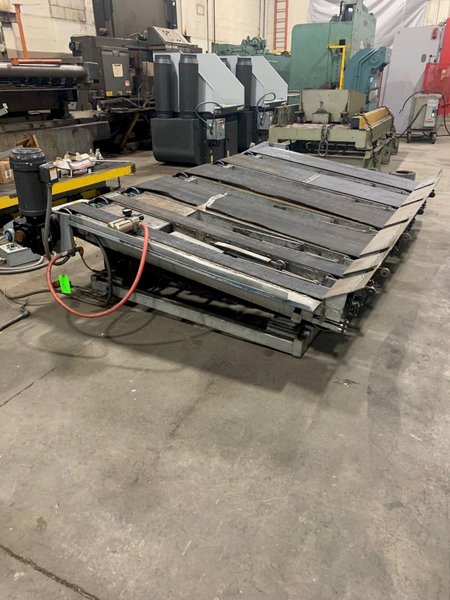

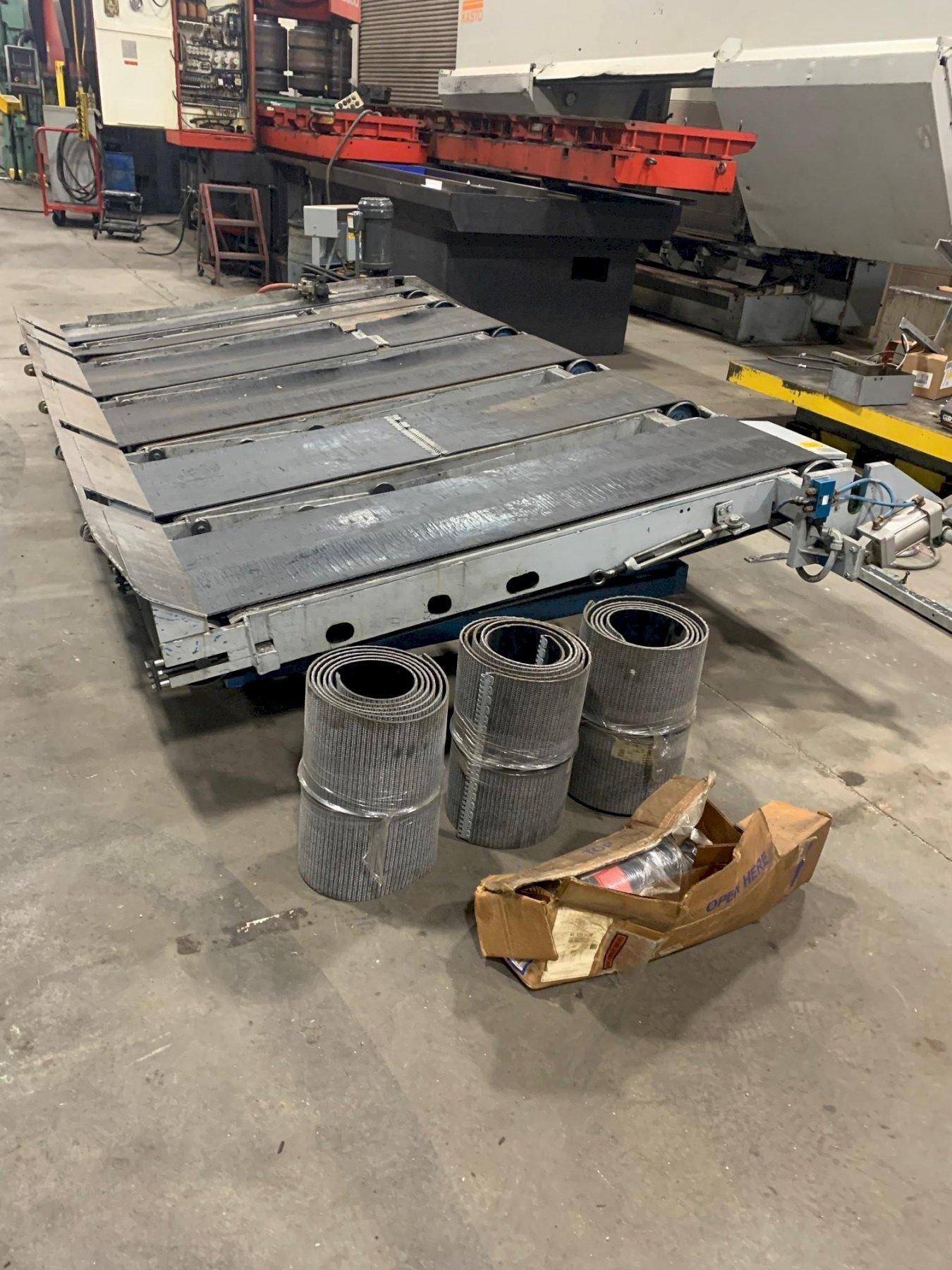

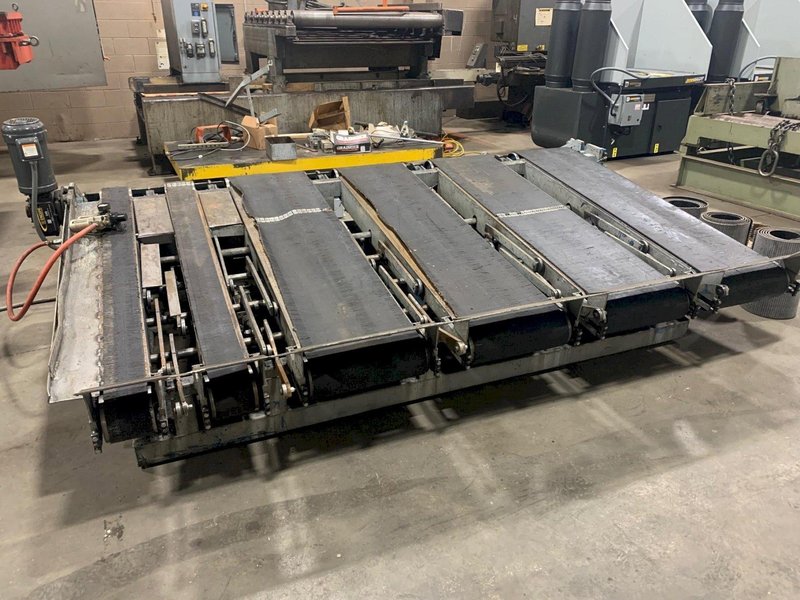

Model: 3/8x10 6 belts 220 / 440 volt 3 phase Pneumatic sheet support system Portable foot pedal Extra (new) belts New motor in box Conveyor: Supports material to backgauge range of 36” by pneumatic cylinders at shear table level. As shear begins to stroke, material support arms drop out of the way allowing sheared material to fall onto conveyor belts. The conveyor belts move material out of the shear housing and the support arms or rails return to the up position Material Supports: Arm supports consist of wheels set to table height and are spaced approximately every 9-11 inches from the knife. Power and air requirements: The unit can be wired for 440v or 220v three-phase electric. Approximately 15 CFM at 80 PSI will be required to operate the pneumatics of the system. |
