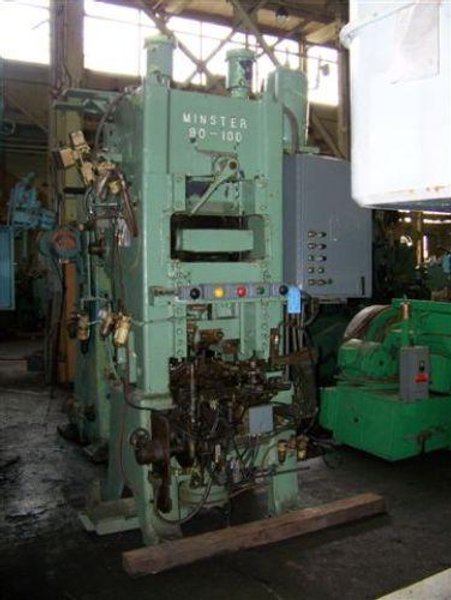

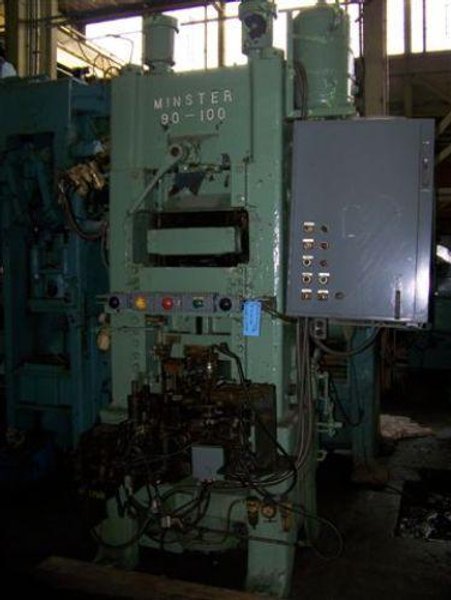

100 TON MINSTER MODEL #90-100 KNUCKLE JOINT PRESS

Name: 100 TON MINSTER MODEL #90-100 KNUCKLE JOINT PRESS
Brand: MINSTER
SKU: 105980
Availability: PreOrder

Brand

MINSTER

Ohio

Tonnage	100 tons
Stroke	3.5 inches
Link To Our Website Listing	http://uen.hsix.com/q/webinv/005700=x,105980
RATED CAPACITY ........................... 100 TONS SPM ..................................... 30-60 SLIDE ADJUSTMENT ......................... 1/2" STROKE OF SLIDE .......................... 3-1/2" SHUT HEIGHT .............................. 10" BED AREA ..........(LR X FB).............. 24" X 22" RAM AREA ..........(LR X FB).............. 20" X 10" BOLSTER AREA ......(LR X FB X THICK)...... 24" X 27" X 3" DISTANCE BETWEEN GIBS .................... 16-1/2" SIDE FRAME OPENING ...(FB X HIGH)......... 6" X 11" WIDTH BETWEEN UPRIGHTS ................... 24" TO CLEAR WEIGHT ESTIMATED ........................ 16,000# O.A. DIMENSIONS ...(LR X FB X HIGH)....... 7' X 5'3" X 11'6" WITH MOTOR EQUIPPED WITH: AIR CLUTCH TIE ROD FRAME CONSTRUCTION DIRECT V-BELT MOTOR DRIVEN 5 HP 3/110-440/60 (1800 RPM) MOTOR WITH VARIDRIVE AND CONTROLS AIR COUNTERBALANCE AIR CUSHION RATCHETING SLIDE ADJUSTMENT KNOCKOUT IN RAM PALM BUTTONS 11 STATION X 15" DIAMETER DIAL FEED
