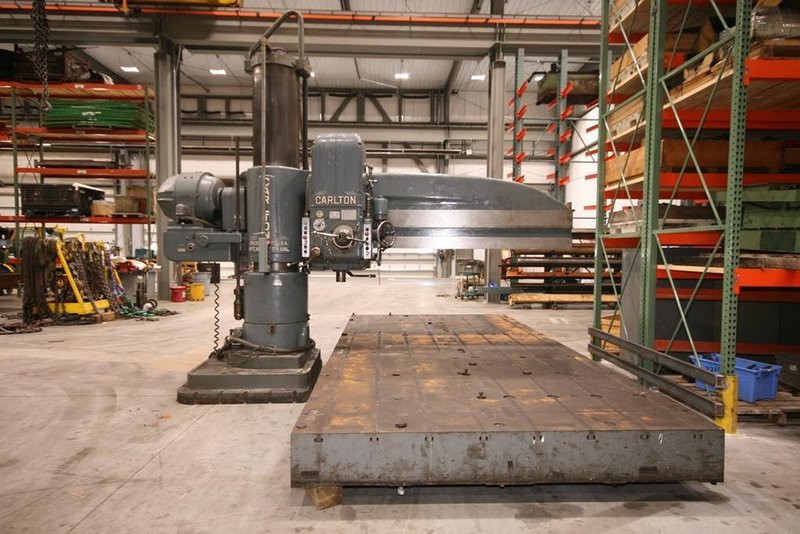

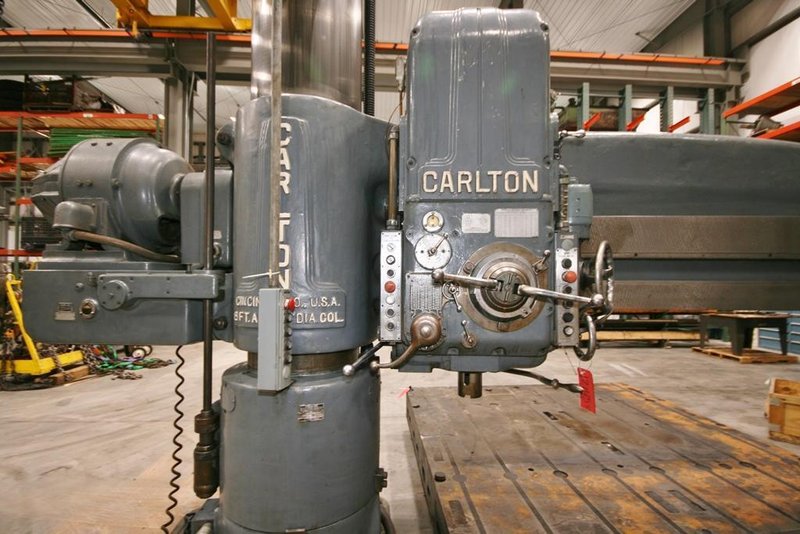

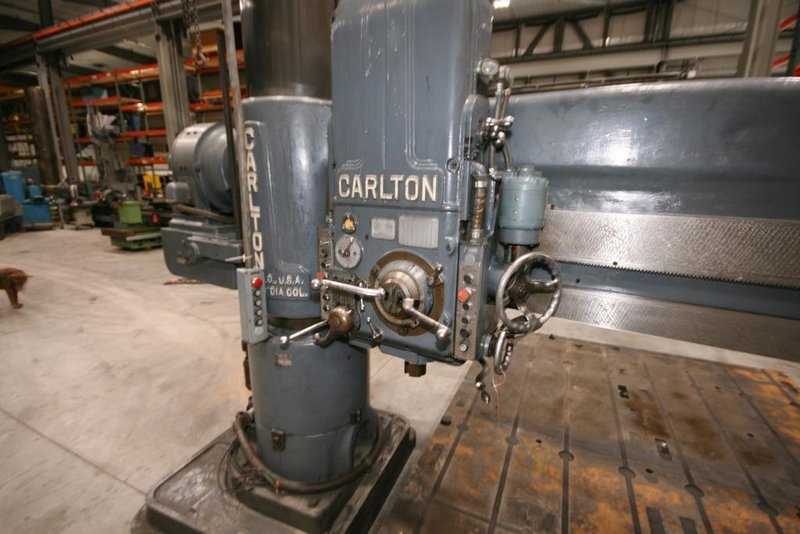

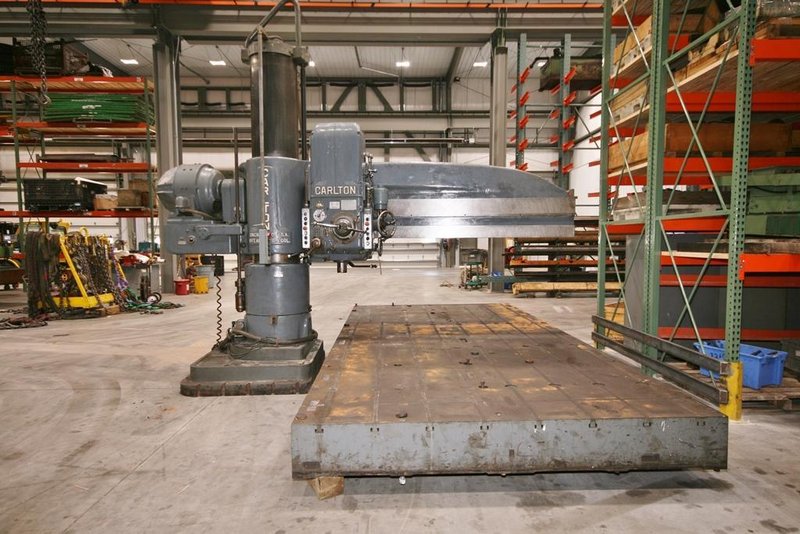

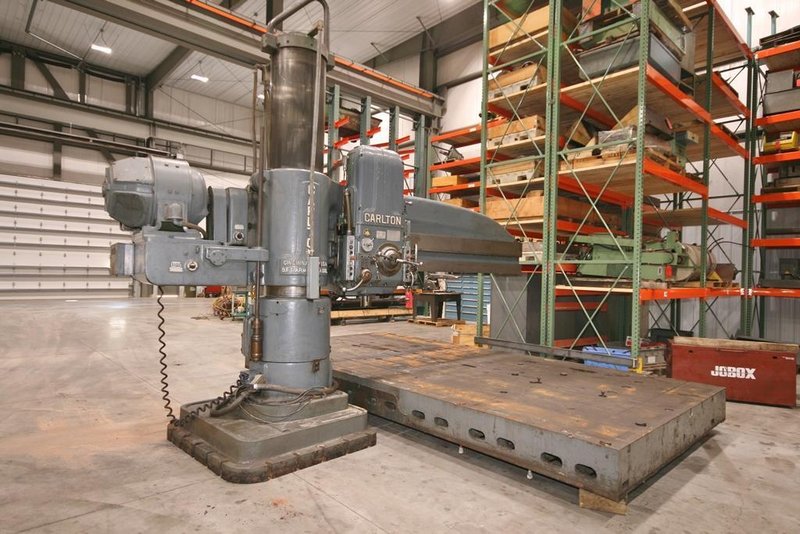

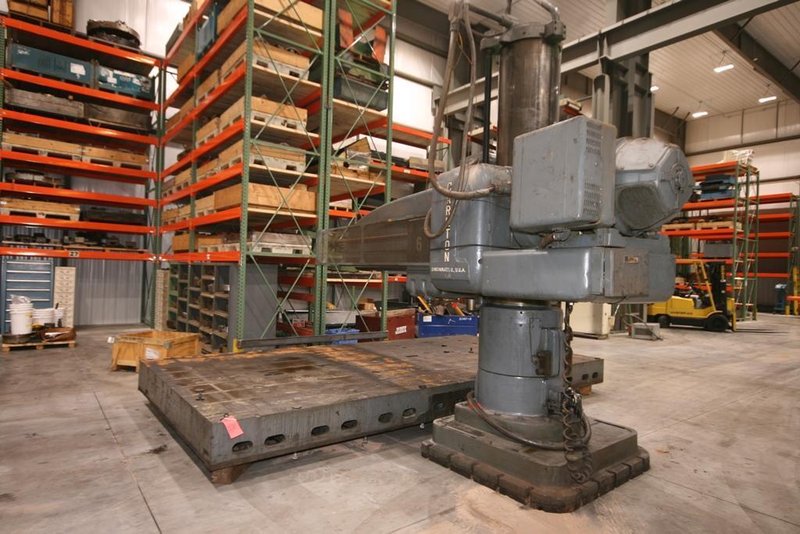

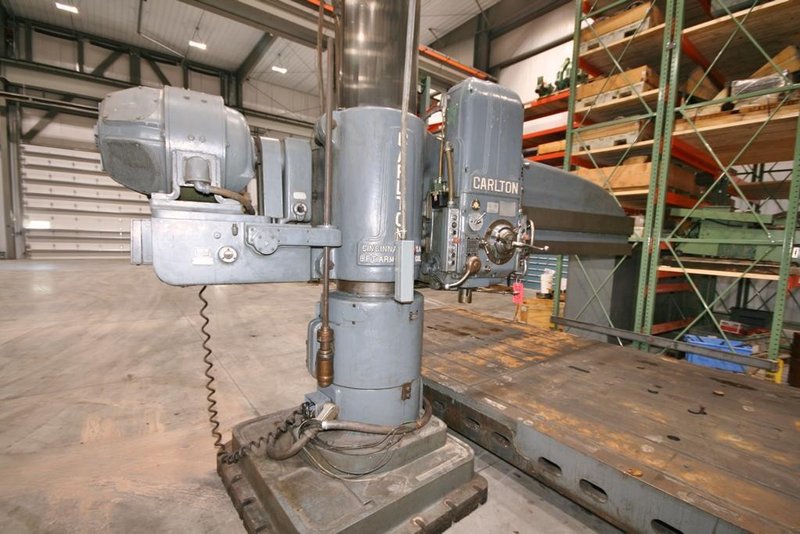

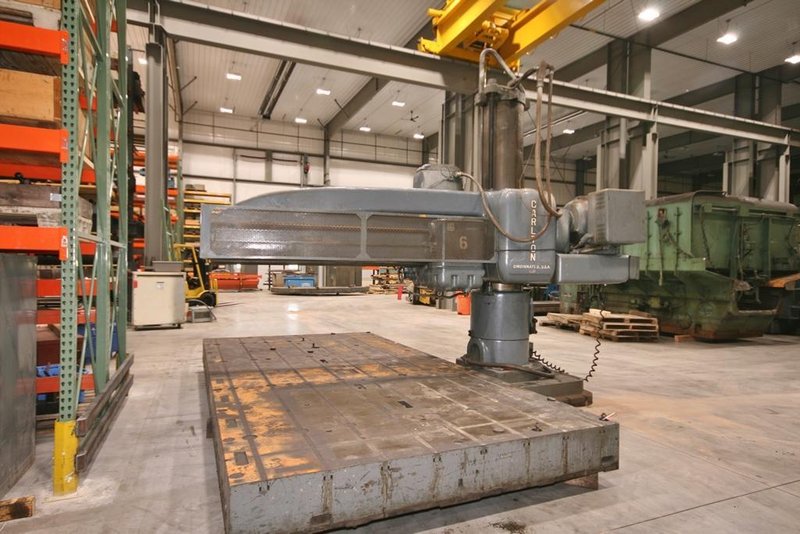

Carlton 8' x 19" Radial Arm, Level Shift: 145J

Brand
CARLTON
Category
Drilling Machines
Type
Drills, Radial
Model
Not specified
Stock #
63447
Year
Not specified
Condition
Used
Location
Not specified


Specifications:
Column Diameter    19”
Arm Length    8’
Face of Column to Center of Spindle    13 ¼ - 8’
Spindle Radius    27” – 8’ 1 ¾”
Spindle to Base    14 1/2” – 6’6”
Vertical Travel of Spindle in Head    20”
Bearing of Head on Arm    23 ¼”
Bearing of Arm on Column    38”
Height over Head    12’2”
Height over Column Capacity    11’ 9”
Spindle Diameter    4”
Morse Taper in Spindle    #6
Traverse of Arm on Column    3’ 7 ½”
Traverse of Head on Arm    6’ 10 3/4”
Drills to Center of Circle    16’
Swing of Arm    10’6”
Feeds  (18)    .004 - .125
Tap Thread Leads    8, 11.5, 4, 18
Spindle Speeds (36)    10-1000 RPM

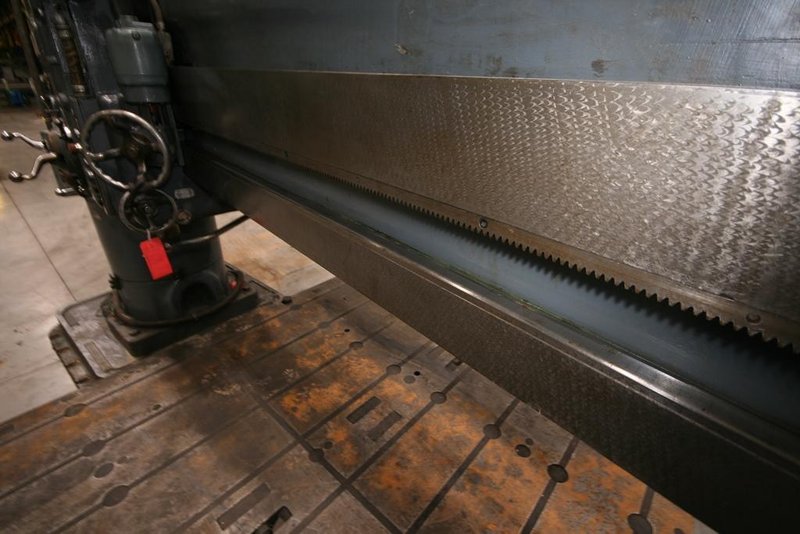

Drill is equipped with lever shift controls and t-slotted half round base
