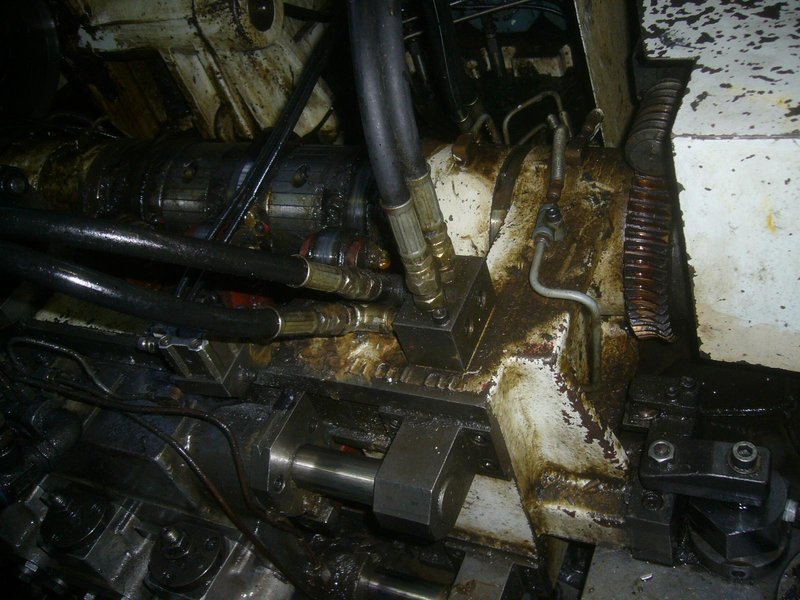

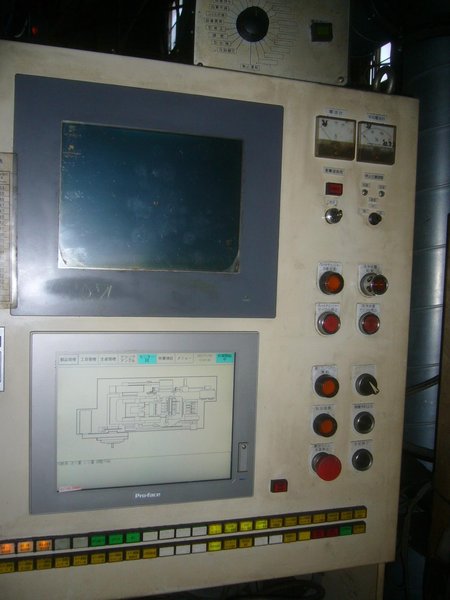

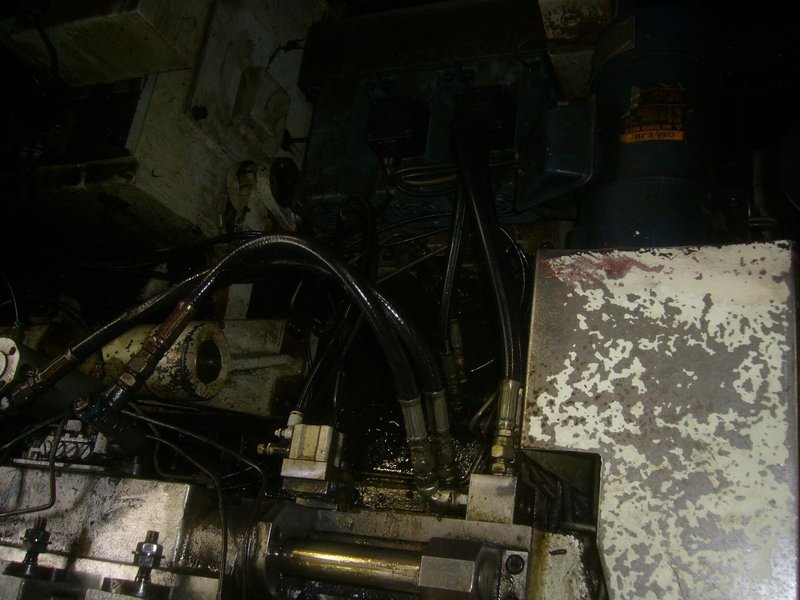

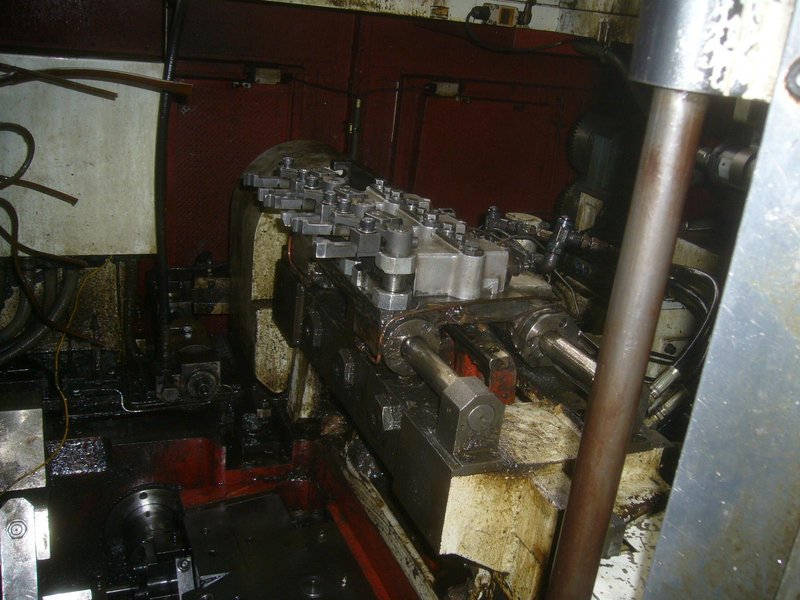

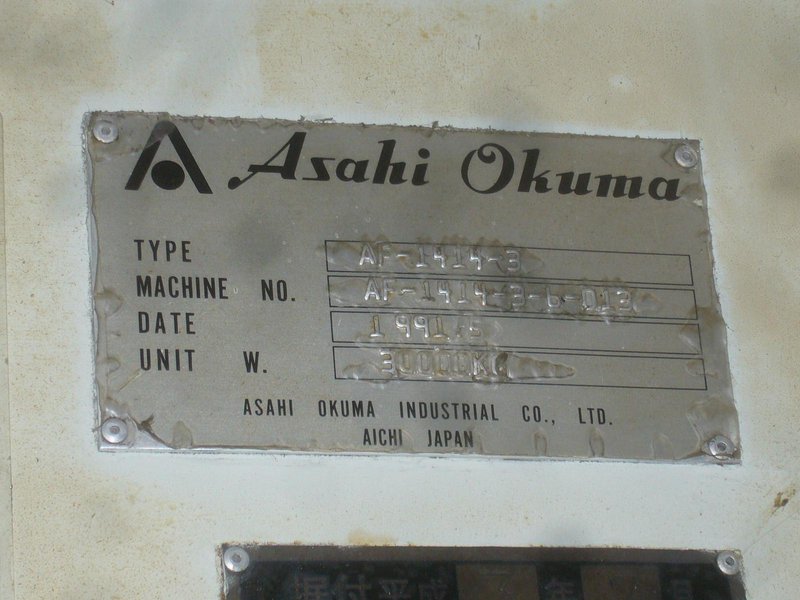

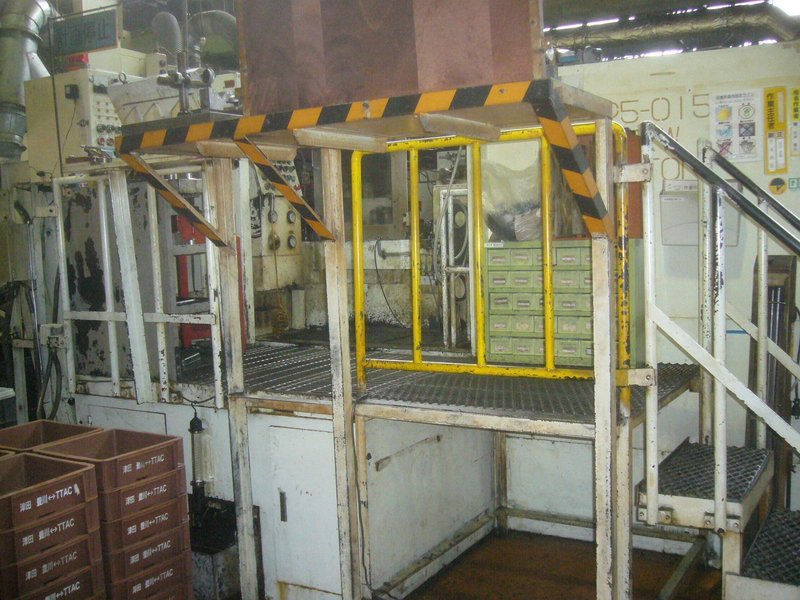

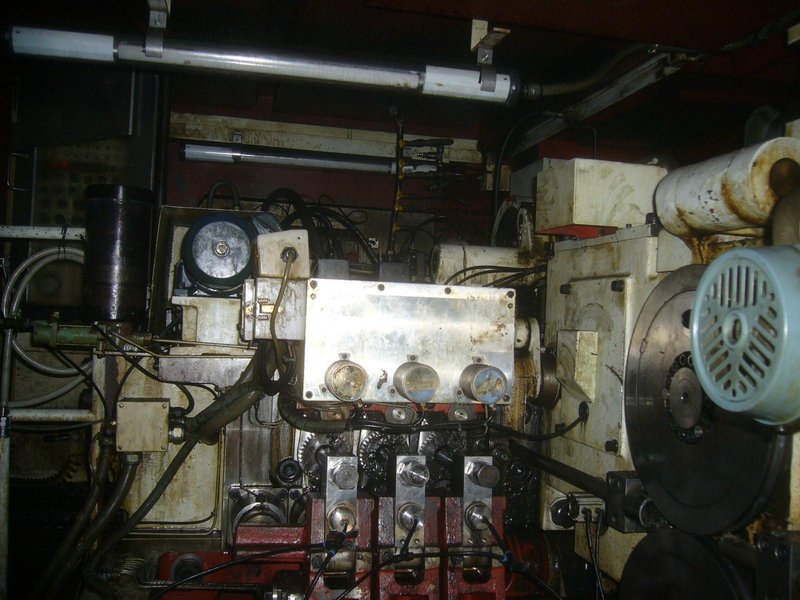

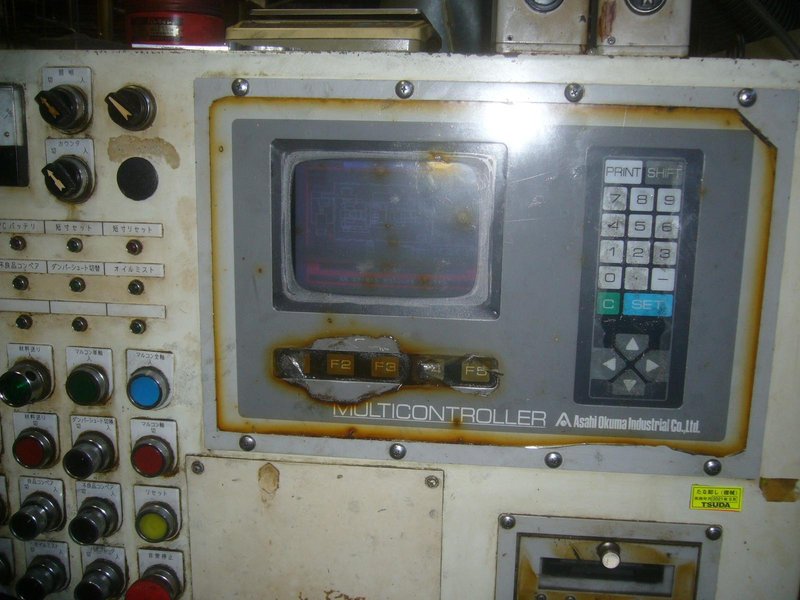

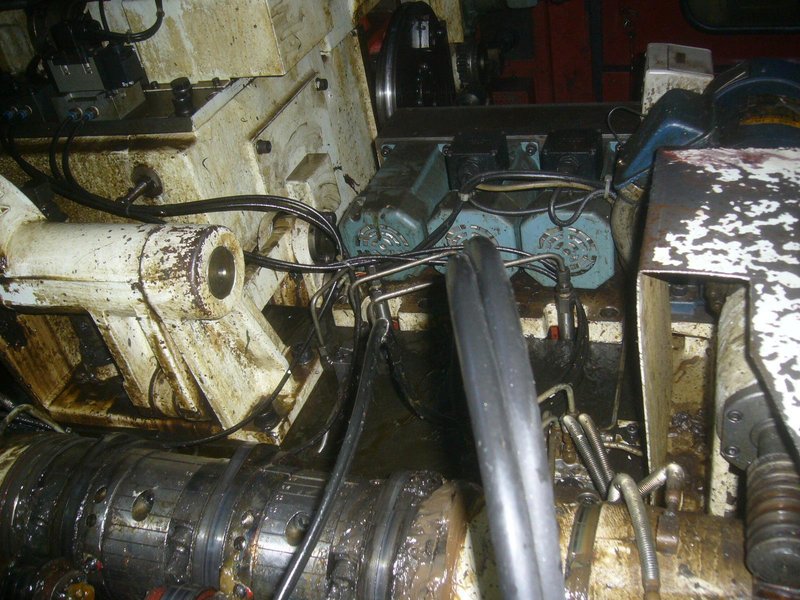

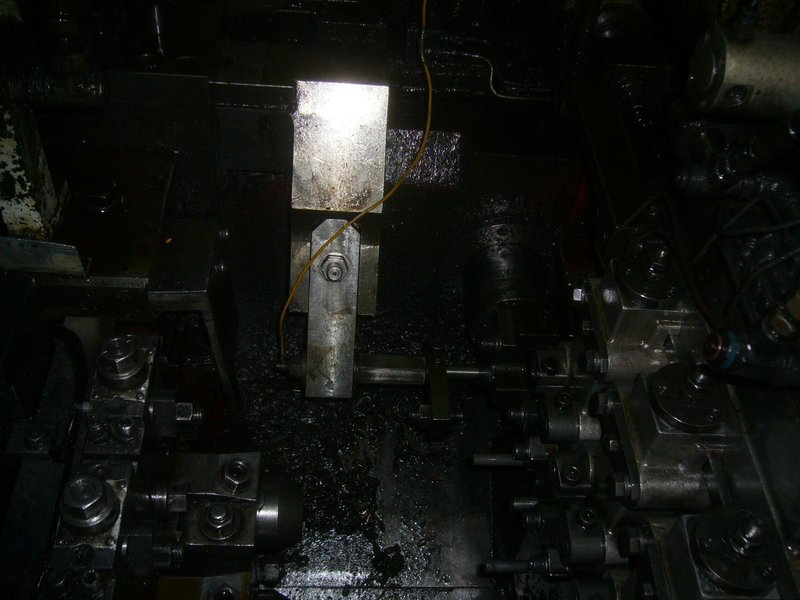

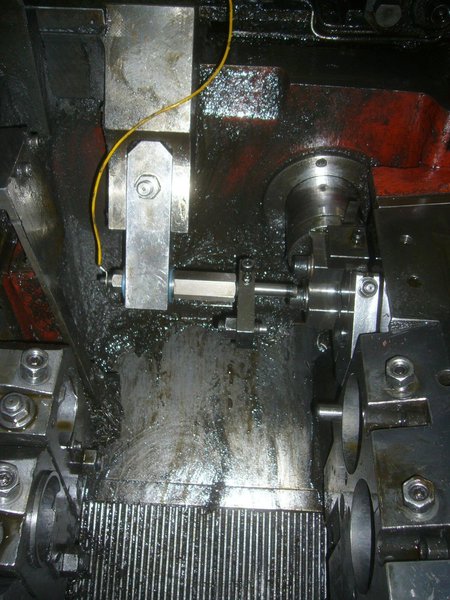

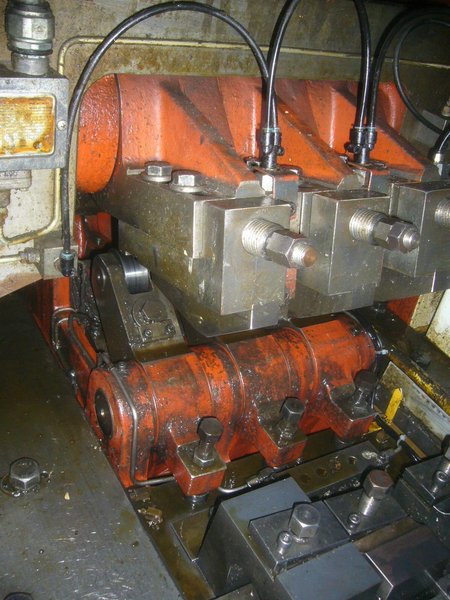

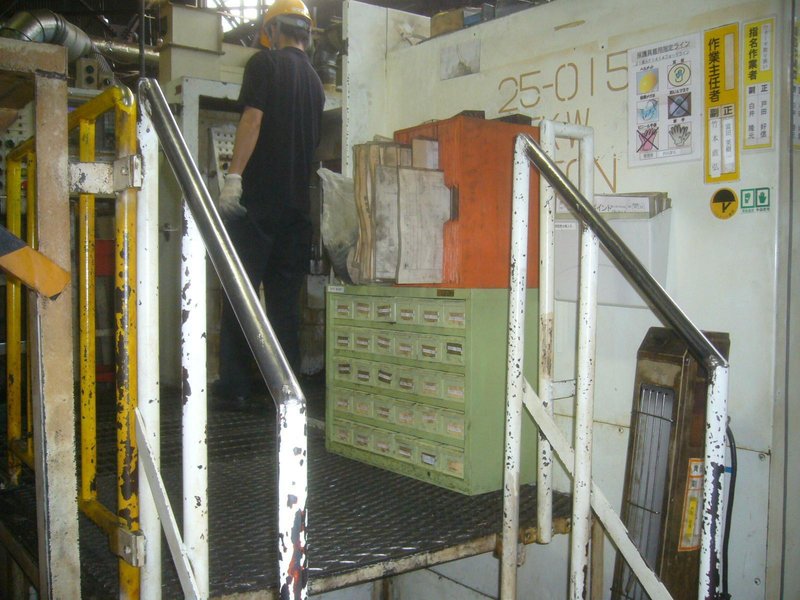

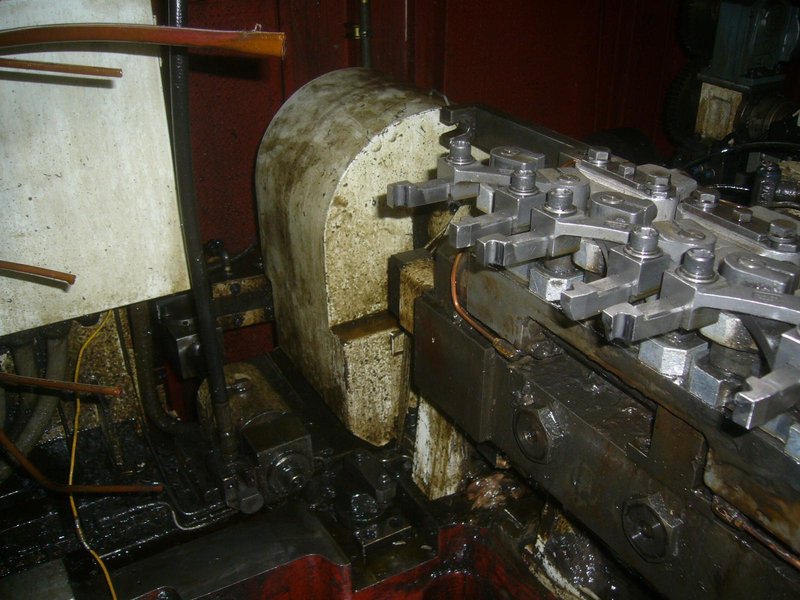

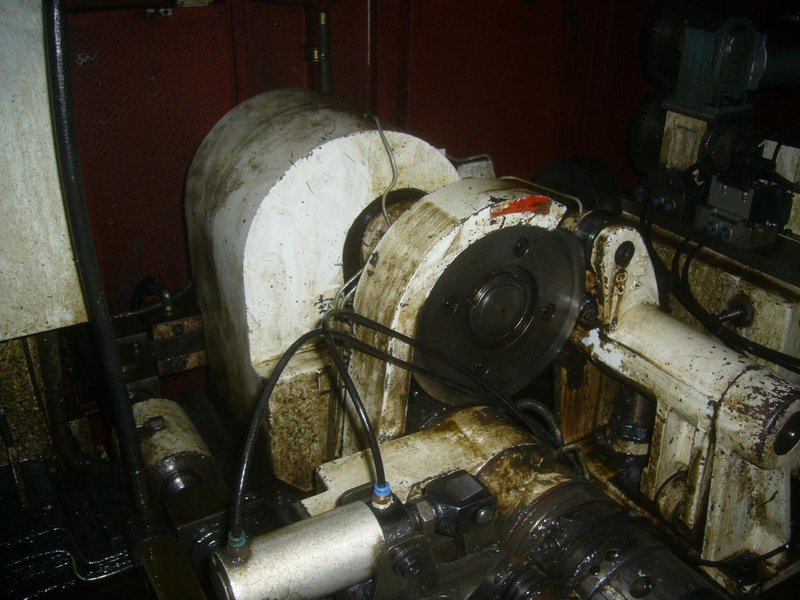

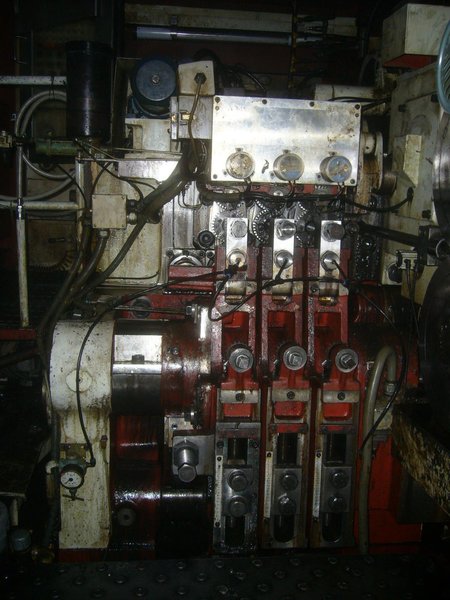

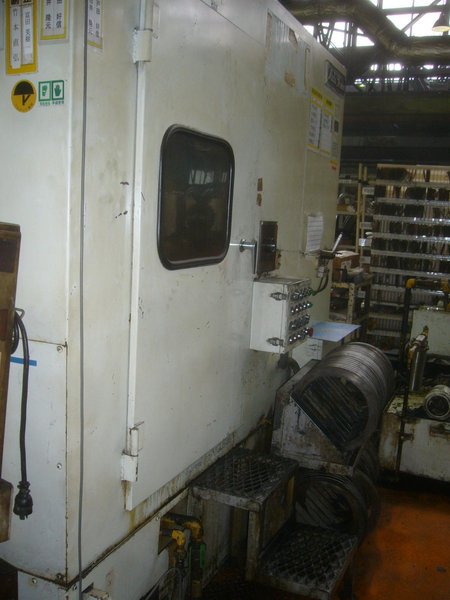

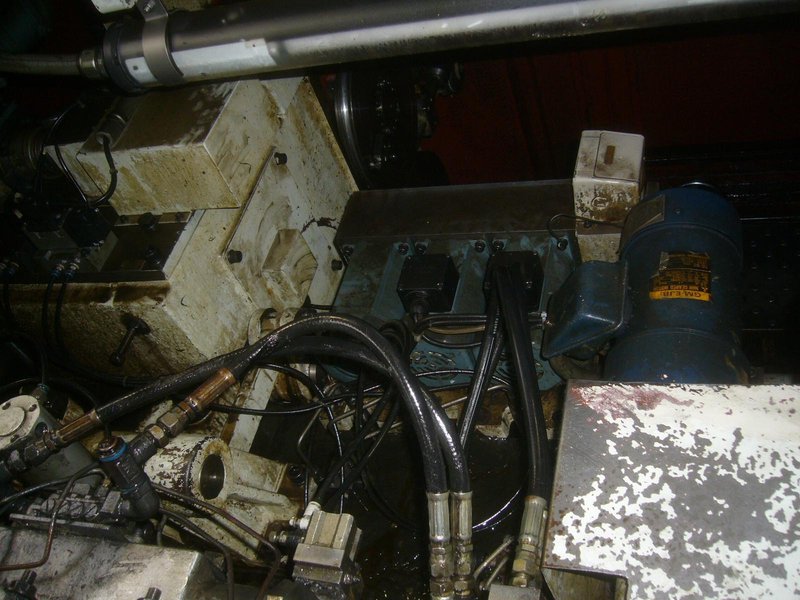

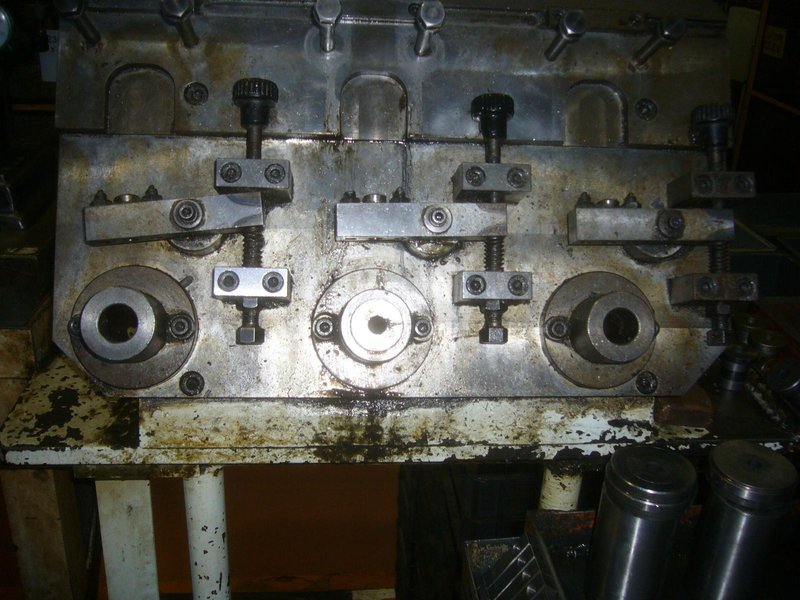

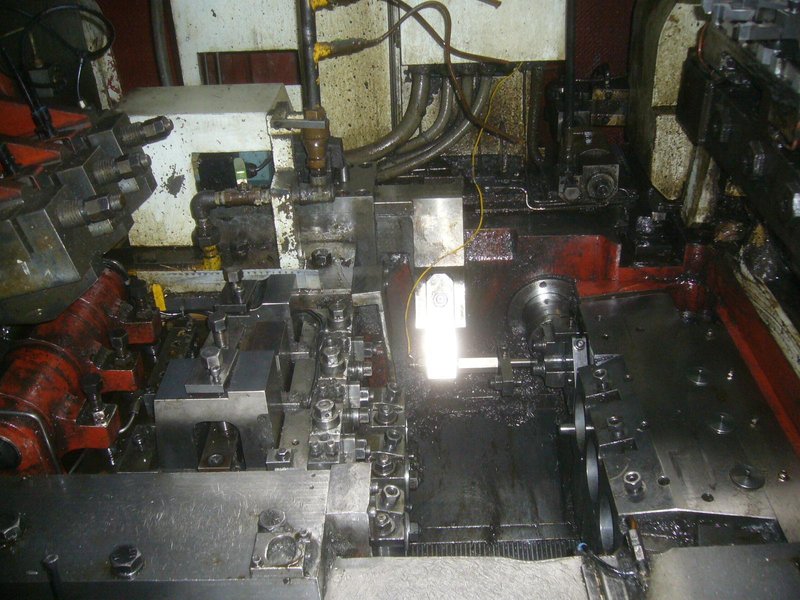

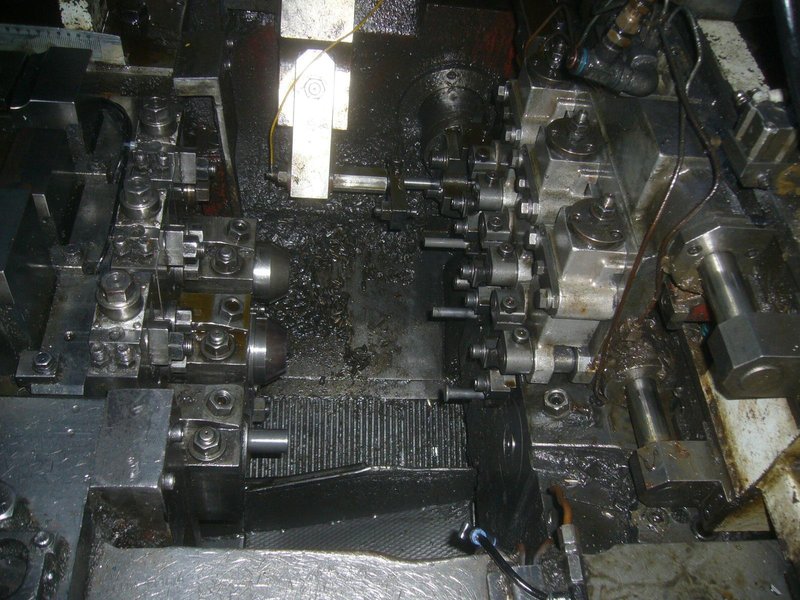

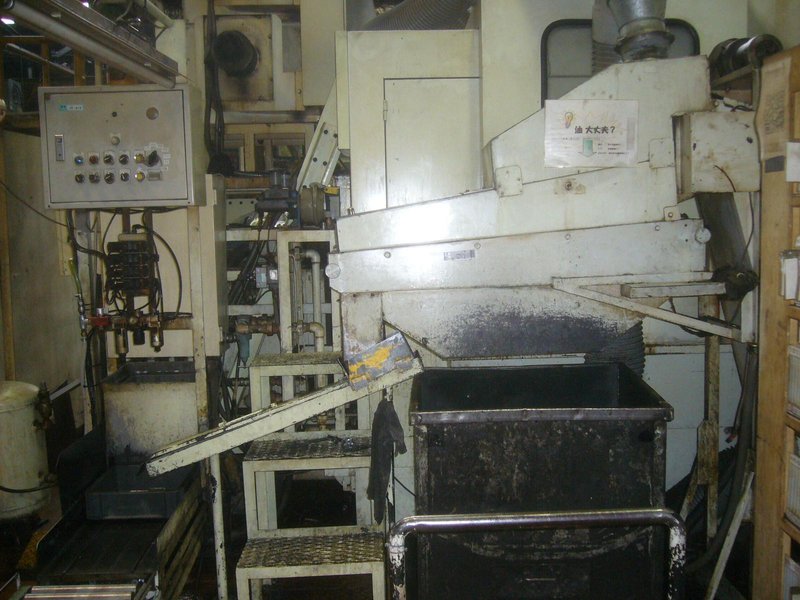

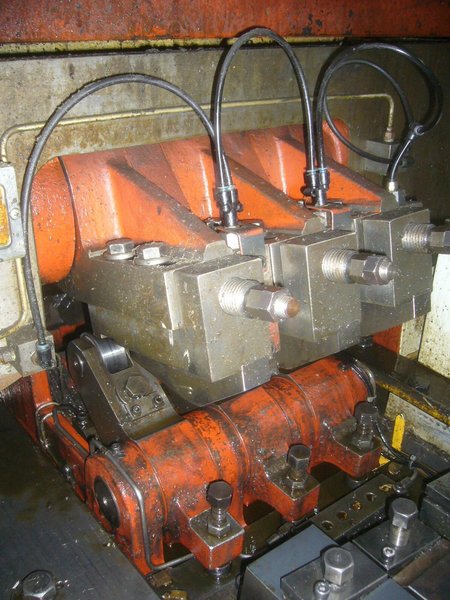

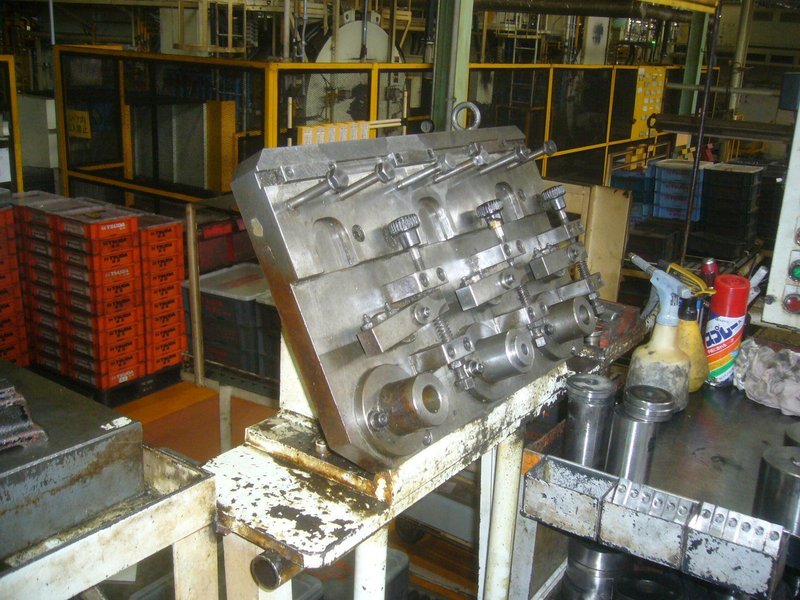

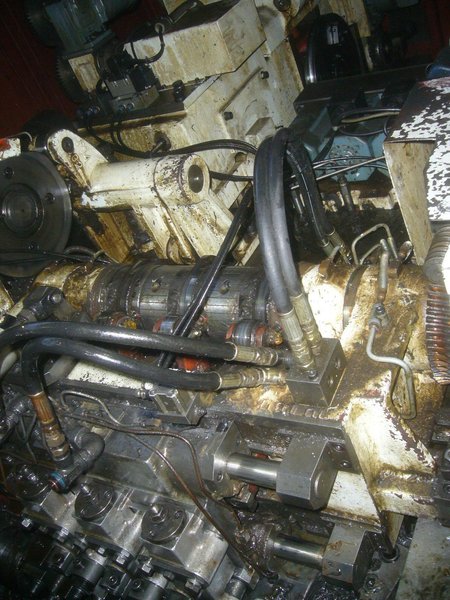

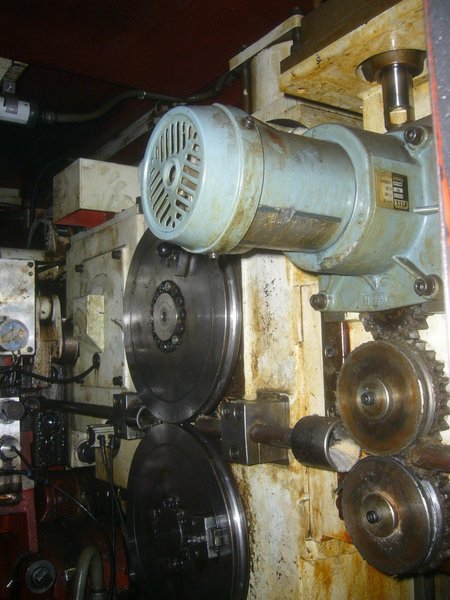

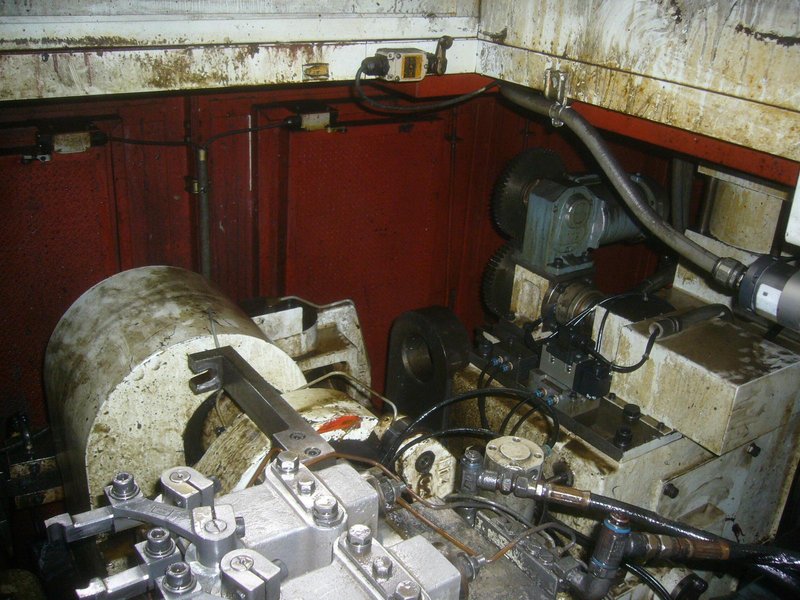

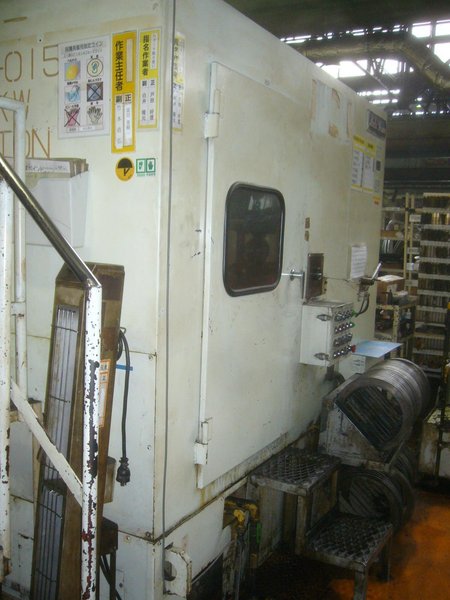

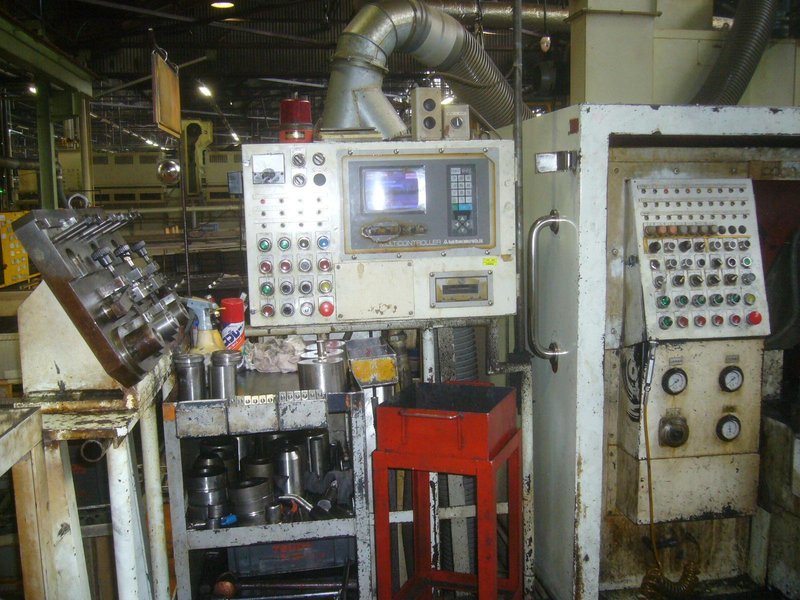

Asahi Sunac Model AF-1414-3 Three Die Progressive Header
Brand
Category
Model
AF-1414-3
Stock #
12892
Year
1991
Condition
Used
Location
Aichi, Japan
| Forging Stations | 3 |
| Cutoff Diameter | 16mm Max. ( 65Kg/cm2) |
| Cutoff Length | 180-20mm |
| Die Kickout Length | 140-25mm |
| Punch Kickout Length | 30-10mm |
| Die Case Die. X Length ( #1-#3) | 100 x 200mm |
| Punch OD X Length (#1-#3) | 75 x 160mm |
| Cutter OD X Length | 60 x 100mm |
| Pusher Die OD | 30mm |
| Cutter Holder Thickness | 25mm |
| Dimensions Of F.D.C. | 40mm |
| Max. Clearable Head Diameter | 32mm |
| Die Center Distance | 115mm |
| Max. Forging Load | 150T |
| Crank Stroke | 250mm |
| Production Speed | Max 125spm ( 125/94/62 sheave) |
| Main Motor Power | 45Kw ( 6/8/12P) |
| Machine Weight | 30 Tons |
| Floor Space (O.A. Dim.) | 6.70 x 2.62 Meter |
|
Centrifugal Lube

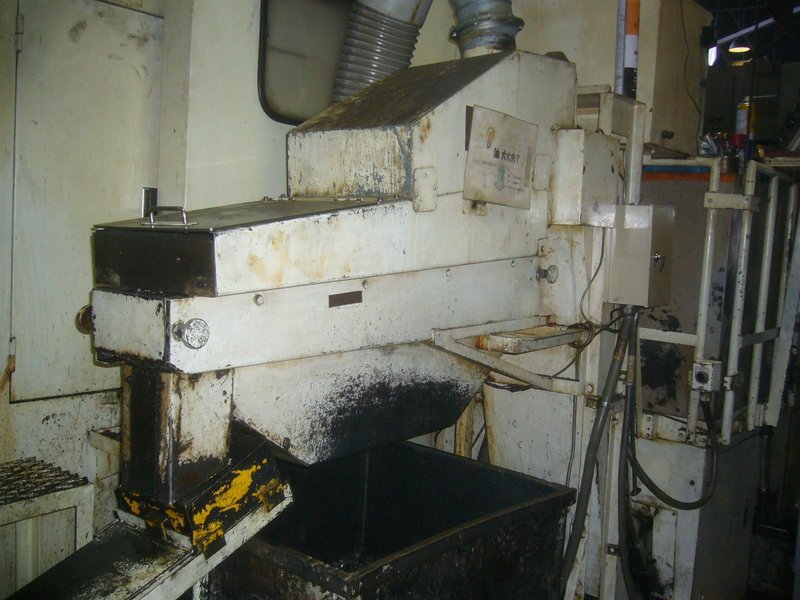

Centrifugal Coolant Cleaner Discharge Conveyor |
|
Watch https://www.youtube.com/watch?v=h5Veg0gi9Oc
