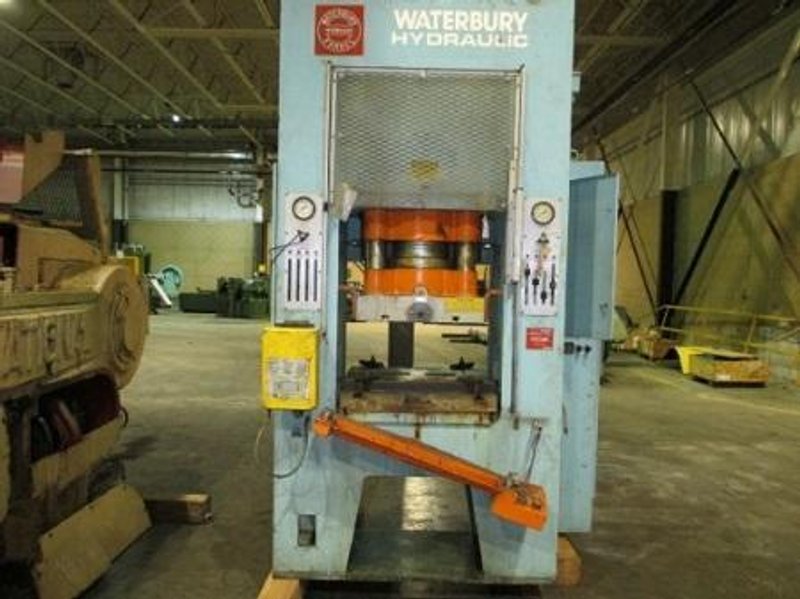

110 TON WATERBURY-FARREL MODEL #110-S HYDRAULIC PRESS, HIGH SPEED
Brand
Category
Type
Model
#110-S
Stock #
107540
Year
Not specified
Condition
Used
Location
Ohio
| Tonnage | 110 tons |
| Stroke | 6 inches |
| Link To Our Website Listing | http://uen.hsix.com/q/webinv/005700=x,107540 |
|
110 TON WATERBURY-FARREL MODEL #110-S HYDRAULIC PRESS, HIGH SPEED Our stock number: 107540
CAPACITY ............................ 110 TON
STROKE .............................. 6"
BED AREA ..... (L-R x F-B) .......... 28" x 22"
RAM AREA ..... (L-R x F-B) .......... 24" x 16"
BOLSTER ...... (L-R x F-B x THICK) .. 28" x 22" x 3" THICK (TEE-SLOTTED)
SIDE FRAME OPENING .................. 8" x 8"
WIDTH BETWEEN UPRIGHTS .............. 29-3/4"
DIAMETER CYLINDER ................... 12"
EQUIPPED WITH: TEE-SLOTTED RAM (GUIDED)
PRESSURE DAMPING CONTROL
PUNCHHOLDER IN RAM
STROKE CONTROL
WELDED STEEL FRAME
POSITIVE RAM STOP
DWELL CONTROL

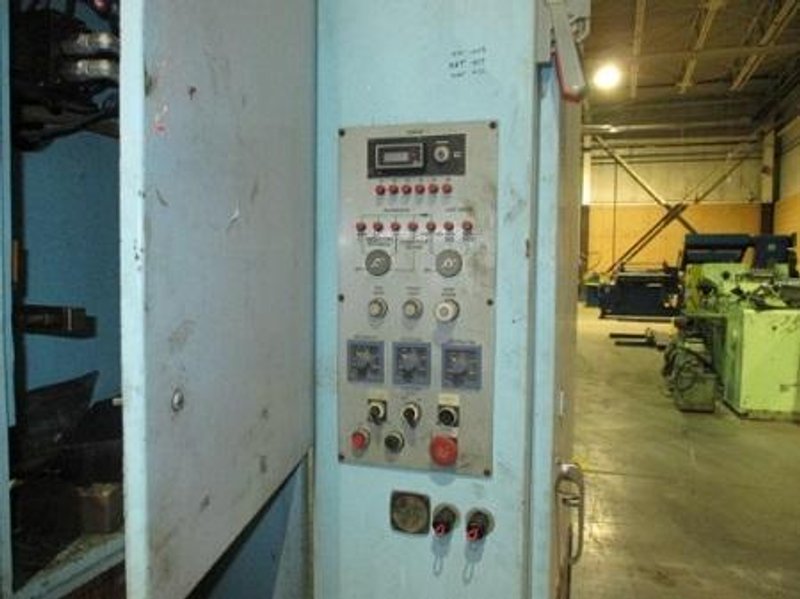

PUSH BUTTON CONTROL
EMERGENCY STOP

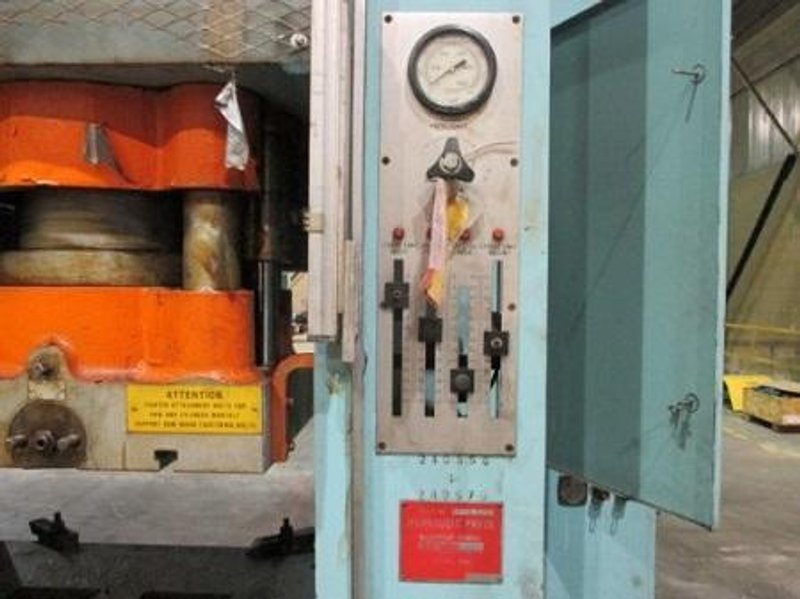

PRESSURE GAUGES
ELECTRICAL PANEL
MOTOR DATA: 15 HP, 3/60/230/460, 1755 RPM
OVERALL DIMENSIONS: 65" L-R x 5'7" F-B x 106' HIGH
WEIGHT 12,500 LBS. APPROX. |
|
