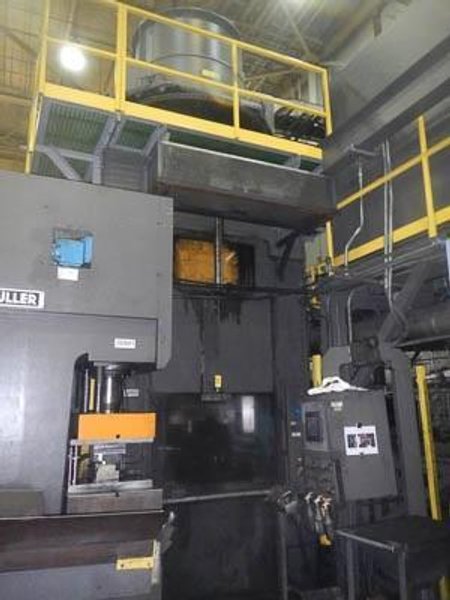

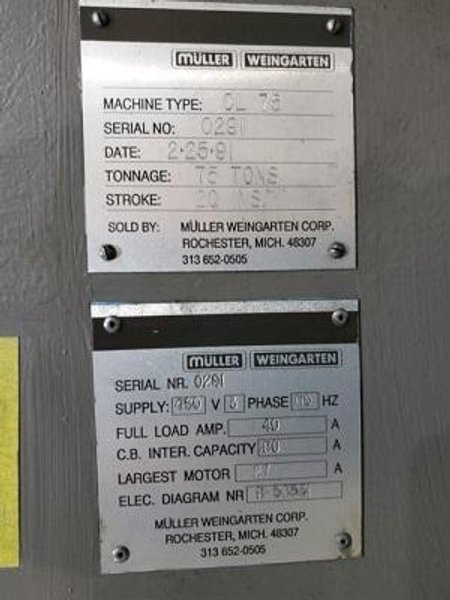

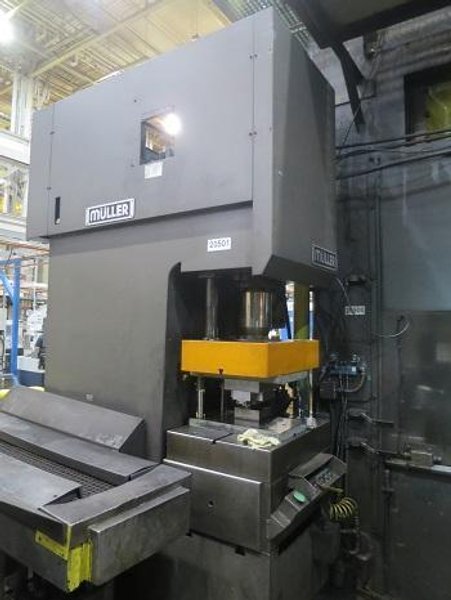

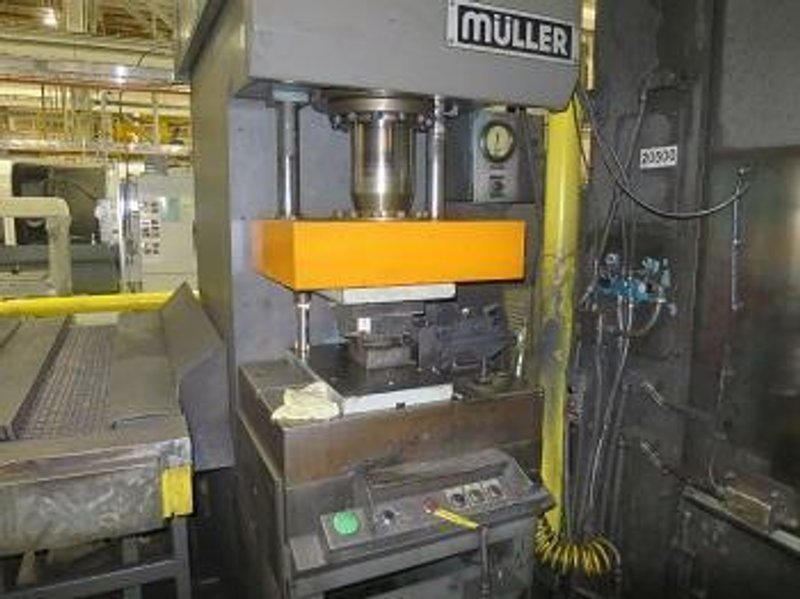

75 TON MULLER CL-75 HYDRAULIC TRIM PRESS
Brand
Category
Type
Model
CL-75
Stock #
114106
Year
1991
Condition
Used
Location
Not specified
| Tonnage | 75 tons |
| Stroke | 20 inches |
| Daylight | 11.5 inches |
| Power | 20 horsepower |
| Link to our website listing | http://uen.hsix.com/q/webinv/005700=x,114106 |
|
PRESS: CLAMP ................. 75 TONS STROKE (ADJUSTABLE).... 20" MAX DAYLIGHT (CLOSED) ..... 11-1/2" DEPTH OF THROAT ....... 12.6" TABLE AREA ............ 30" X 24" RAM AREA .............. 26" X 20" CLOSING SPEED ........ 790"/ min WORKING SPEED ......... 35" / min RETURN SPEED .......... 740" / min HYDRAULIC: MAX PRESSURE .......... 3000 PSIO RESERVOIR CAPACITY .... 190 GAL PRIME MOVER ........... 20 HP ELECTRONICS: GENERAL ELECTRIC ...... 9030 PLC WEIGHT AND DIMENSIONS: WEIGHT ................ 8 TONS O.A. DIMENSIONS 43"W x 75"D x 126"H approx. |
|
