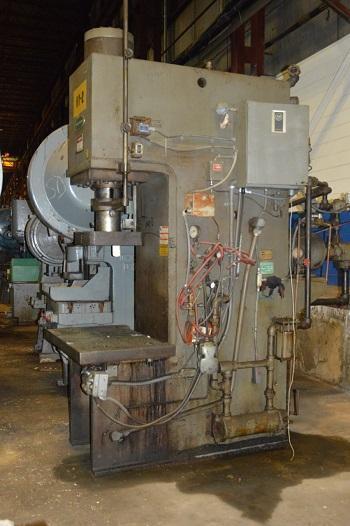

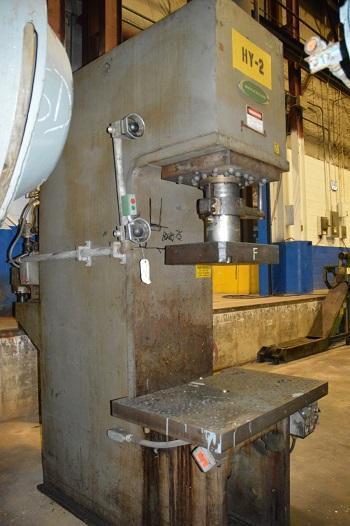

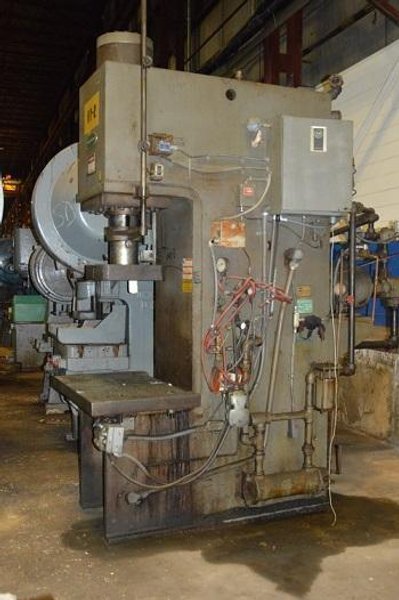

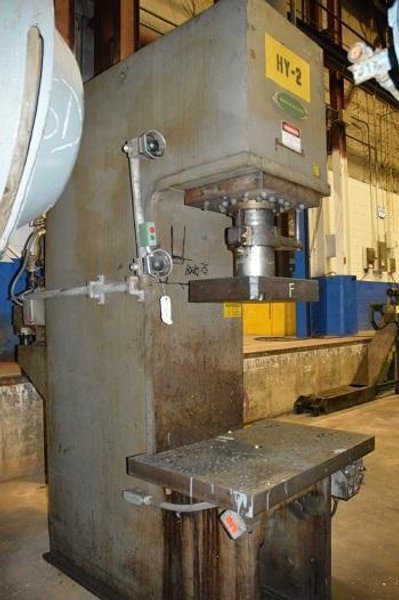

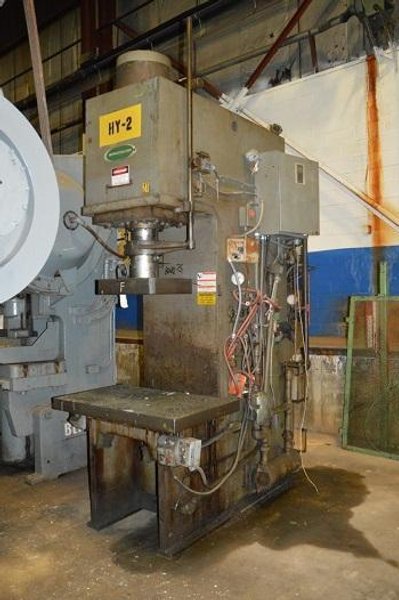

75 TON GREENERD MODEL #H-75-42R17 HYDRAULIC PRESS
Brand
Category
Type
Model
#H-75-42R17
Stock #
107023
Year
1973
Condition
Used
Location
Ohio
| Tonnage | 75 ounces |
| Stroke | 24 inches |
| Link to our website listing | http://uen.hsix.com/q/webinv/005700=x,107023 |
|
CAPACITY.............................. 75 TON
STROKE................................ 24"
SHUT HT............................... 30"
THROAT................................ 13"
BED AREA.............................. 28" LR X 19"FB
RAM AREA.............................. 19-1/2 LR X 15-1/2 FB
BOLSTER............................... 40-3/16" LR X 26-1/8" FB X 3" THICK
RAM SPEEDS:
CLOSING............................. 360 IPM
PRESSING............................ 44 IPM
RETURN.............................. 346 IPM
4" DRAW............................... 9 SPM
10" DRAW.............................. 5 SPM
RESERVOIR CAPACITY.................... 122 GAL
MOTOR:
30 HP, 230/460 V, 3/60/1165 RPM W/CONTROLS
EQUIPPED WITH:
PALM BUTTONS AND FOOT PEDAL
WEIGHT ....................... 12,000 Lbs.
O.A. DIMENSIONS .............. 3'6" LR x 8'8" FB x 9'4" H PLUS 4X4 SKID |
|
