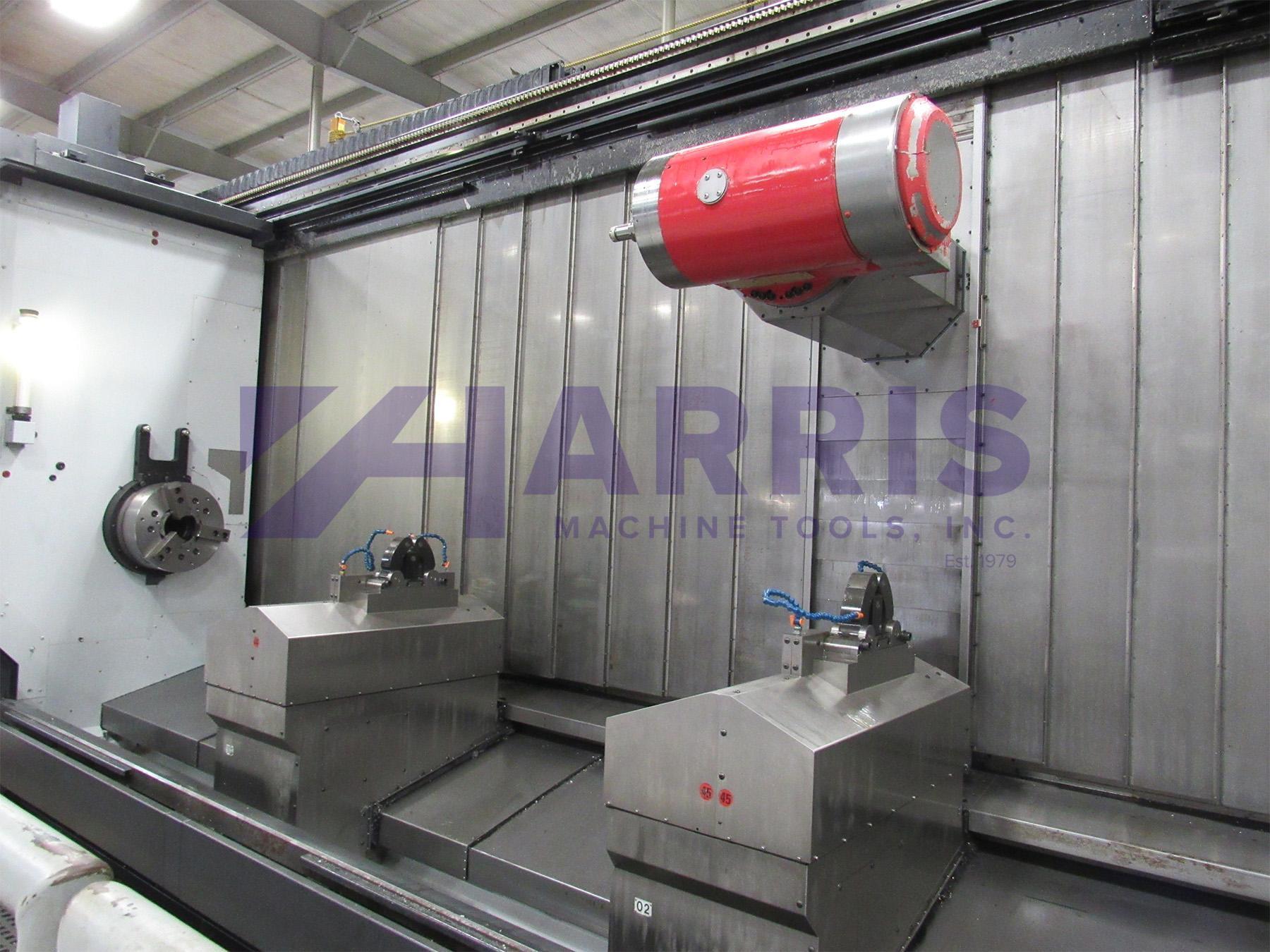

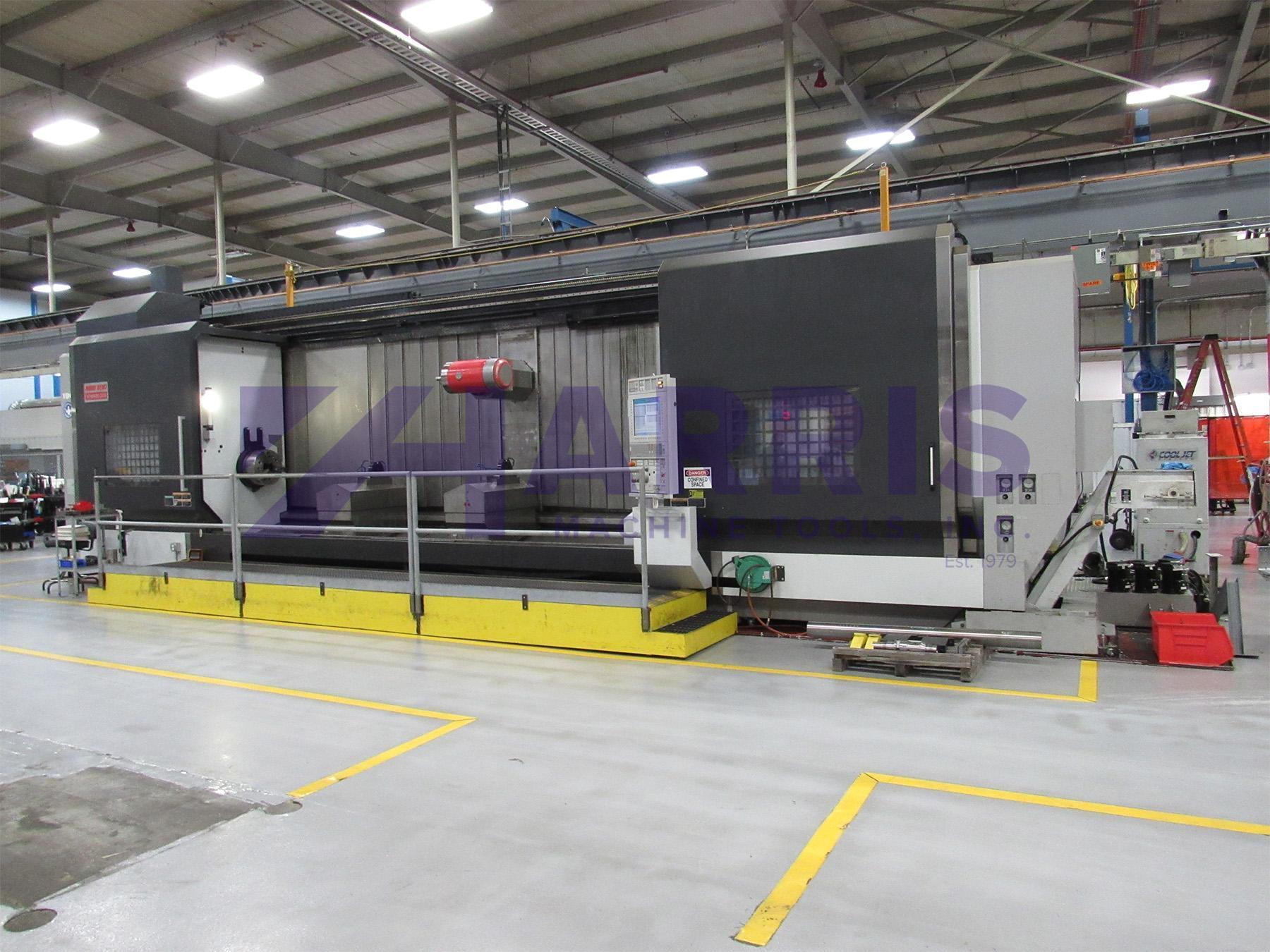

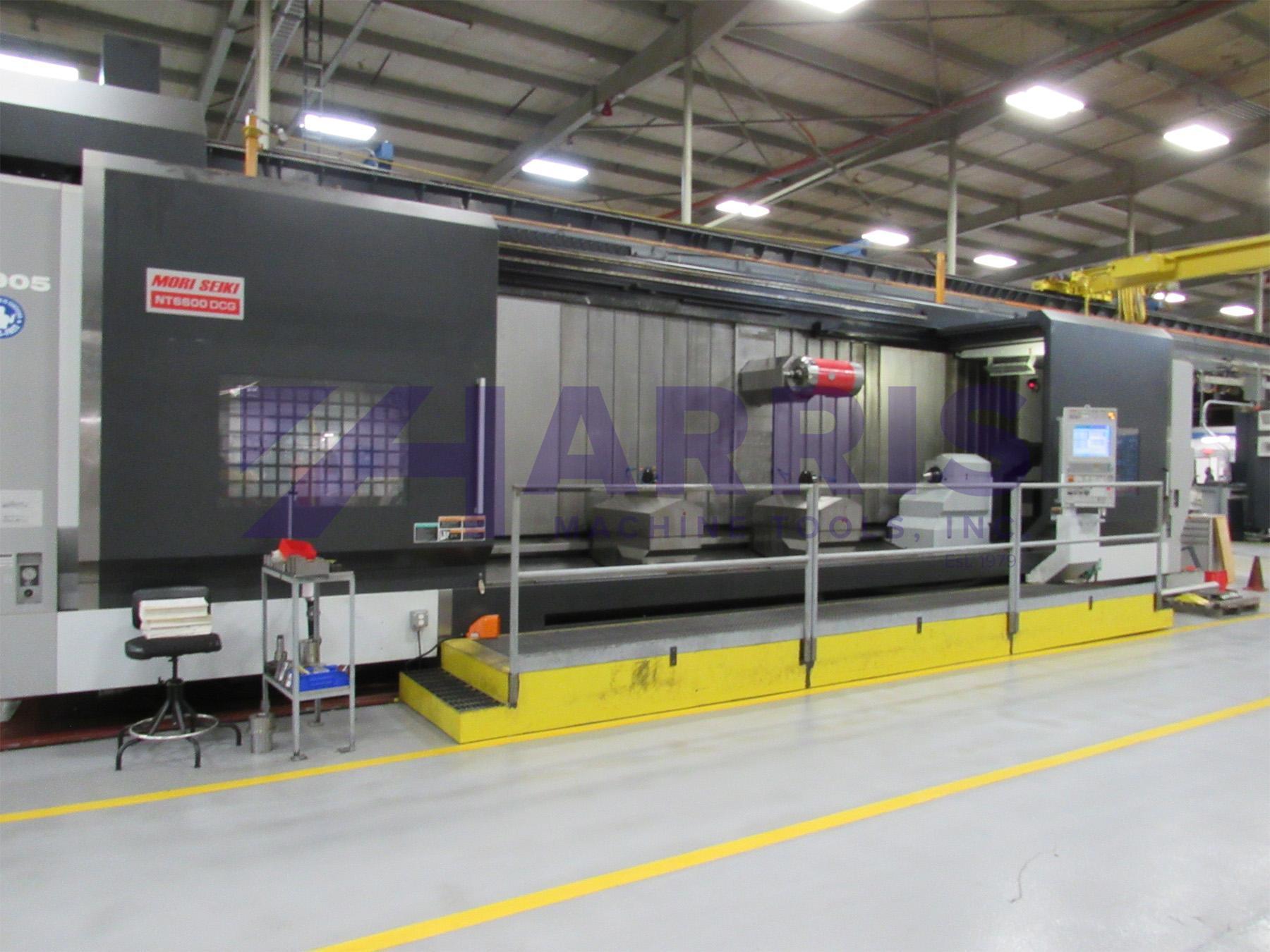

USED, MORI SEIKI NT6600 DCG/6000B CNC INTEGRATED MILL TURN CENTER WITH LIVE MILLING
Brand
Category
Model
NT6600 DCG/6000B
Stock #
19681
Year
2012
Condition
Used
Location
Texas
| CNC Control | yes |

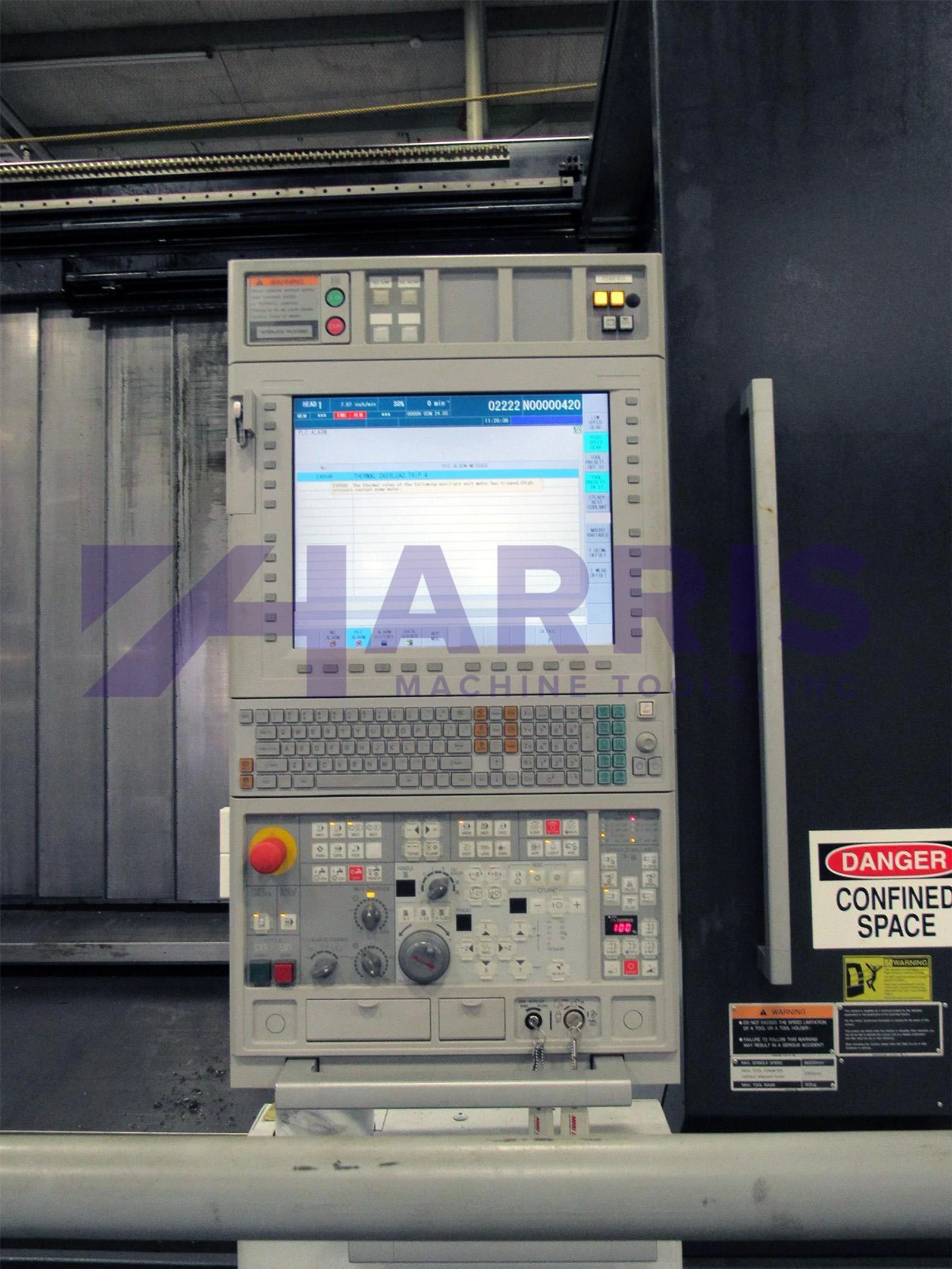

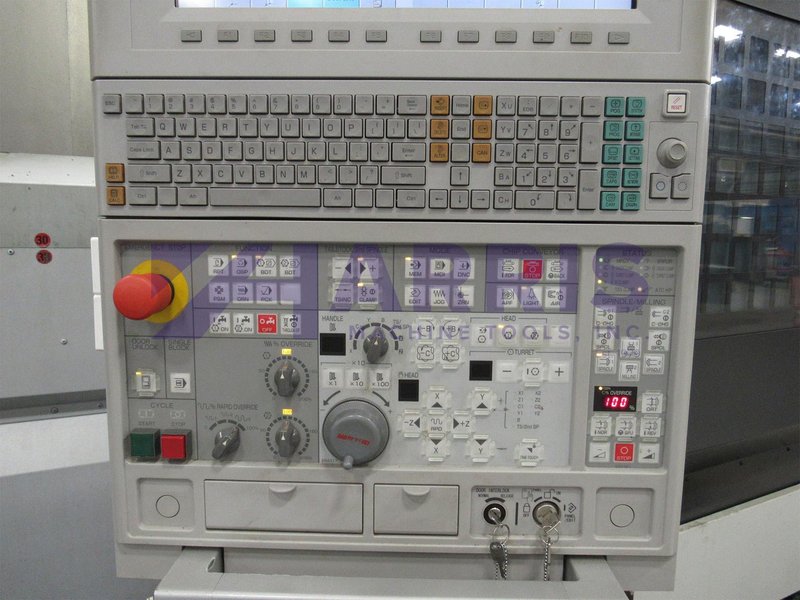

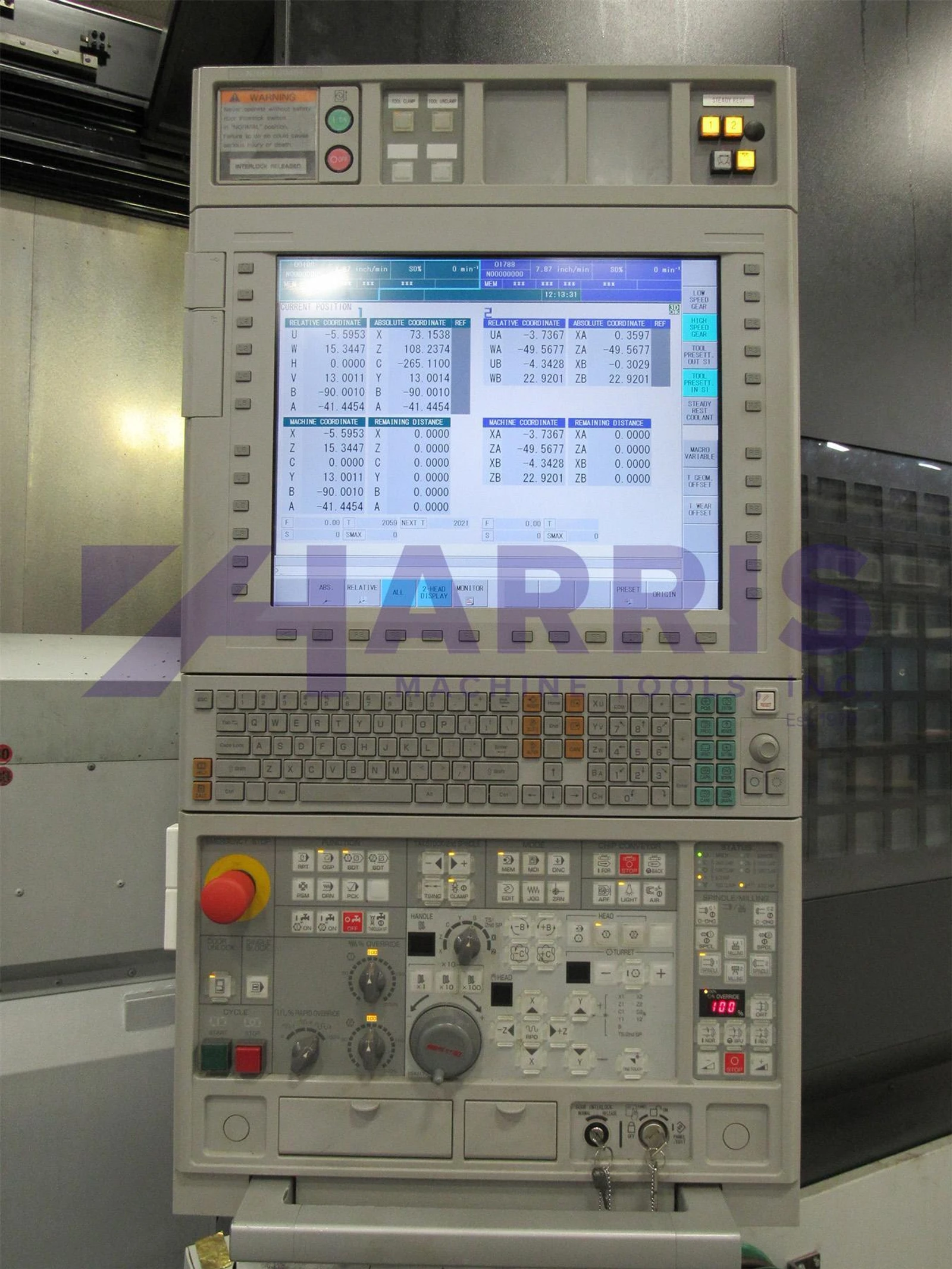

| Type Of CNC Control | FS31iA5 CNC Control |

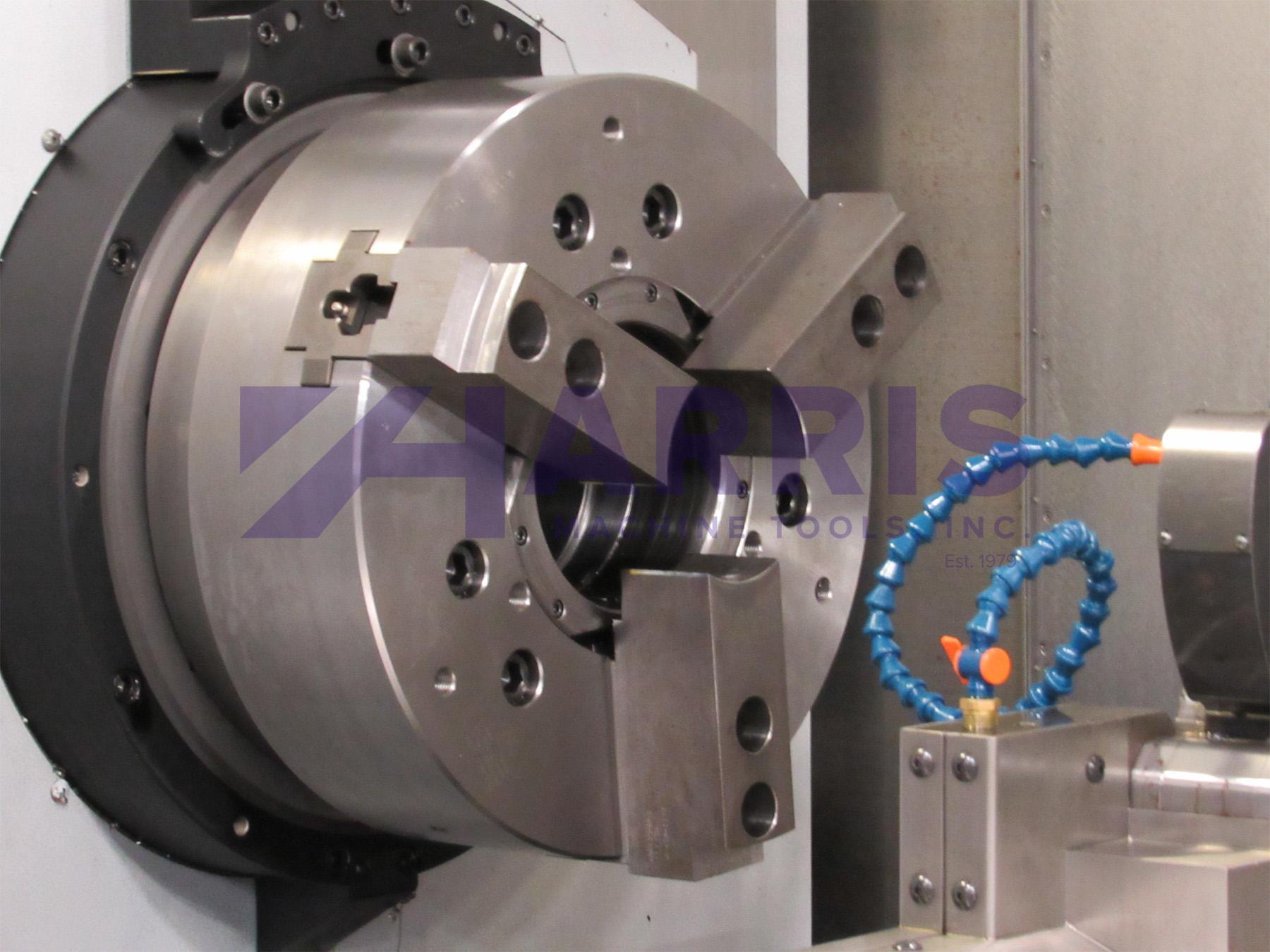

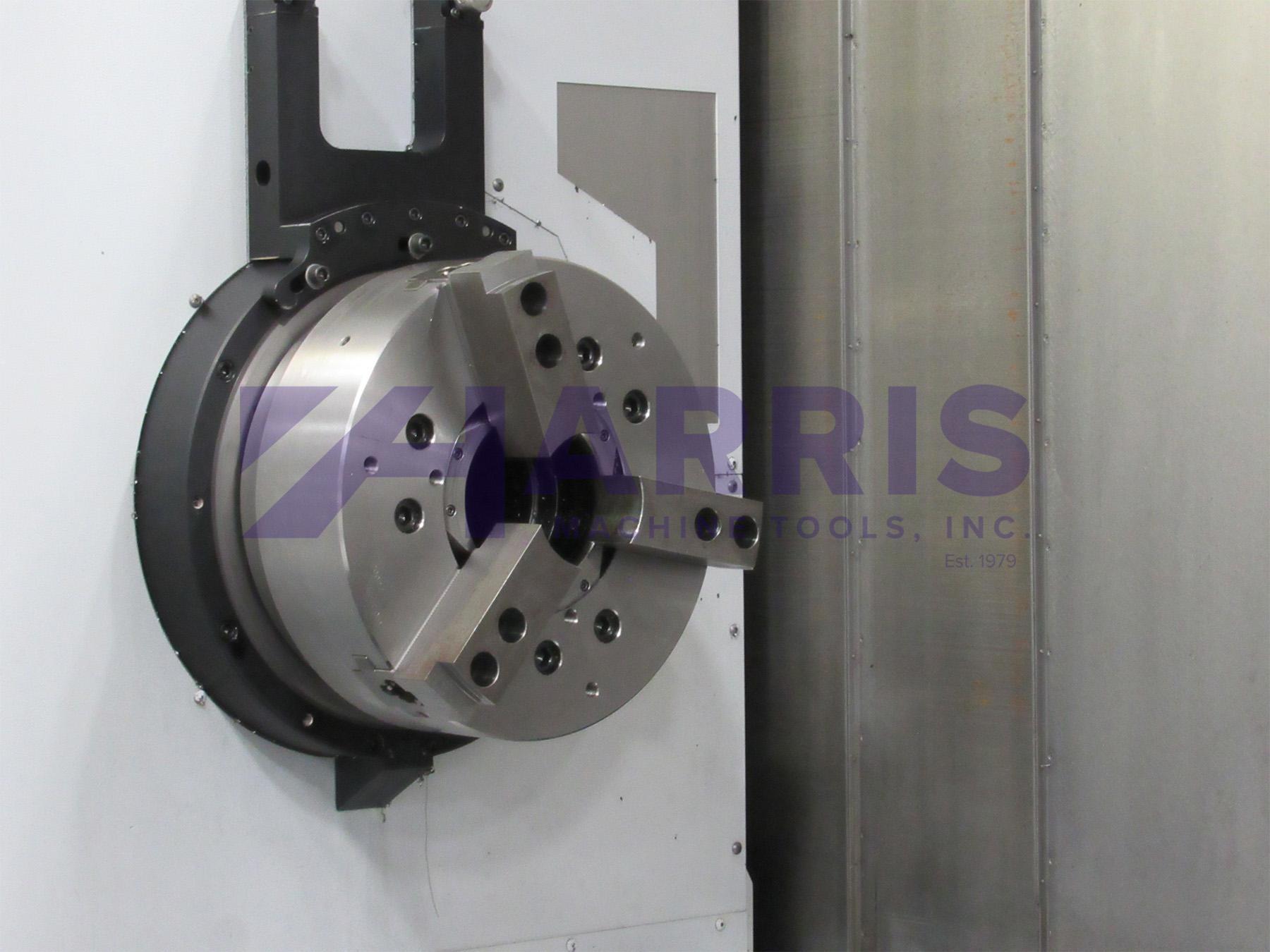

| Chuck Size | 20 inches |
| Swing | 42 inches |
| Bar Capacity | 6.4 inches |
| Spindle Bore | 7 inches |
| X Axis Travel | 41 inches |
| Z Axis Travel | 242 inches |
| Y Axis (Yes / No) | yes |
| Y Axis Travel | 26 inches |
| B Axis | +/- 120 Deg. |
| Spindle Speed (RPM) | 1500 |
| Spindle Motor | 40 HP |
| Sub Spindle Speed (RPM) | 8000 |
| Sub Spindle Motor | 40 HP |
| Live Milling (Yes / No) | yes |
| Dimensions | 490" x 182" x 169"H |
| Hours | 49625 |
| Weight | 120560 pounds |
|
MAXIMUM SWING OVER BED: 42"

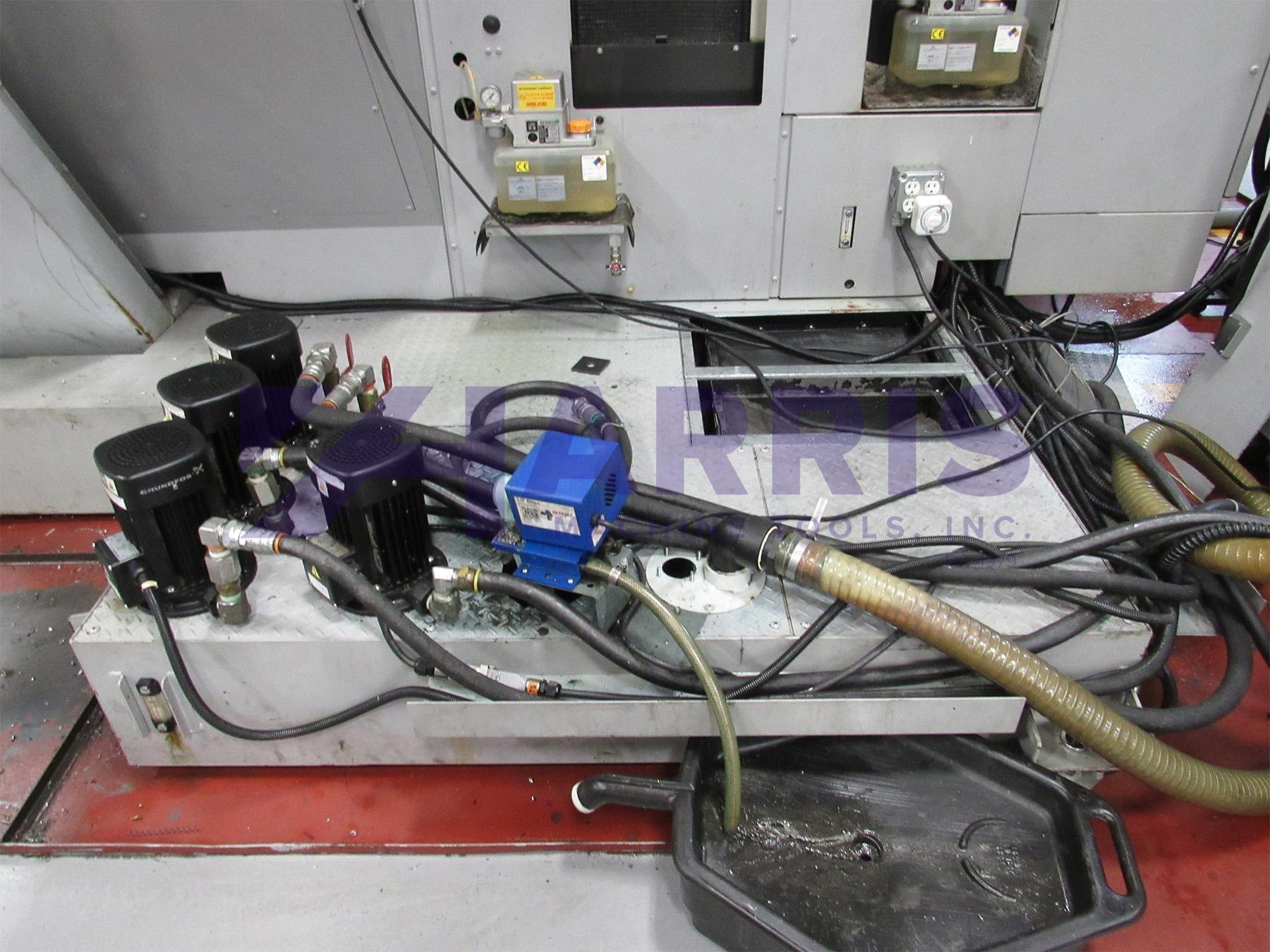

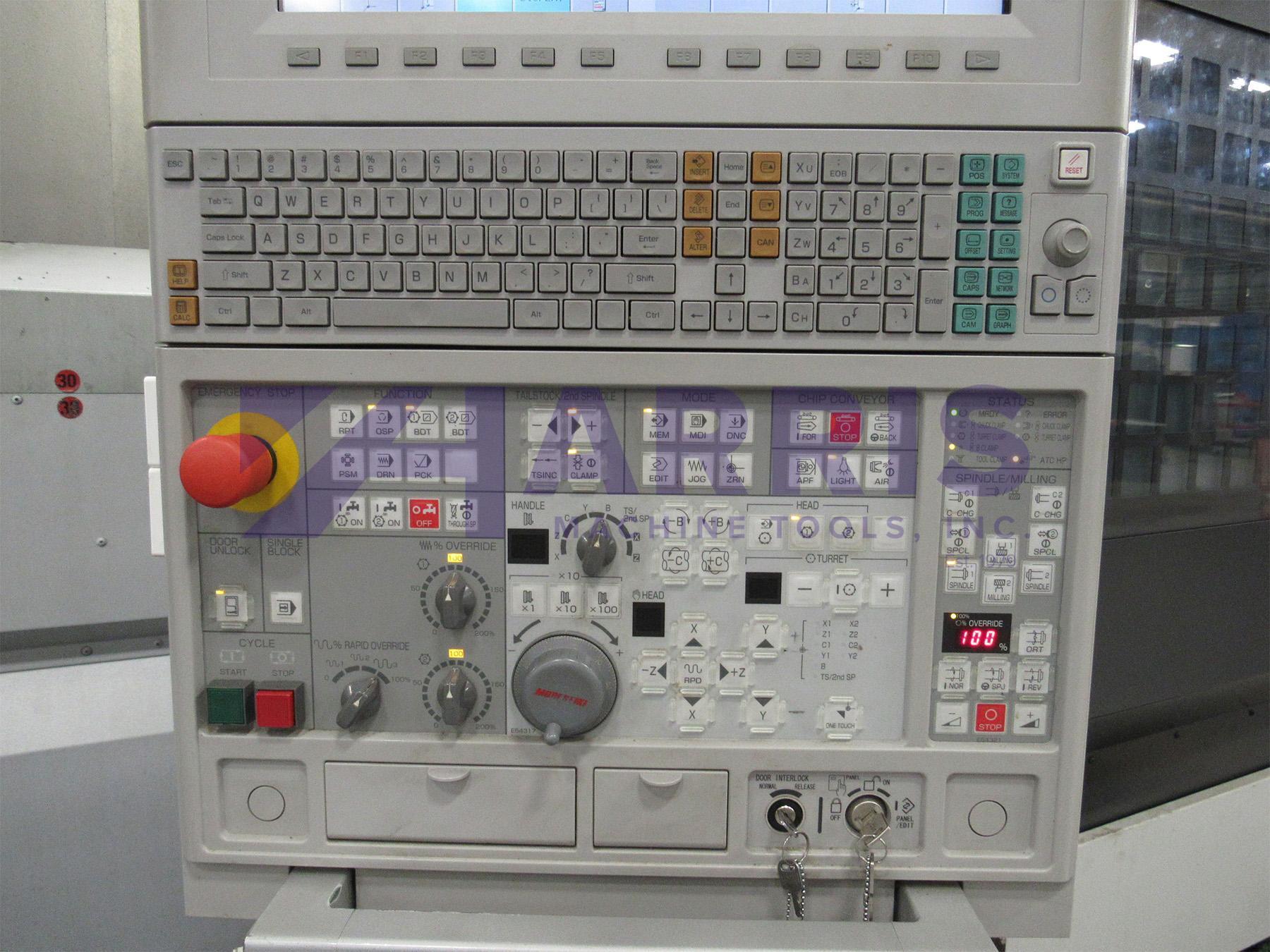

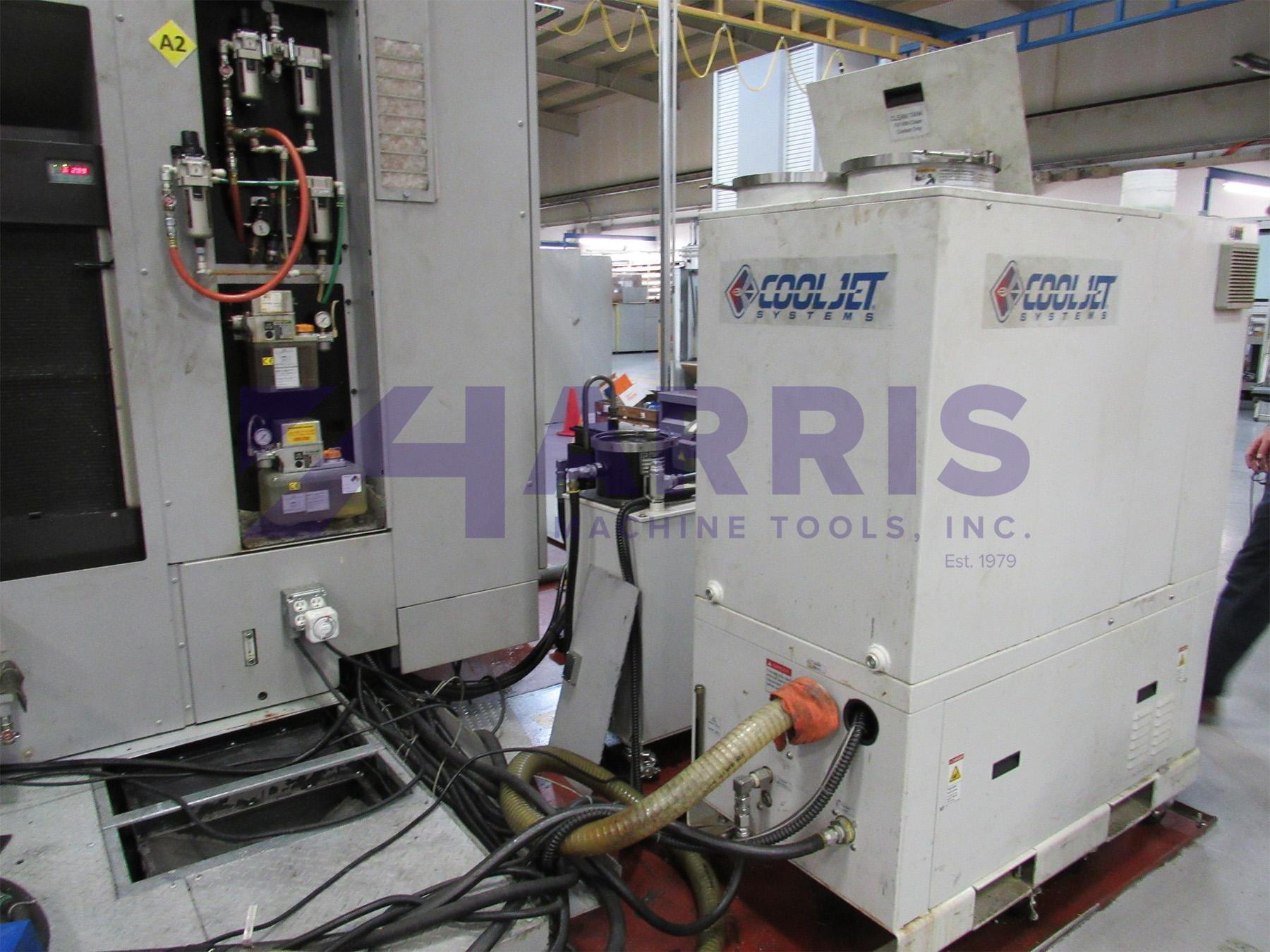

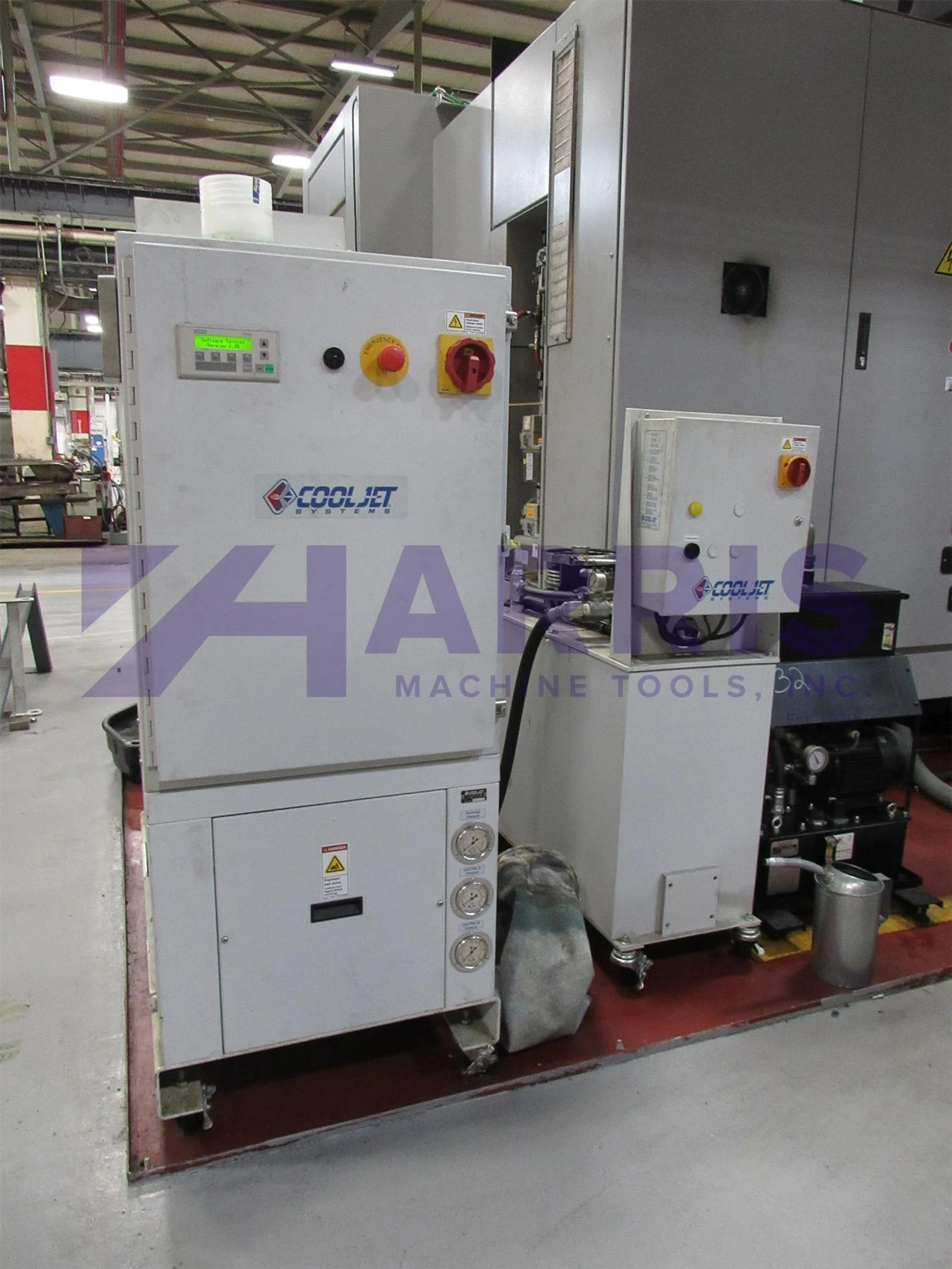

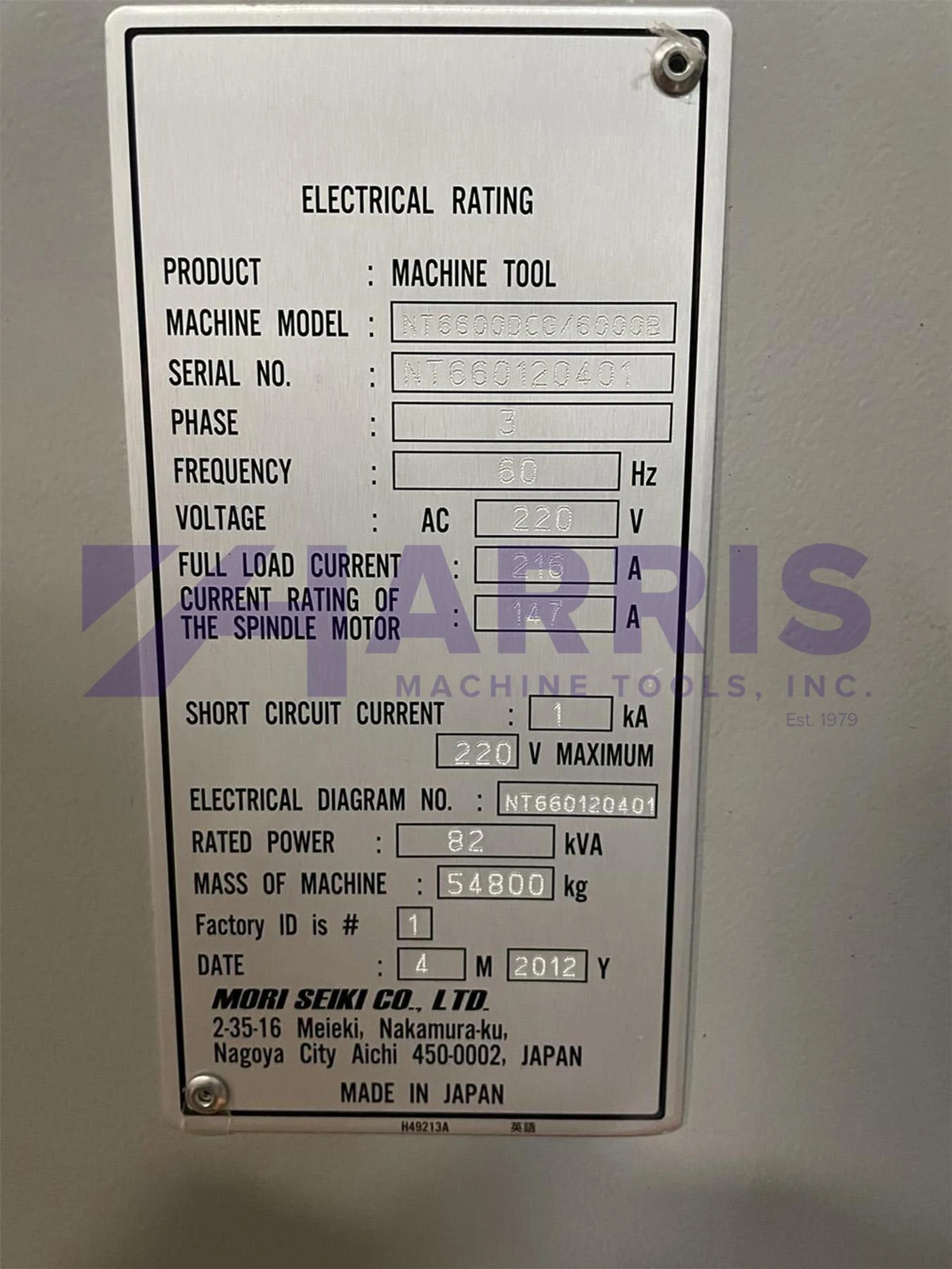

MAXIMUM WORK PIECE DIAMETER: 42" MAXIMUM WORK PIECE LENGTH: 239" MAXIMUM BAR DIAMETER: 6.4" SPINDLE BORE: 7" X AXIS TRAVEL: 41" Y AXIS TRAVEL: 26" Z AXIS TRAVEL: 242" B AXIS: +/- 120 DEG. MAIN SPINDLE SPEED: 1500 RPM MAIN SPINDLE MOTOR: 40 HP MILLING SPINDLE SPEED: 8000 RPM MILLING SPINDLE MOTOR: 40 HP ELECTRICS: 220V/3P/60Hz/216A OAD (APPROXIMATE): 490" X 182" X 169" HIGH WEIGHT (APPROXIMATE): 120,560 LBS. EQUIPPED WITH: C AXIS YAXIS B AXIS LIVE TOOLING/MILLING 20" HYDRAULIC CHUCK FS-31iA5 CNC CONTROL 140 POSITION AUTOMATIC TOOL CHANGER PROGRAMMABLE TAILSTOCK COOLANT THROUGH SPINDLE (HIGH PRESSURE) CHIP CONVEYOR Additional Control Options: Automatic Power Shut-Off

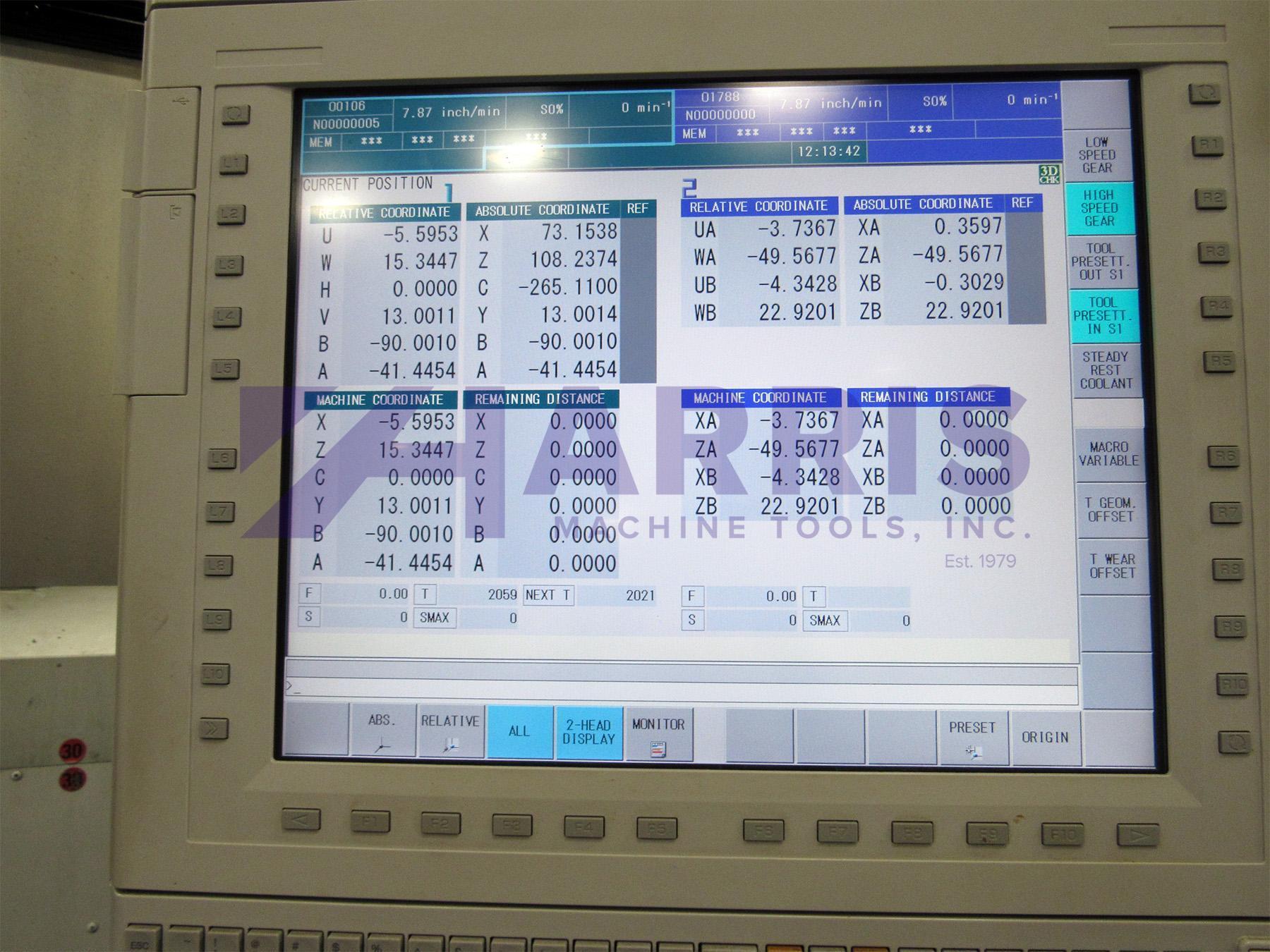

MAPPS 4 System
Part Program Storage: 8mb
Stored Programs: 1000
Remote Communication Function
ATA Flash Memory Card
Programmable Data Input
AI Contour Control
Machine Options: Tool Presetter Automatic Tool Length Measurement System Additional Machine Specs: Capto C8 Spindle

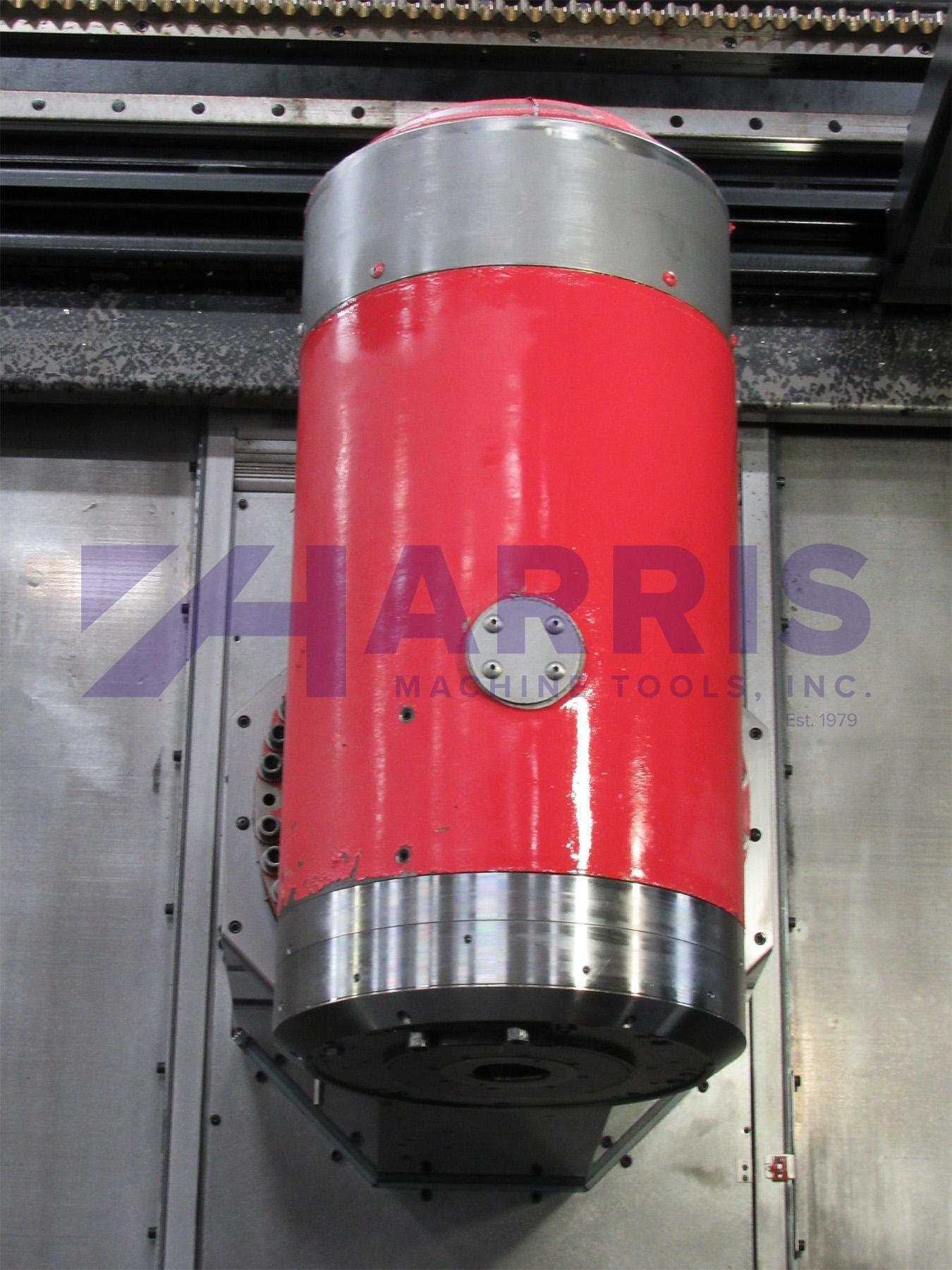

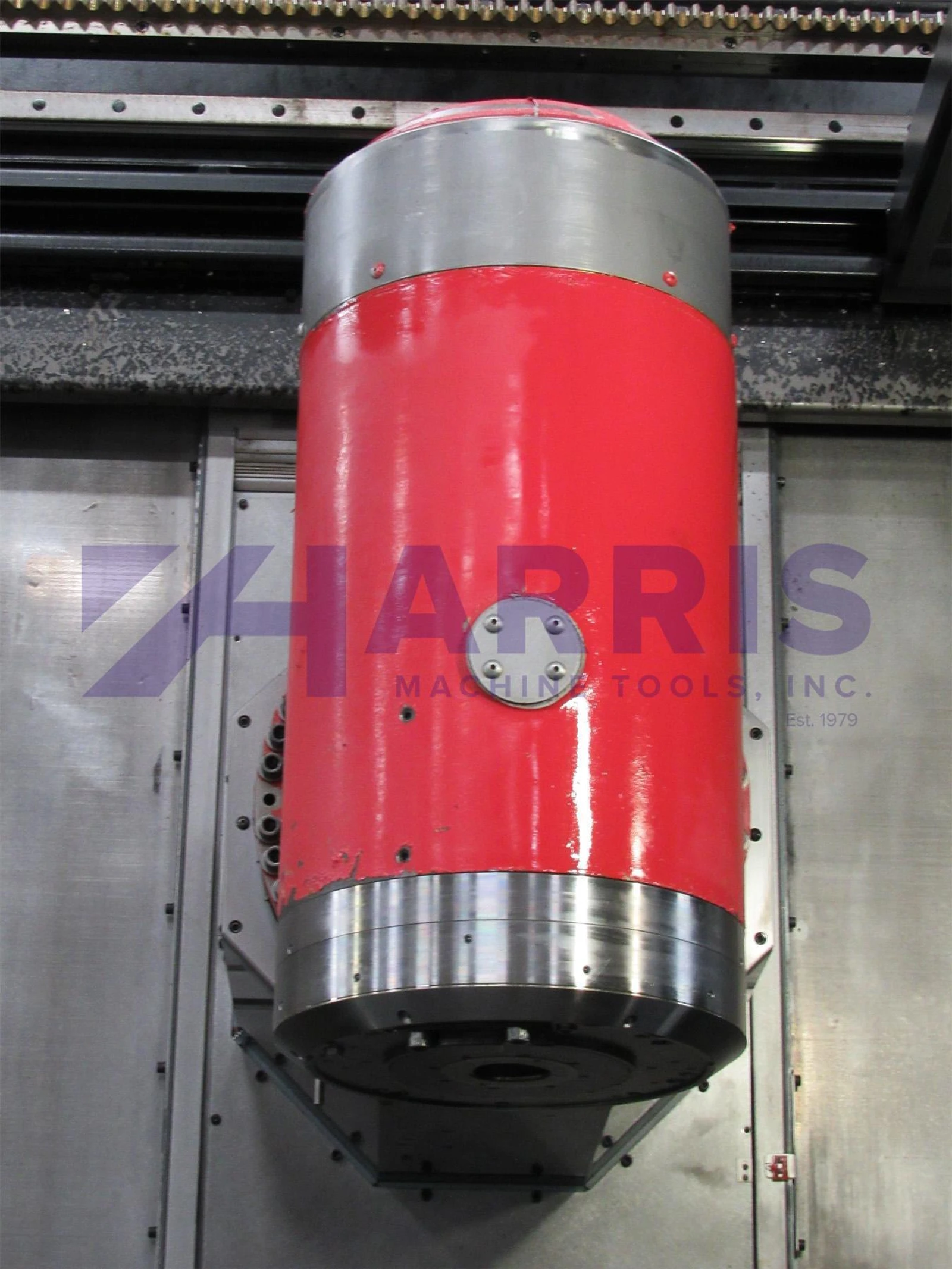

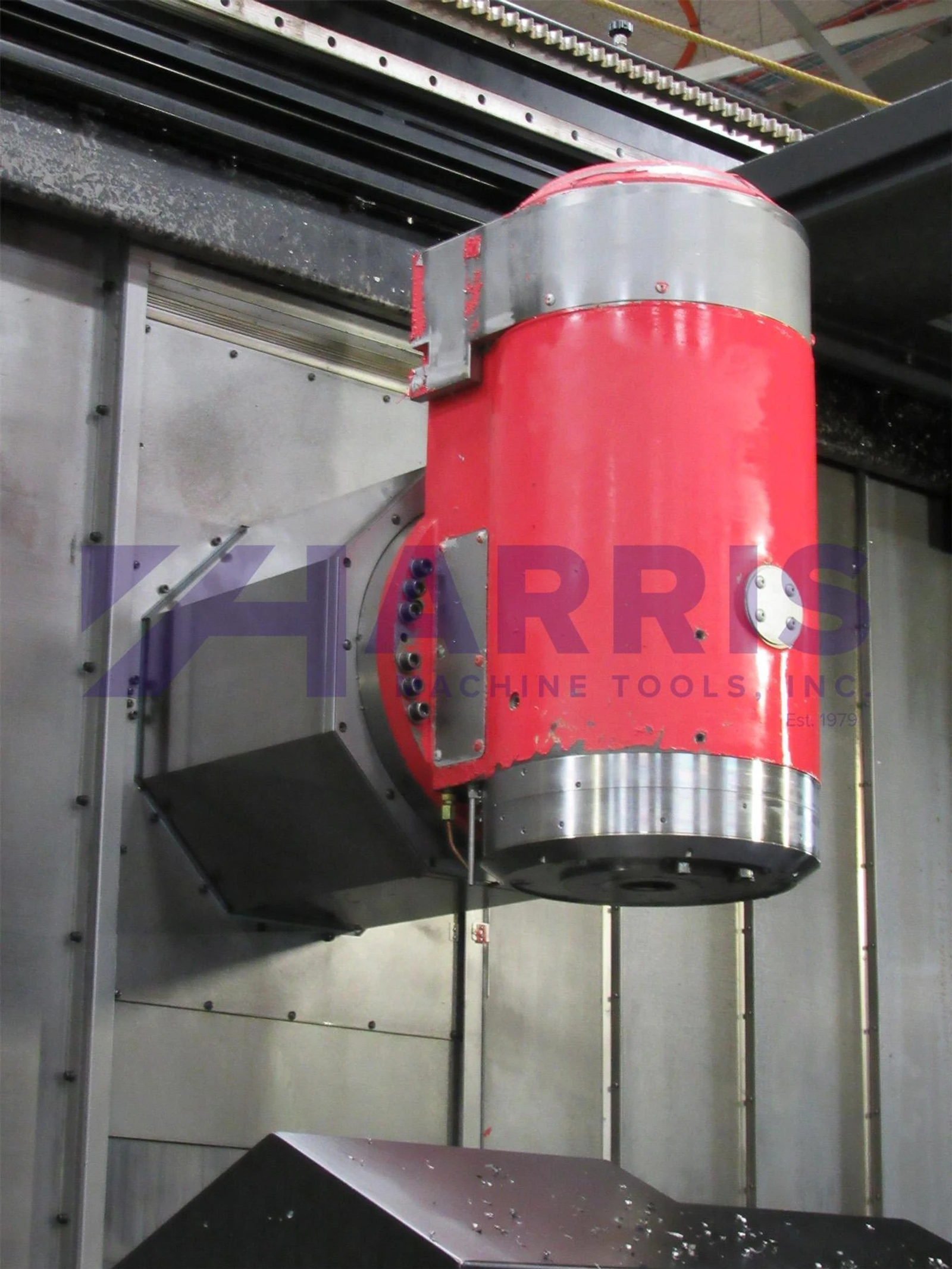

Full B-Axis
Right Hinge-Type Chip Conveyor

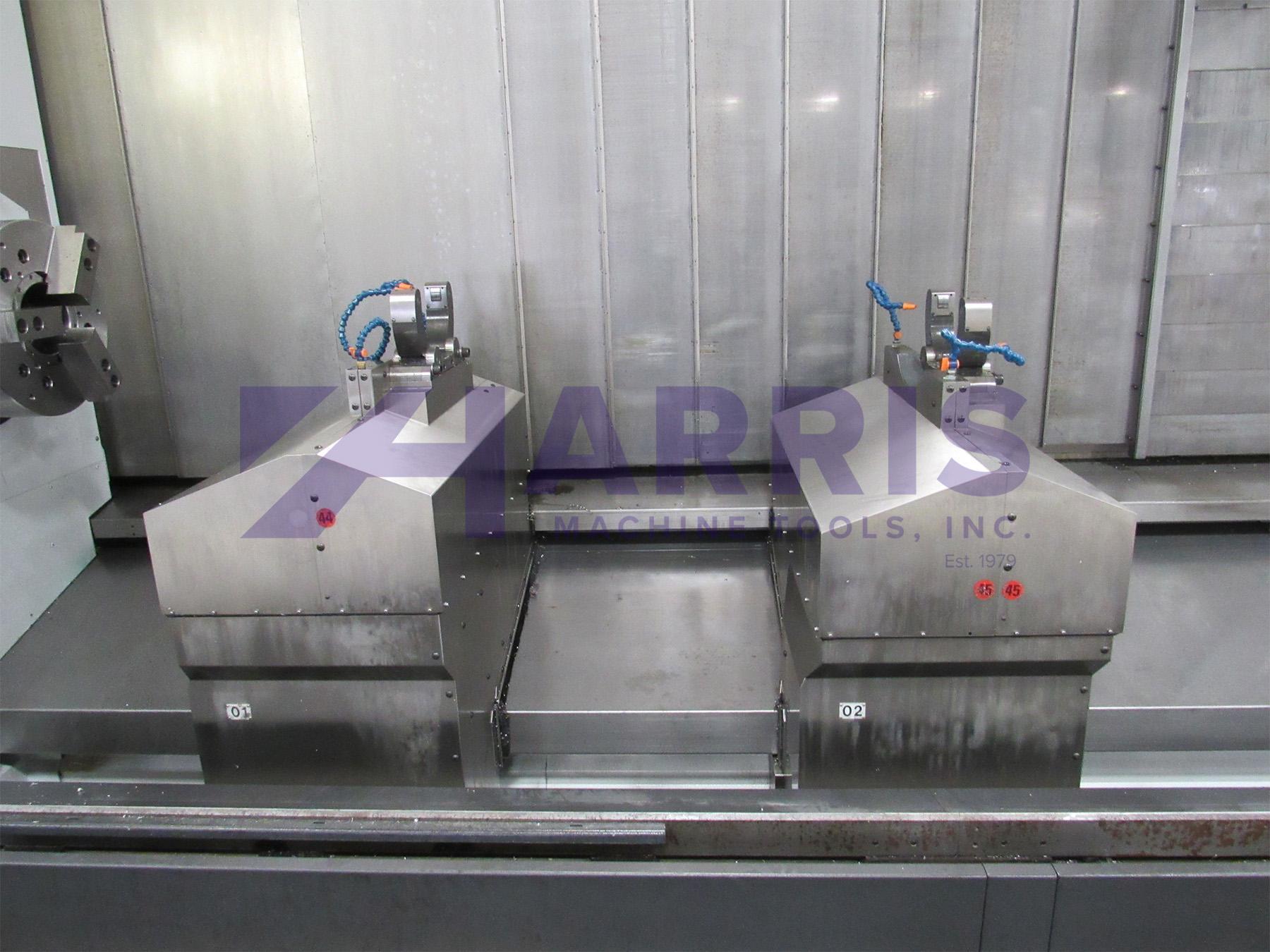

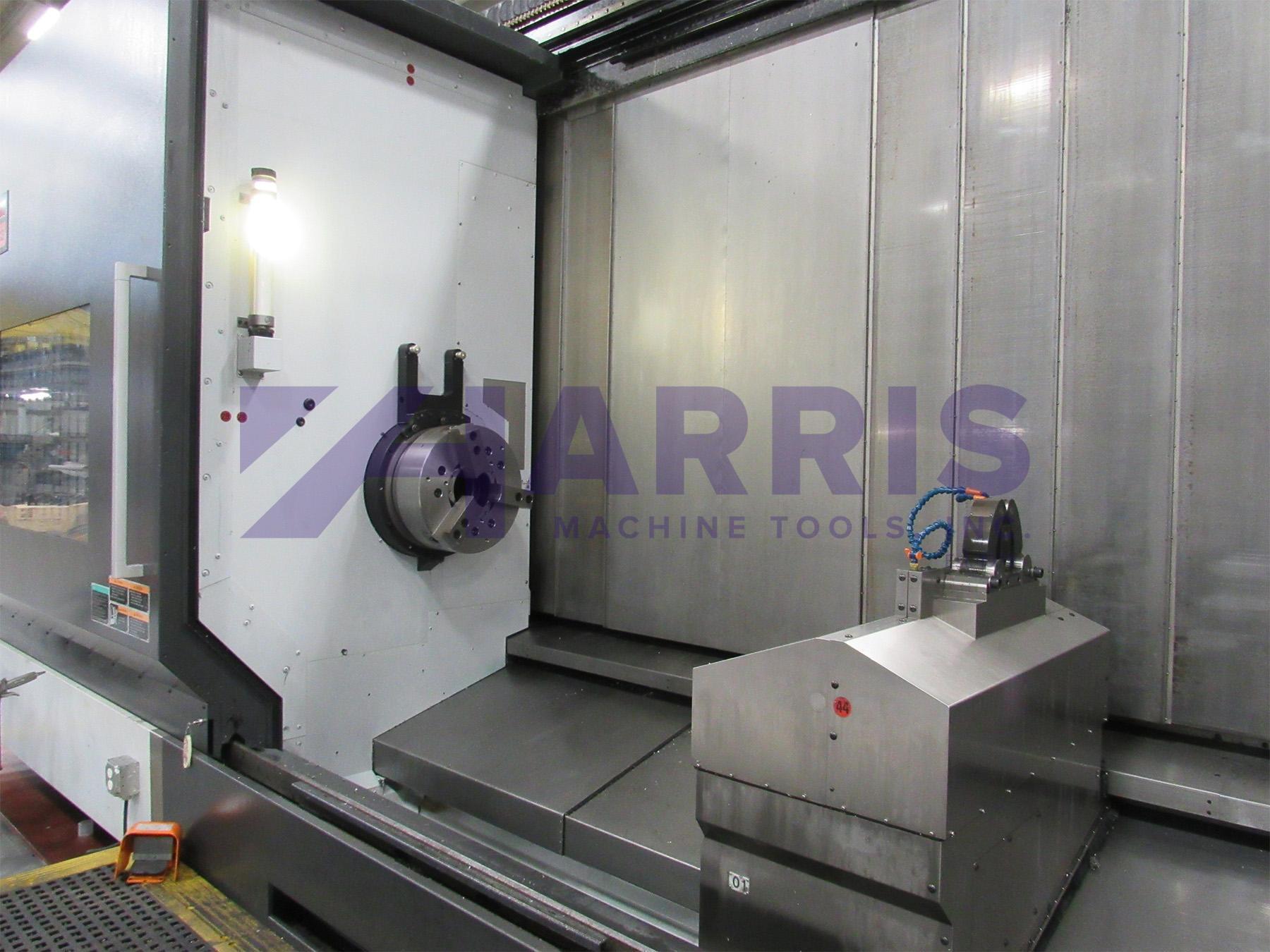

(2) Programmable Automatic Steady Rests (8" capacity)
Simultaneous 5-Axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining
Work Coordinate System Pairs: 6
Tilted Working Plane
Nano Smoothing
Tool Life Management
Load Monitor
Machine Hours: 49,625 Spindle Hours: 4,798 NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION |
|
