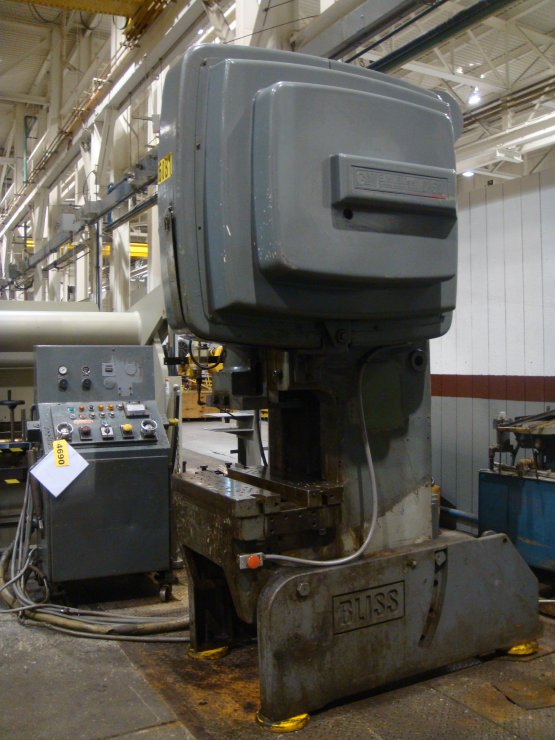

30 Ton BLISS #630 SINGLE CRANK HIGH PRODUCTION PRESS
Brand
Category
Model
630
Stock #
50382
Year
1947
Condition
Used
Location
Ohio
|
RATED CAPACITY (TONS)..................... 30
STROKE OF SLIDE........................... 1/2"
SHUTHEIGHT................................ 10"
BED AREA (L-R) X (F-B).................... 13-1/2" X 18-1/2"
RAM AREA (L-R) X (F-B).................... 13" X 12"
BOLSTER, THICK............................ 3"
WINDOW OPENING (L-R)...................... 10"
STROKES PER MINUTE........................ 100 - 500
DOUBLE ROLL FEED (FACE) X (DIAMETER)...... 6-1/2" X 3"
WEIGHT ................................... 5,000 LBS
O.A. DIMENSIONS .......................... 5'3" X 3' X 9' HIGH
TIE ROD FRAME CONSTRUCTION
FLYWHEEL TYPE
AIR CLUTCH
V-BELT MOTOR DRIVEN INCLUDING 5 HP 3/60/220-440 MOTOR
REEVES VARIABLE SPEED DRIVE
SCRAP CHOPPER |
