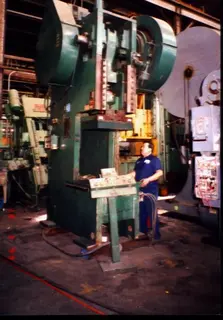

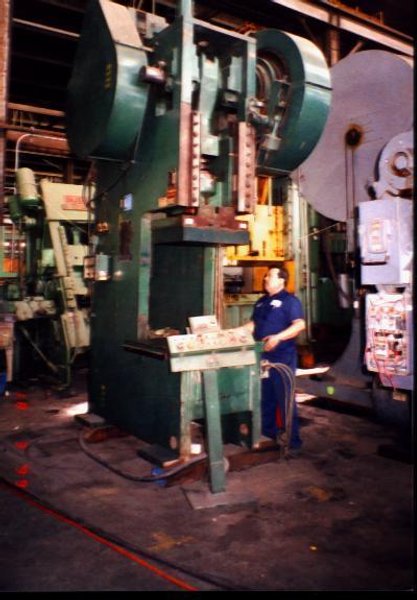

100 TON ROCKFORD MODEL #G-110-1 GAP FRAME SINGLE CRANK PRESS
Brand
Category
Model
G-110-1
Stock #
101031
Year
1980
Condition
Used
Location
Ohio
|
Rated capacity (tons) .................... 100
Stroke of slide .......................... 10"
Shutheight to bed (from face of slide) ... 30"
Slide Adjustment (hand) .................. 4"
Strokes per minute (continuous) .......... 25 - 50
Bed to Gibs .............................. 45"
Bed area (l-r) x (f-b) ................... 44" x 27-1/2"
Ram area (l-r) x (f-b).................... 28" x 20"
Bolster plate (l-r) x (f-b) x (high) ..... 44" x 27-1/8" x 3-3/4"
Ram plate (l-r) x (f-b) x (high) ......... 28" x 20" x 5"
Distance between uprights ................ 24"
Throat ................................... 13"
Weight ................................... 36,000 lbs (18 tons)
O.A. Dimensions ....(lr x fb x high)...... 15' x 8' x 7'
Equipped with: Single Back Geared
Air Clutch & Brake
20 HP AC 3/60/230-460
Variable Speed Motor Drive
5" Bolster mounted on bed
With Lincoln Centro-Matic Grease Lube &
Side-Mounted Imco Ton-Limit Detector
Air Counterbalance (80 PSI)
|
