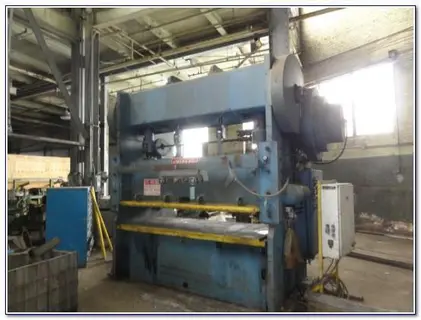

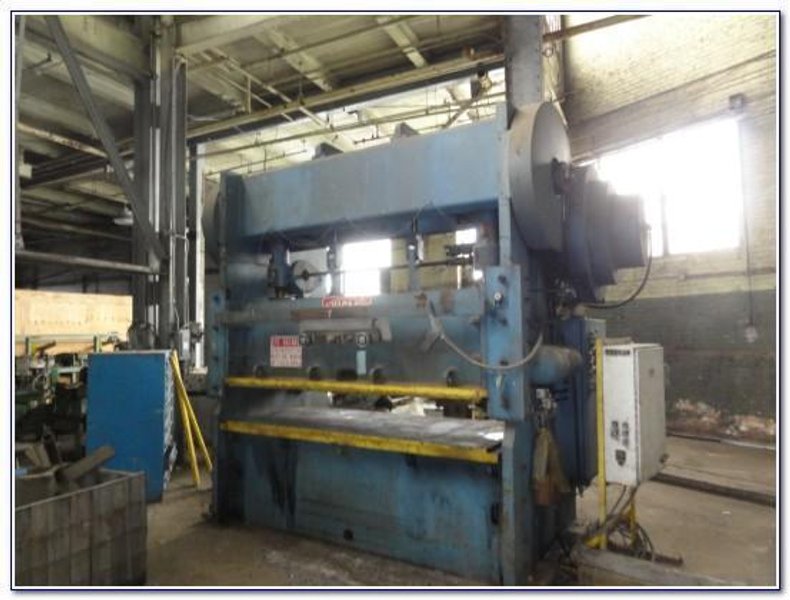

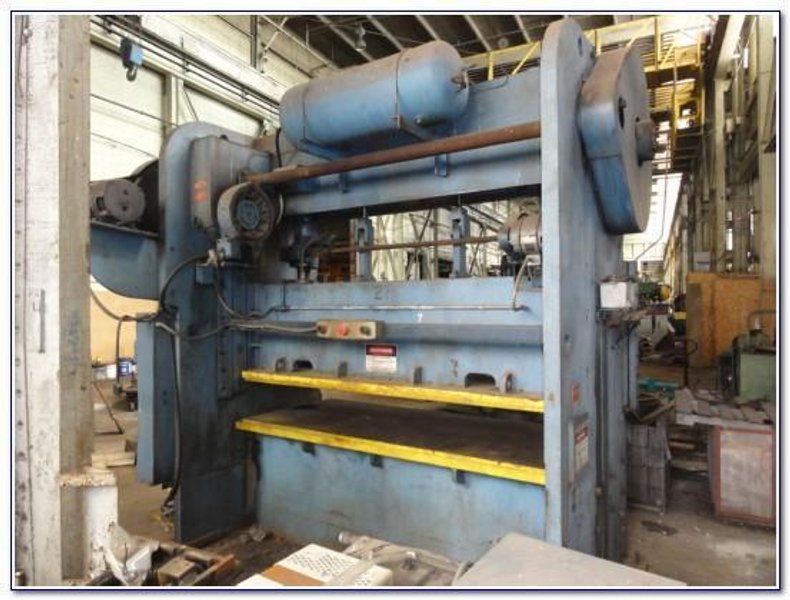

150 TON NIAGARA MODEL #PN150-72x36 GAP FRAME DOUBLE CRANK PRESS
Brand
Category
Model
PN150
Stock #
108734
Year
1986
Condition
Used
Location
Ohio
|
CAPACITY ............................ 150 TON
STROKE .............................. 6"
SHUT HEIGHT ......................... 14"
SLIDE ADJUSTMENT .................... 5"
THROAT ............. ................ 19-5/8"
BOLSTER ............................. 2-3/4" THICKNESS
BOLSTER SIZE ........................ 72"LR X 37"FB
BED AREA ............................ 72" LR x 36" FB
RAM AREA ............................ 72" LR x 36" FB
WIDTH BETWEEN UPRIGHTS .............. 80"
SPEED PER MINUTE .................... 30-50
EQUIPPED WITH: AIR CLUTCH
GAP FRAME
TWIN END DRIVE
DVMD DRIVE
TRABON AUTO LUBE,
MICRO GUARD LIGHT CURTAIN
ELECTRO CAM BRAKE MONITOR
MOTORIZED RAM ADJUSMENT,
AIR COUNTERBALANCES
MOTOR DRIVE: 20 HP, 575V, 3PH, 60CYC, 1755 RPM
WITH CONTROLS. ELECTRICS ARE IN SOLID STATE.
OVERALL DIMENSIONS: 132" L x 91" W x 136" H x 35,000 LBS |
