METLSAW R1214/T8 ALUMINUM PLATE SAW
Brand
Category
Type
Model
R1214/T8
Stock #
112355
Year
Not specified
Condition
Used
Location
Ohio
|

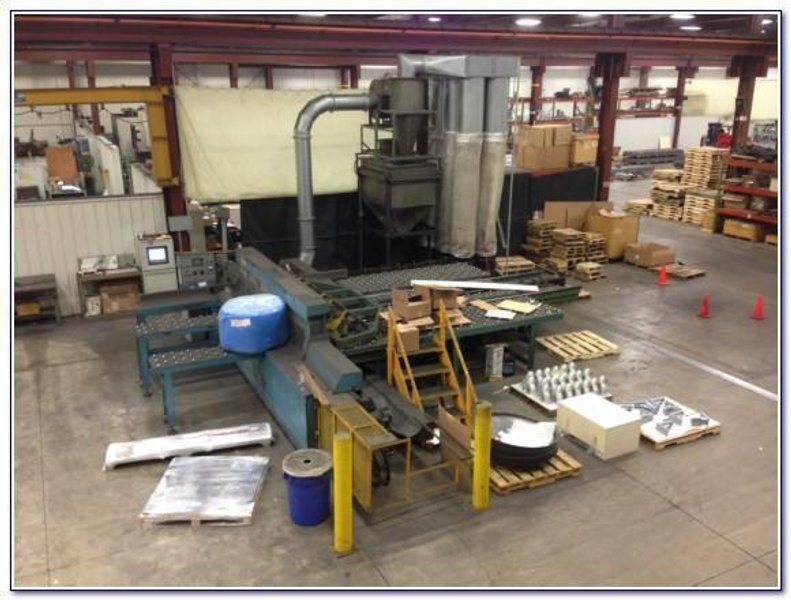

Main Saw: Powered Feed Table: #1 Roller Support Table: #2 Roller Support Table: Torit Dust Collector: Screw Chip Removal Assembly: Chip Hopper:
GRADES: All grades of Aluminum THICKNESS: Min 1/8" thru Max 8" thick THROAT: 192" (16') BACKGAUGE: 144" KERF LOSS: 0.250" 5.22-1/2" BLADES, SQUARING DEVICE, MATERIAL CLAMPS 2-10' ROLLER BALL TABLES X 45" X 48" 1-18' ROLLER BALL TABLE X 48" X 48' AUTOMATIC OPERATION DUST COLLECTOR SYSTEM TOLERANCES: Width & Length +/- .005" for precision cut up to 4" thick +/- .015" for precision cut >4" thick +/- .015" for standard cut up to 4" thick +/- .030" for standard cut >4" thick Perpendicularity within .015" up to 4" think within .030" >4" thick SURFACE FINISH 125 RMS standard cut 63 R 50 HP, 480 VOLT, 110 AMPS 1750 RPM, 120 PSI |
