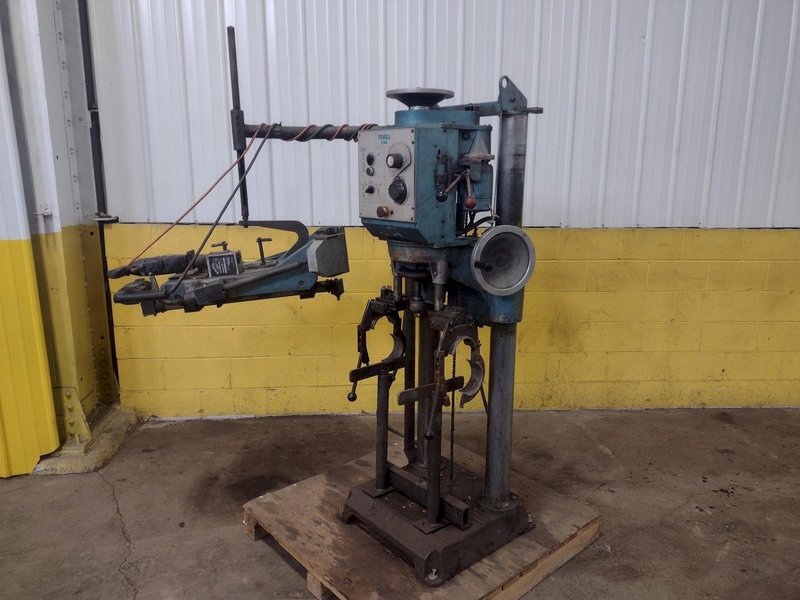

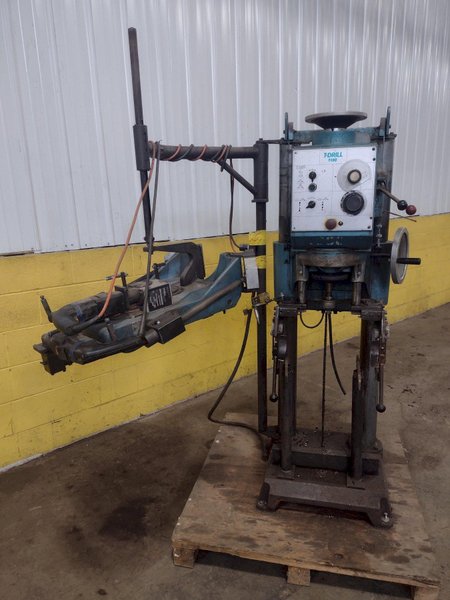

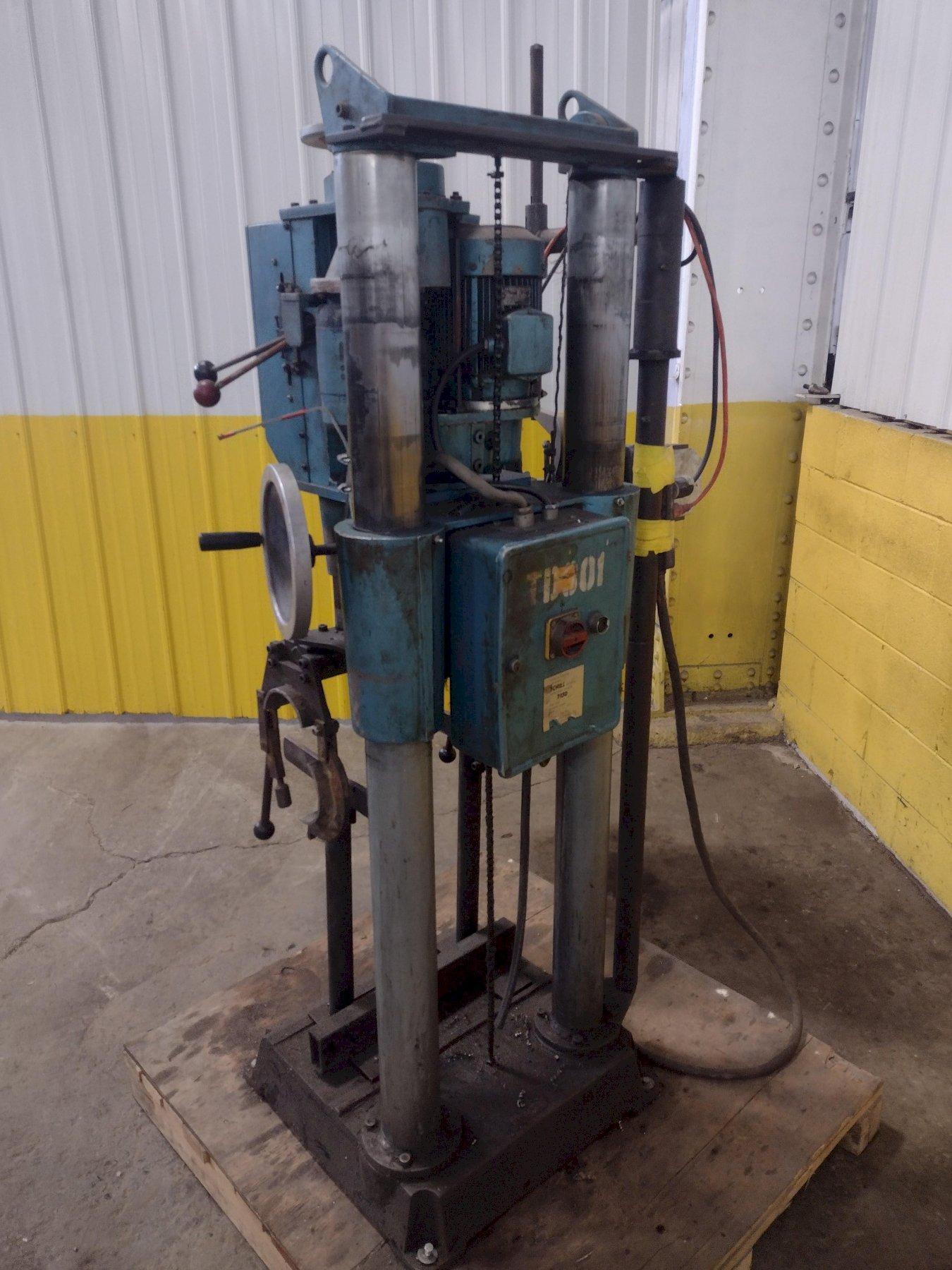

6-3/4" T-DRILL MODEL #T-150 PIPE COLLARING MACHINE WITH T-DRILL EC-150 END PROCESSING ATTACHMENT: STOCK #15864

6-3/4" T-DRILL MODEL #T-150 PIPE COLLARING MACHINE WITH T-DRILL EC-150 END PROCESSING ATTACHMENT: STOCK #15864

Name: 6-3/4" T-DRILL MODEL #T-150 PIPE COLLARING MACHINE WITH T-DRILL EC-150 END PROCESSING ATTACHMENT: STOCK #15864
Brand: T-DRILL
SKU: 15864
Availability: InStock

Brand

T-DRILL

Location

Ohio

Specifications
Files & Videos

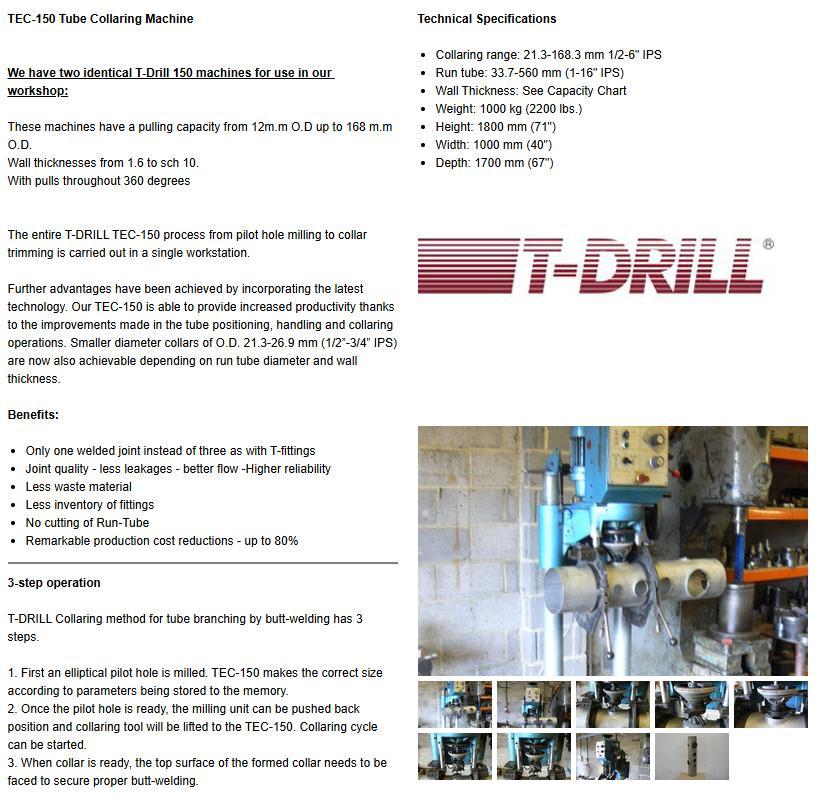

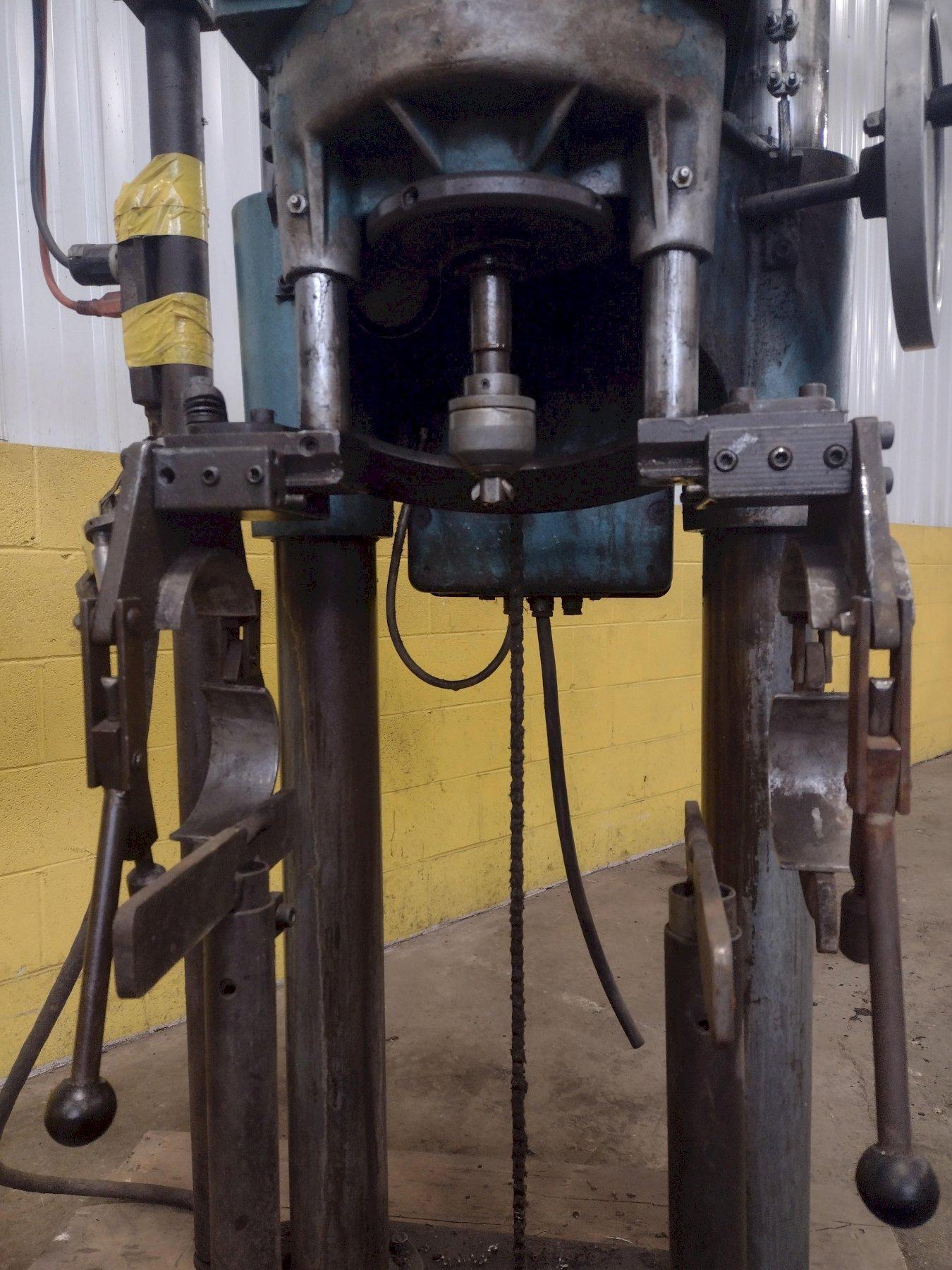

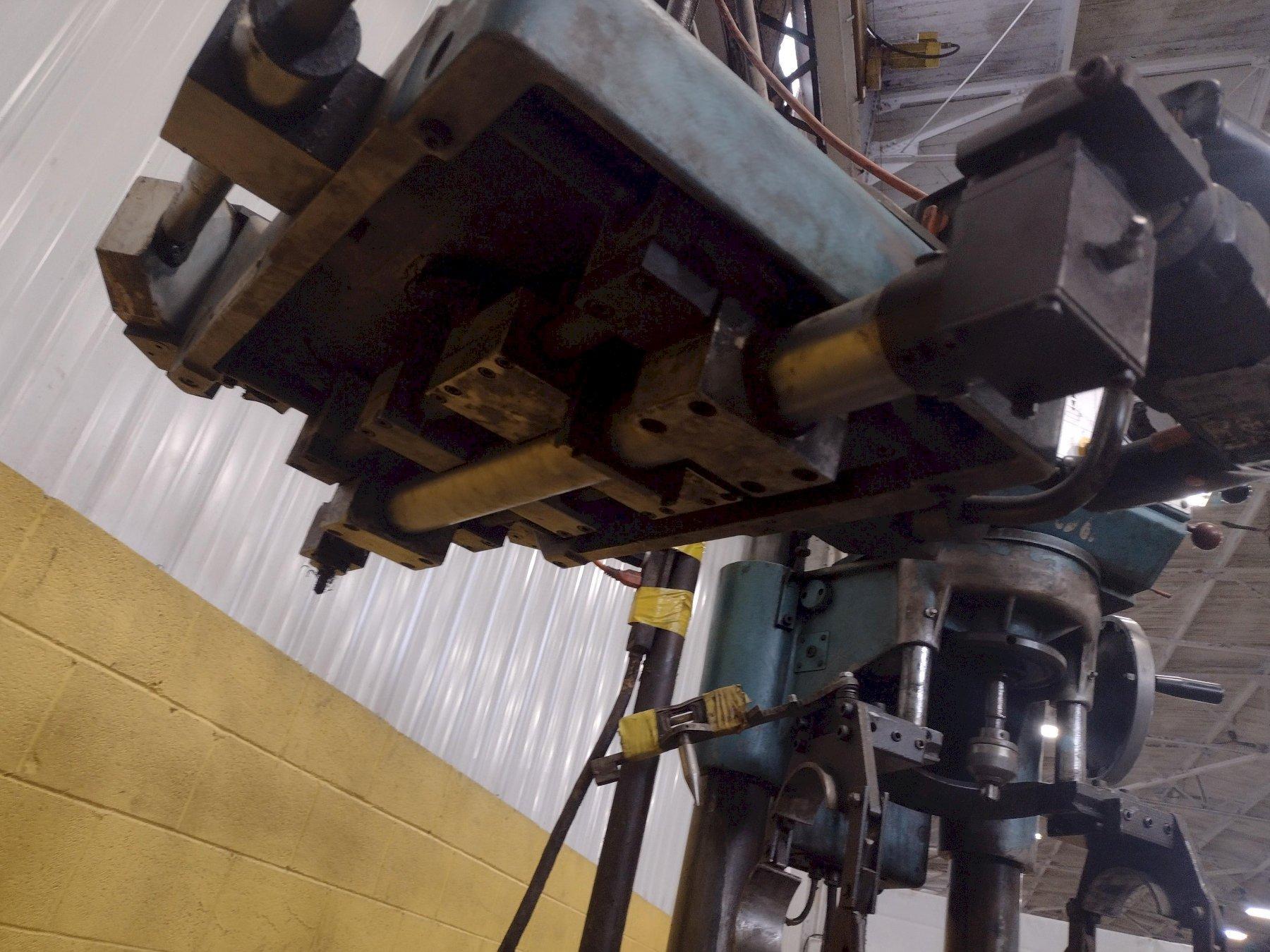

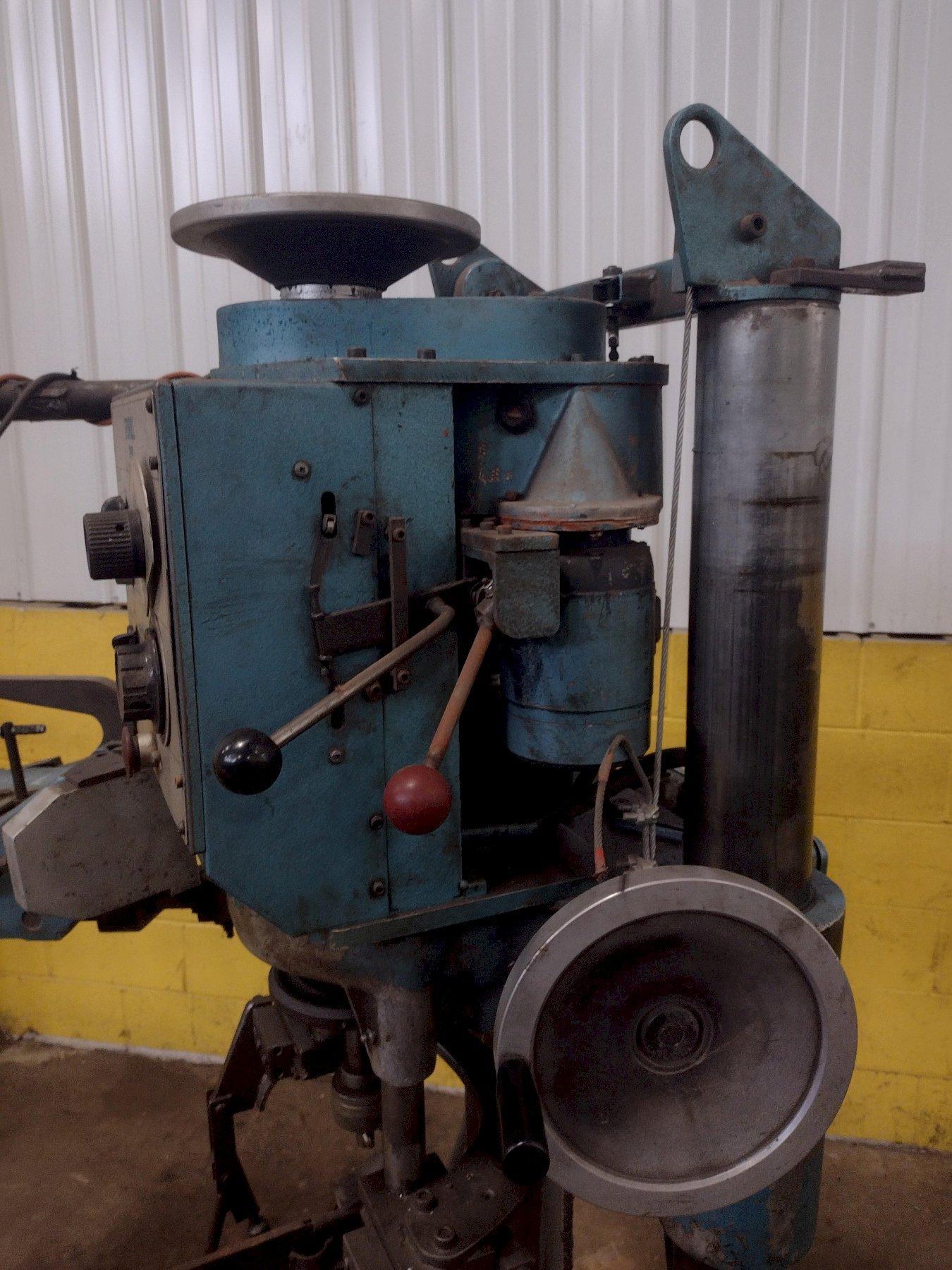

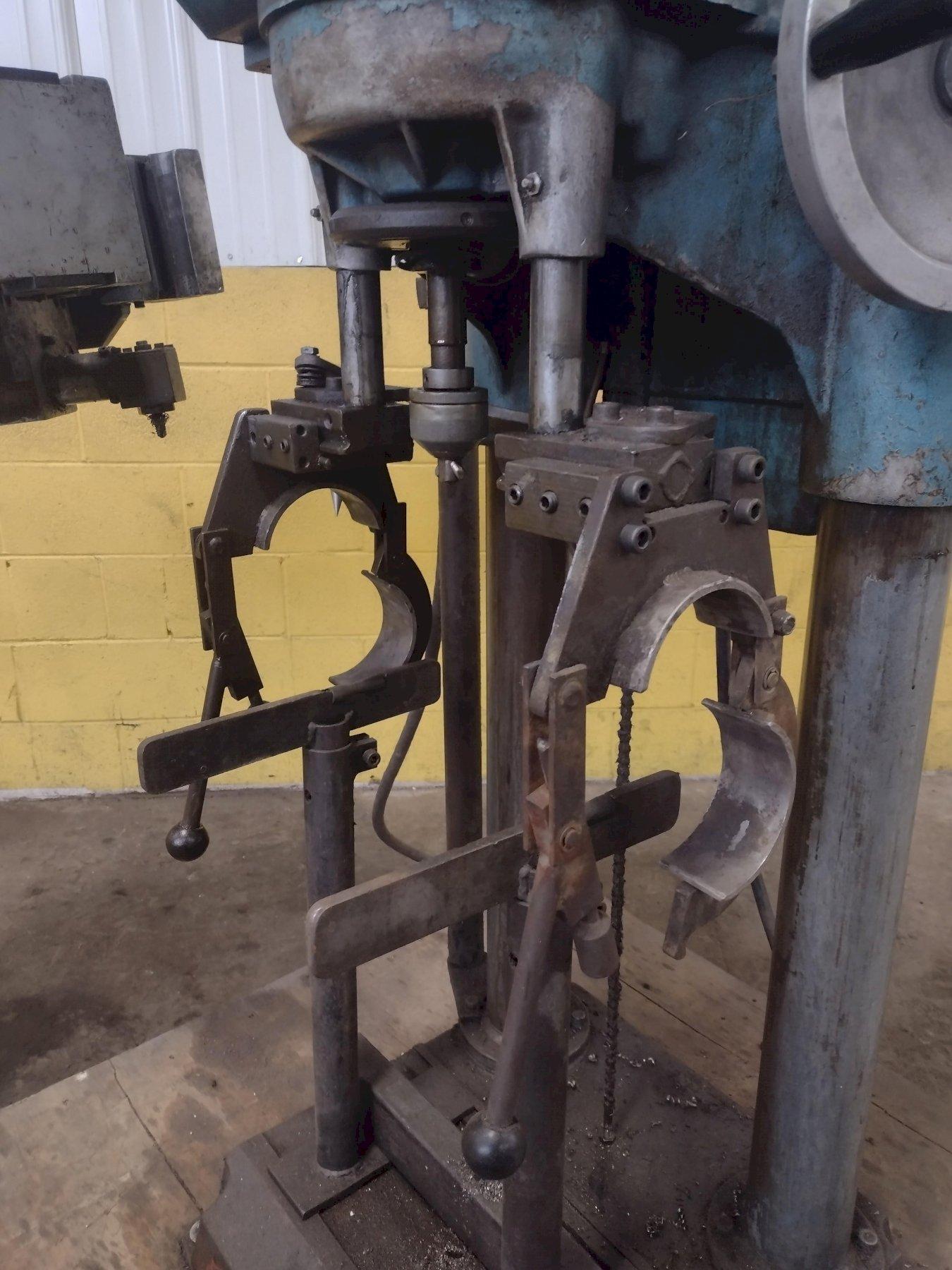

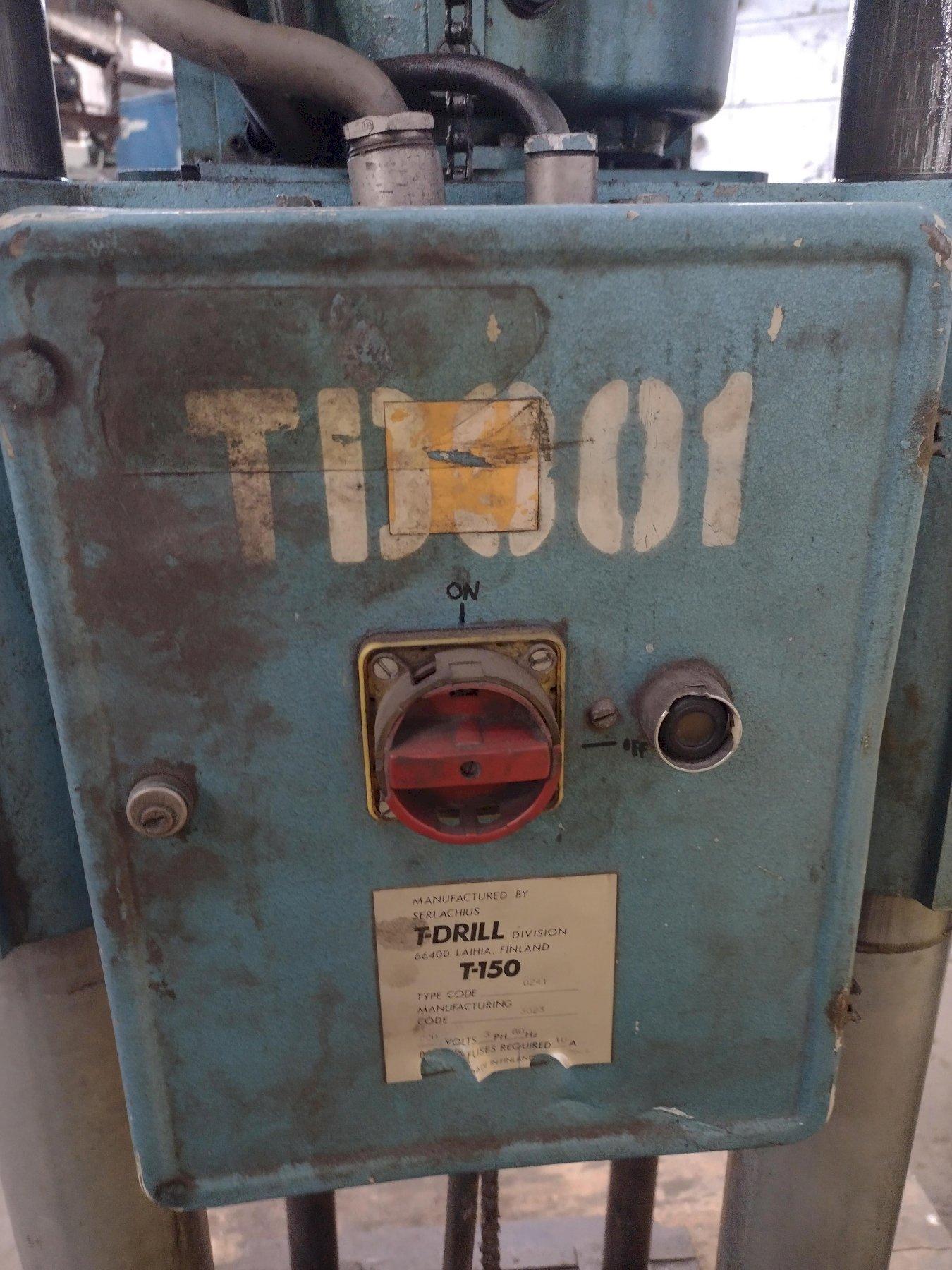

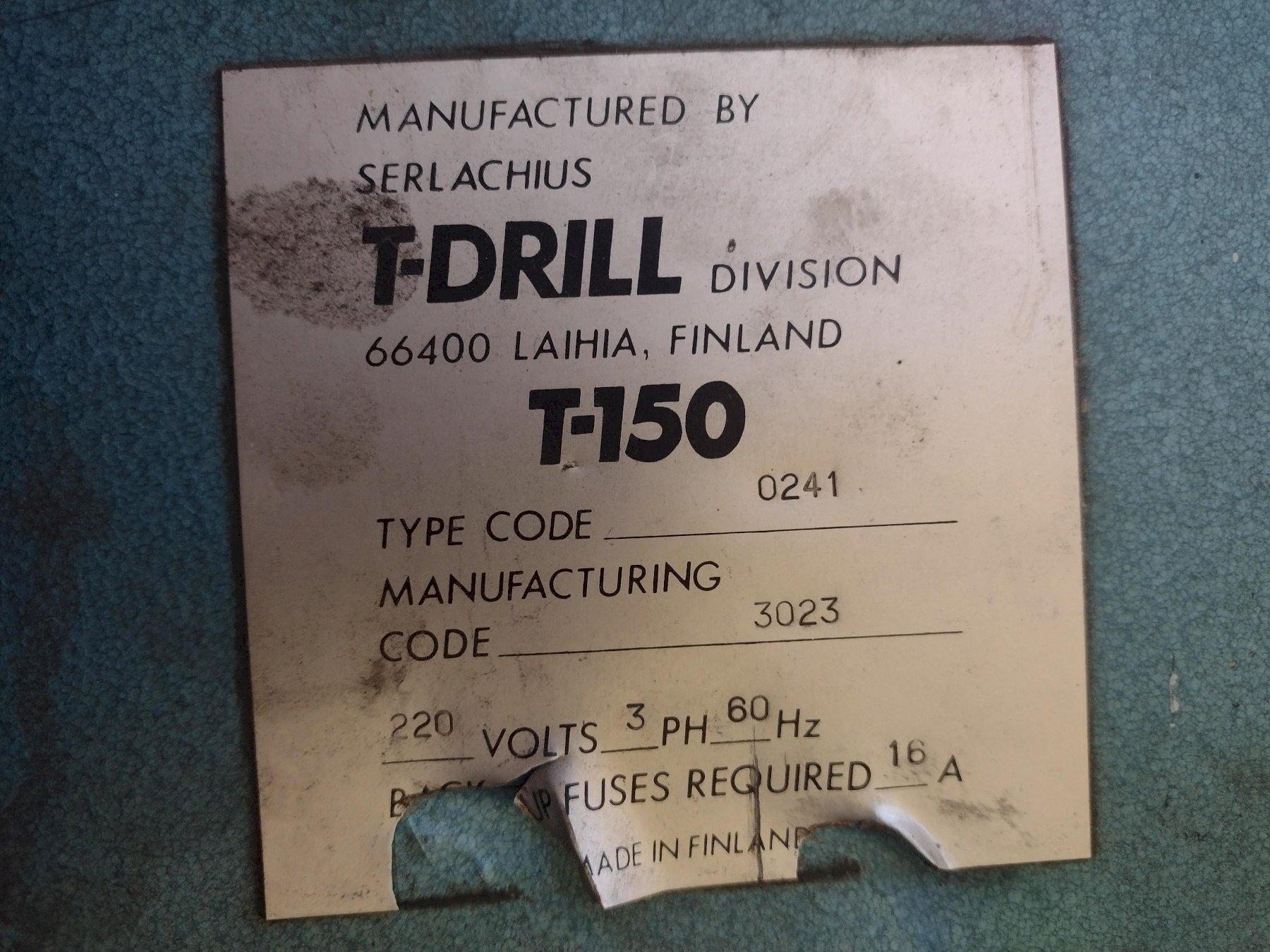

T-DRILL TEC-150 COLLARING MACHINE:
SERIAL .................. 3023
MODEL ................... T-150

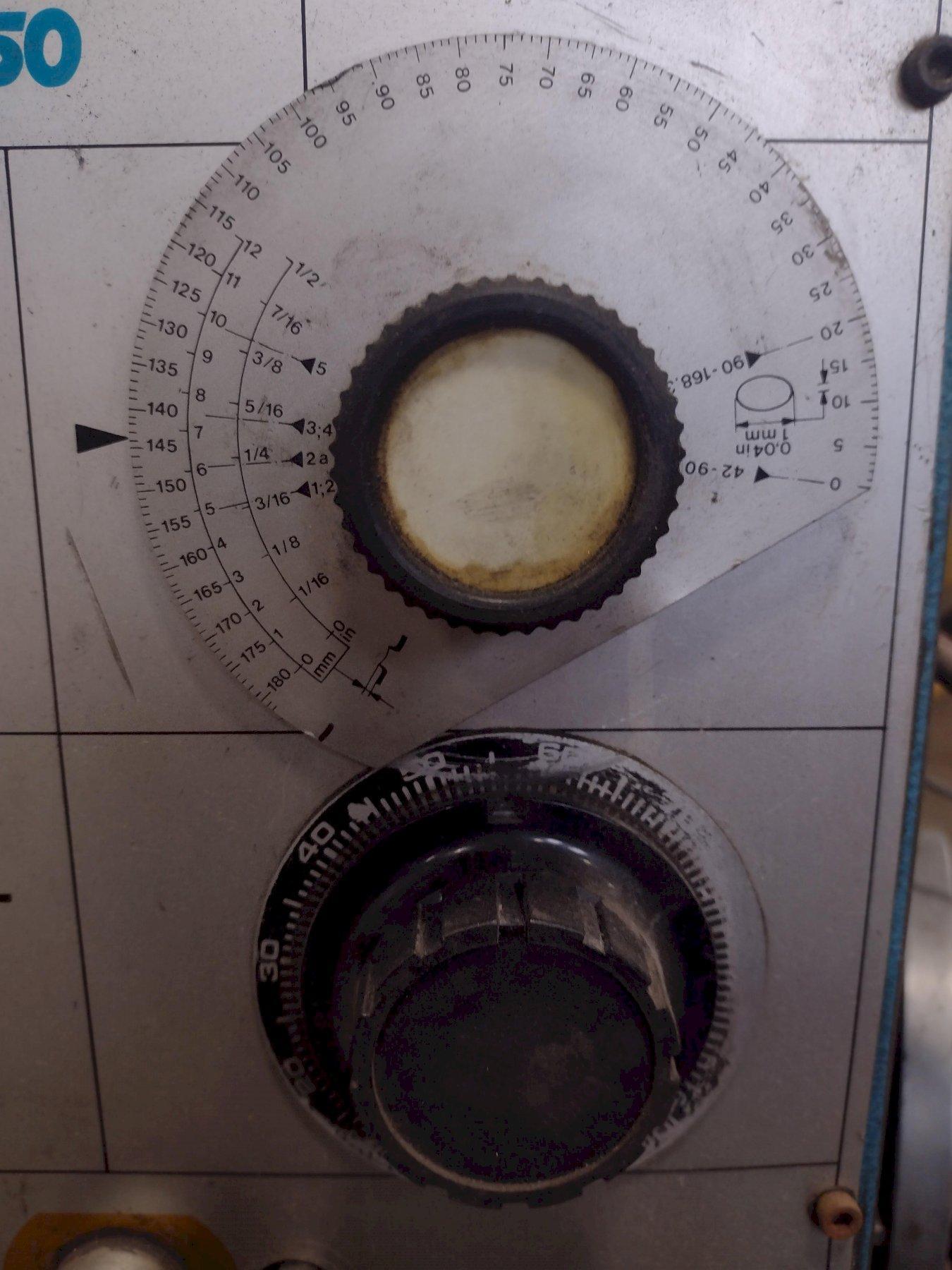

COLLAR O.D. CAPACITY .... 1-3/4" TO 6-3/4" (42.4 TO 168.3 mm)
TUBE O.D. MAX CAPACITY .. 16" (406 mm)
TUBE O.D. MIN CAPACITY .. SAME DIAMETER OF COLLAR

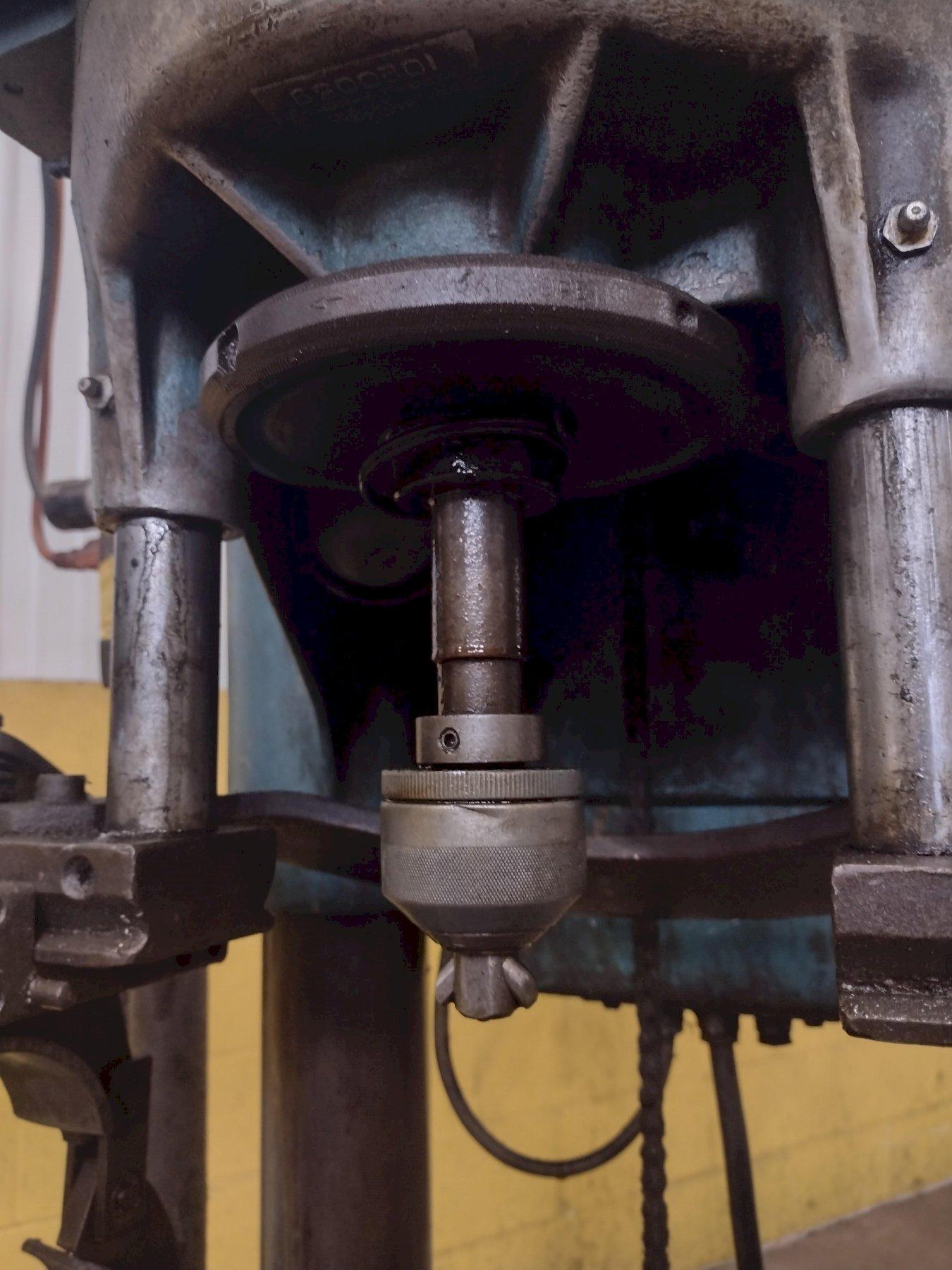

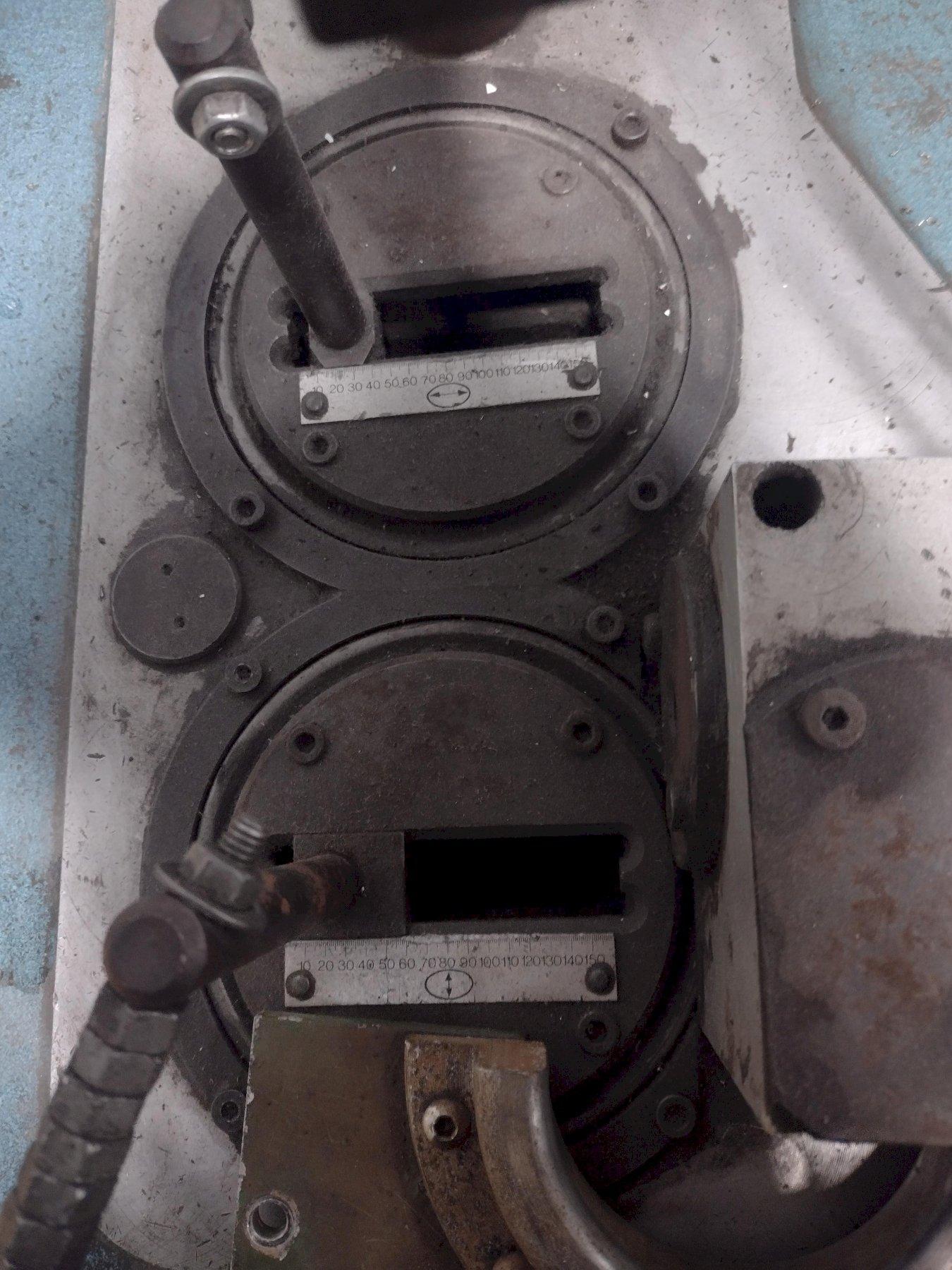

COLLAR MADE IN 4 STEPS:

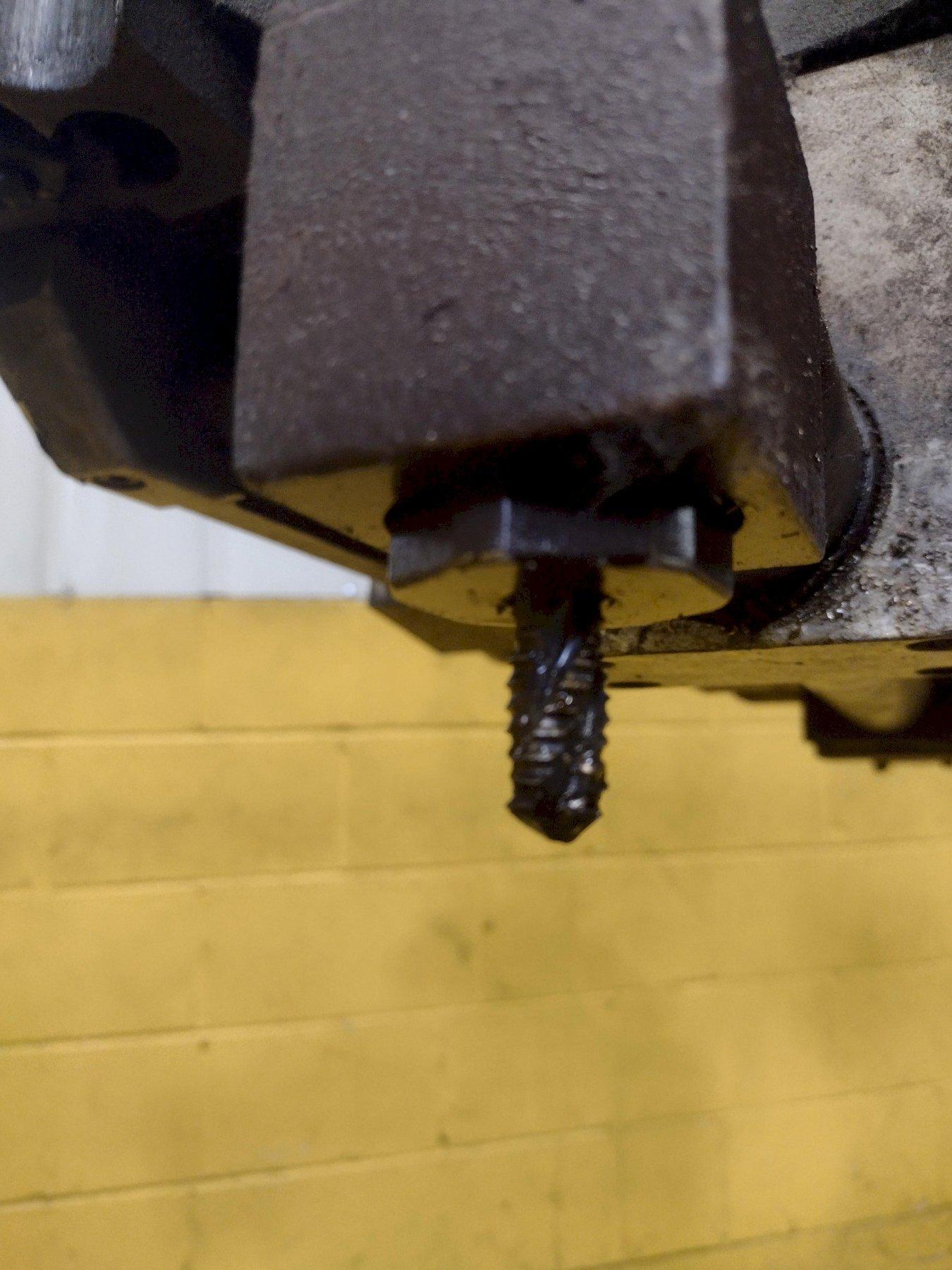

- CUTTING THE ELLIPTICAL PILOT HOLE
- DUBURRING THE EDGE OF PILOT HOLE
- COLLARING
- MILL FACING THE COLLAR EGDE

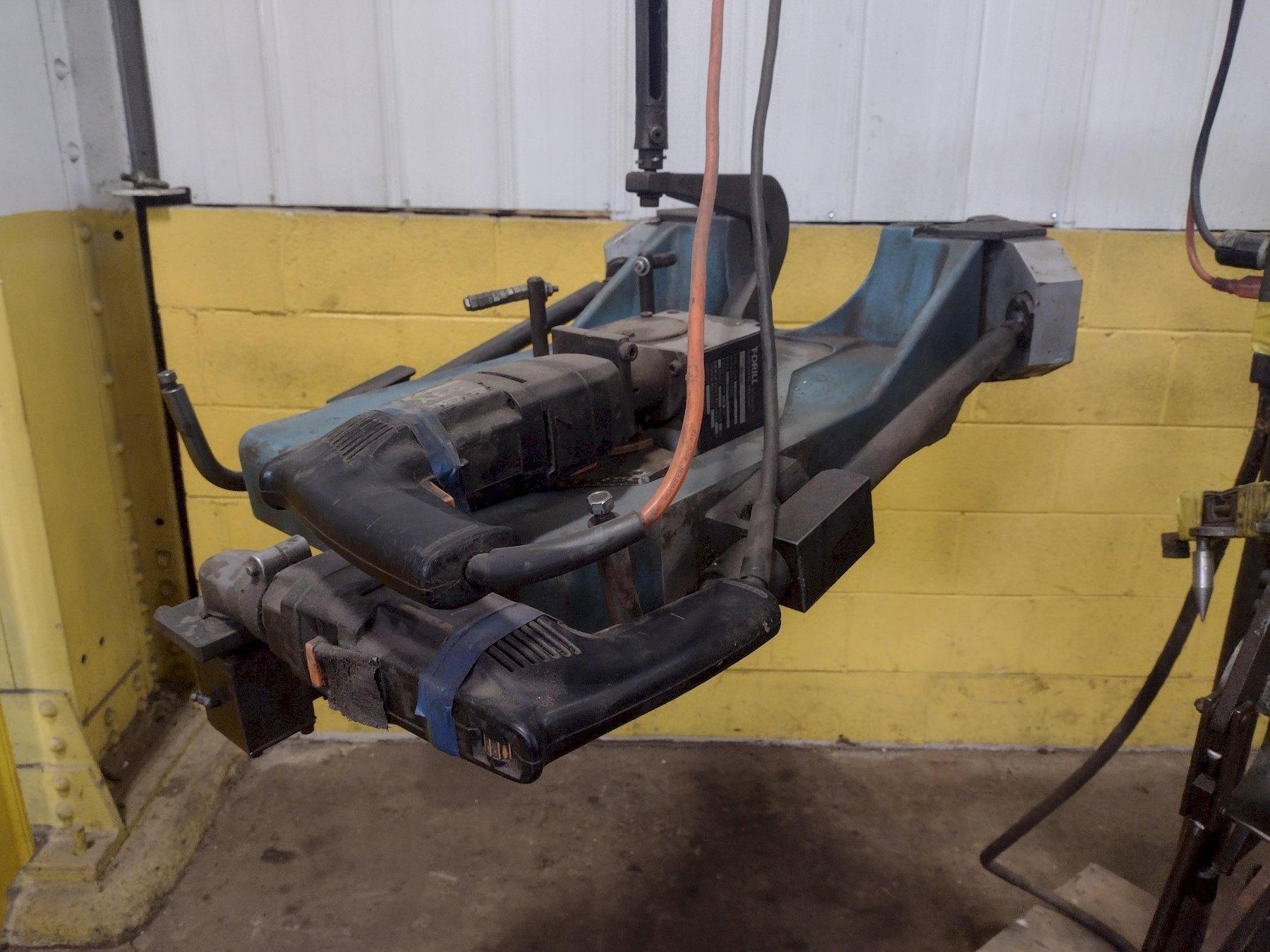

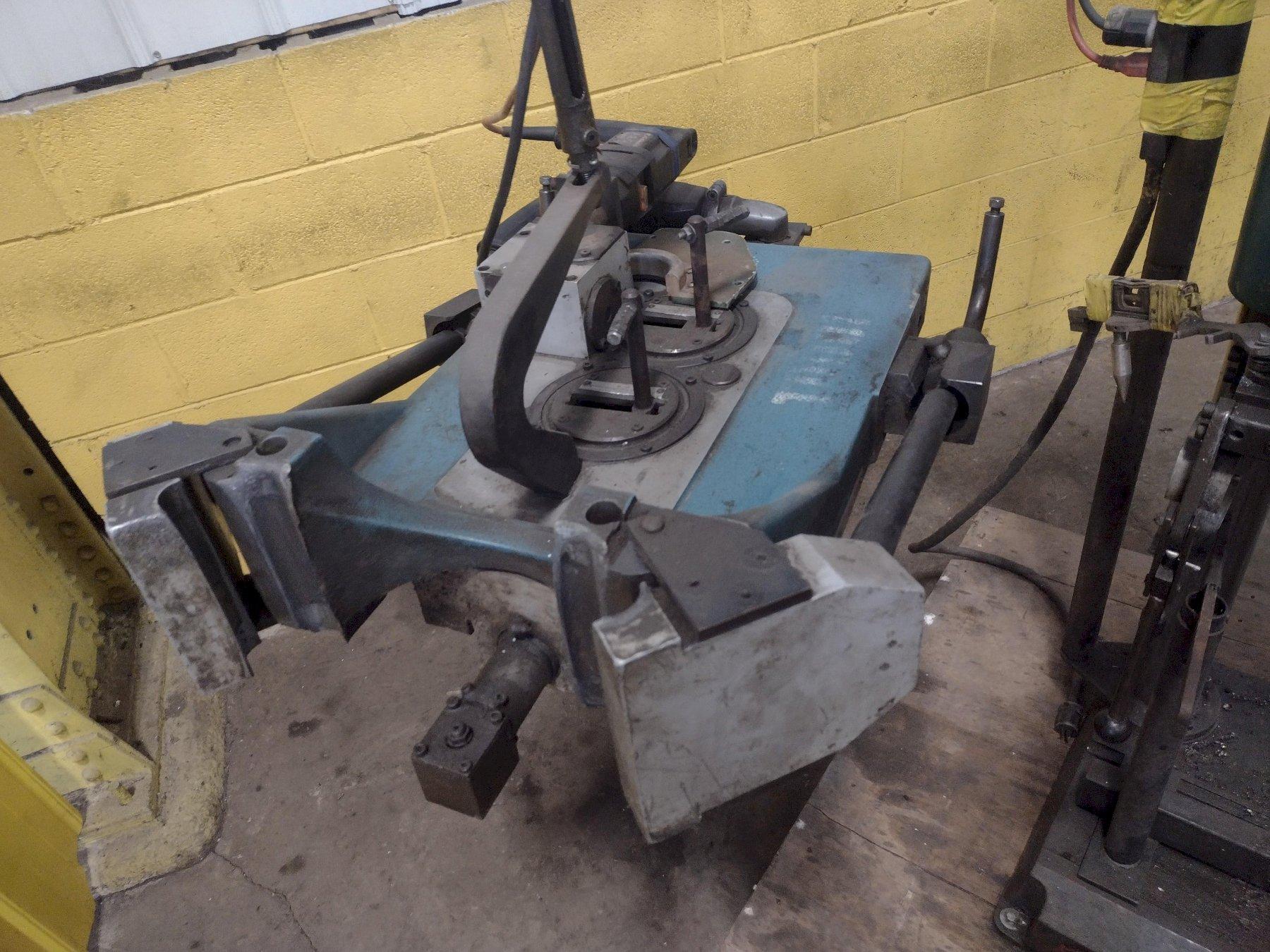

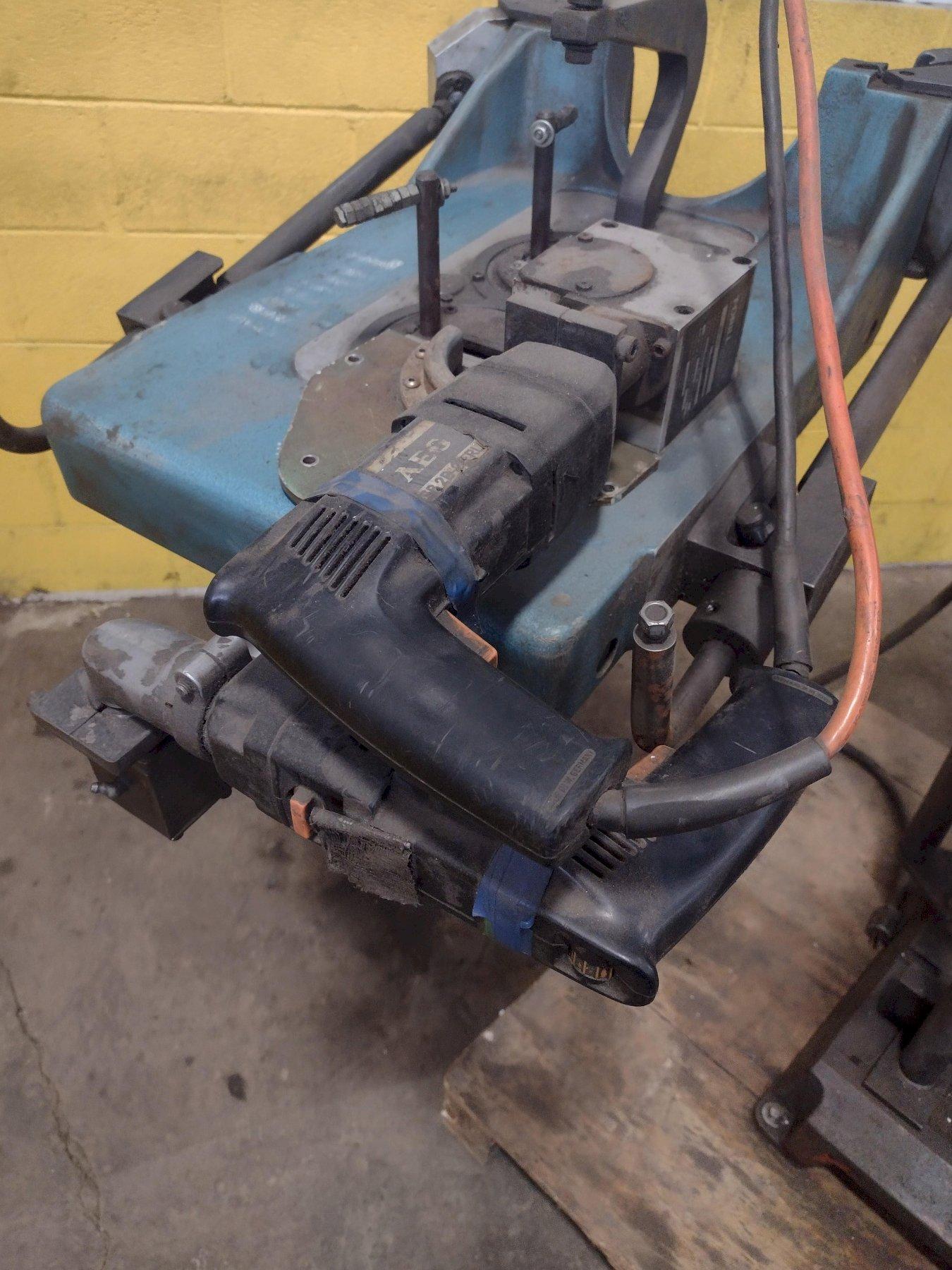

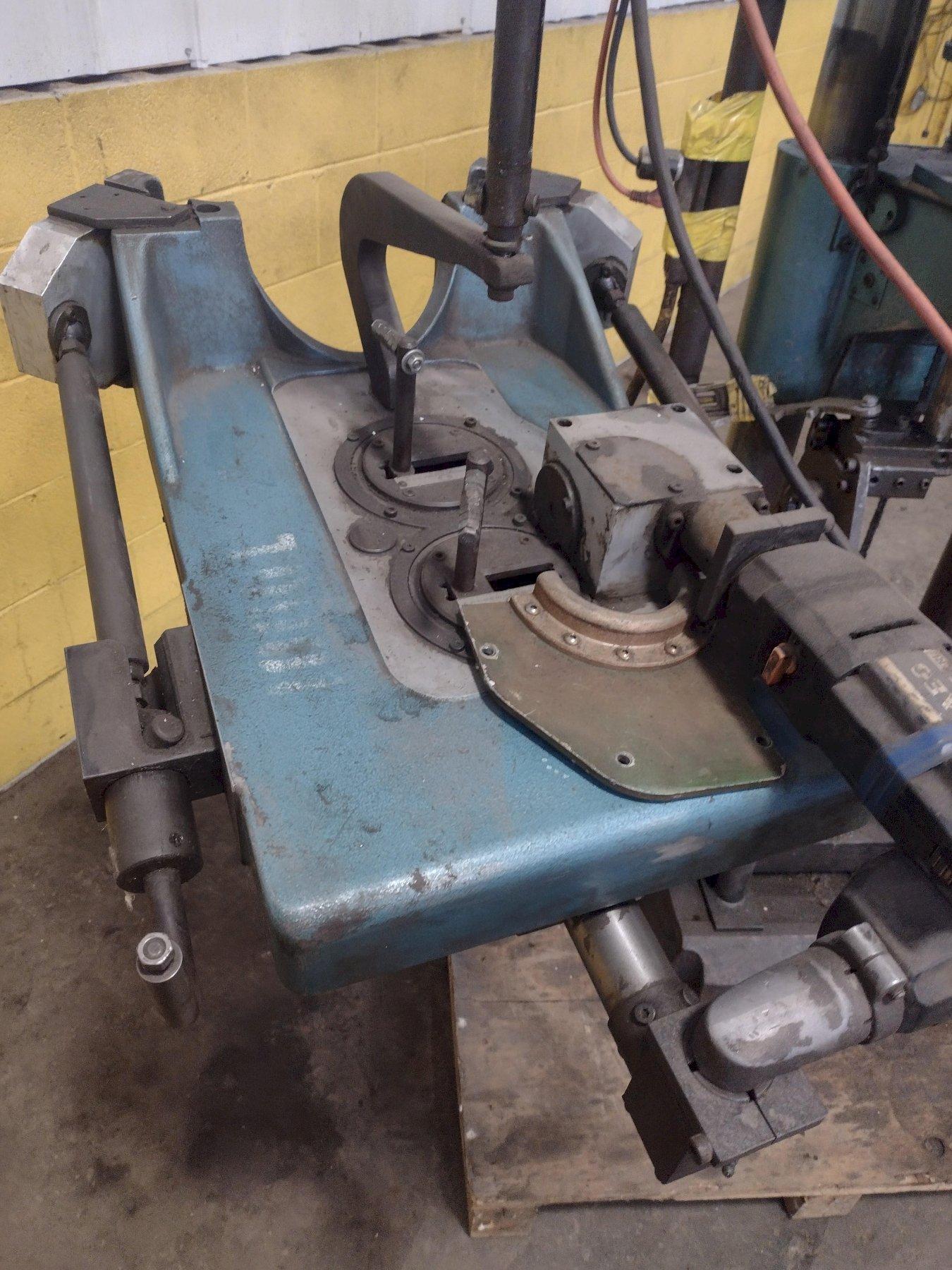

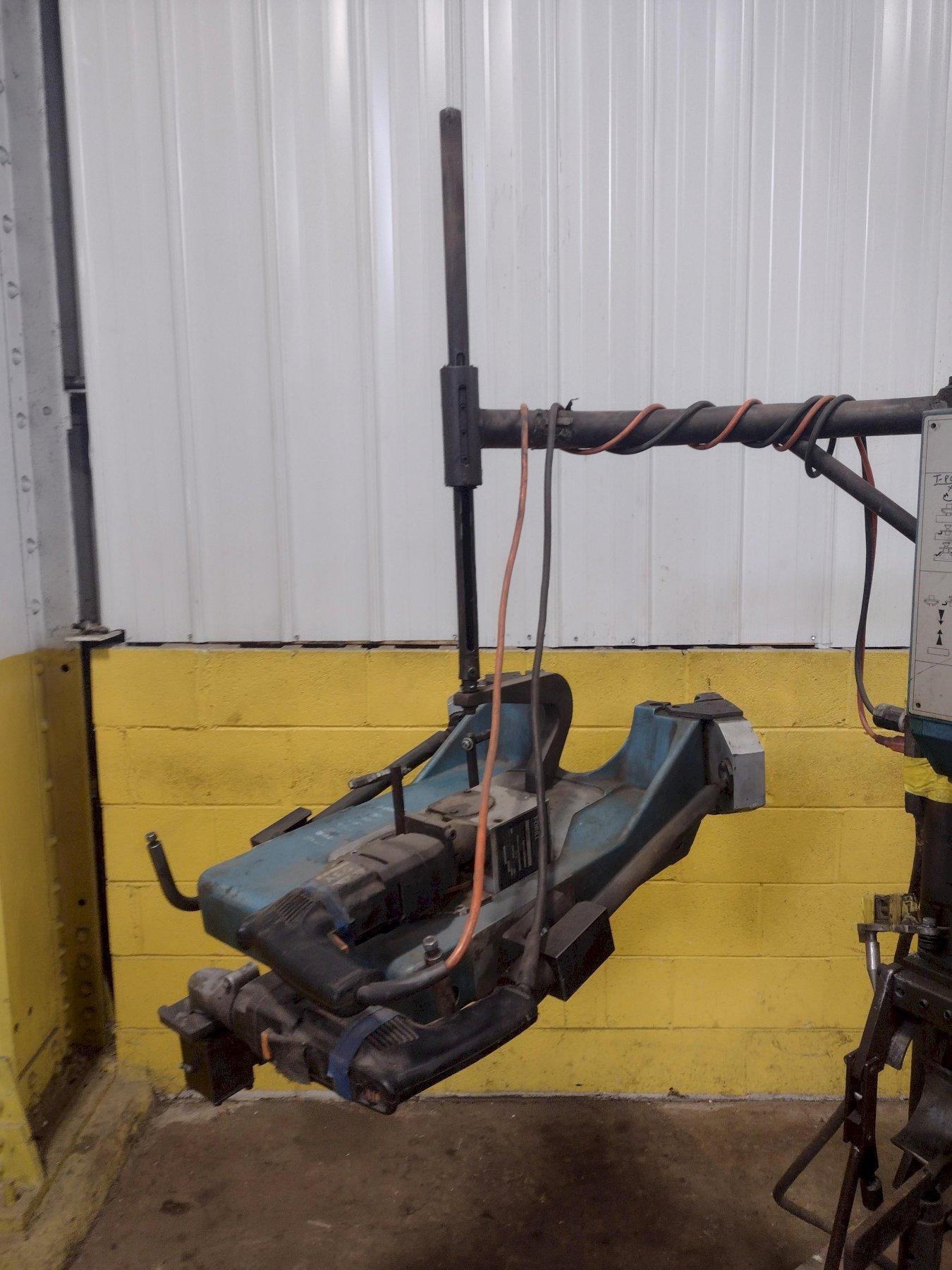

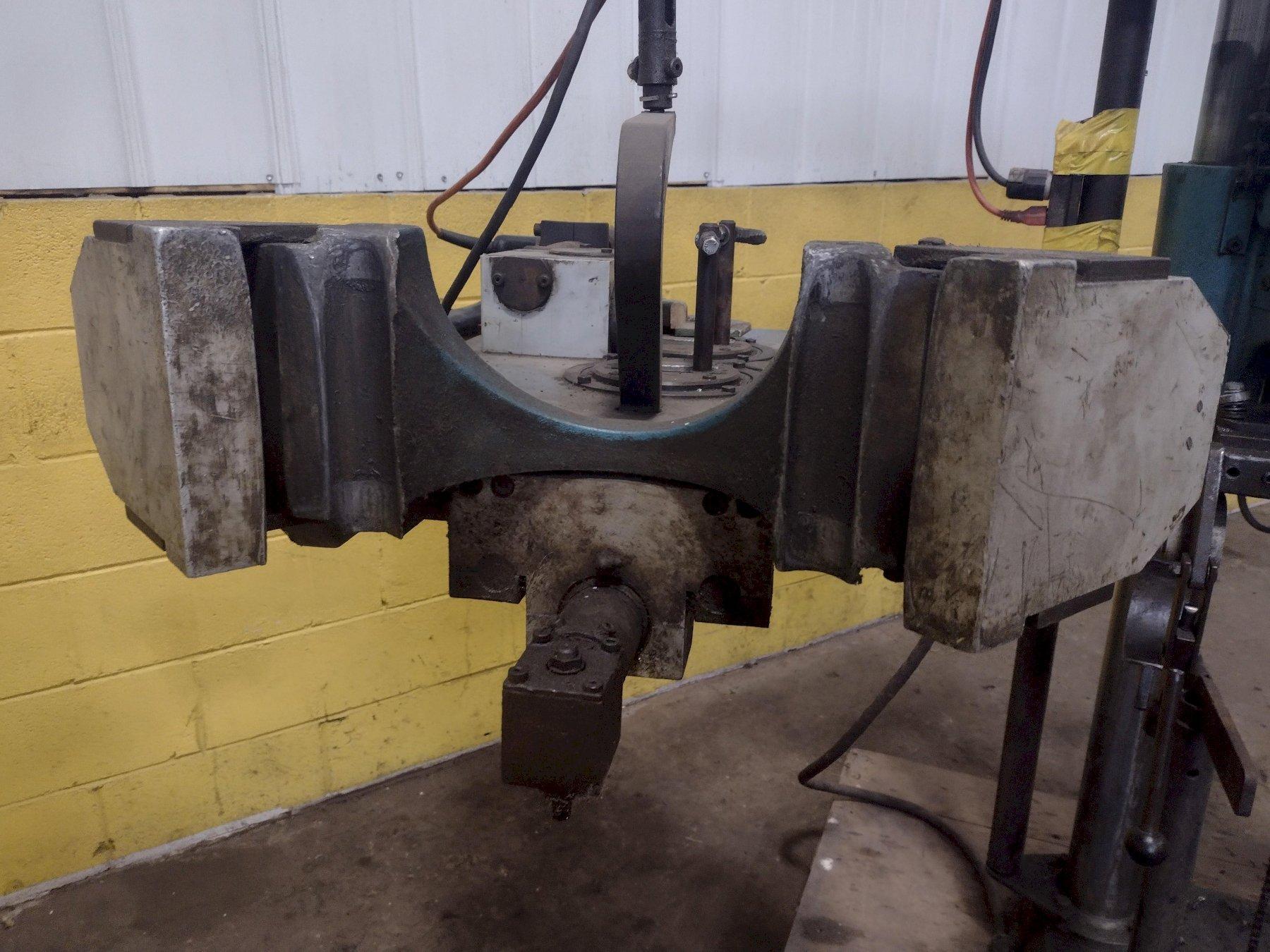

T-DRILL EC-150 ATTACHEMENT IS AN AUXILLARY HIGH SPEED CUTTING OR END-PROCESSING MODULE/ATTACHMENT USED ALONGSIDE T-DRILL COLLARING AND TUBE PROCESSING SYSTEMS FOR INDUSTRIAL PIPE AND TUBE FABRICATION.

OVERVIEW & FUNCTION:

Purpose: Designed to cut, trim, or prep tube ends and branch collars cleanly to precise specifications.

System Integration: Frequently paired with the T-DRILL T-150 collaring machine to streamline the cutting and forming of outlets in metal piping without costly tee fittings.

Application: Used in HVAC, shipbuilding, process piping, and automotive manufacturing where high-integrity mechanical tee connections are required.

The structural capacity and operating specifications for the T-DRILL TEC-150 / T-150 setup equipped with the automatic EC-150 (Elliptic pilot hole Cutting) unit focus on creating precise branch connections without fittings.

Tube & Pipe Size Capacities

Collaring Range (Branch Outlets): Can pull branch collars from 21.3 mm to 168.3 mm O.D. (equivalent to 1/2" to 6" IPS). A specialized configuration can extend this up to 219.1 mm (8").
Run Tube Range (Main Header Pipe): Accommodates header pipes ranging from 33.7 mm up to 560 mm O.D. (equivalent to 1" to 16" IPS, and sometimes up to 20" IPS depending on the specific machine base).
Material Thickness: Handles schedule pipe profiles up to Schedule 40 walls depending on the material's inherent elongation properties.

Operational & System Specifications

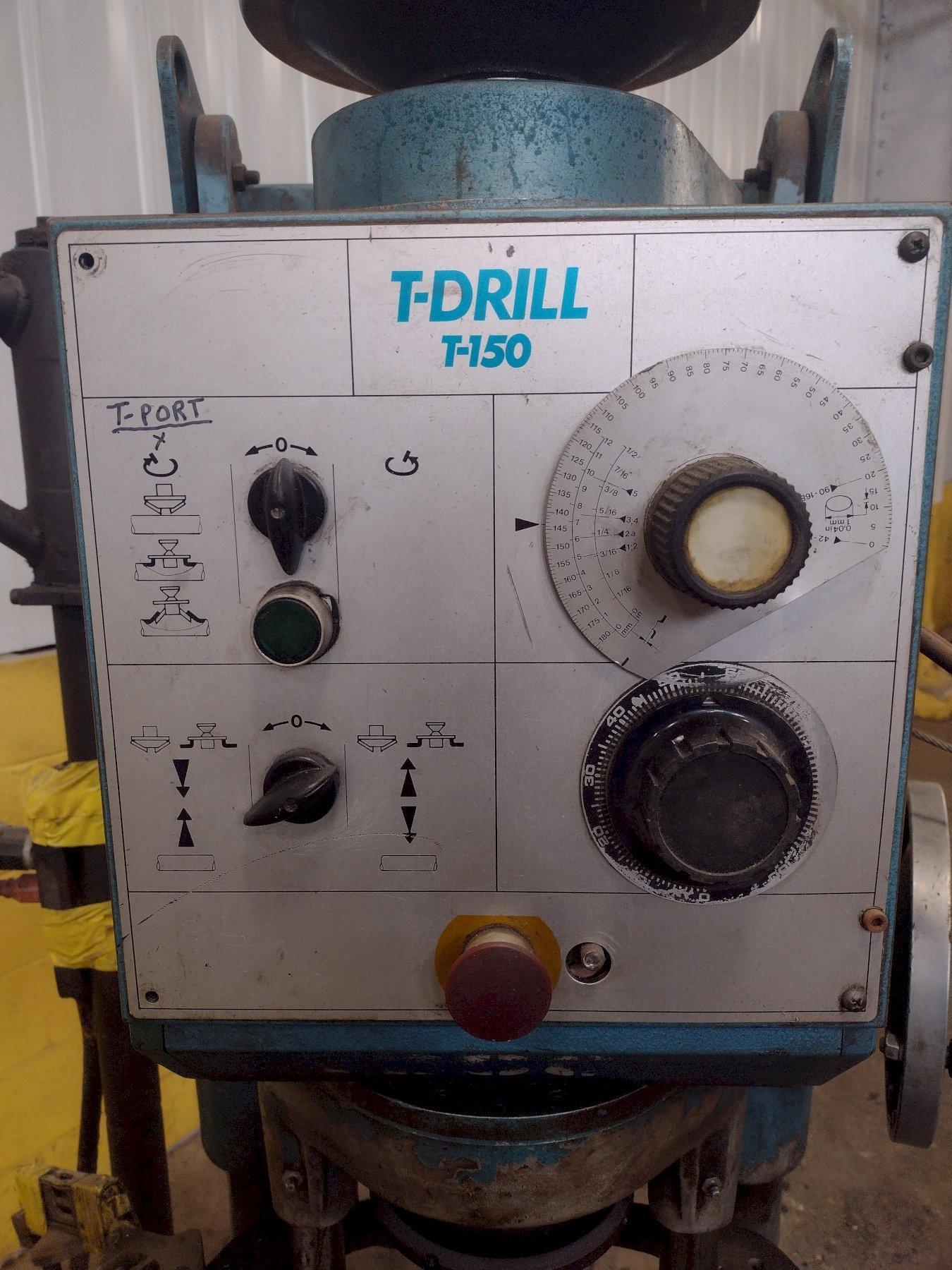

3-Step Automatic Cycle: The integrated system controls three automatic phases from a single interactive touchscreen panel: pilot hole milling/cutting (via the EC unit), collar pulling, and collar edge trimming.
Compatible Materials: Optimally processes ductile and malleable metals including stainless steel, carbon steel, copper/nickel, brass, and aluminum.

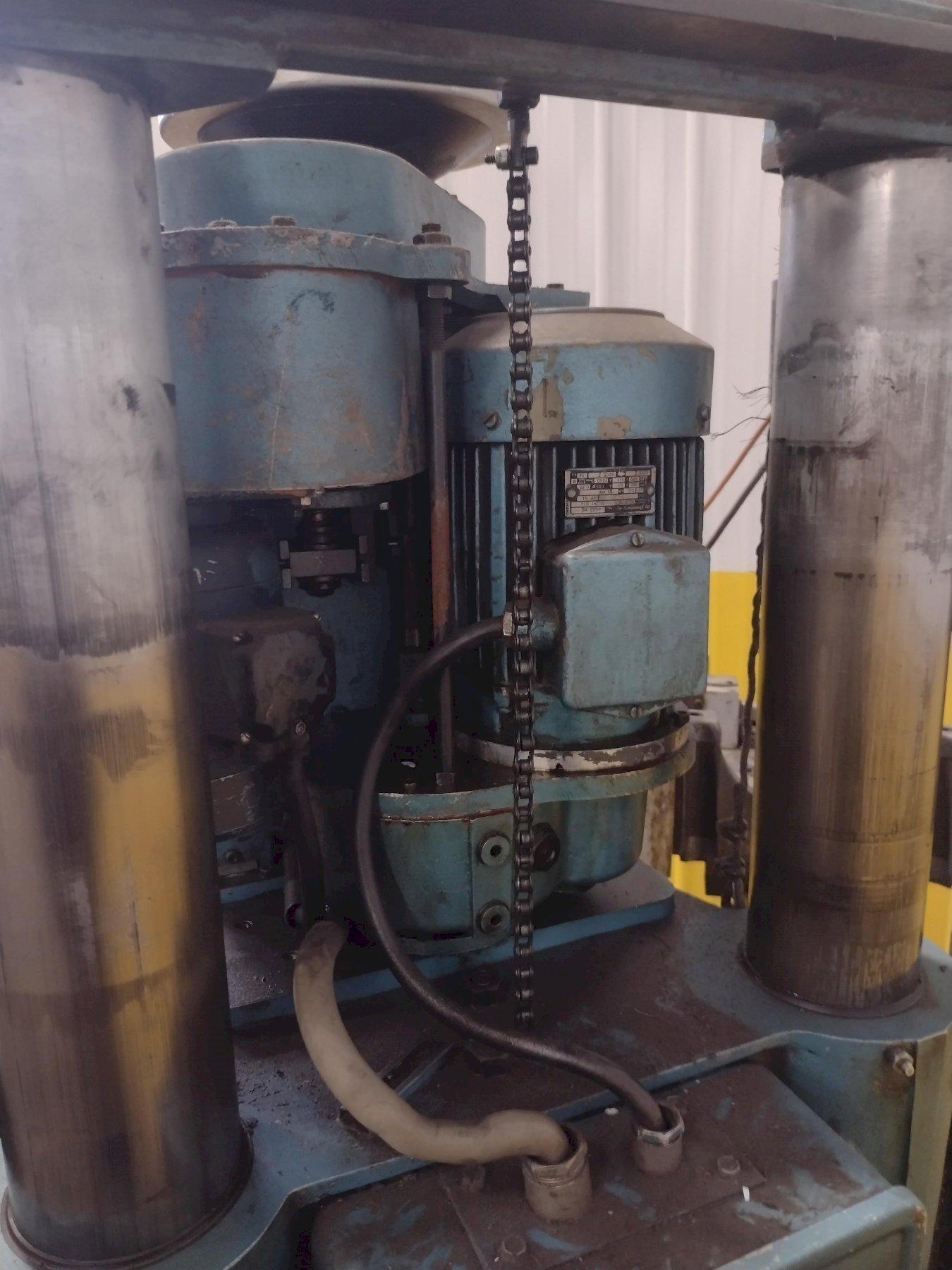

Power Requirements: Driven by a standard heavy-duty motor, typically rated around 6.7 HP.
Pneumatic Supply: Requires an air pressure system supplying roughly 87 psi (6 bar).
Physical Footprint: The combined industrial station weighs approximately 1,000 kg (2,200 lbs) and stands 71" to 73" tall.
