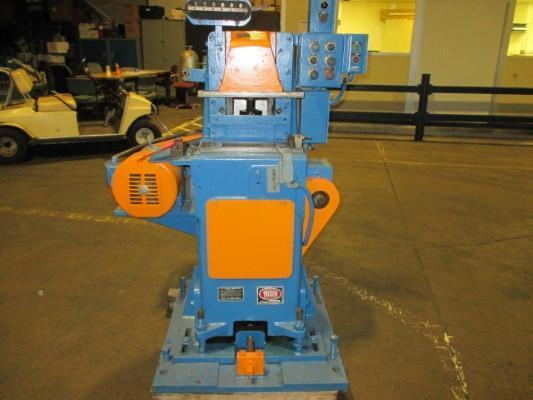

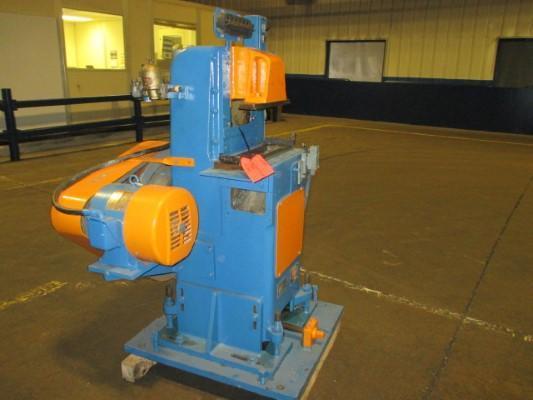

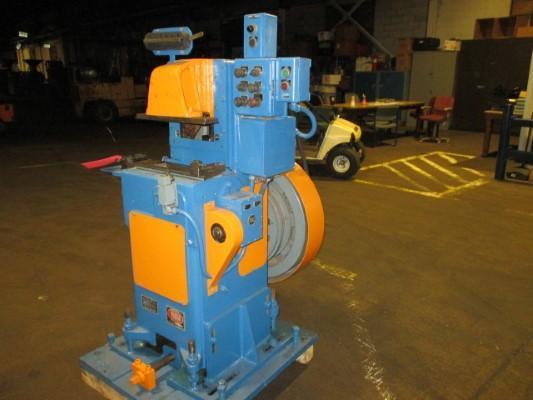

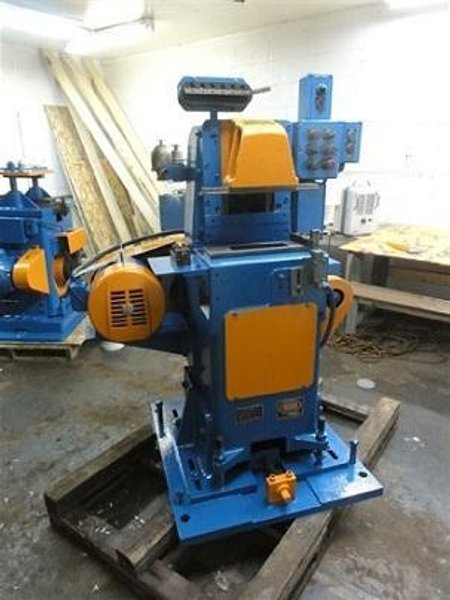

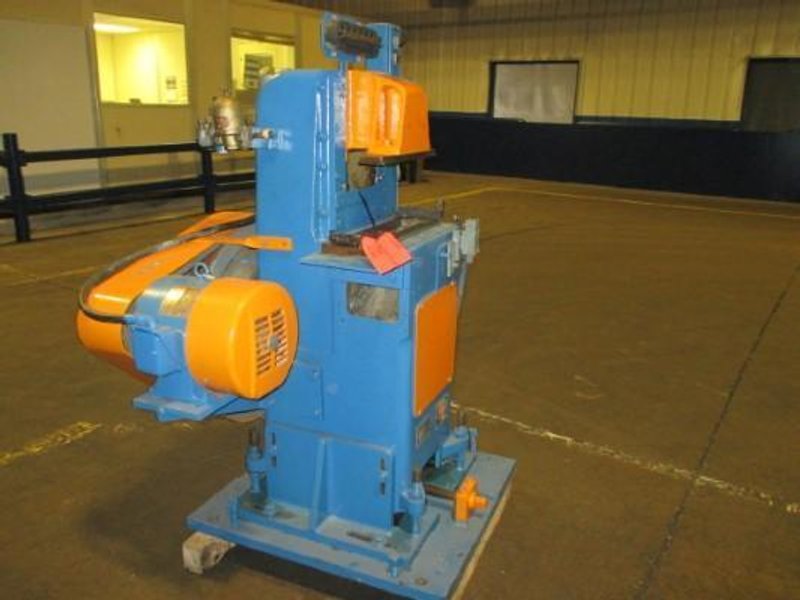

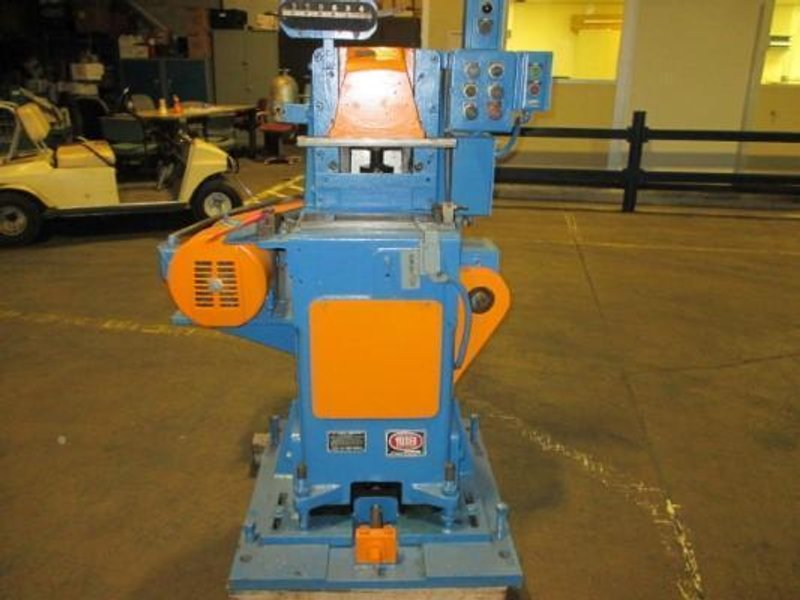

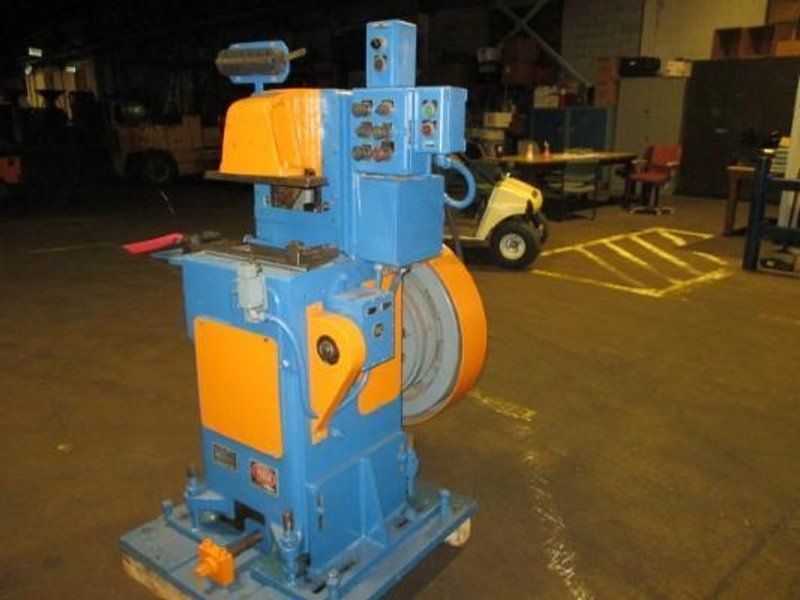

25 TON YODER MODEL #P25 CUTOFF MACHINE
Brand
Category
Type
Model
#P25
Stock #
105272
Year
Not specified
Condition
Used
Location
Ohio
|
CUTTING CAPACITY, MAXIMUM SECTION AREA, MILD STEEL, DOUBLE SHEAR DIE
(DEPENDENT UPON SHAPE OF SECTION) ............... 0.25" SQ.
MAXIMUM TUBE SIZE (O.D. x THICKNESS) ............... 1-1/4" x .050"
MAXIMUM STOCK SPEED (FPM) .......................... 150
MAXIMUM NUMBER CUTTING (STROKES PER MINUTE) ........ 100
MINIMUM LENGTH OF CUT WITH STANDARD TRIGGER:
AT 100 FPM ............ 15"
AT 125 FPM ............ 18"
AT 150 FPM ............ 22"
MAXIMUM WIDTH OF SECTION
(DEPENDENT UPON SHAPE) ........................... 5"
CUTTING STROKE (STANDARD) .......................... 2-1/4"
CUTTING STROKE (MAXIMUM-SPECIAL) ................... 2-3/4"
ELEVATION, FLOOR LINE TO BOTTOM OF STOCK:
MINIMUM ............... 34-1/2"
MAXIMUM ............... 38"
LATERAL ADJUSTMENT OF FRAME ON SUB-BASE:
(EACH SIDE OF CENTERLINE) ........................ 3"
AIR CONSUMPTION AT 100 CUTTING:
(STROKES PER MINUTE) AT ATMOSPHERIC PRESSURE ..... 1.2 CFM
MOTOR: 2 HP 3/60/208-220/440 (1160) RPM WITH CONTROLS
AIR CLUTCH
O.A.: 3'8" l-r x 3'7" f-b x 4'10" H
WEIGHT: (approx.) 2,000 Lbs. |
