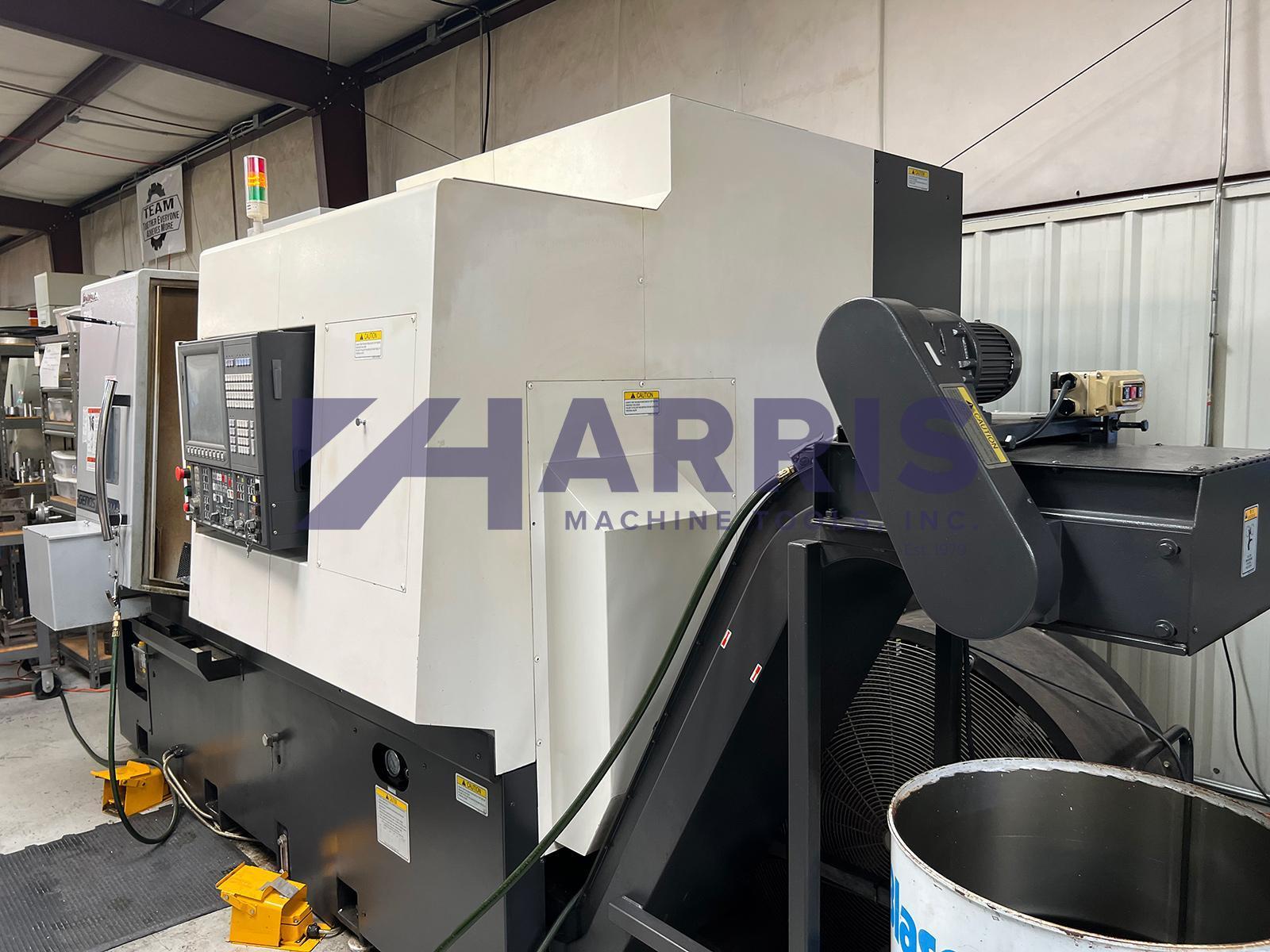

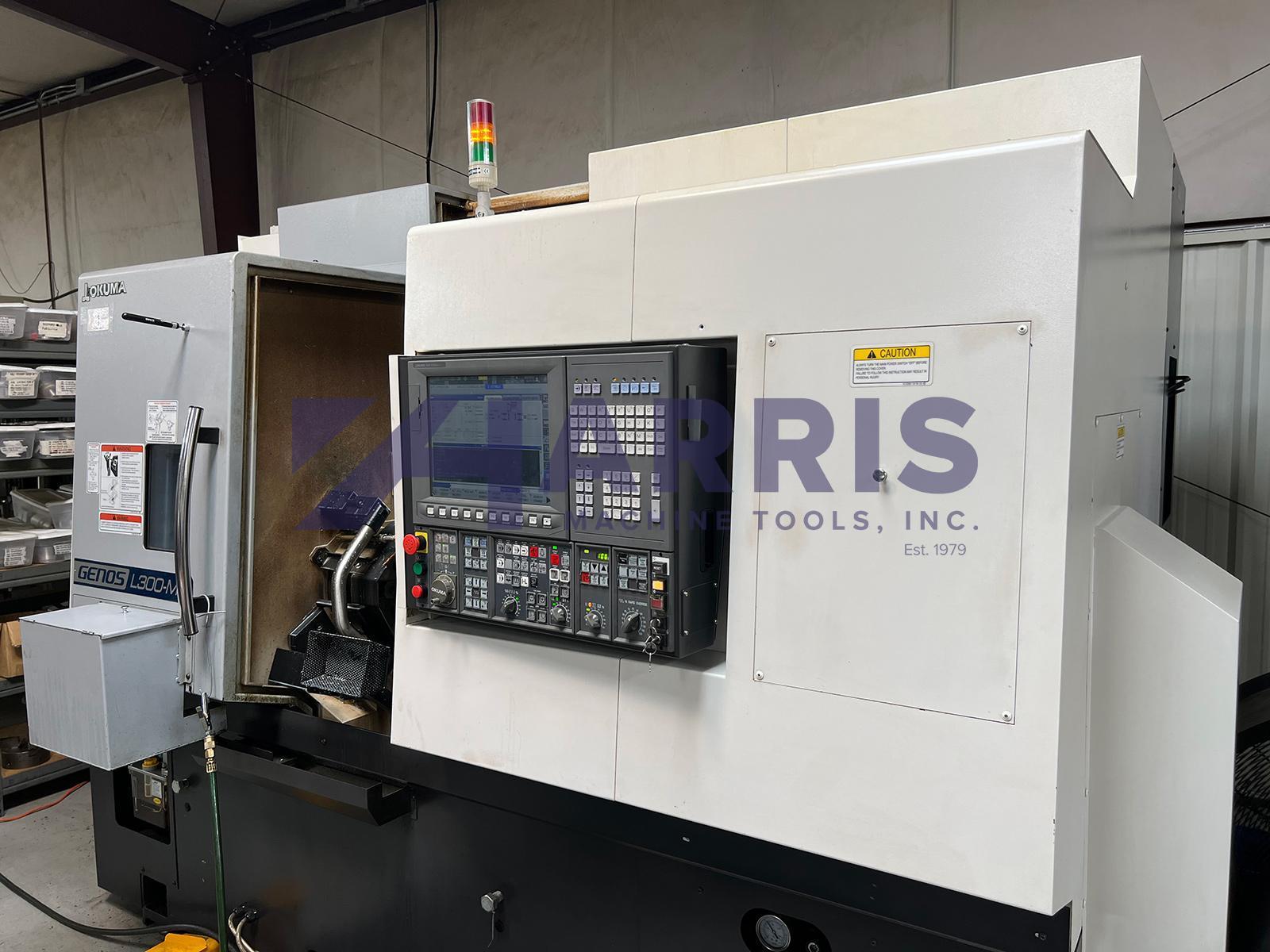

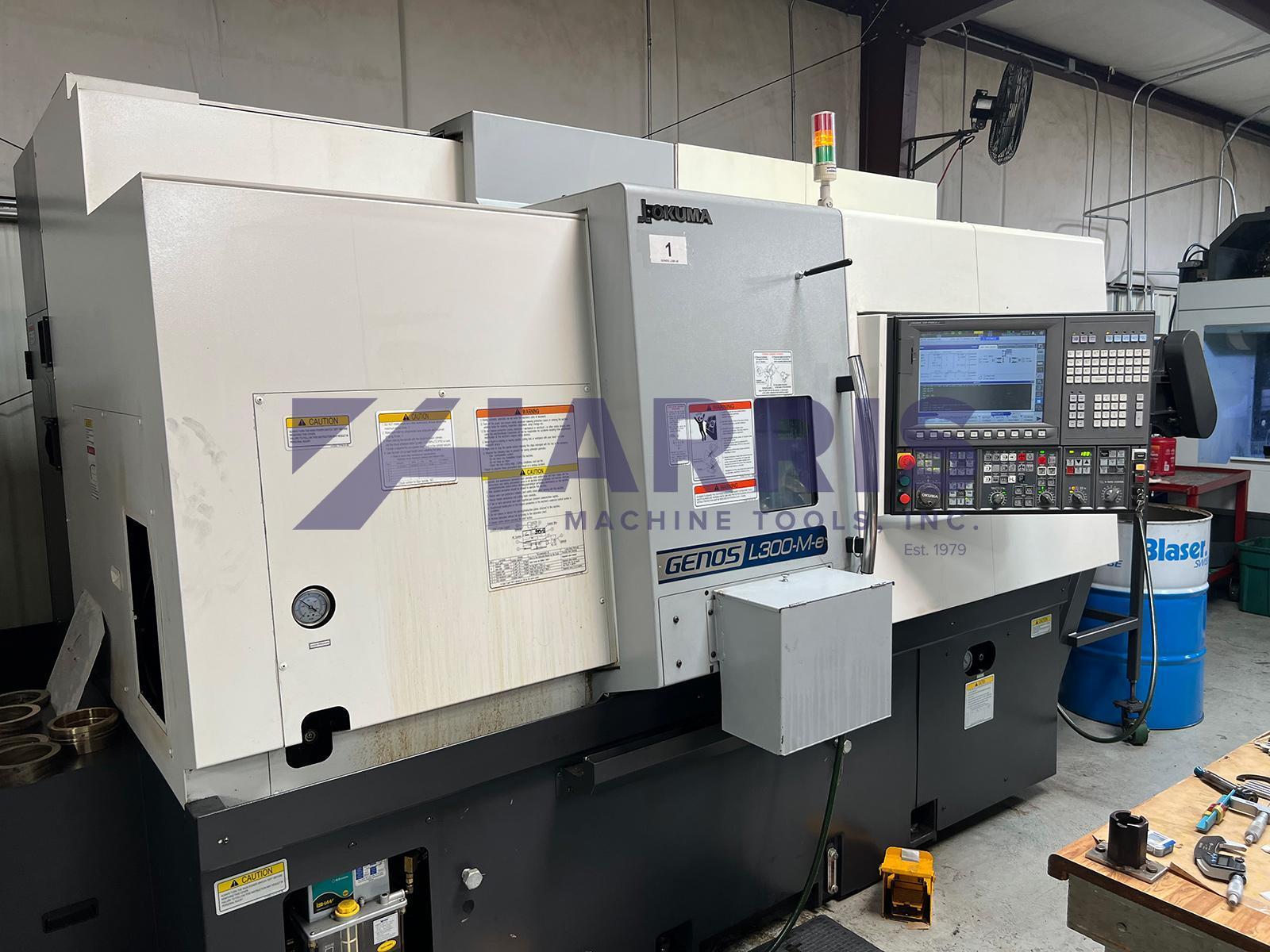

USED, OKUMA GENOS L300MYW CNC LATHE
Brand
Category
Model
GENOS L300-MYW-e X 500
Stock #
19648
Year
2018
Condition
Used
Location
Texas
| CNC Control | yes |

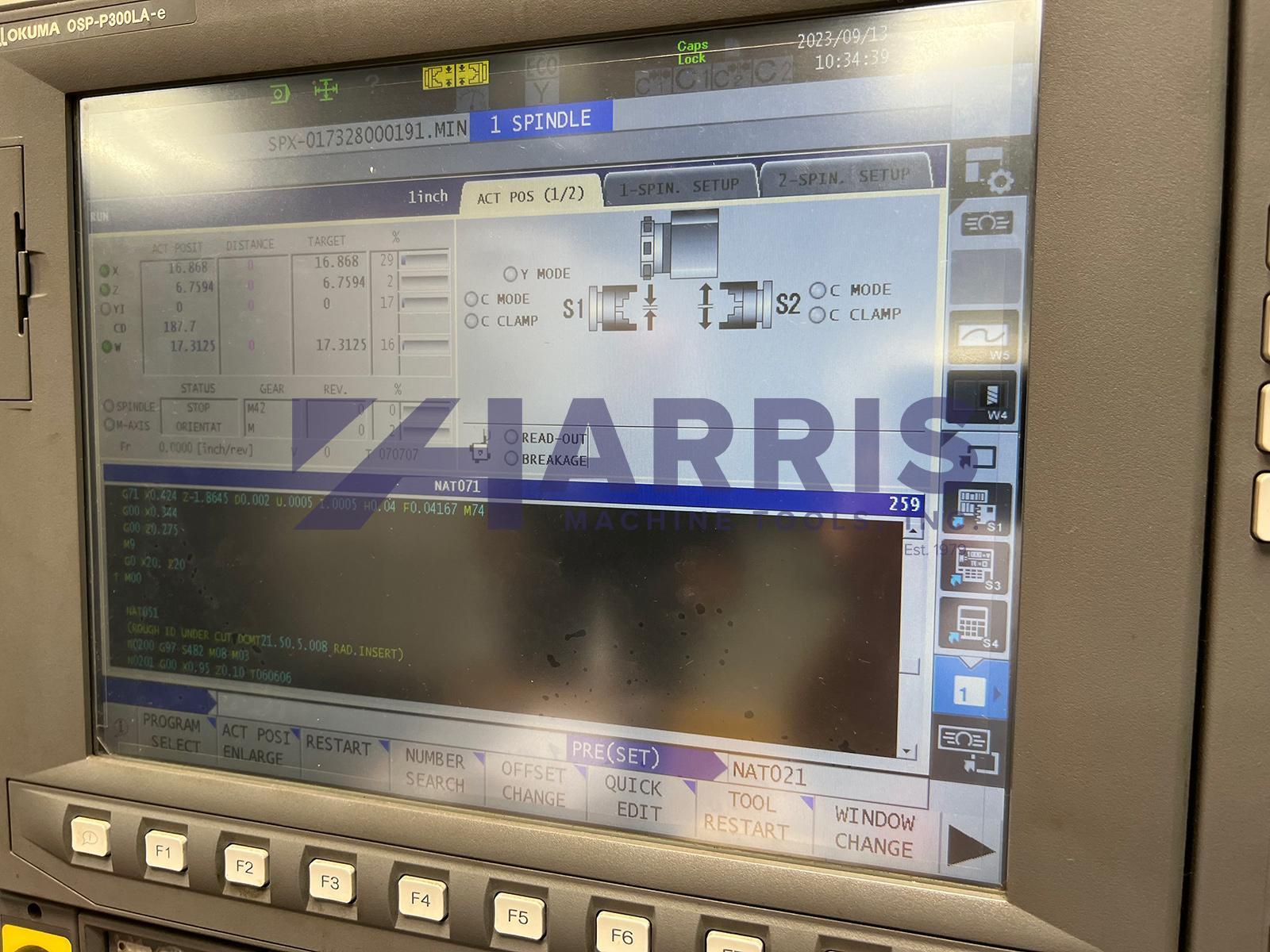

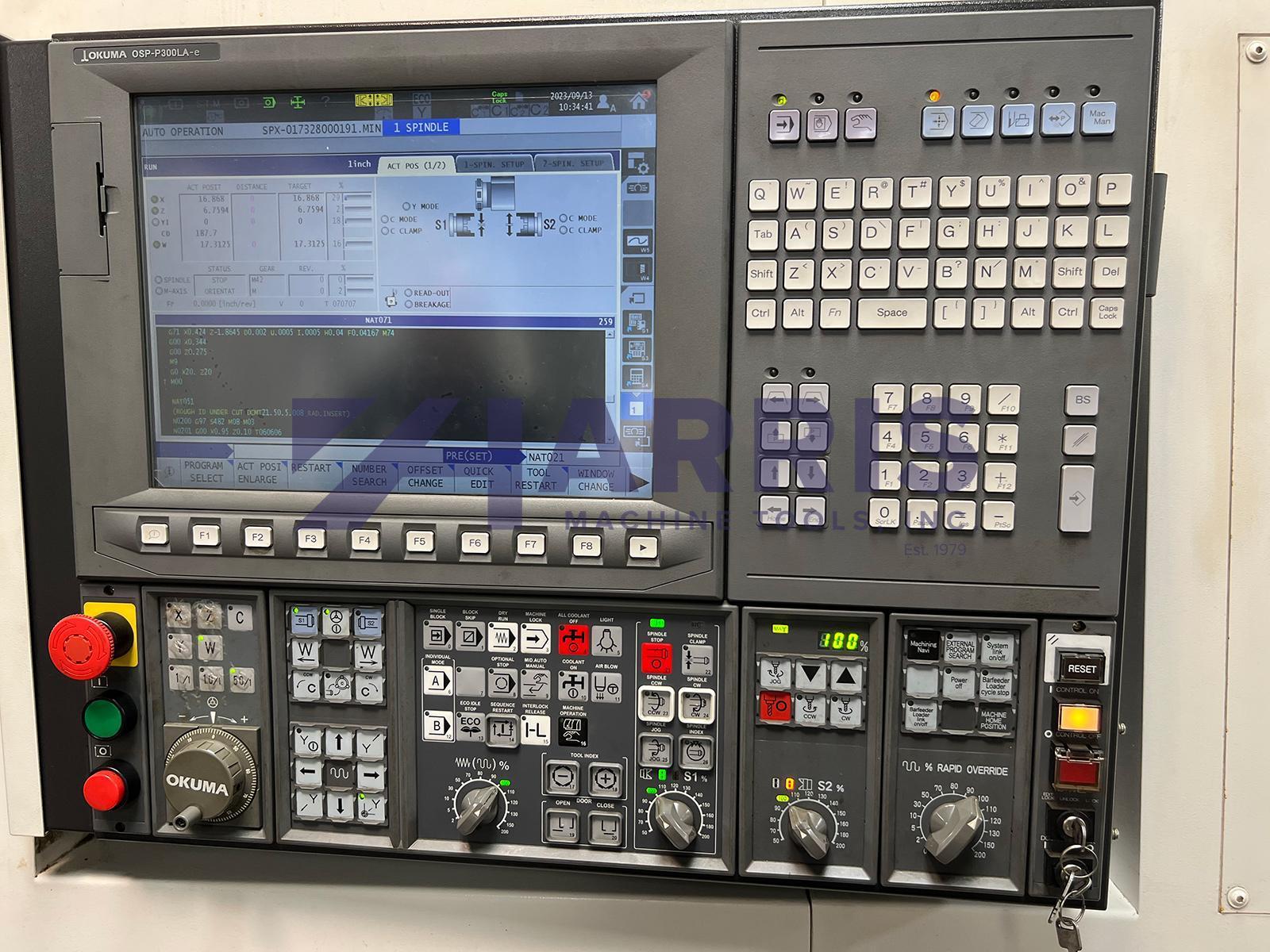

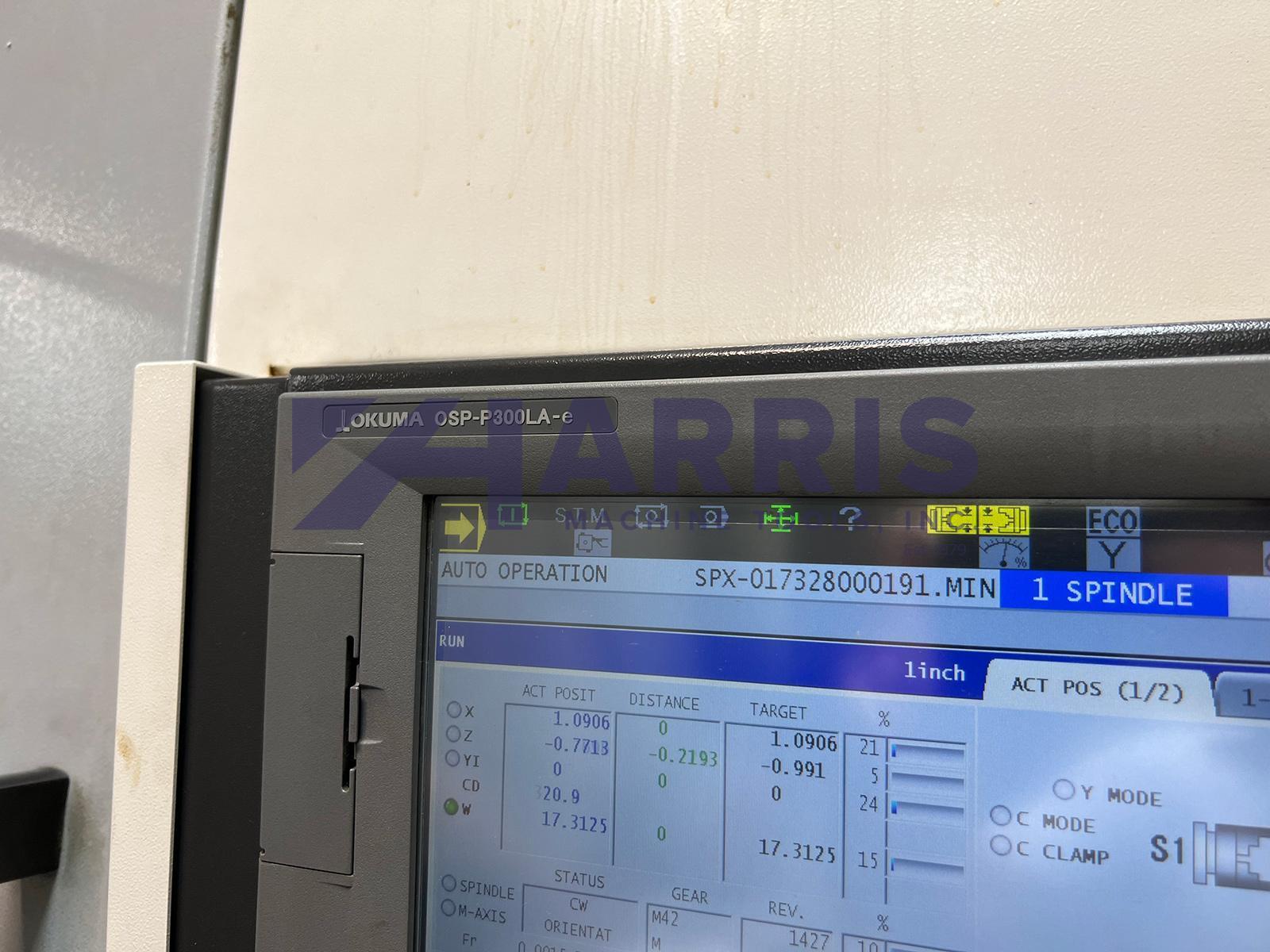

| Type of CNC Control | OSP P300LA CNC CONTROL |
| # Axis | 4 |
| Chuck Size | 10 inches |
| Turning Diameter | 11.81 inches |
| Bar Capacity | 2.75 inches |
| X Axis Travel | 20.47 inches |
| Y Axis (Yes / No) | yes |
| W-Axis Travel (Quill) | 20.47 inches |
| Z Axis Travel | 18.11 inches |
| Spindle Speed (RPM) | 3000 |
| Main Motor | 20 HP |
| Sub Spindle Speed (RPM) | 6000 |
| Sub Spindle Motor | 10 HP |
| Live Milling (Yes / No) | yes |
| Live Milling Speed (RPM) | 6000 |
| Live Milling Motor | 7.5 HP |
| Turret Capacity | 12 |
| Tailstock (Yes/No) | yes |

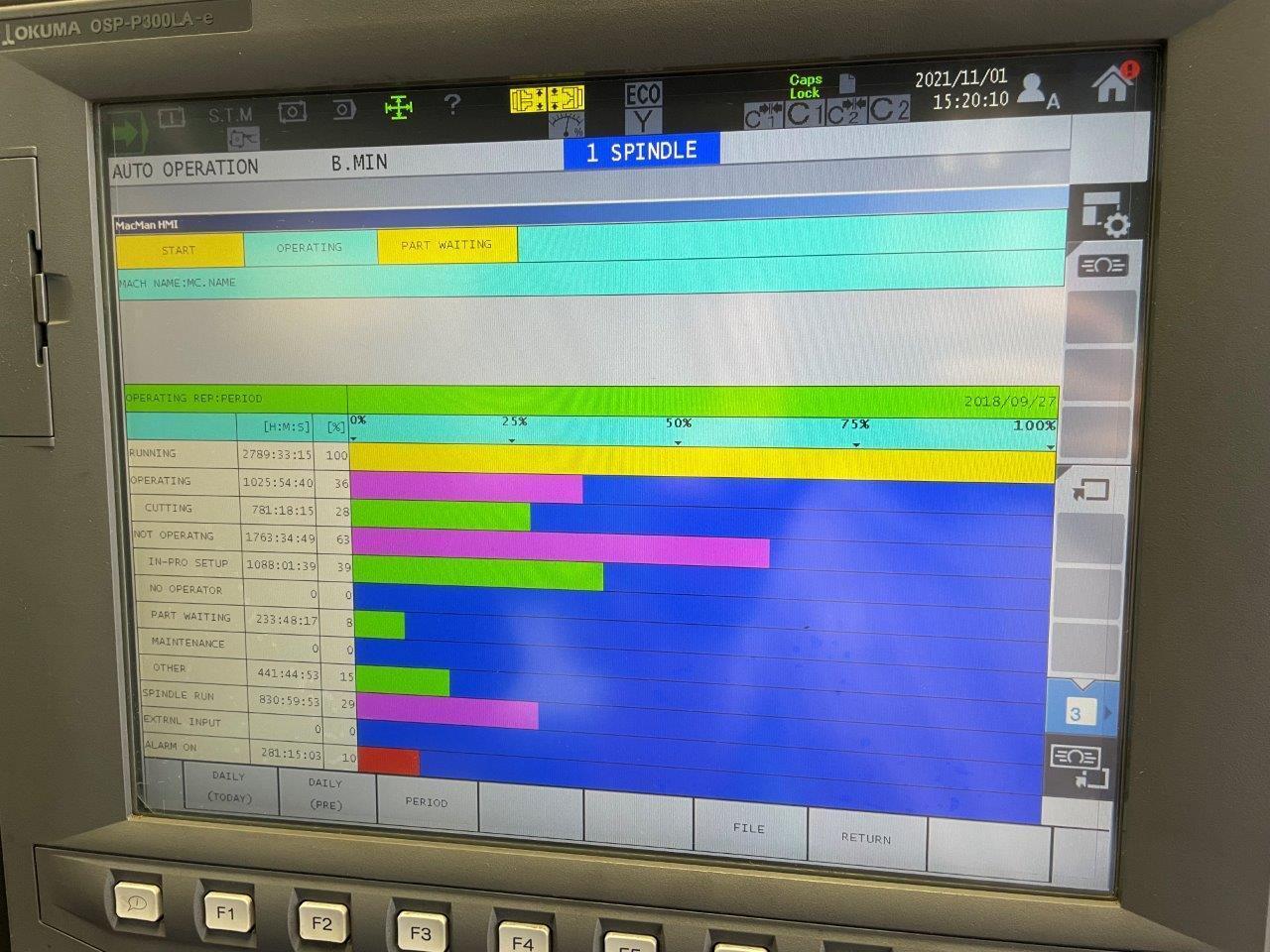

| Hours | 781 |
|
MAXIMUM TURNING DIAMETER: 11.81"

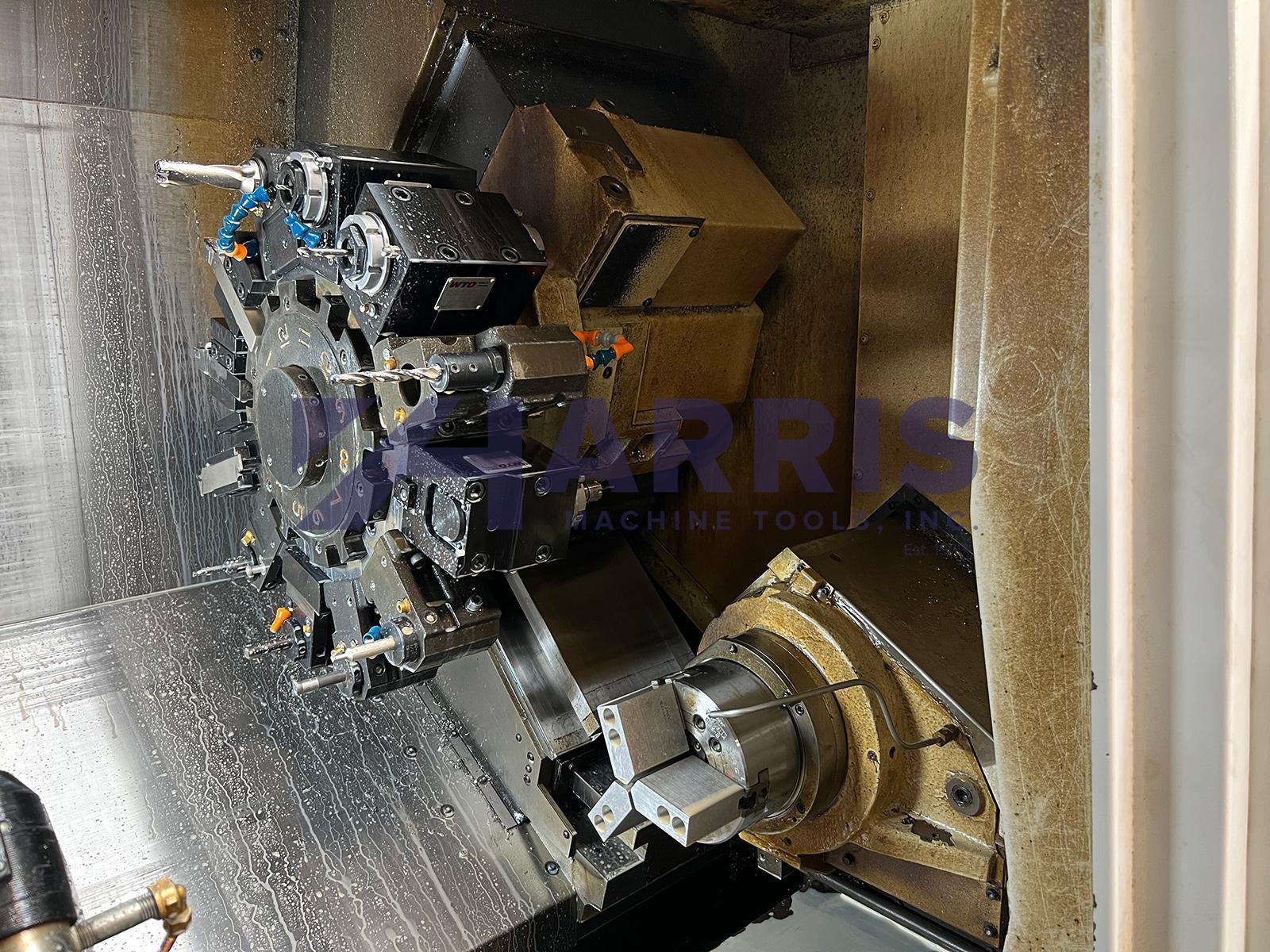

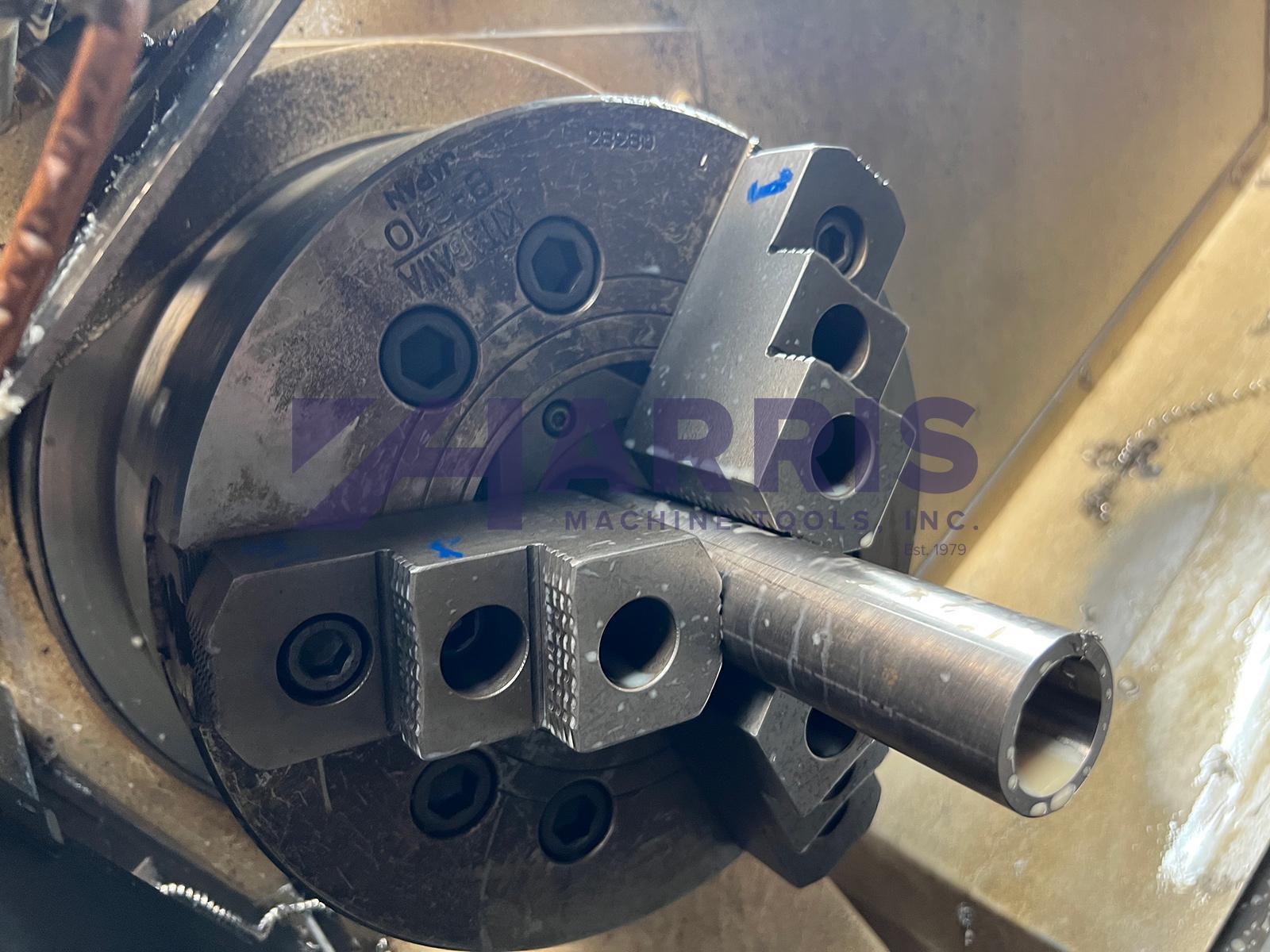

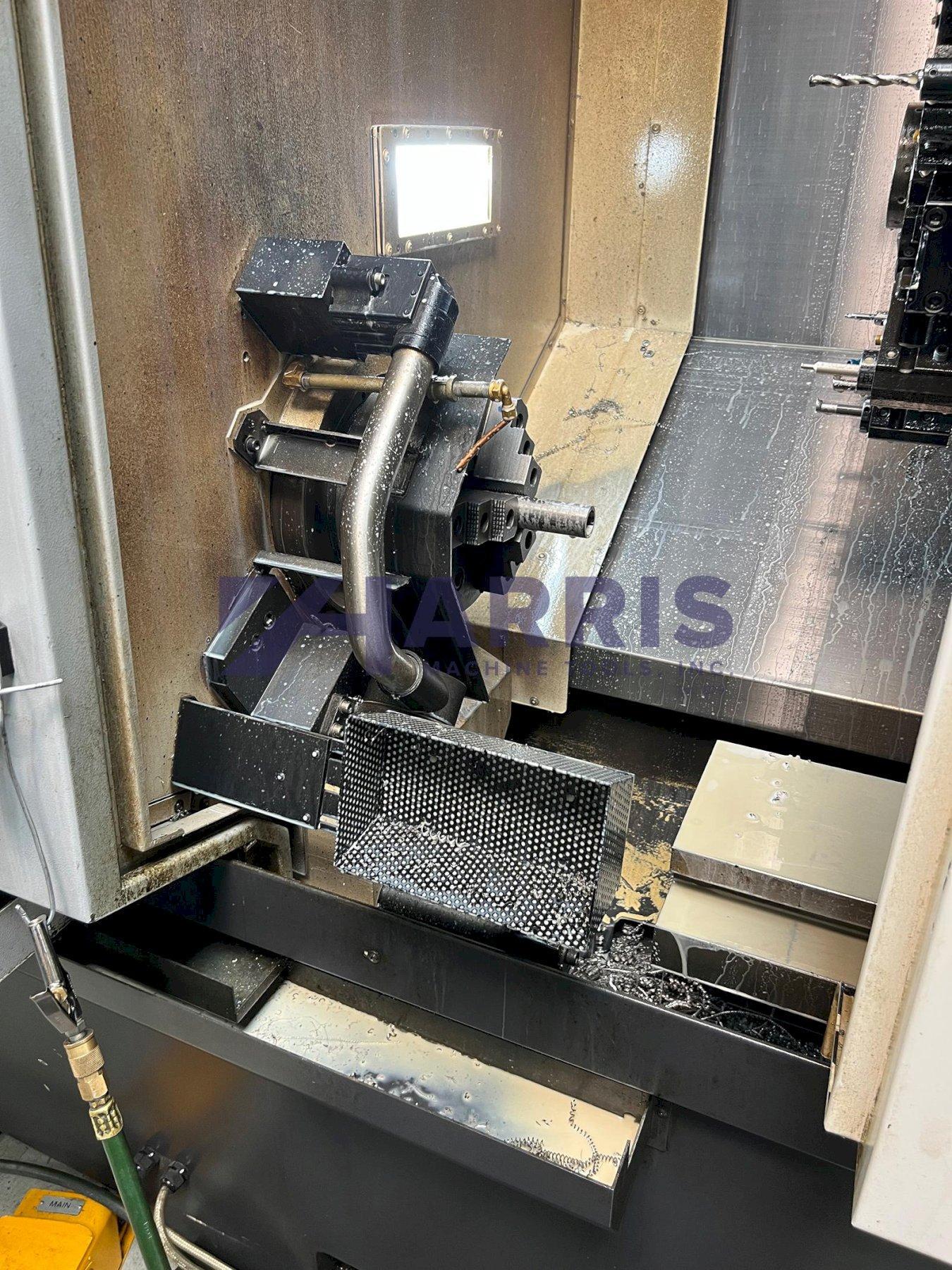

MAXIMUM BAR CAPACITY: 2.75" X AXIS TRAVEL: 20.47" Y AXIS TRAVEL: 3.94" Z AXIS TRAVEL: 18.11" W AXIS TRAVEL: 20.47" SPINDLE SPEEDS: 3000 RPM SPINDLE MOTOR: 20 HP SPINDLE NOSE: A2-8 SUB SPINDLE SPEED: 6000 RPM SUB SPINDLE MOTOR: 10 HP LIVE MILLING SPEED: 6000 RPM LIVE MILLING MOTOR: 7.5 HP WEIGHT (APPROXIMATE): 13,700 LBS. INCLUDES: OSP P300LA CNC CONTROL 10" CHUCK 12 STATION TOOL TURRET C-AXIS MILLING SUB SPINDLE PARTS CATCHER TOOL SETTER COLLET CHUCK ON MAIN SPINDLE 3-JAW CHUCK ON SUB SPINDLE MISC. TOOL HOLDERS (CURRENTLY INSTALLED ON TURRET) BAR FEED INTERFACE (UNIVERSAL TYPE) AOT IGF P3-INC M/W/Y HELICAL CUTTING FOR X, C AND Z AXES OFF-CENTER TURNING FUNCTION RAPID TRAVERSE OVERRIDE SWITCH CHIP CONVEYOR NOTE: LOW CUTTING HOURS - LESS THAN 1000 NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION ADDITIONAL TOOLING INCLUDED: (Most new & in box) WTO EXTERNAL COOLANT RADIAL LIVE TOOL (QTY 4) WTO EXTERNAL COOLANT AXIAL LIVE TOOL, SINGLE (QTY 3) WTO EXTERNAL COOLANT AXIAL LIVE TOOL, DOUBLE (QTY 2) WTO ER32 X ER32 EXTENSION ADAPTER (QTY 3) WTO ER32 TOOL (QTY 1) LYNDEX-NIKKEN STATIC DOUBLE O.D. TOOL HOLDER (QTY 2) O.D. TOOLS (QTY 5) FACE GROOVE TOOL (QTY 1) I.D. BORING BARS (QTY 3) |
|
