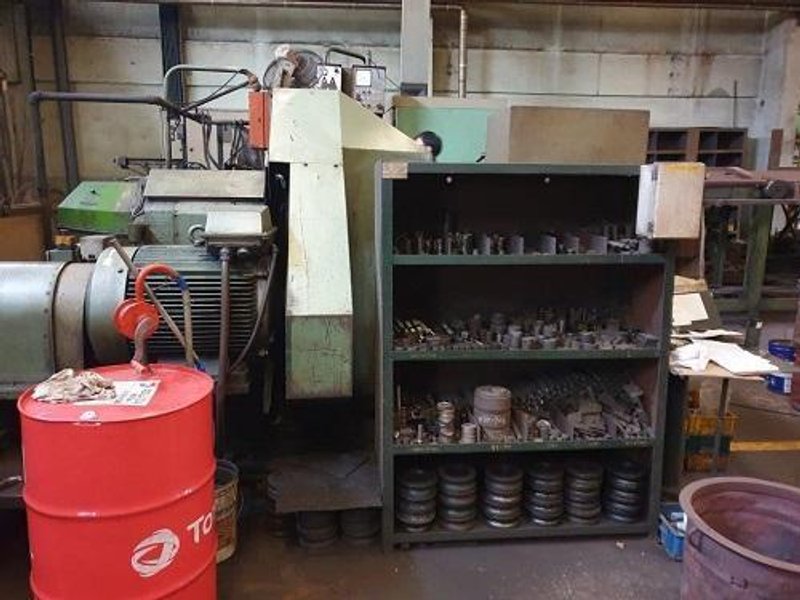

NEDSCHROEF MW48 HI-SPEED HOT NUT FORMER
Brand
Category
Type
Model
MW48
Stock #
115066
Year
1975
Condition
Used
Location
Not specified
| Link to our website listing | http://uen.hsix.com/q/webinv/005700=x,115066 |
|

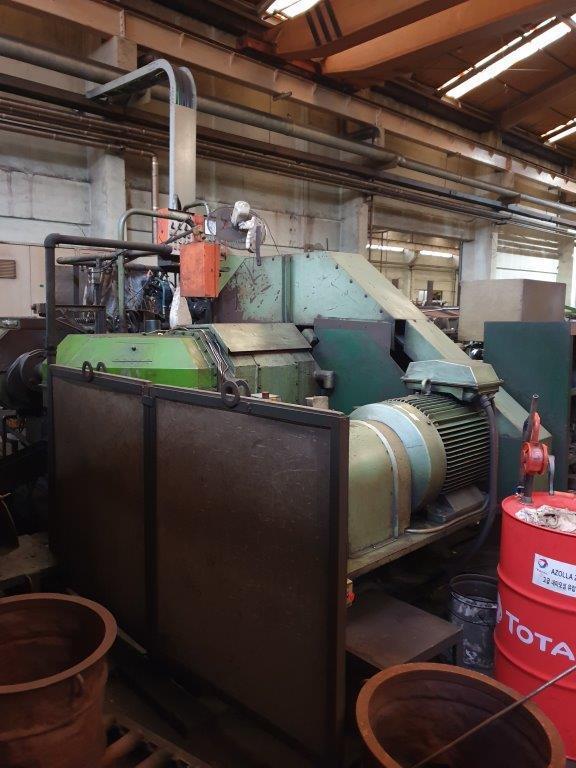

Nedschroef Model MW-48 BUILT NEW 1975
Hi-Speed Hot Nut Former -
by Nedschroef . - HERENTALS BELGIUM
Maximum production per minute........... 150
Major Specifications
Metric / Standard

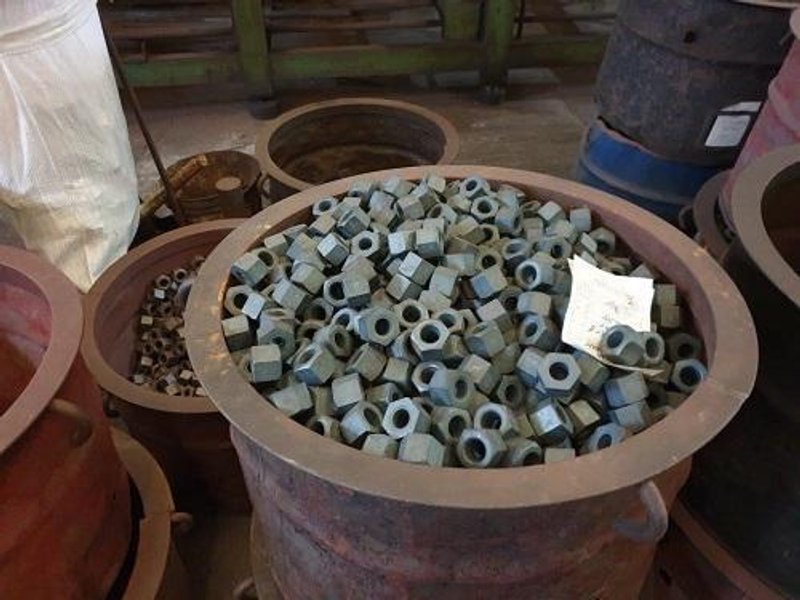

Maximum across flats hex. nuts.................... 48.0 mm (1.889")
Maximum across flats square nuts.............. 41.0 mm (1.614")
Maximum diameter products........................ 53.0 mm (2.087")
Maximum product height............................... 40.0 mm (1.575")
Minimum product height............................... 13.0 mm (0.512")
Maximum bar diameter raw material........ 38.0 mm (1.496")
Maximum cutoff length.................................. 60.0mm (2.362")
Minimum cutoff length.................................. 15.0mm (0.590")
Diameter feed rollers...................................... 180.0mm (7.086")
Diameter of dies................................................ 90.0mm (3.543")
Height of dies.................................................... 75.0mm (2.952")
Centre to centre distance of dies............... 115.0mm (4.527")
Slide travel.......................................................... 180.0mm (7.087")
Forging pressure (tons)................................. 105.0 mt (115.5 st)
Motor output .................................................... 44.0 kw (60.00 kg)
Weight................................................................. 18,000 kg (39,600#)
Floor space (without heating)
Length................................................................... 4,650.0 mm (183.0")
Width.................................................................... 2,370.0 mm (93.2")
* Diameter of raw material is approx 80-85% of across flats dimensions of nuts
or of diameter of circular
products.

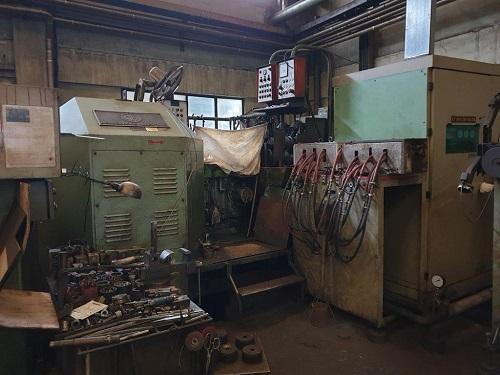

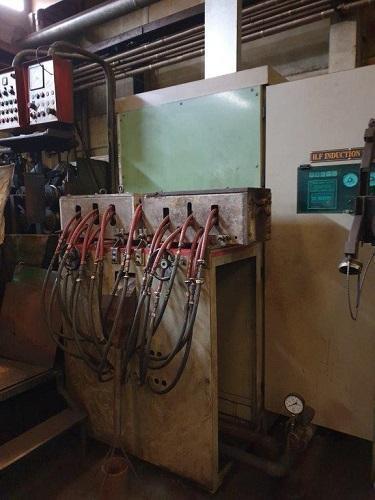

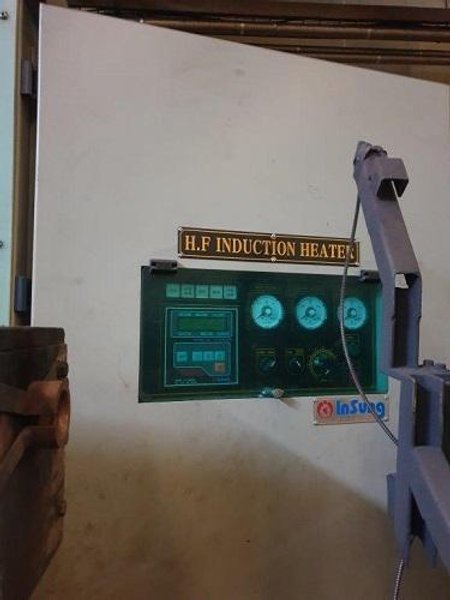

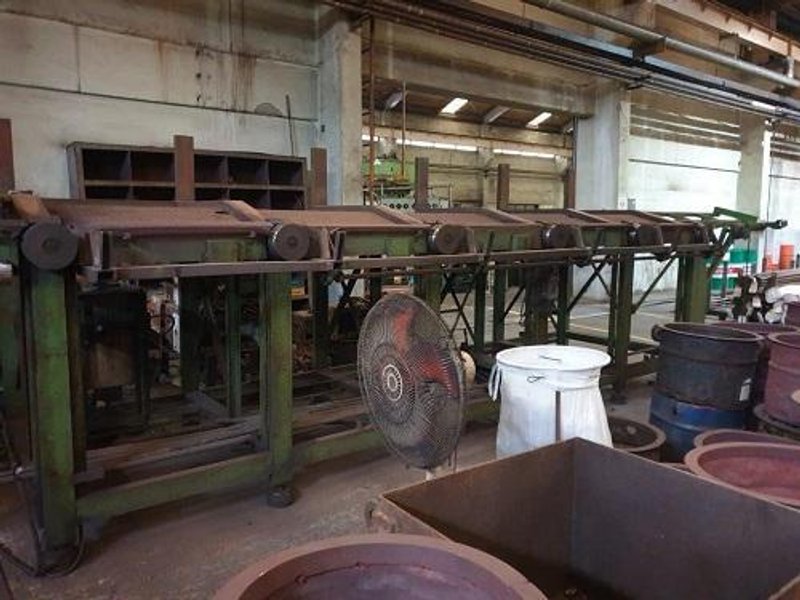

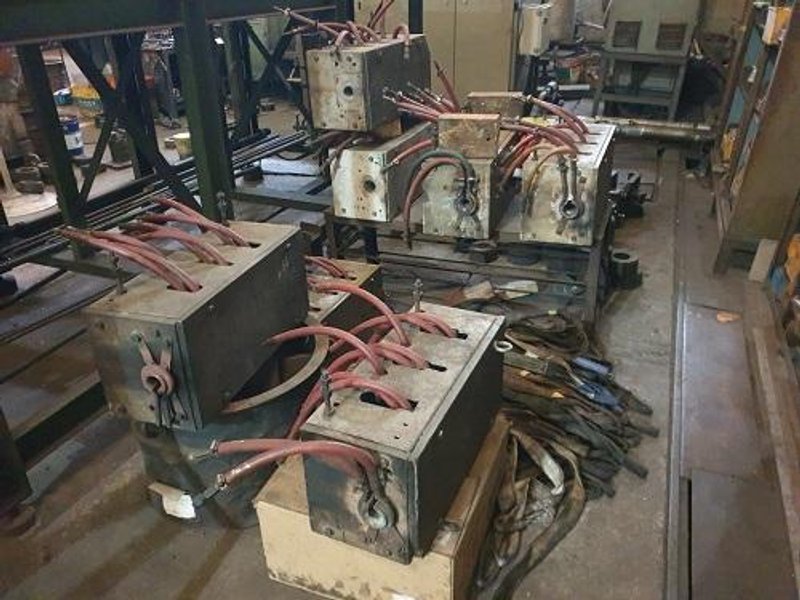

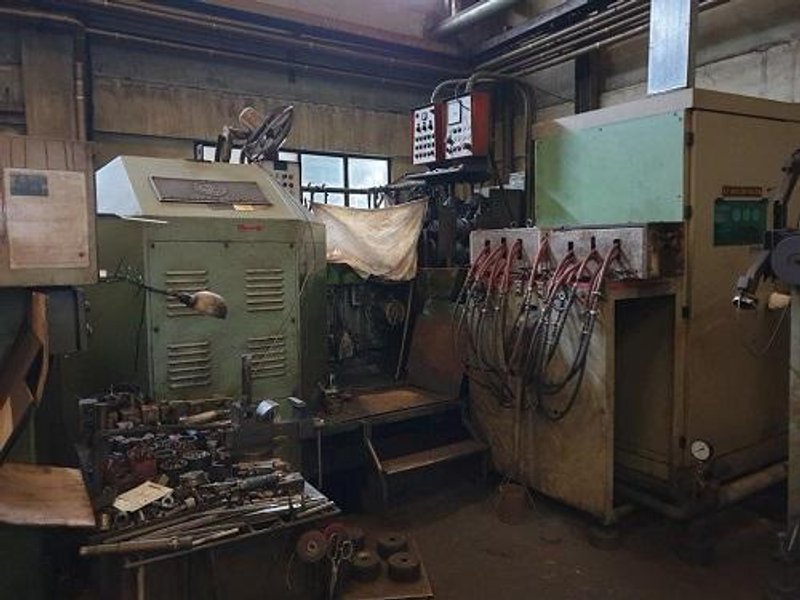

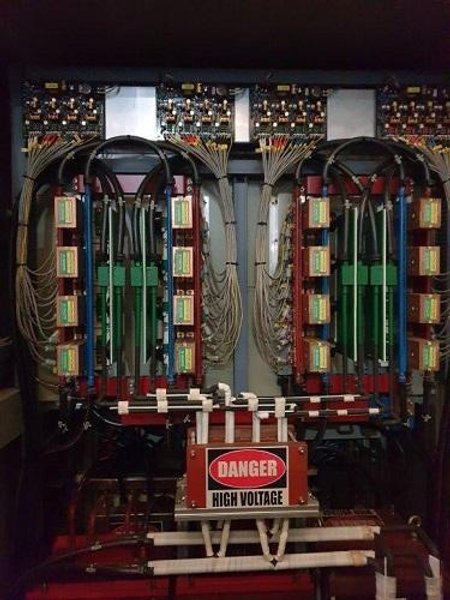

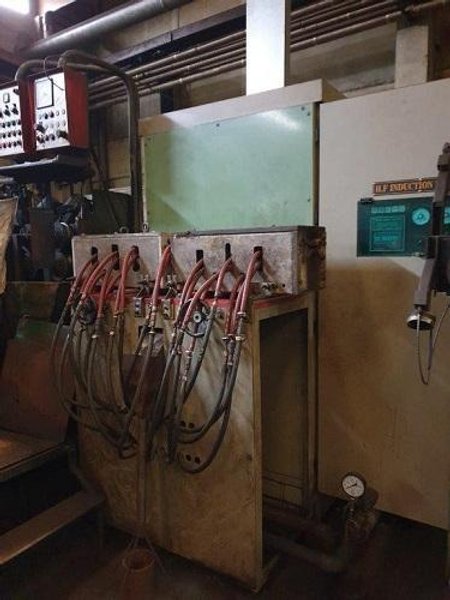

MACHINE COMPLETE WITH INDUCTION HEATER AND BAR RACK
LINE IS CURRENTLY UNDER POWER.
|
|
