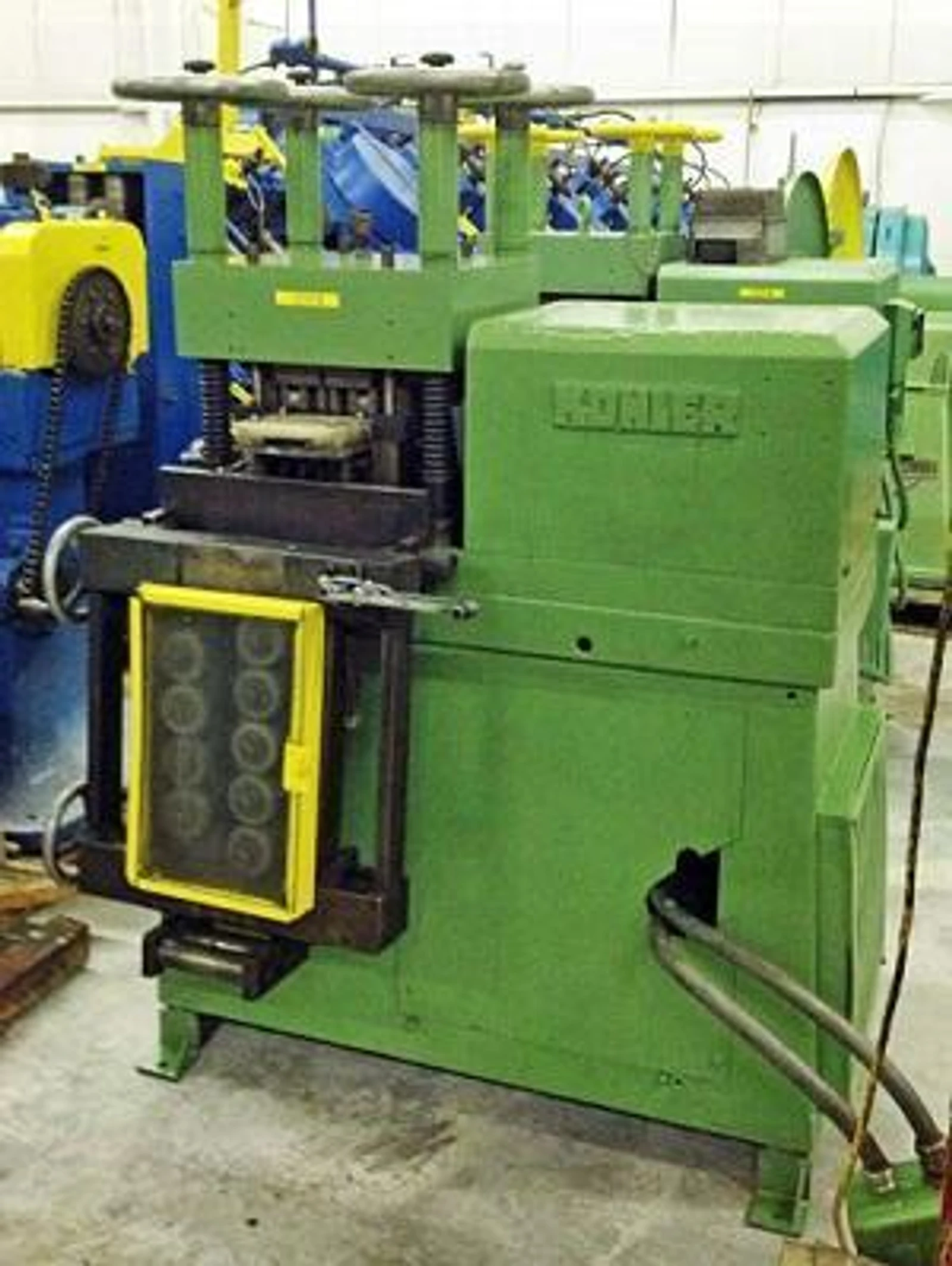

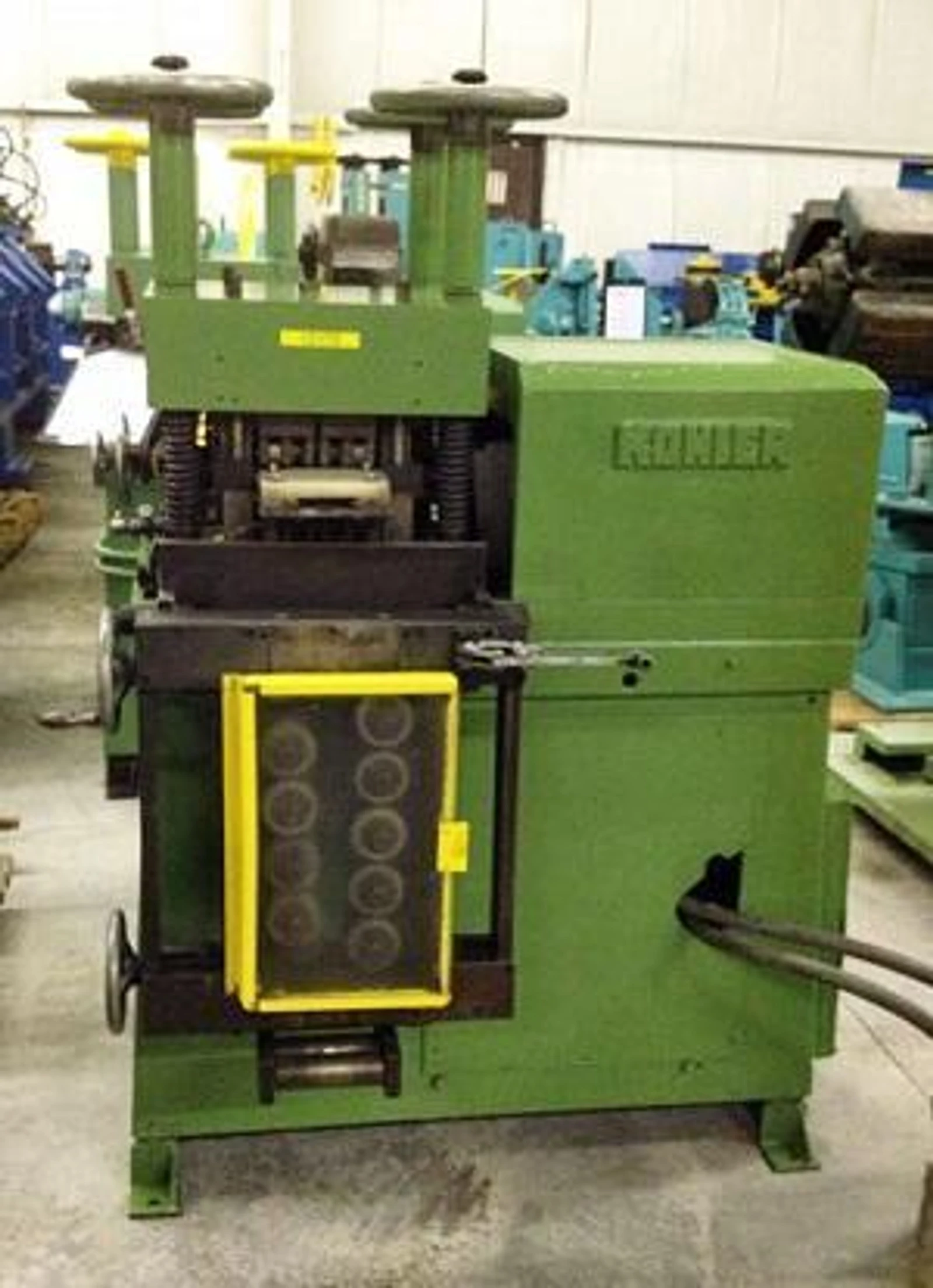

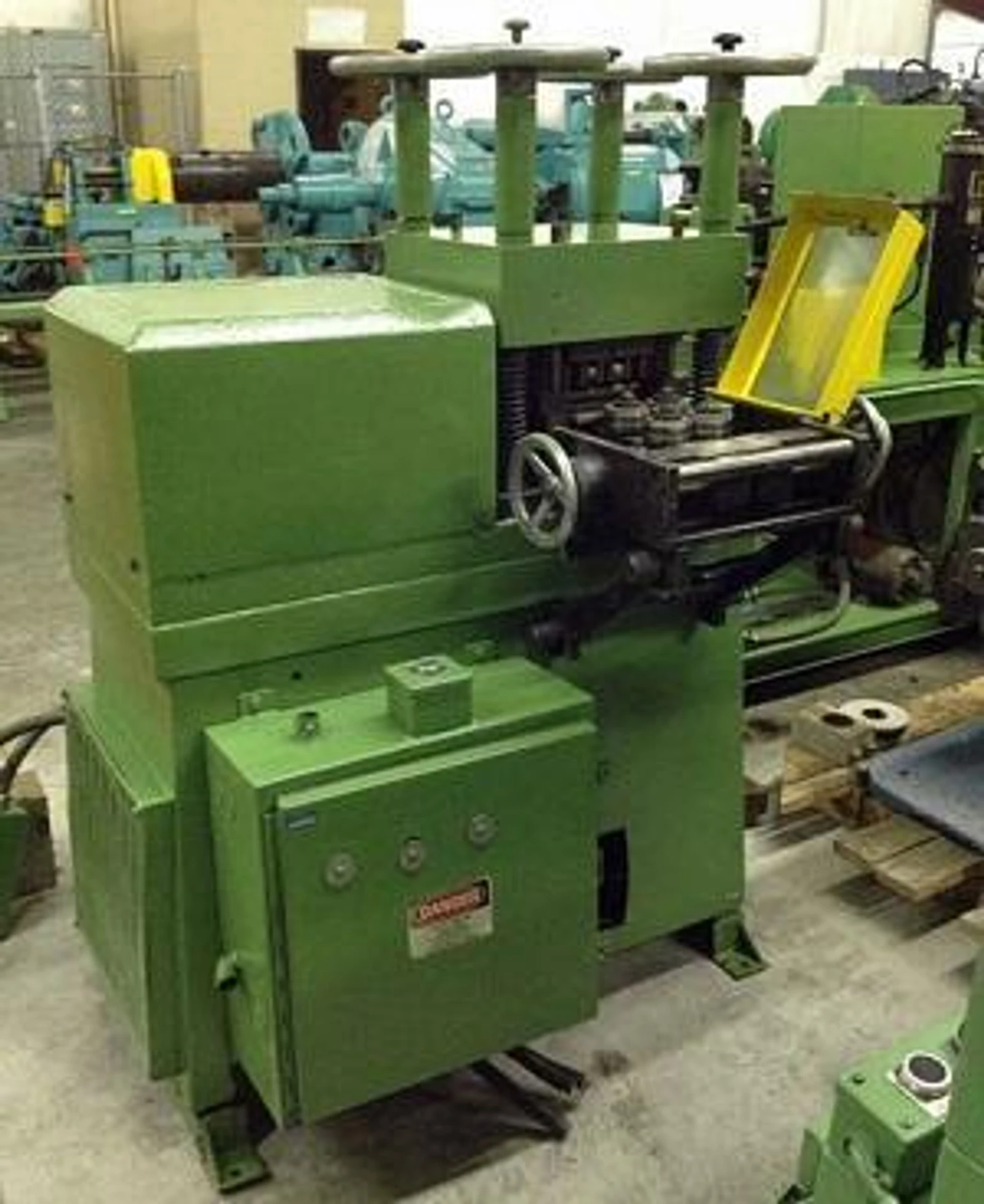

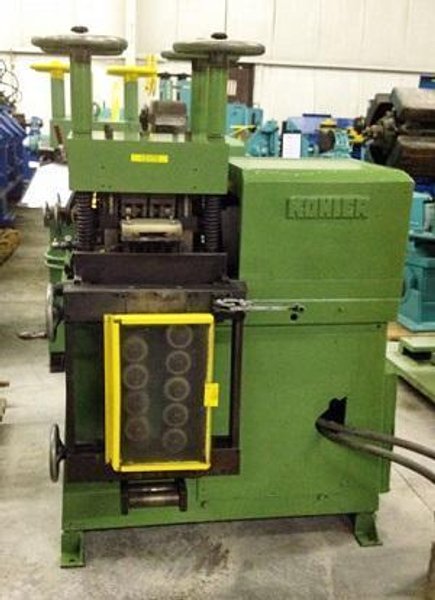

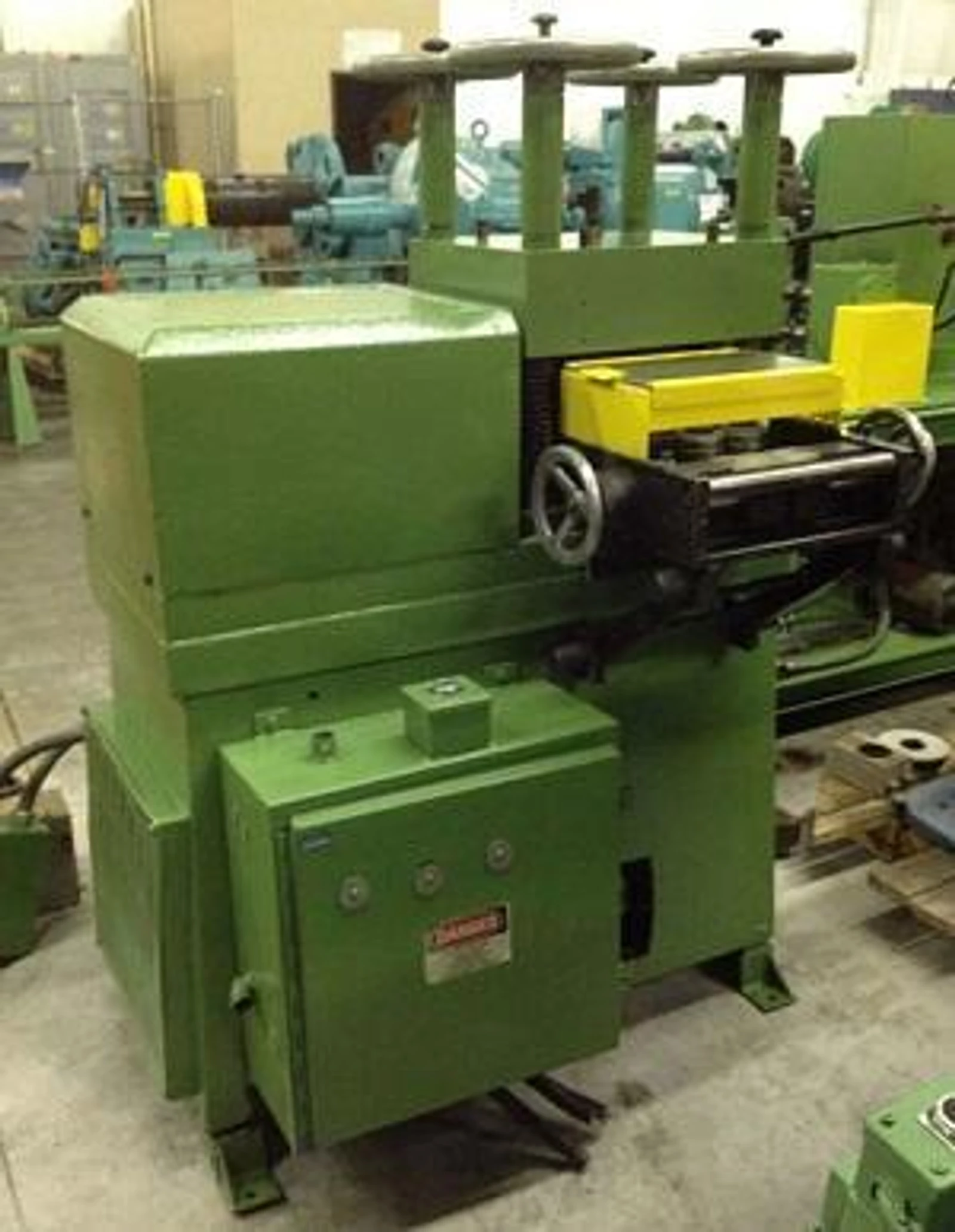

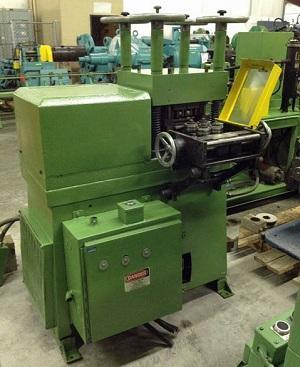

7" (178mm) x 7/8" (22mm) KOHLER 19 ROLL LIGHT GAUGE STRIP LEVELER

Brand
Model
Not specified
Stock #
111667
Year
Not specified
Condition
Used
Location
Connecticut
Link to our website listing http://uen.hsix.com/q/webinv/005700=x,112716
MANUFACTURER: KOHLER A.S.
TYPE: 19 ROLL BACKED UP LEVELER
No. OF ROLLS: 19
No. OF DRIVEN ROLLS: 19

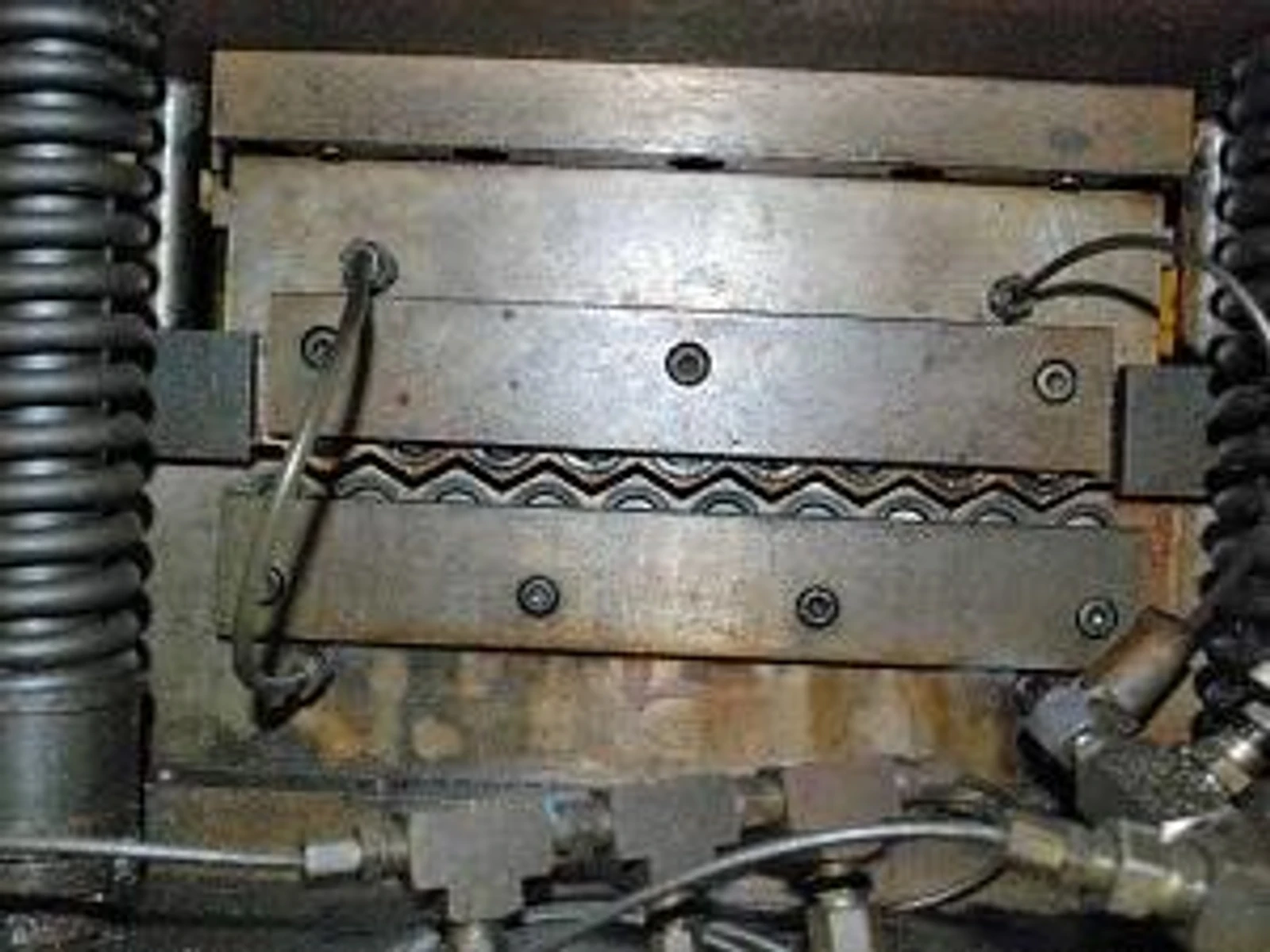

ROLL CONFIGURATION: 8 OVER 9
ROLL DIAMETER: 0.94" (24mm)
ROLL FACE: 7" (178mm)
TYPICAL THICKNESS RANGE: 0.0157" - 0.098" (0.4mm - 2.5mm)
ROLL BEARING LUBRICATION: FORCED HYDRAULIC SYSTEM
W/INTERNAL TANK AND PUMP
ENTRY GUIDES: COMBINATION VERTICAL SIDE GUIDE ROLLS
AND HORIZONTAL PRE-FLATTENING ROLLS
VERTICAL ROLLS: NON-DRIVEN
DIAMETER: 1 3/4" (44mm)
ROLL FACE: 5" (127mm)

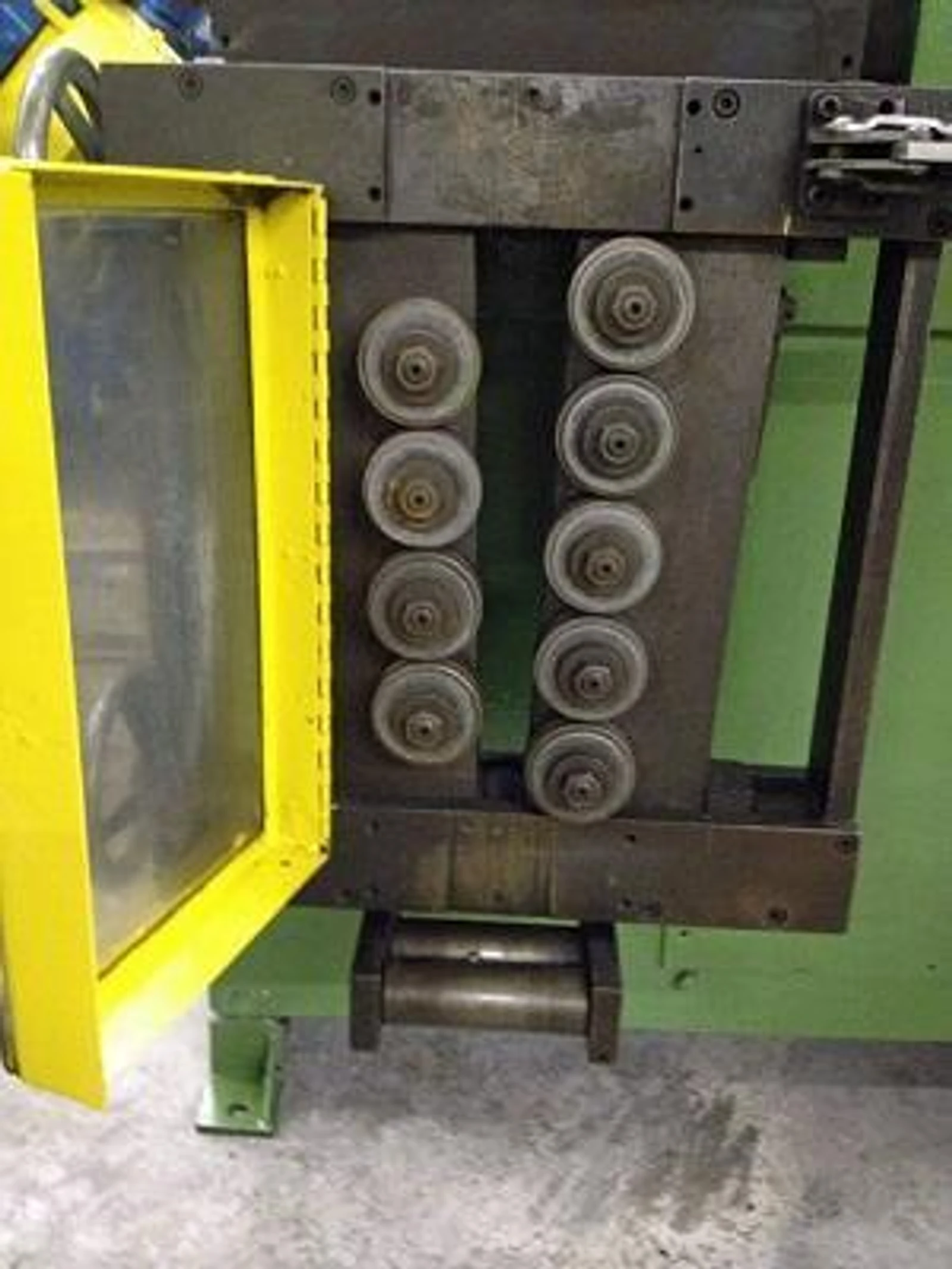

EDGING ROLLS:
QUANTITY: 9
ROLL DIAMETER: 2 3/4" (70mm)
ROLL FACE: 1 1/4" (32mm)
TYPE: NON-DRIVEN

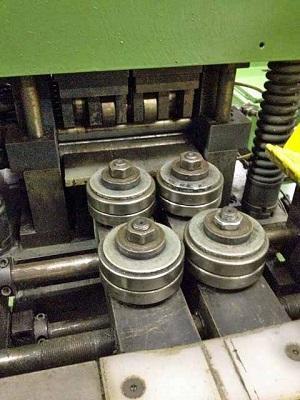

EXIT GUIDES: 4 VERTICAL ROLLS
HANDWHEEL SCREWDOWNS: 4


DRIVE MOTOR:
TYPE: DIRECT CURRENT
MANUFACTURER: BALDOR ELECTRIC 5 HP, 1750 RPM
180 ARM VOLTS, 200/100 FIELD VOLTS
**Please note DC power supply is not provided, Buyer must supply**

EQUIPPED WITH SPARE ROLLS

**Preliminary Catalogue Specifications Subject to Verification**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
