Preliminary Specifications
30,000 lbs Coil Capacity
42" Max Coil Width
.060" @ 42" Max. Thickness and Full Width
.125" @ 20" Coil Thickness Capacity
sn/ 88035-88039

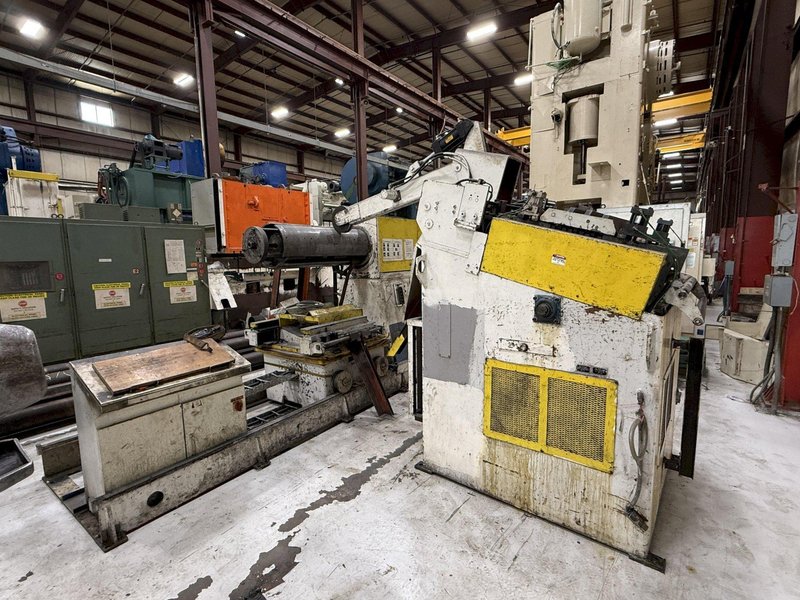

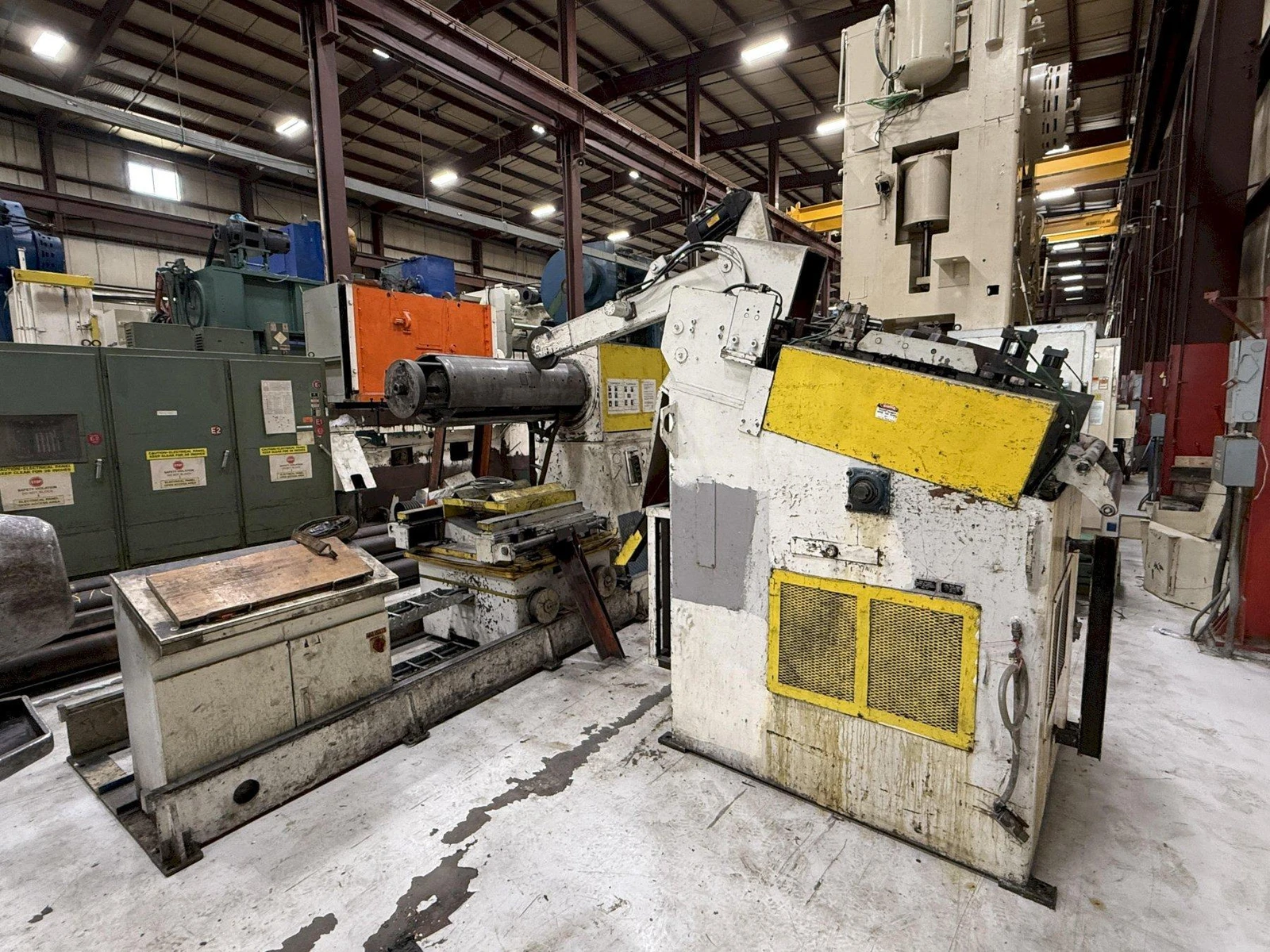

Perfecto Conventional Complete Servo Coil Feed Line Features and Equipment:

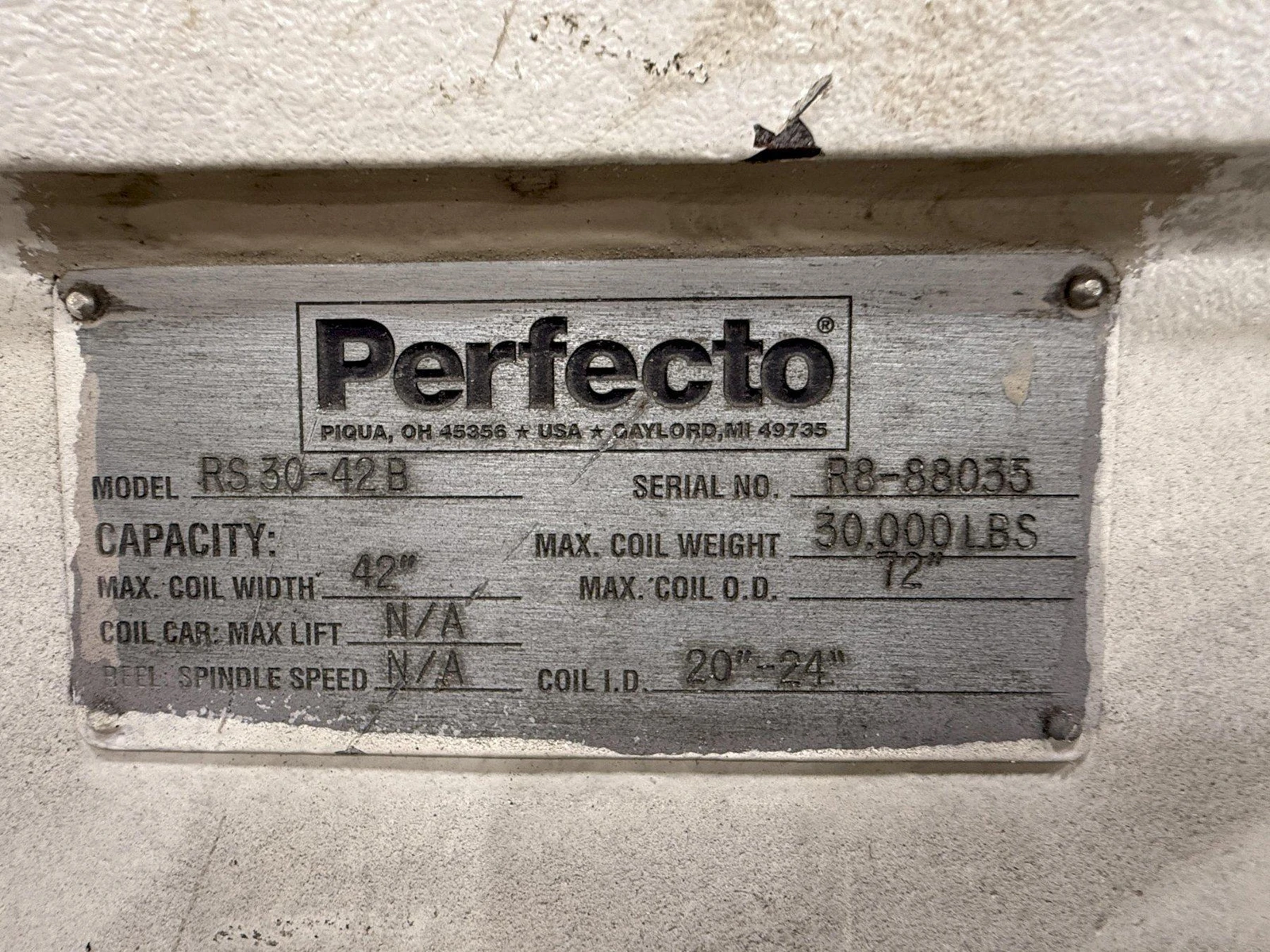

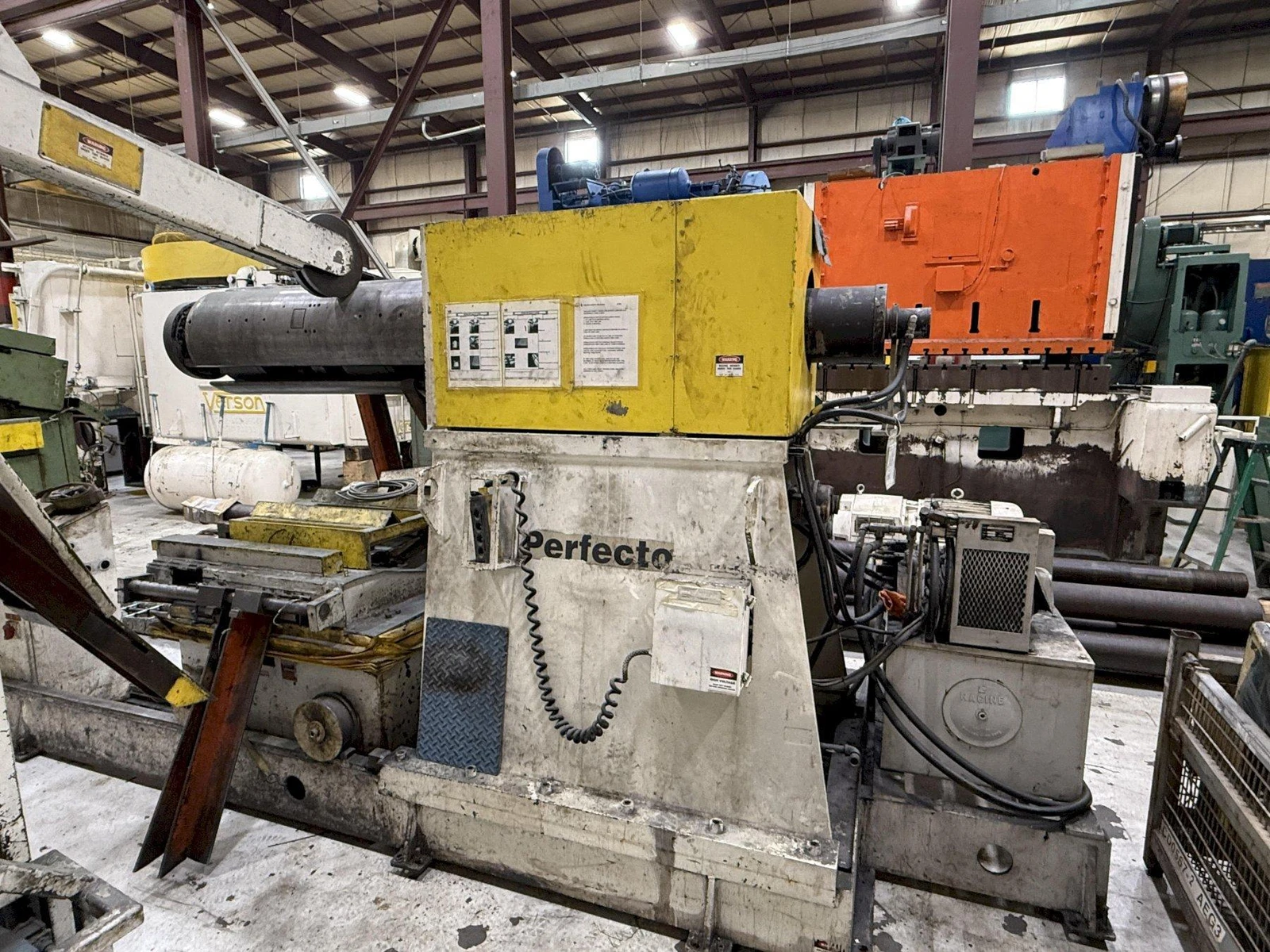

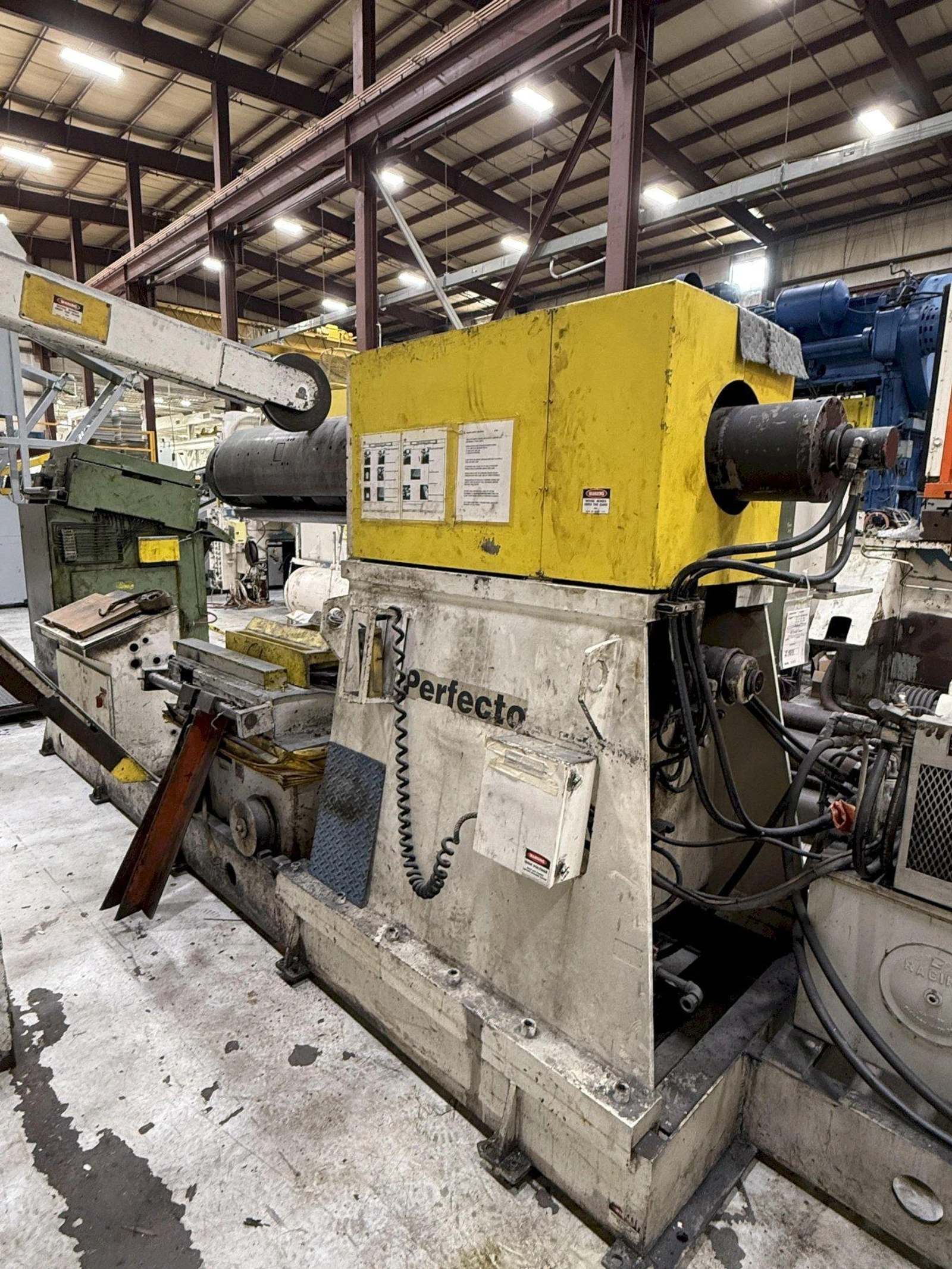

Perfecto Coil Reel Model: RS30-42B
72" Max. Coil O.D.
20"-24"  I.D. Mandrel Expansion Range
Spindle Shaft Mounted in Permanently Lubricated Tapered Roller Bearings
Three Coil Shoes with Wedge Type Expansion
Hydraulic Mandrel Expansion
Central Hydraulic Power System
Adjustable Air Brake On Spindle Shaft
Adjustable Coil Reel Keeper Arms
Jog, Forward and Reverse
Thread Drive
Traveling Coil Car with 18" Coil Lift

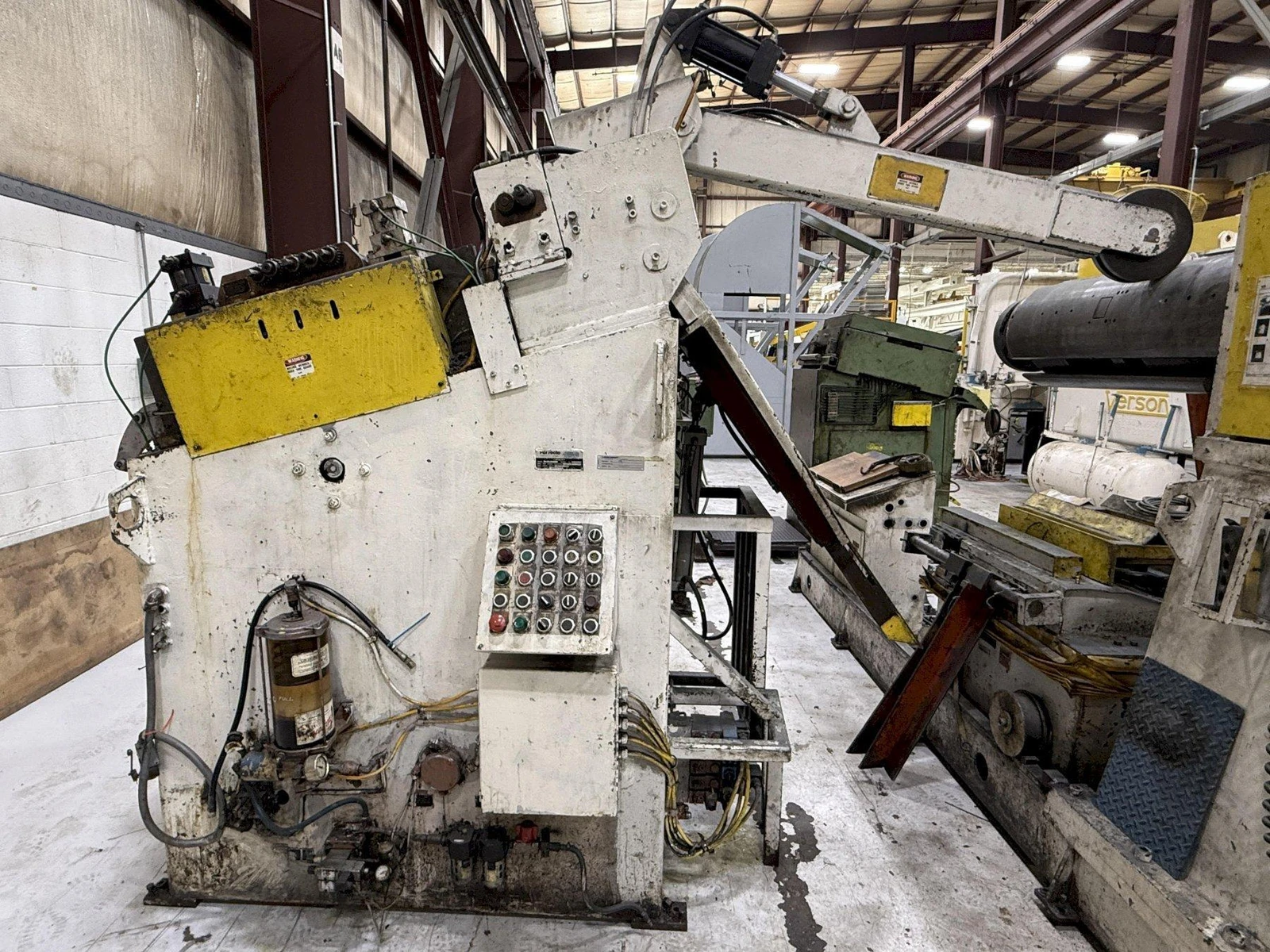

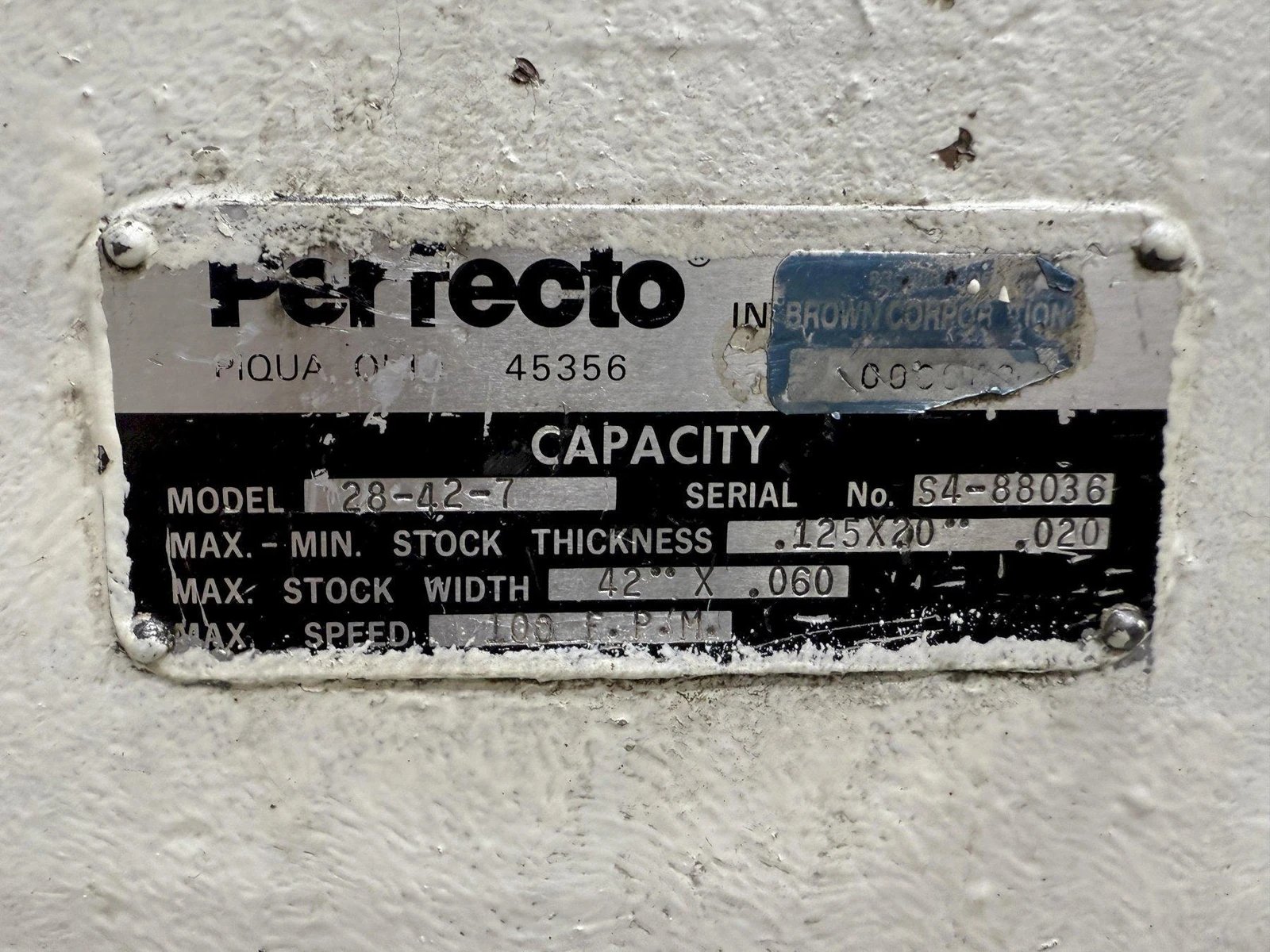

Perfecto Powered Coil Straightener Model# 28-42-7
7 Straightening Rolls with Ground Finish
Straightening Rolls x 2.8" Diameter
Entry and Exit Powered Coil Straightener Pinch rolls with Air Operated Adjustment
Stock Guides - Heavy Duty - Hand Crank Adjusted
Angle Top Cabinet
Manual Individual or Unison Upper Coil Straightening Rolls
Coil Hold Down Arm with Neoprene End Wheel
Stock Peeler table with Extension
Automatic Lubrication
Exit Catenary Support with Rollers
Sonic Loop Control
One Man Operation Capability
AC Variable Speed Motors and Drives
Jog / Forward / Reverse
Auto / Run Cycle

Perfecto Thread Tables Model ETT-42

Perfecto Press Mounted Servo Feed Model# FES 400-42
4" Diameter Upper and Lower Servo Feed Rolls
Adjustable Stock Width Edge Guides (Hand Crank)
Entry Cascade Support Rolls
Centralized Controls
Job Storage Up to 100 Parts
Air Operated Upper Servo Feed Roll Lift/Pilot
Rexroth - Indramat Drive
Anti-Back Up Rolls
Dual Air Cylinders for Consistent Air Pressure
Custom Engineered Adapter Plate
Pilot Pin Mode

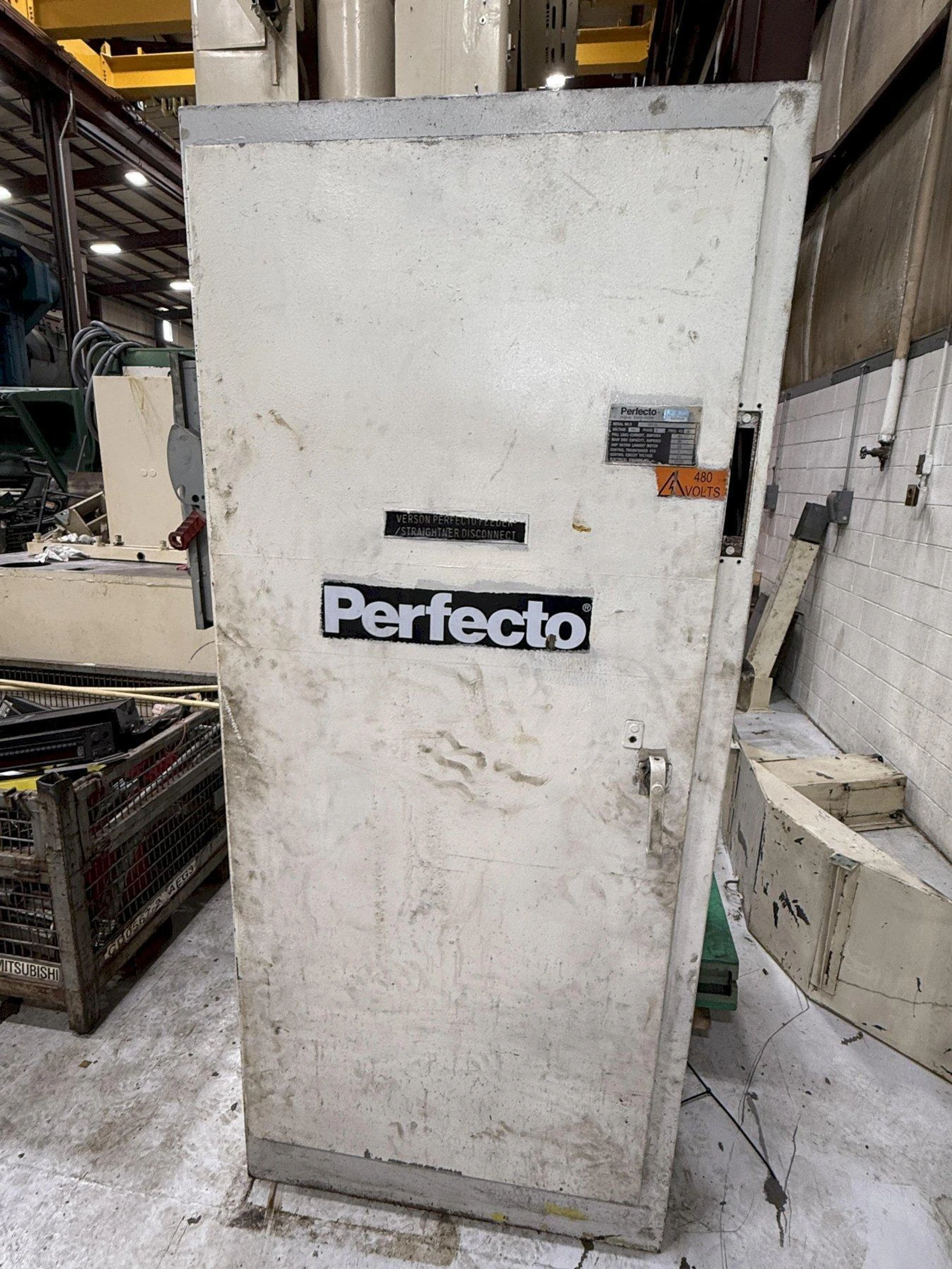

Free Standing Control Console

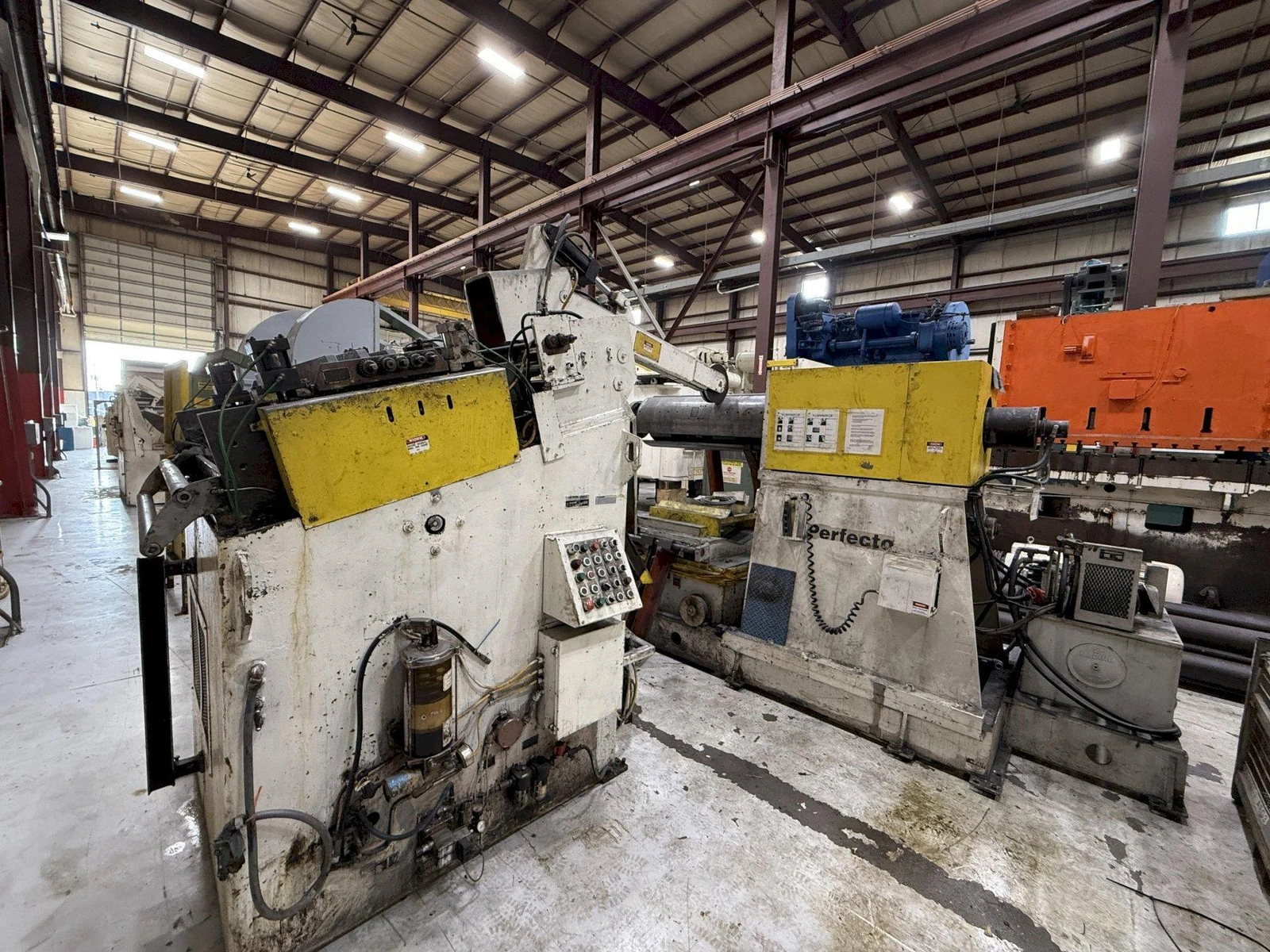

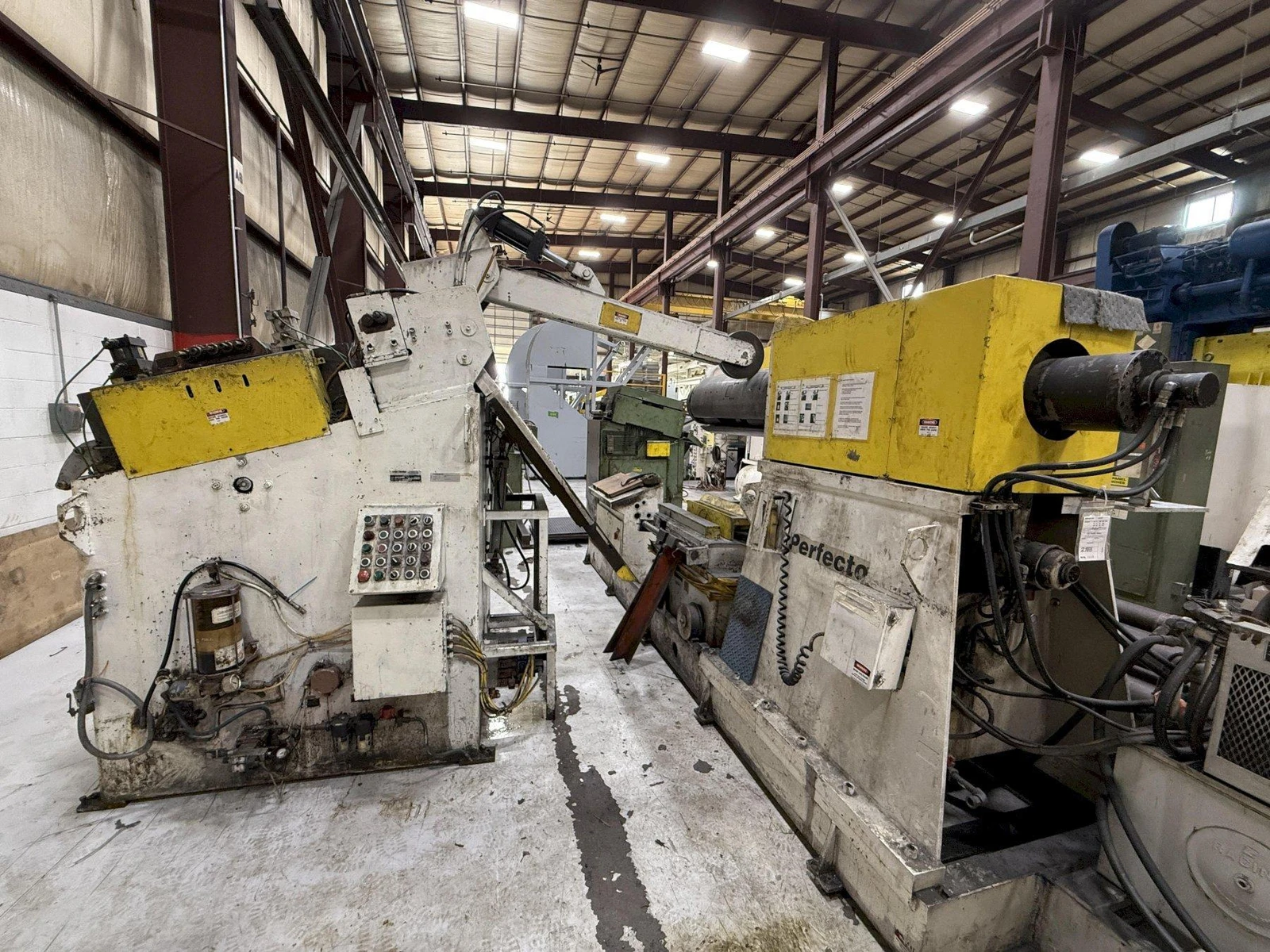

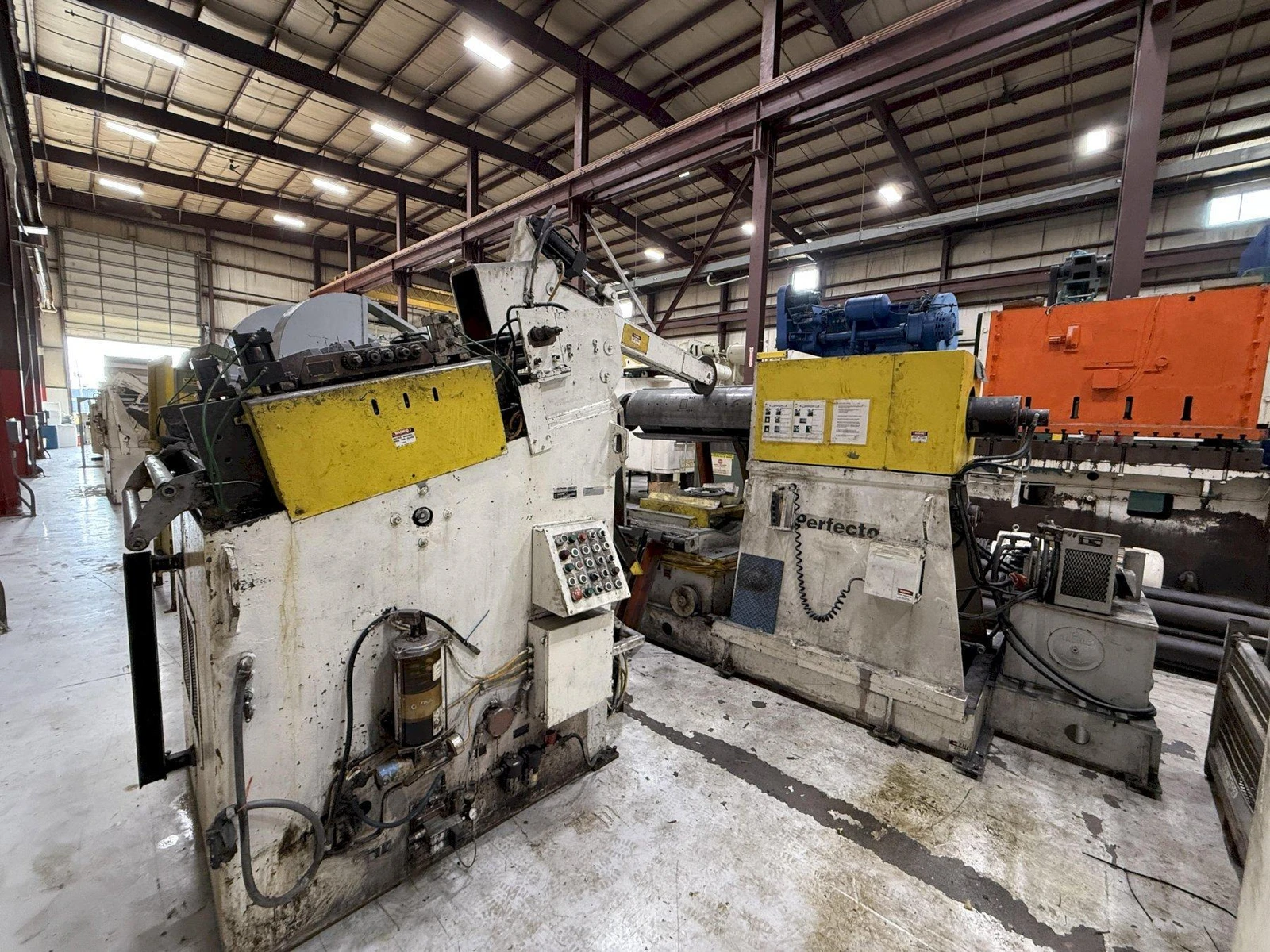

This Used Metal Stamping 42" Perfecto Conventional Servo Coil Feed Line Can Be Seen Under Power in the S&G Press Warehouse!
