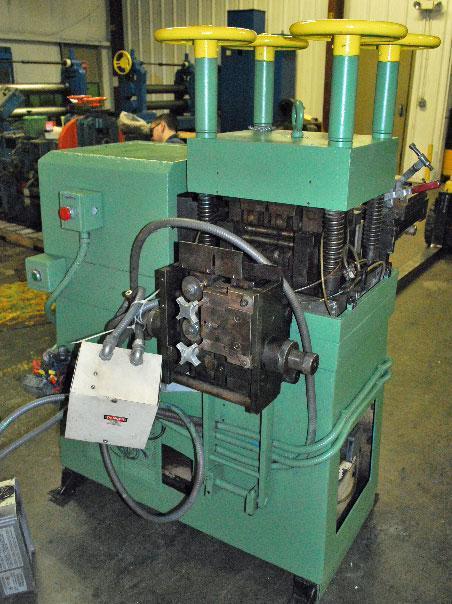

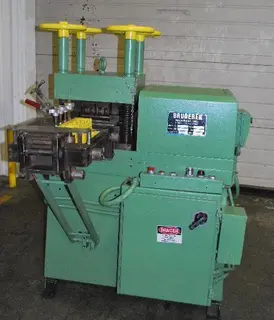

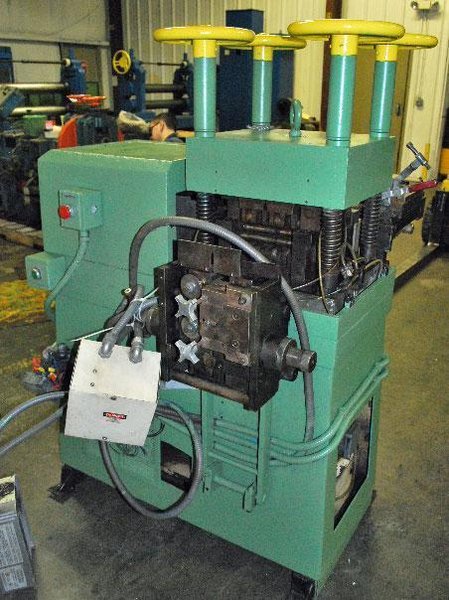

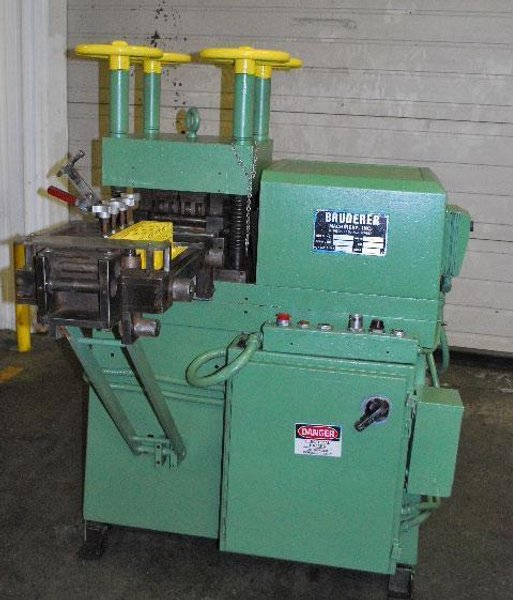

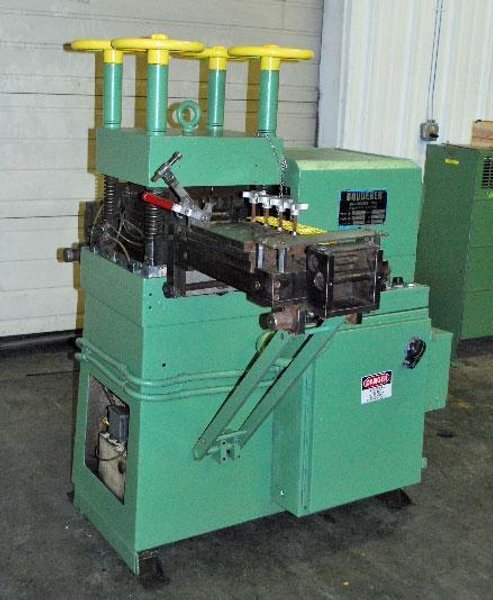

7" (178 mm) x 7/8" (22 mm) BRUDERER 19 ROLL LEVELER
Brand
Category
Type
Model
Not specified
Stock #
111666
Year
1982
Condition
Used
Location
Connecticut
|
MANUFACTURER: BRUDERER A.S. (SWITZERLAND)
TYPE: 19 ROLL BACKED UP LEVELER MODEL No.: 24180B SERIAL No.: 55033 YEAR OF MANUFACTURE: 1982 TYPICAL THICKNESS RANGE: 0.0157" - 0.098" (0.4mm - 2.5mm) MAX STRIP WIDTH: 7" (180mm) No. OF ROLLS: 19 No. OF DRIVEN ROLLS: 19 ROLL CONFIGURATION: 8 OVER 9 ROLL DIAMETER: 0.94" (24 mm) ROLL FACE: 7" (178 mm) ROLL BEARING LUBRICATION: FORCED HYDRAULIC SYSTEM W/INTERNAL TANK AND PUMP ENTRY GUIDES: COMBINATION VERTICAL SIDE GUIDE ROLLS OR HORIZONTAL PRE-FLATTENING ROLLS VERTICAL ROLLS: NON-DRIVEN DIAMETER: 2 1/4" (57 mm) ROLL FACE: 1 1/4" (32 mm) PRE-FLATTENING ROLLS: NON-DRIVEN QUANTITY: 4 SETS OF 2 ROLL DIAMETER: 1" (25 mm) FELT PRESSURE BOARD: MANUALLY ADJUSTABLE EXIT GUIDES: SAME AS ON ENTRY SIDE EXCEPT THERE ARE TWO SETS OF 2 1/4" (57mm) VERTICAL ROLLS INSTEAD OF FOUR. ELECTRICS: TYPE: A.C. INVERTER VARIABLE SPEED MANUFACTURER: BALDOR ELECTRIC CATALOG No.: ID15H405-E SERIAL No.: 3494PX363 INPUT: 460 VOLTS, A.C., 3 PH., 50/60 HZ OUTPUT: 460 VOLTS, A.C., 3 PH., 0-400 HZ STANDARD QUIET ZONE 2.5 KHZ PWM 8.0 KHZ PWM CONSTANT VARIABLE CONSTANT VARIABLE TORQUE TORQUE TORQUE TORQUE FLA INPUT 7.8 -- 4.9 7.8 HP OUT 5 -- 3 5 KW OUT 3.7 -- 2.2 3.7 FLA OUT 7.6 -- 4.8 7.6 PKA OUT 15.2 -- 9.6 15.7 ACME GENERAL PURPOSE TRANSFORMER PASS-LINE HEIGHT: 41 1/2" (1054 mm) DIMENSIONS: 68" L x 48" W x 62" H (1727 mm L x 1220 mm W x 1574 mm H) |
