Tonnage | 300 |
Stroke | 12 inches |
Shut Height | 30 inches |
Adjustment | 6 inches |
Bed Size | 96" LR x 48" FB |
Ram Area | 96" LR x 48" FB |
SPM | 0-80 VSPM |
Standard Specifications

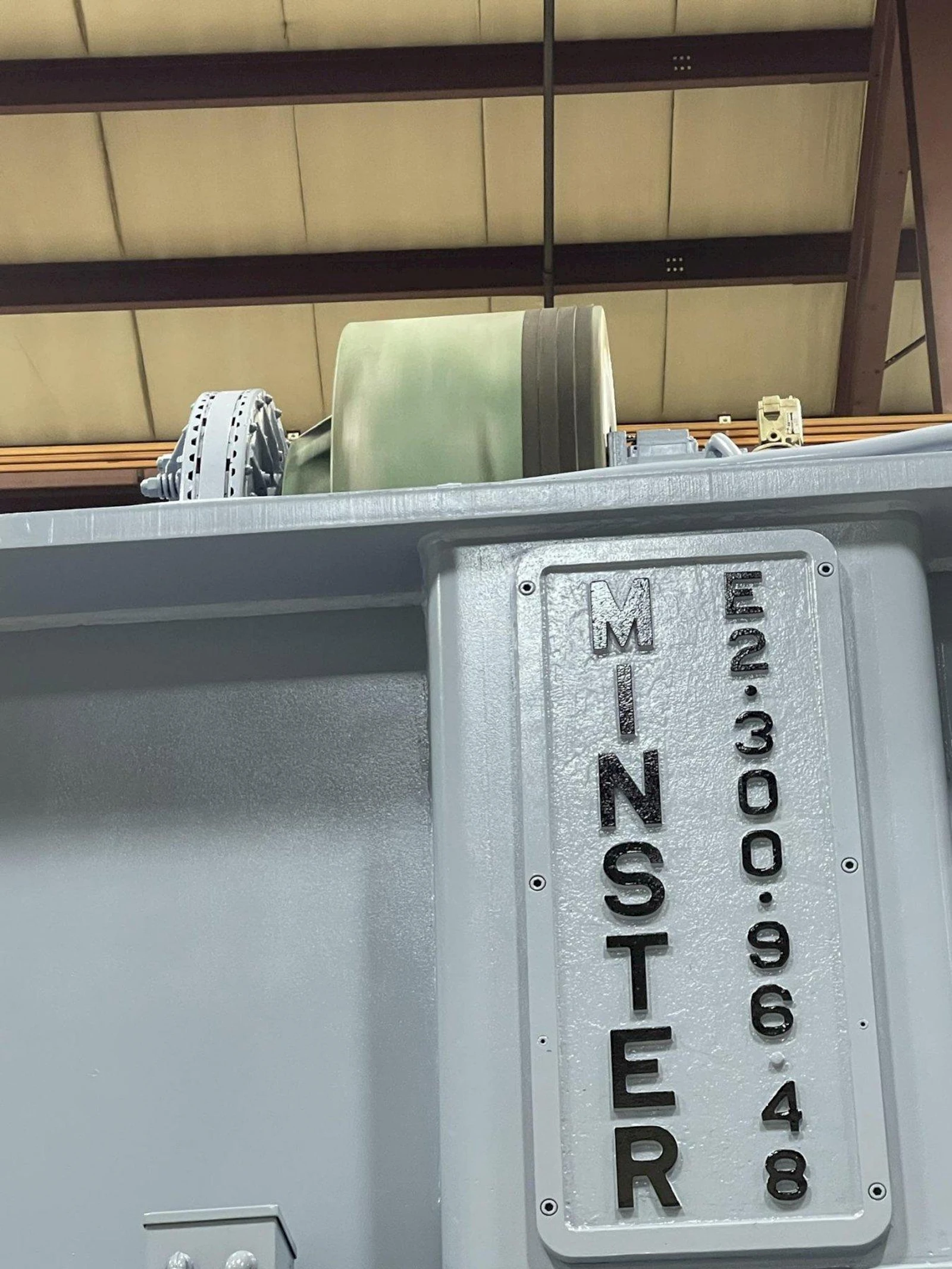

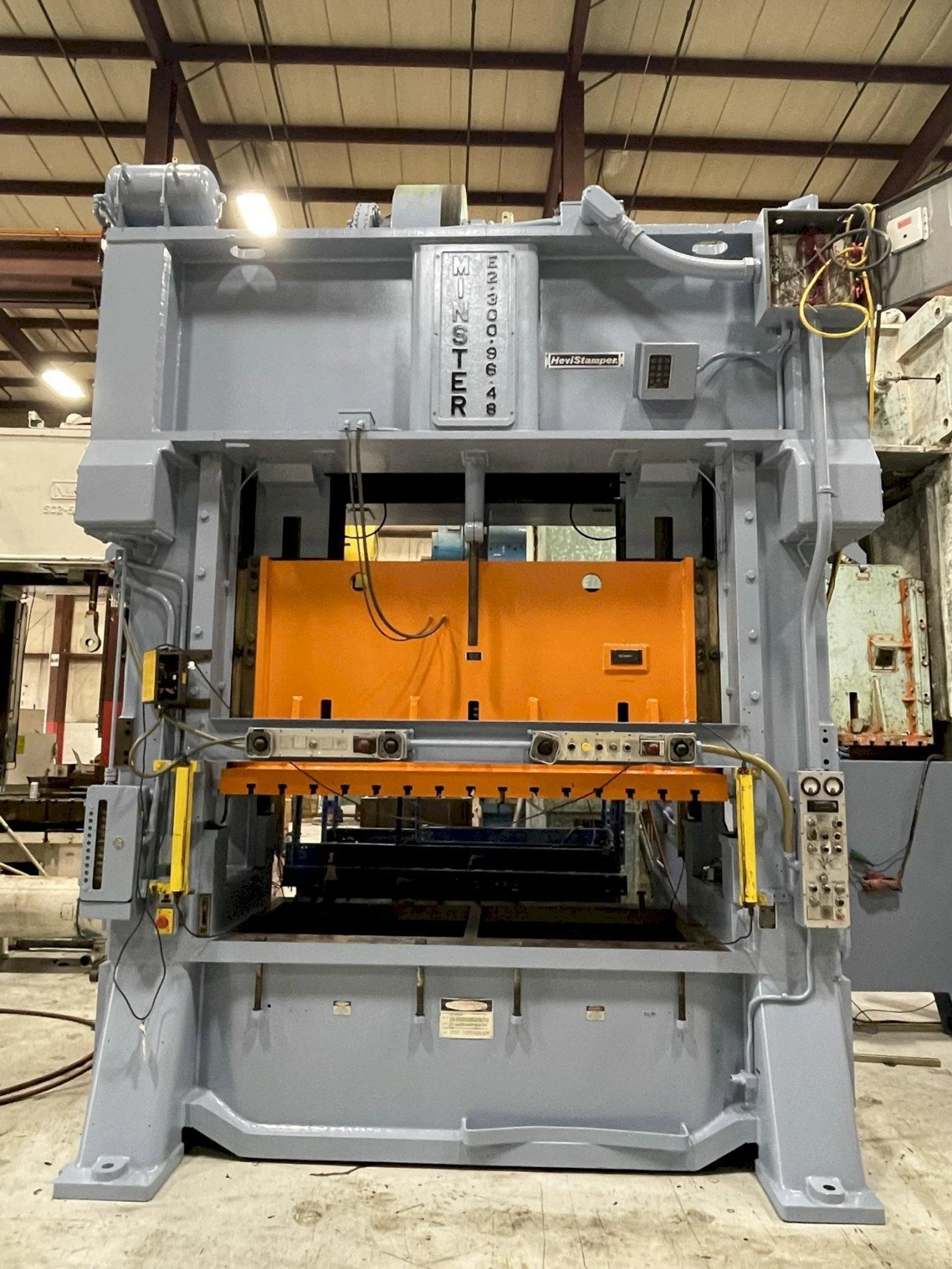

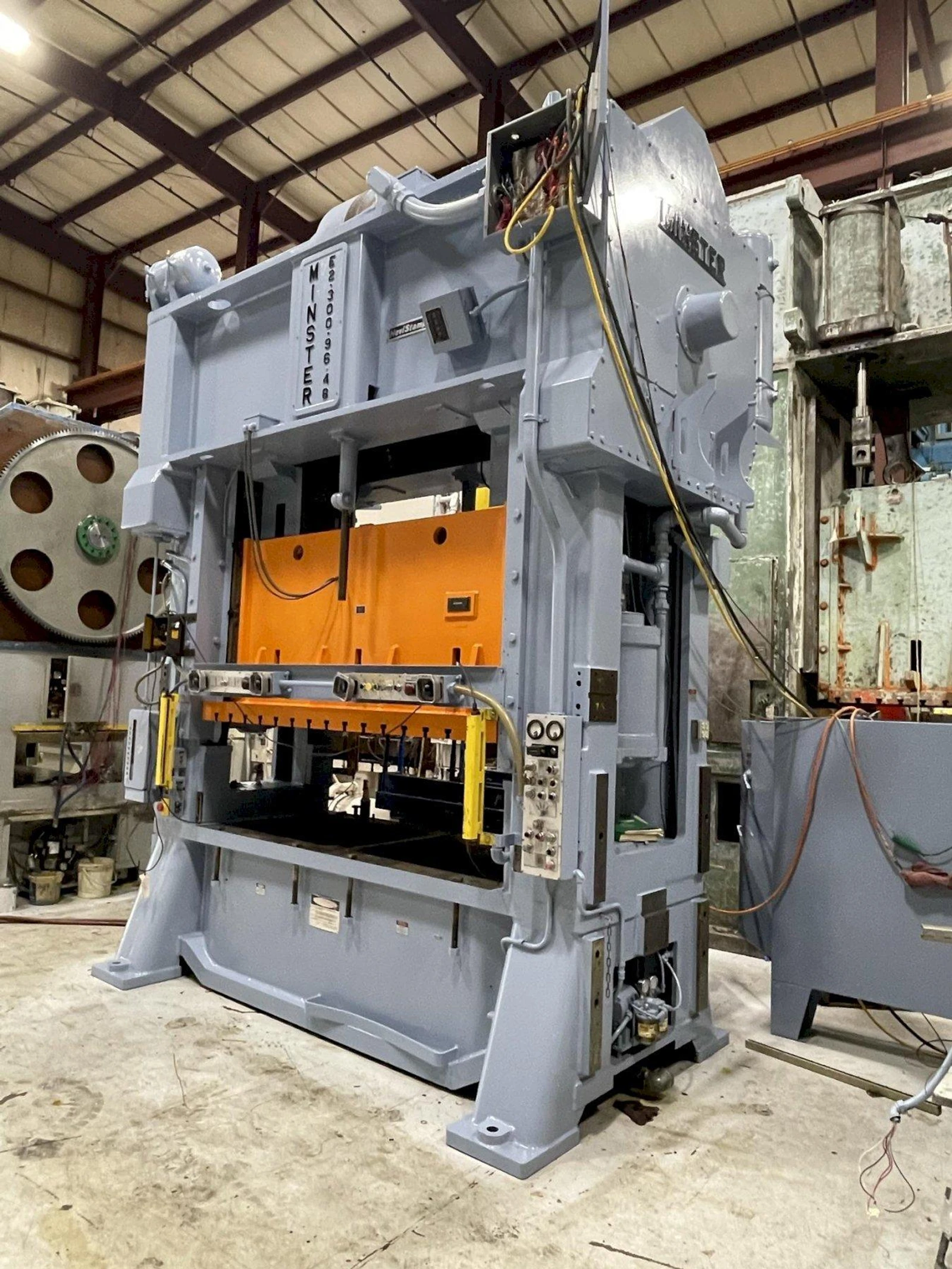

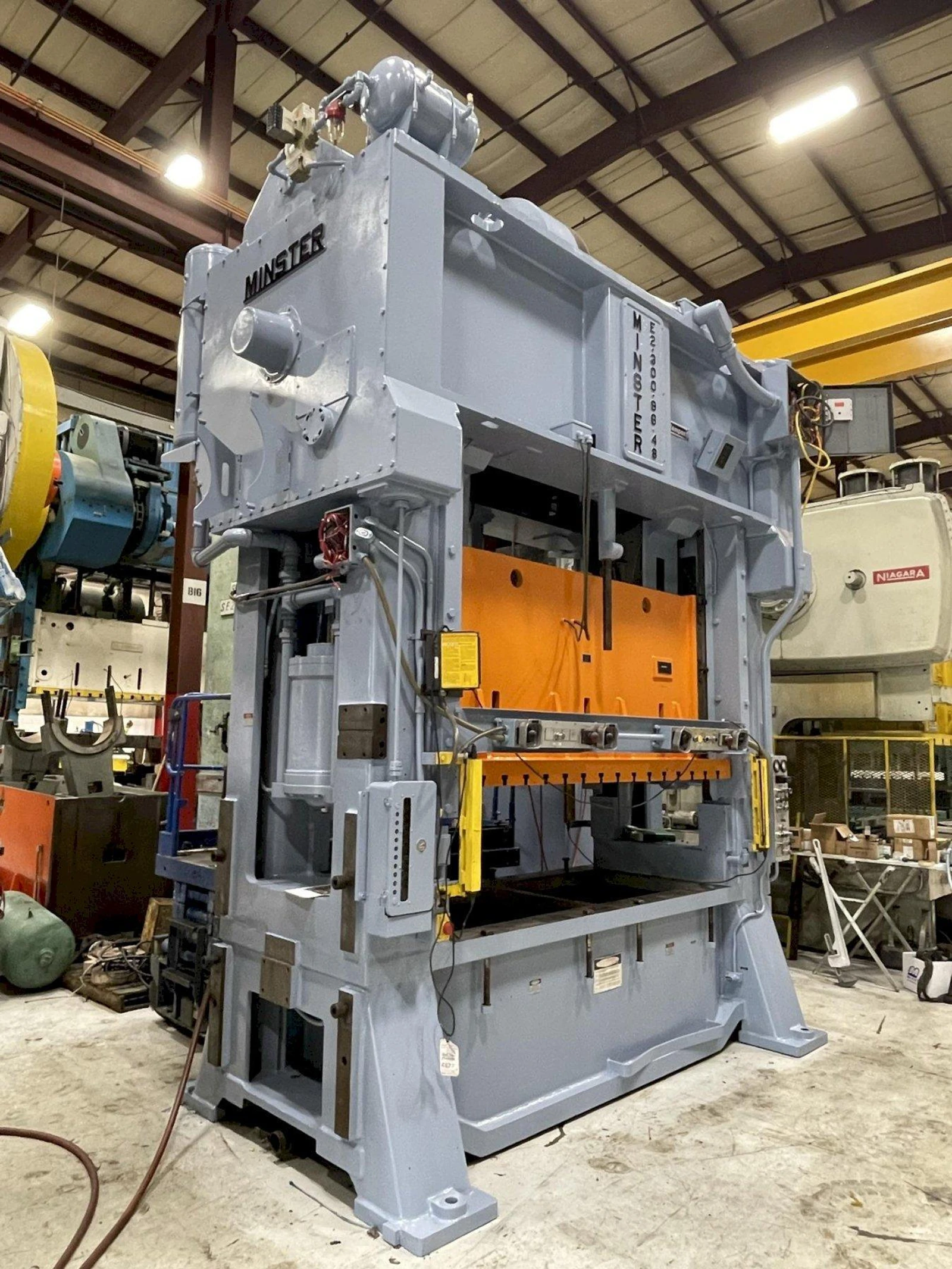

Model# E2-300-96-48 Mechanical Metal Stamping Press 300-ton Capacity 12" Stroke 30" Shut Height 6" Motorized Adjustment 96" LR x 48" FB Bed Area 96" LR x 48" FB Slide Area 0-80 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Monitor Flow Recirculating Lube System T-Slotted Ram and Bolster Air Cushions - (2) 26.5 @ 100 PSI, 6" Stroke 28" Wide Windows Palm Buttons Floor Standing Overall Height 210" Tall (17'6") Can Be Seen Under Power Upon Request at the S&G Press Livonia Michigan Warehouse! |
