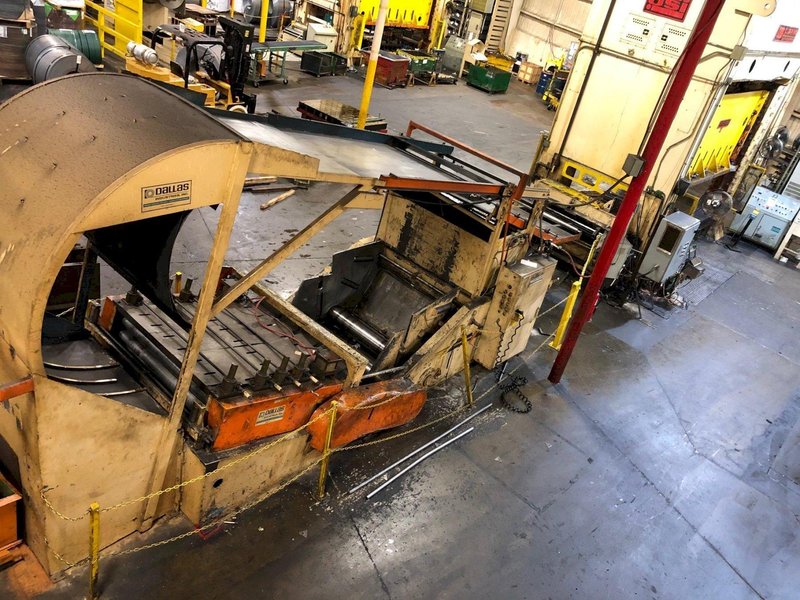

Dallas Ind. Coil Cradle Straightener Combination Uncoiler 30,000 Lbs.
Brand
Category
Model
DCC-30,000-60
Stock #
5317
Year
Not specified
Condition
Used
Location
Michigan
| Coil Weight Capacity: | 30000 pounds |
| Stock Width Capacity | 60 inches |
| Max Stock Thickness Capacity At Full Width | .250 inches |
| Coil O.D. Capacity: | 72 inches |
|
Dallas Ind. Coil Cradle Straightener Combination Uncoiler Specifications:
Coil weight capacity: 30,000 Lbs.
Coil width capacity: 60"
Stock thickness capacity: .250" x 60" Wide
Stock thickness capacity: .312" x 24" Wide Coil OD capacity: 72"
Dallas Ind. Coil Cradle Straightener Combination Uncoiler Equipment and Features: Coil cradle straightener entry and exit pinch rolls
Air operated adjustable coil cradle straightener entry pinch roll Manual adjustable coil cradle straightener exit pinch roll via screw jacks Seven coil cradle straightener straightening rolls x 5" diameter
Hand crank upper coil cradle straightening roll adjustments via screw jacks
Inline (Floor Mounted) coil cradle straightener powered straightener
Air operated peeler assembly Dual adjustable coil cradle straightener side plates with side plate rollers
Reverse loop stock deflector
Over head guide chute (air operated)
Terms: 40% Deposit, net prepaid prior to shipping
|
|
