Title: HERR VOSS / HILL ACME STAINLESS STEEL 62" COIL TO COIL WET GRINDING AND Our stock number: 114277
Type: Polishers, Sheet & Plate
Brand: No brand specified
Model: No model specified
Year: Not listed
Message
Information

HERR VOSS / HILL ACME STAINLESS STEEL 62" COIL TO COIL WET GRINDING AND Our stock number: 114277

Brand
Not specified
Model
Not specified
Stock #
114277
Year
Not specified
Condition
Used
Location
Not specified
HERR VOSS / HILL ACME STAINLESS STEEL 62" COIL TO COIL WET GRINDING AND   Our stock number: 114277

MATERIAL................... Stainless Steel Coil

MAX COIL WEIGHT............... 40 TON (80,000#)
MAX MATERIAL WIDTH ............ 16" to 62" (406 mm to 1575mm)
MAX MATERIAL THICKNESS......... 0.018" to 0.165" (0.457mm to 4.191mm)
COIL ID..................... 20" & 24" (508mm to 610mm)
COIL OD, MAX................... 84" (2134mm)
TOP BELT GRINDING/POLISHNG HEADS..... 5
BOTTOM BELT GRINDING/POLISHING HEADS..... 2
MINERAL OIL
HYDRO FLOW "STAR" FILTRATION SYSTEM WITH SWARF COMPACTOR
CO2 FIRE SUPPRESSION SYSTEM
MAX LINE SPEED.........................100 Ft/min (30.5 M/min)
MAX PROCESSING SPEED.....................60 Ft/min (18.3 M/min)
AISI / ASM FINISHES...................... #3 & #4
ENGINEERED FINISHES......................Per Requirement in Abrasive Finishes

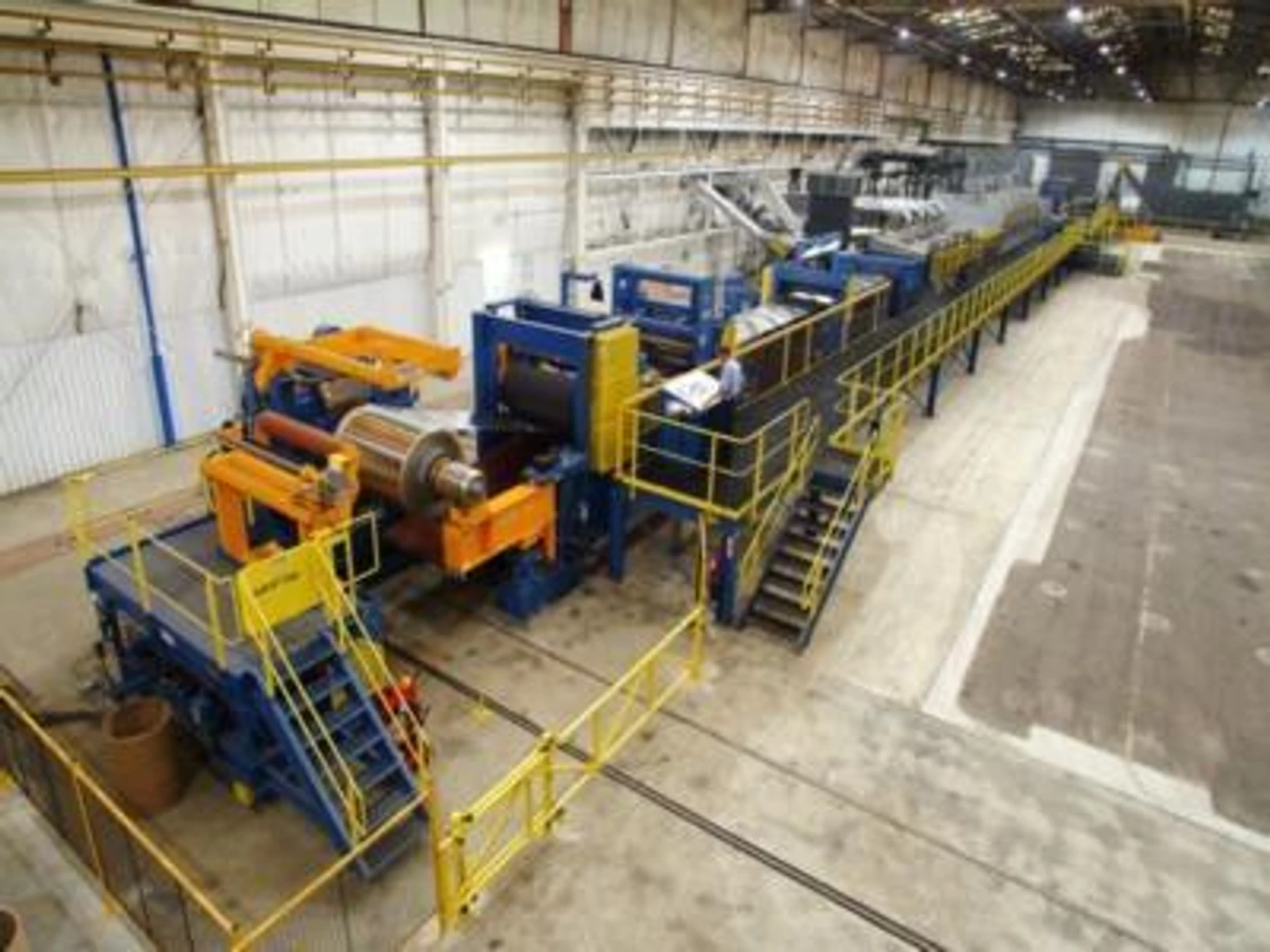

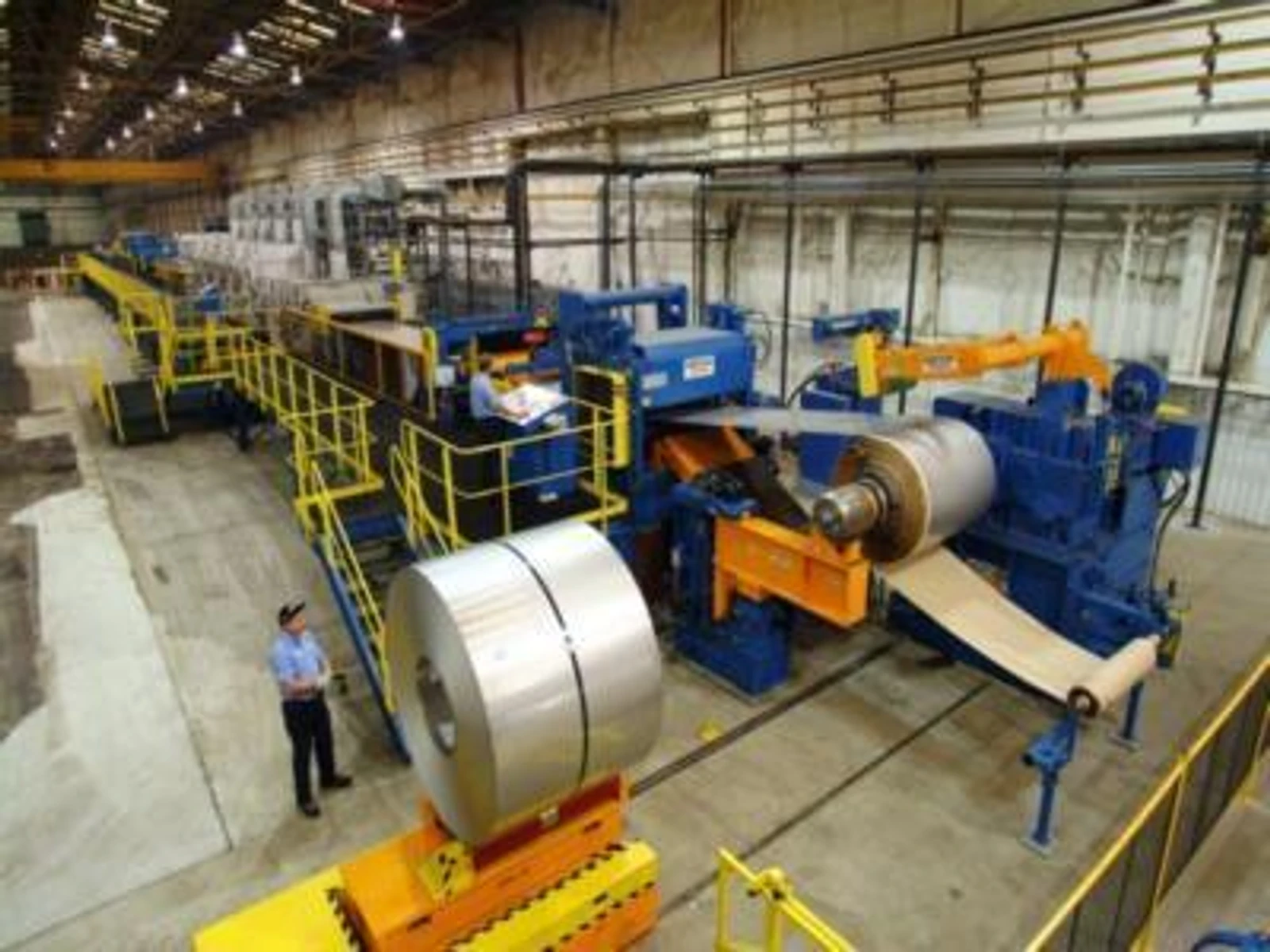

LINE CONFIGURATION

ENTRY SECTION
HERR VOSS COIL STAND

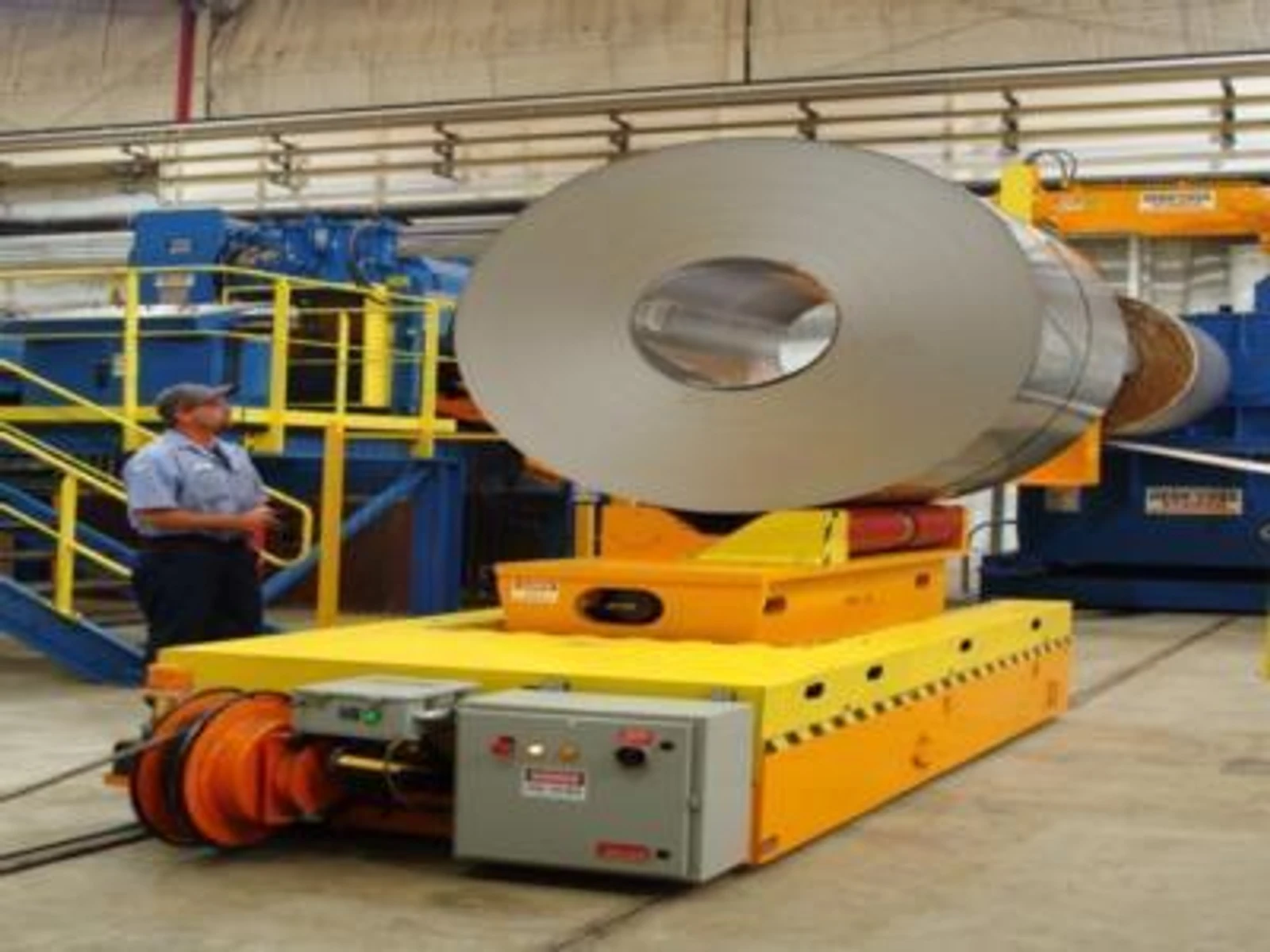

HERR VOSS COIL CAR
HERR VOSS UNCOILER, MANDREL TYPE, HYDRAULIC OPERATION
Paper Winder
Mandrel Expansion
Snubber Control Roll
Traversing Edge Control
Outboard Support
ELECTRONIC EDGE GUIDE
HERR VOSS PEELER TABLE / PINCH ROLL / 3 ROLL STRAIGHTENER / PINCH ROLL
CROP SHEAR / SCRAP CAR
THREADING TABLE
KENT SPLICER WELDER, BUTT OR LAP WELD
ENTRY PINCH ROLL
PIT WITH ENTRY THREAD LOOP EQUIPMENT, Hydraulic operated

GRINDING AND POLISHING SECTION
ENTRY SNUBBER/PINCH ROLL

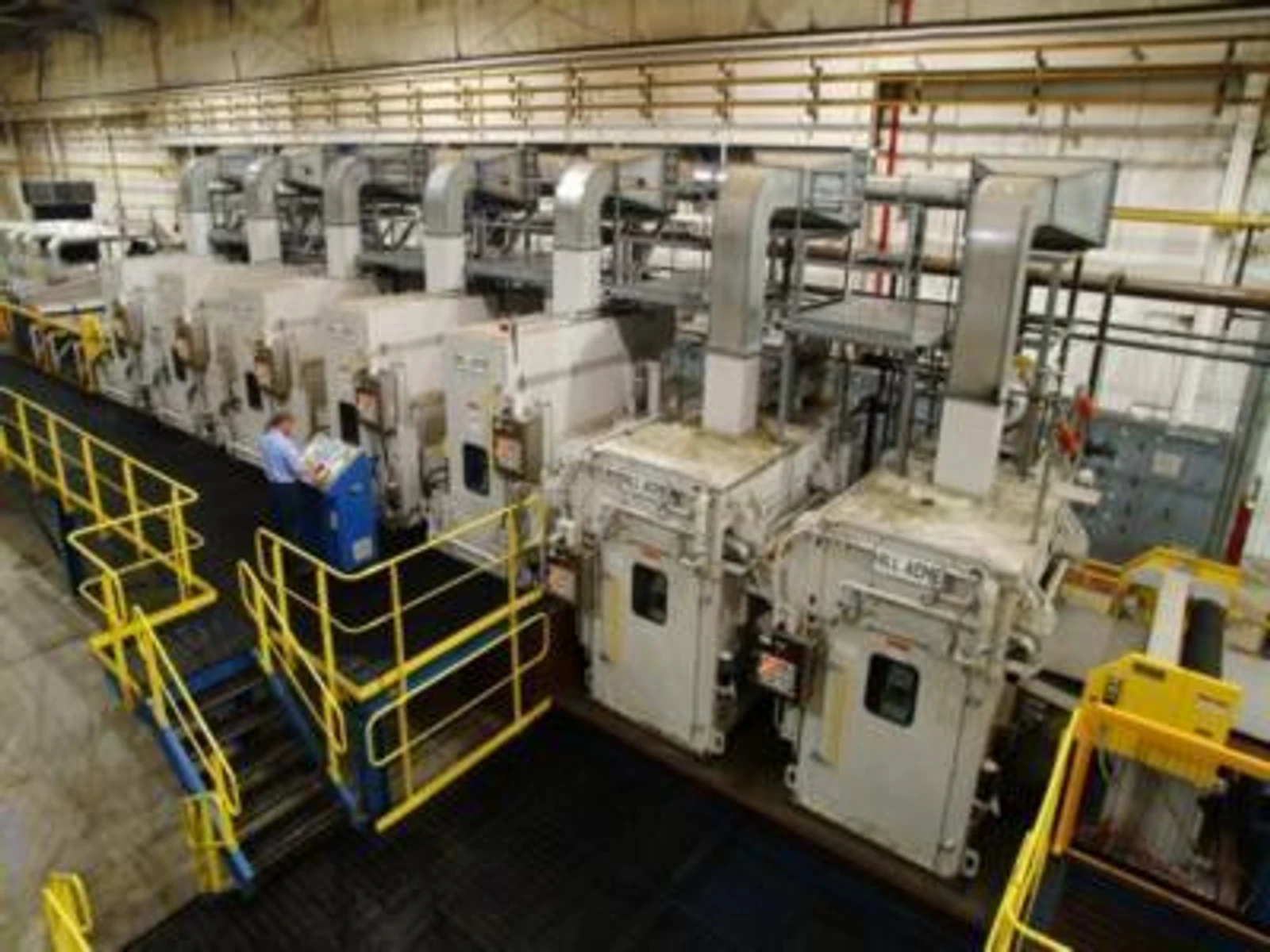

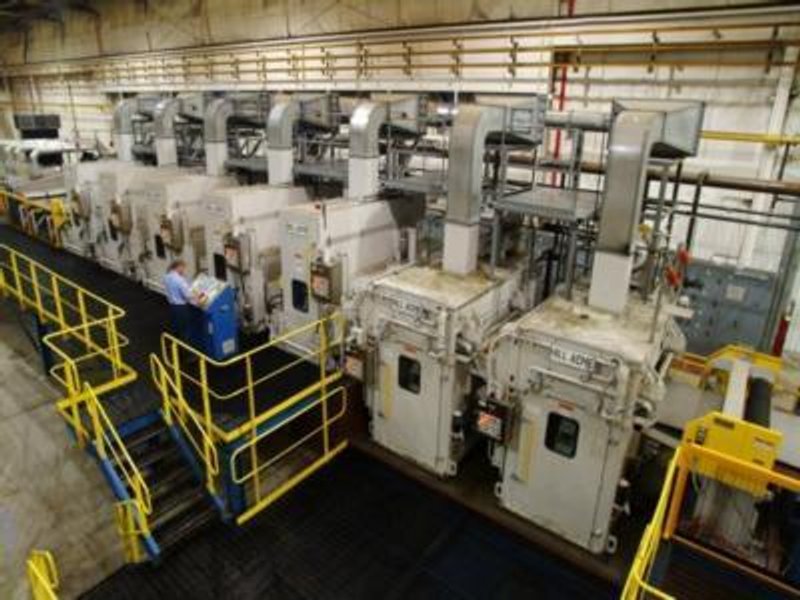

HILL ACME GRINDING / POLISHING HEADS
(2) BOTTOM Belt type Grinding / Polishing Heads, 75 hp, 460 volt, 3ph, 60

cycle AC Motors
(5) TOP Belt type Grinding / Polishing Heads, 75 hp, 460 volt, 3ph, 60 cycle

AC Motors
Belt Size, 62" x 126"
(SPACE PROVIDED ON BASE FOR FUTURE TOPSIDE GRINDER AND HAIRLINE GRINDER)
SQUIGGY PINCH ROLLS
SQUIGGY ROLLS

CLEANING SECTION
(2) HIGH PRESSURE WASH TANKS
(2) RINSE TANKS
(2) SQUIGGY PINCH ROLLS
DRYER UNIT


INSPECTION STATION

EXIT SECTION
PINCH ROLL
EXIT PIT (ACCULULATOR) WITH THREAD LOOP EQUIPMENT, HYDRAULIC OPERATED
PINCH ROLLS
CROP SHEAR / SCRAP CAR
THREADING TABLE
ELECTRONIC EDGE GUIDE
EXIT DEFLECTOR/TENSION ROLLS
THREADING TABLE, HYDRAULIC OPERATION

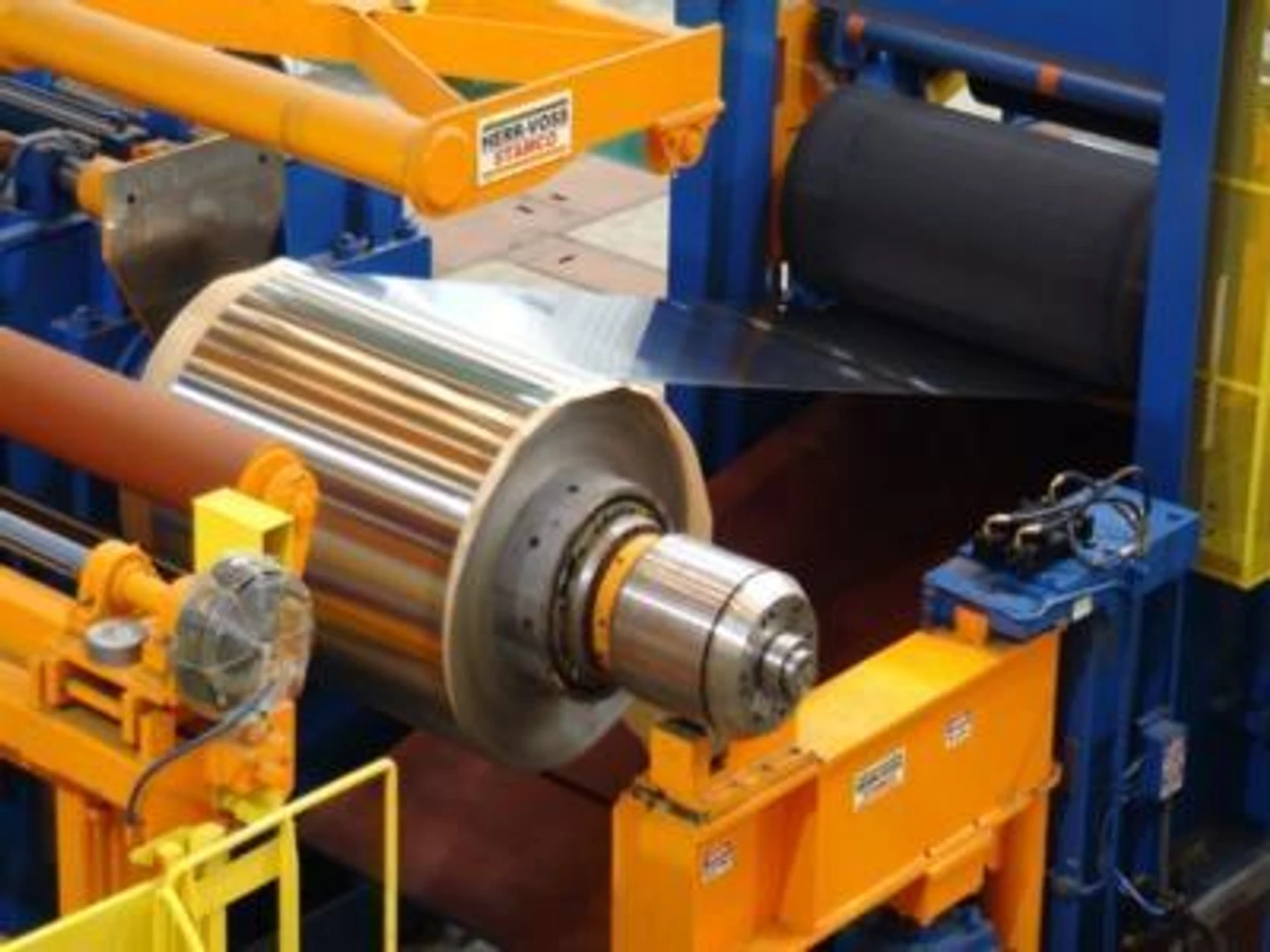

HERR VOSS RECOILER, Hydraulic operation
Outboard Support
Snub Control Roll
PAPER & MYLAR APPLICATION
HERR VOSS COIL CAR
PLC Allen Bradley Controls
OA Dimension (Approx)...250' x 40'
