48" X 7.5" TERMINAL EQUIPMENT SLITTING LINE (13942)

(Used) 48" x 7.5" Terminal Equipment Slitting Line (13942)

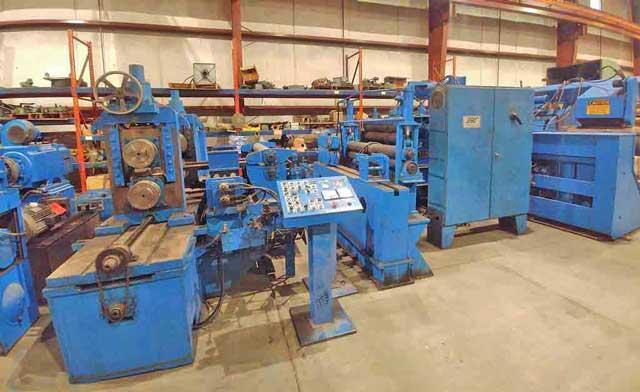

 MACHINE 13942

 Coil Weight:                      50,000 lbs.
 Coil Width:                       48" (50" Untrimmed)
 Coil I.D. Entry:                  20" - 24"
 Coil I.D. Exit:                   20" - Pads for 24"
 Coil O.D.:                        72"
 Line Direction:                   Right to Left

 Line was Rebuilt in 1999/2000 by L & M Equipment

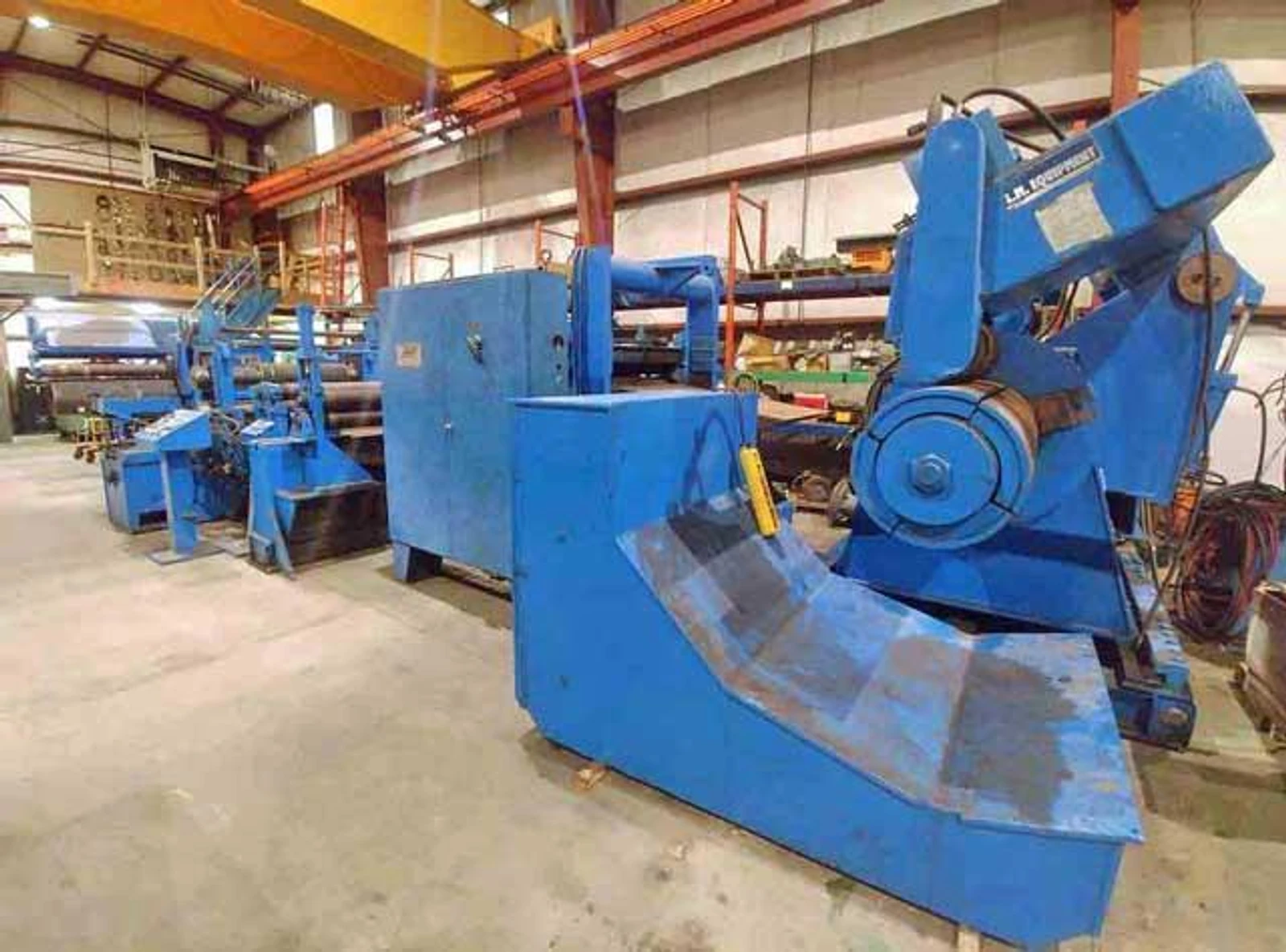

 Consisting of the following:

 -Entry Coil Car:
   54" Wide Bed
   Self-Contained Hydraulics
   8" Bore Hydraulic Lift Cylinder
   Hydraulic Lift
   Hydraulic Motor Travel
   Hand Pendant Control
   Cable Reel
   14" from Floor to bottom of "V" Cradle
   Overall Size: 83" L x 54" W x 58" High

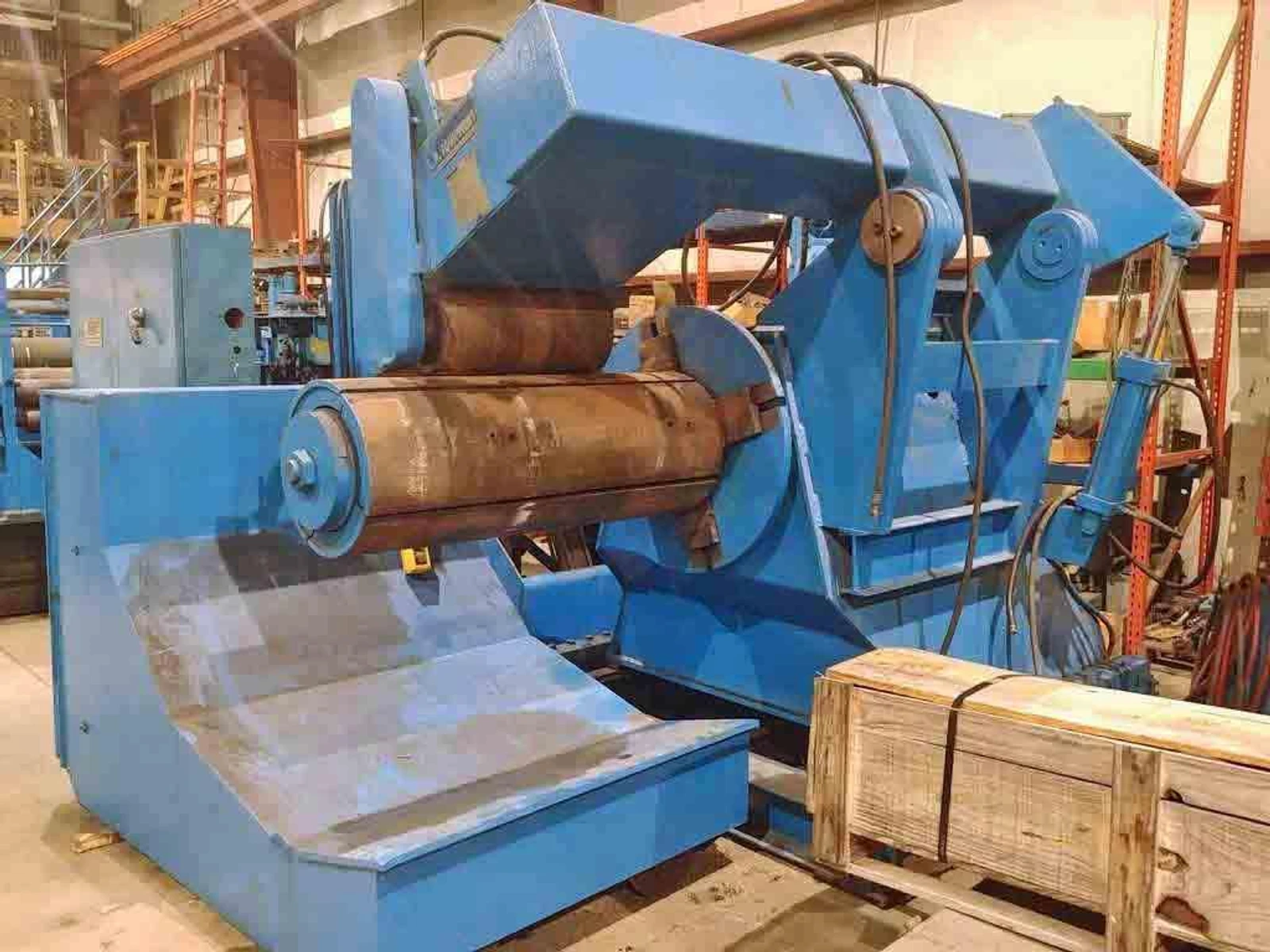

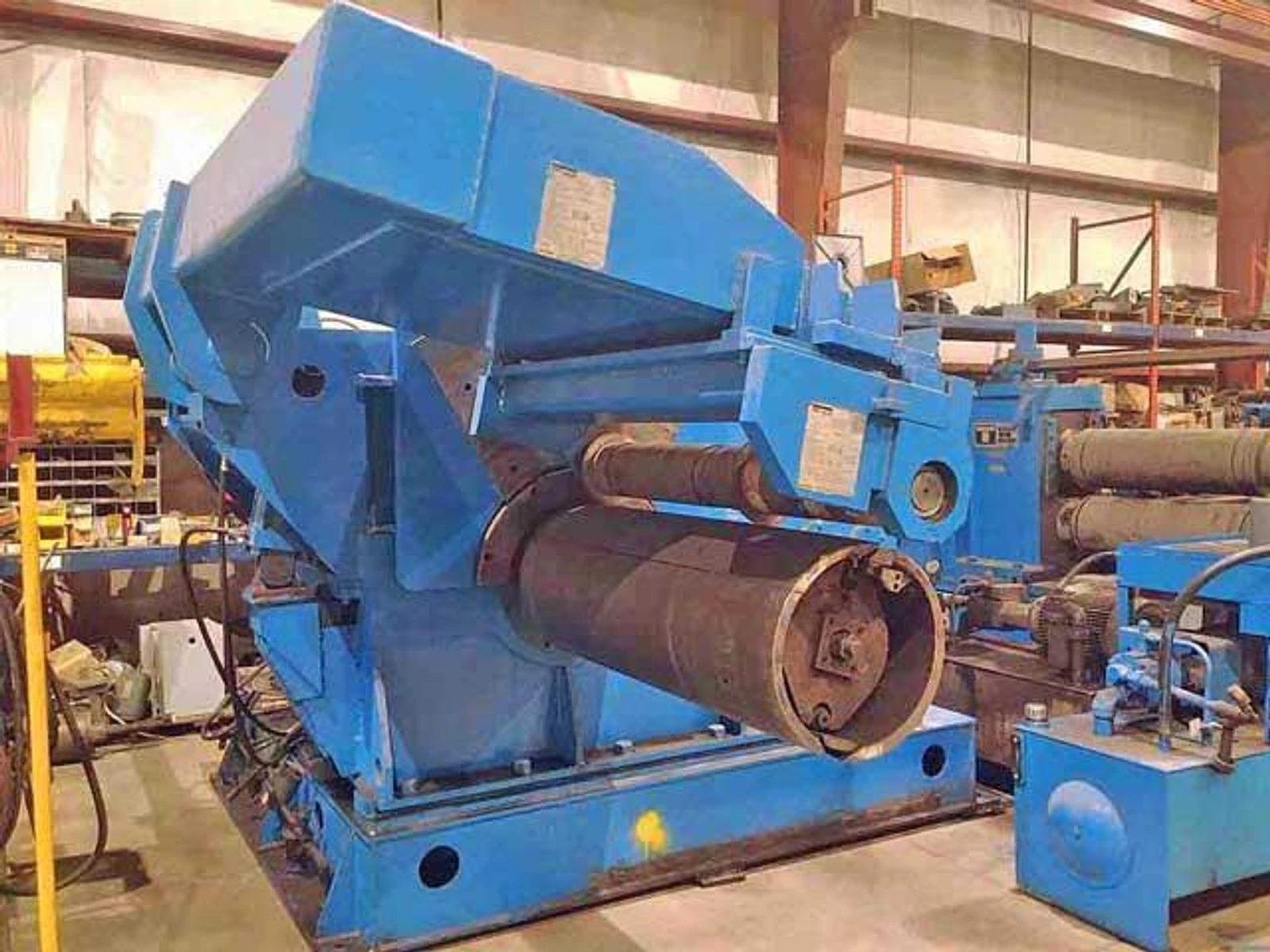

 -Mandrel Uncoiler:
   S/N: 12090-29
   Hydraulic Expansion, 19" - 25"
   Bolt on Pads for 24.5" - 30.5" Expansion
   52" Face Mandrel
   Slide Base
   Powered Overarm Holddown Roll
   AC Motor Threading Drive w/Air Clutch
   Water Cooled Brake
   Passline: 52" from Floor to center of Mandrel
   Overall Size: 144" L x 84" W x 99" High

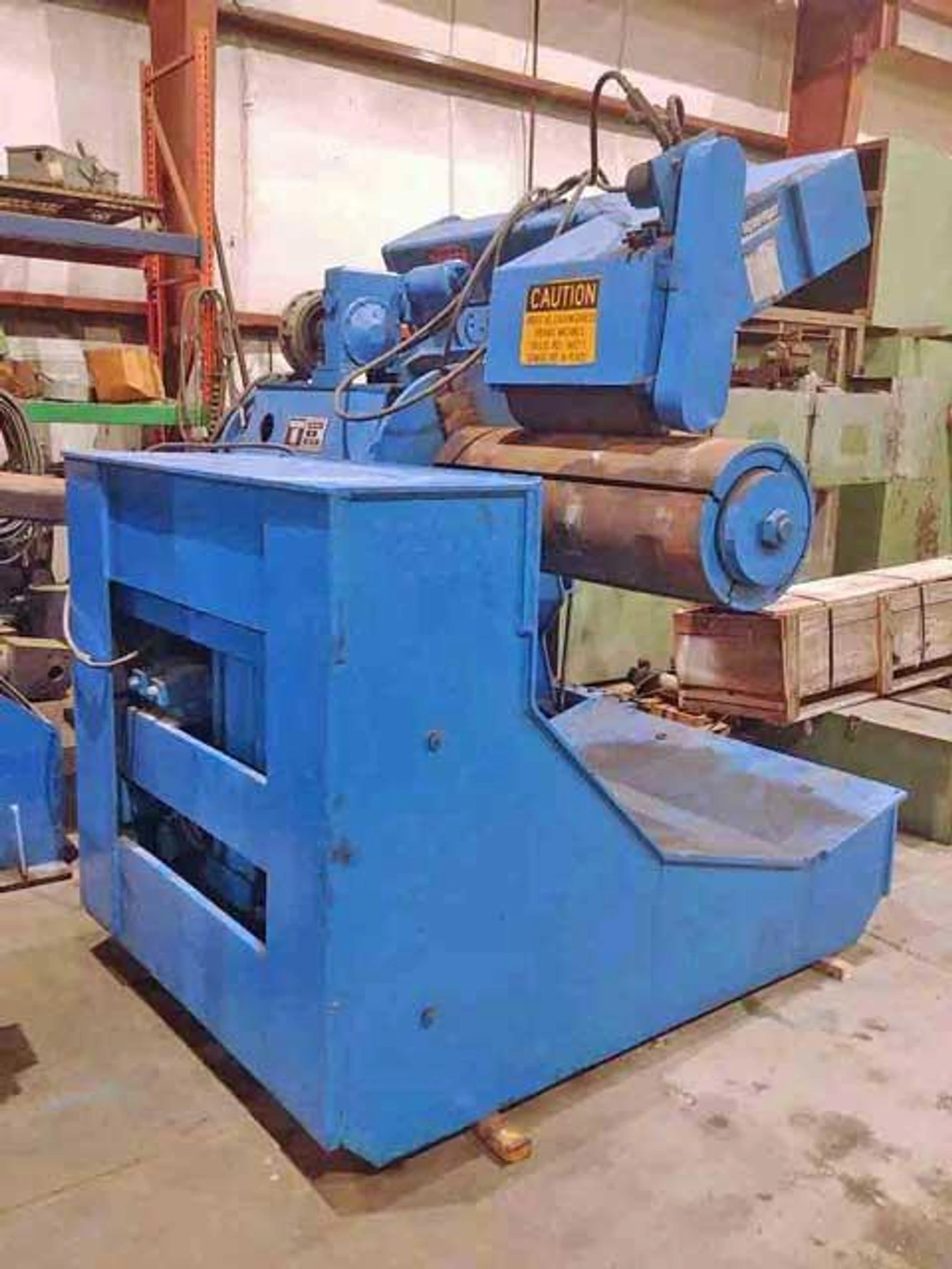

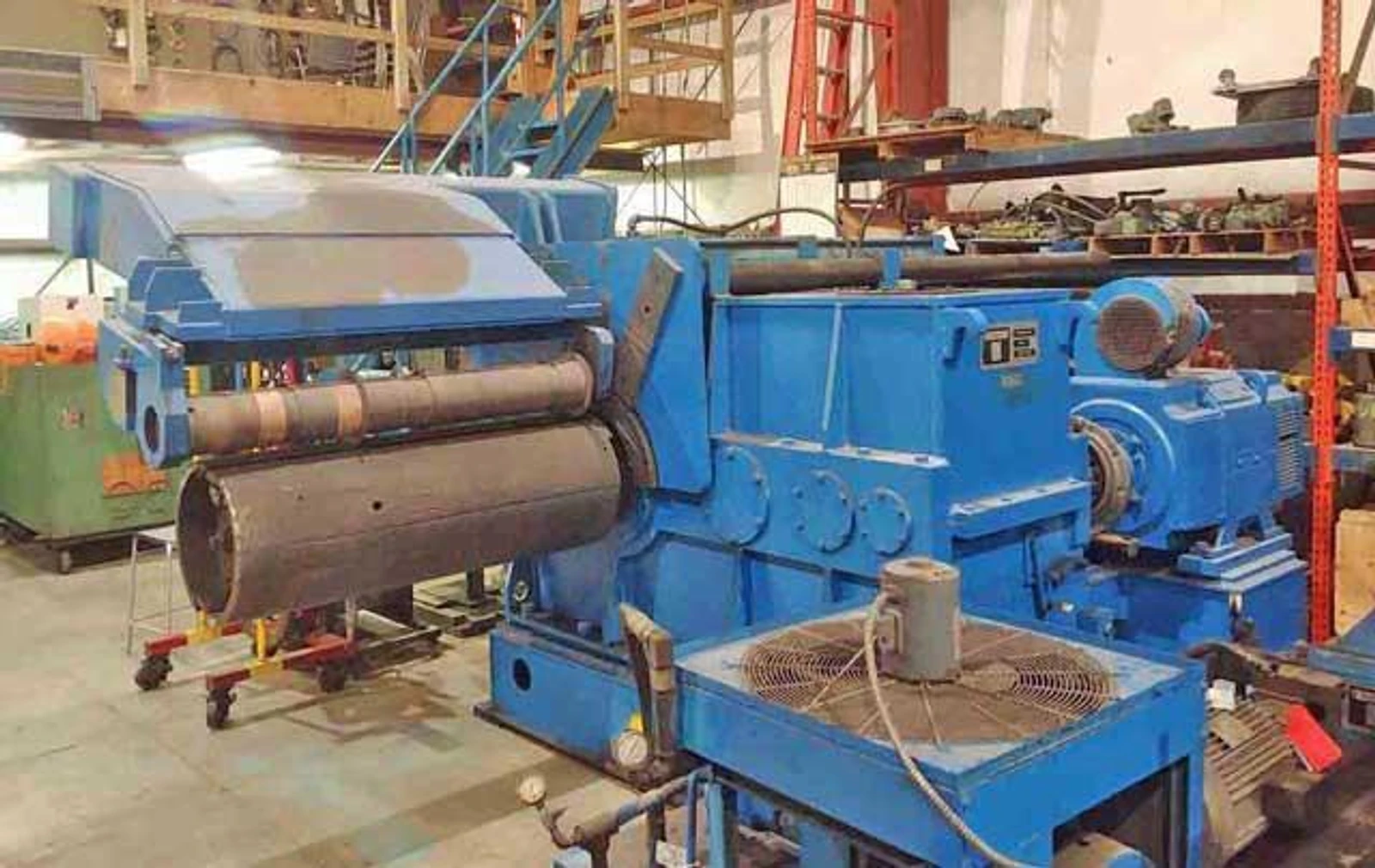

 -Peeler/Coil Breaker Unit:
   Peeler Table w/36" wide Blade
   3 Roll Coil Breaker, 7" Dia. x 58" Face Rolls (1 over 2)
     Top Roll adjusted by hydraulic motor driven Jackscrews
     Bottom Rolls Driven by Hydraulic Motor
   Passline Height: 59"
   Overall Size: 103" L x 102" W x 97" High

 -Pinch Rolls/Crop Shear:
   6" Dia. x 55" Face Pinch Rolls (Non Driven)
     Hydraulic Cylinder Loaded
   Roller Type Crop Shear
     50" x 0.375" Capacity
     Hydraulic Cylinder Actuated
   Overall Size: 160" L x 27" W x 81" High

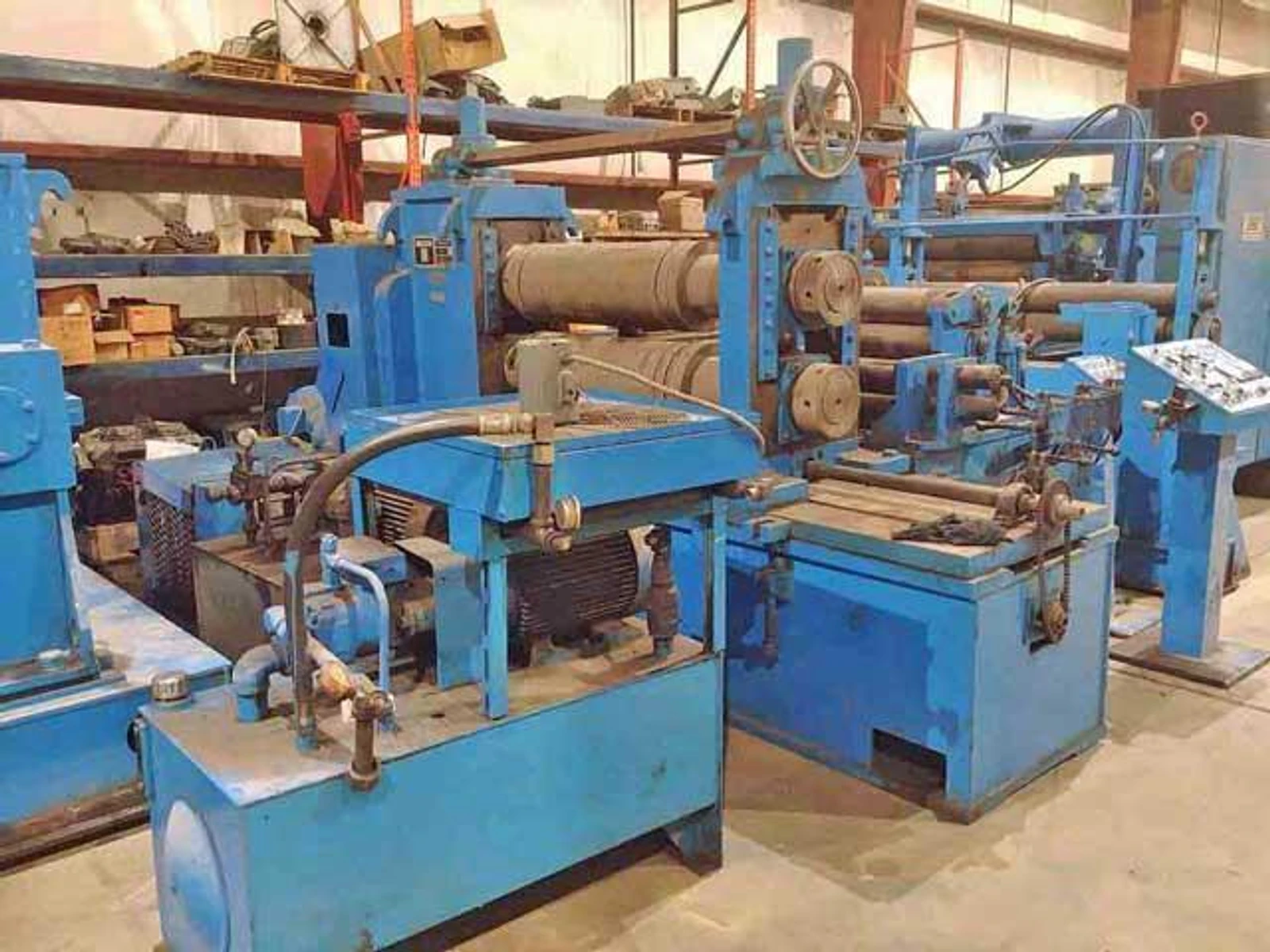

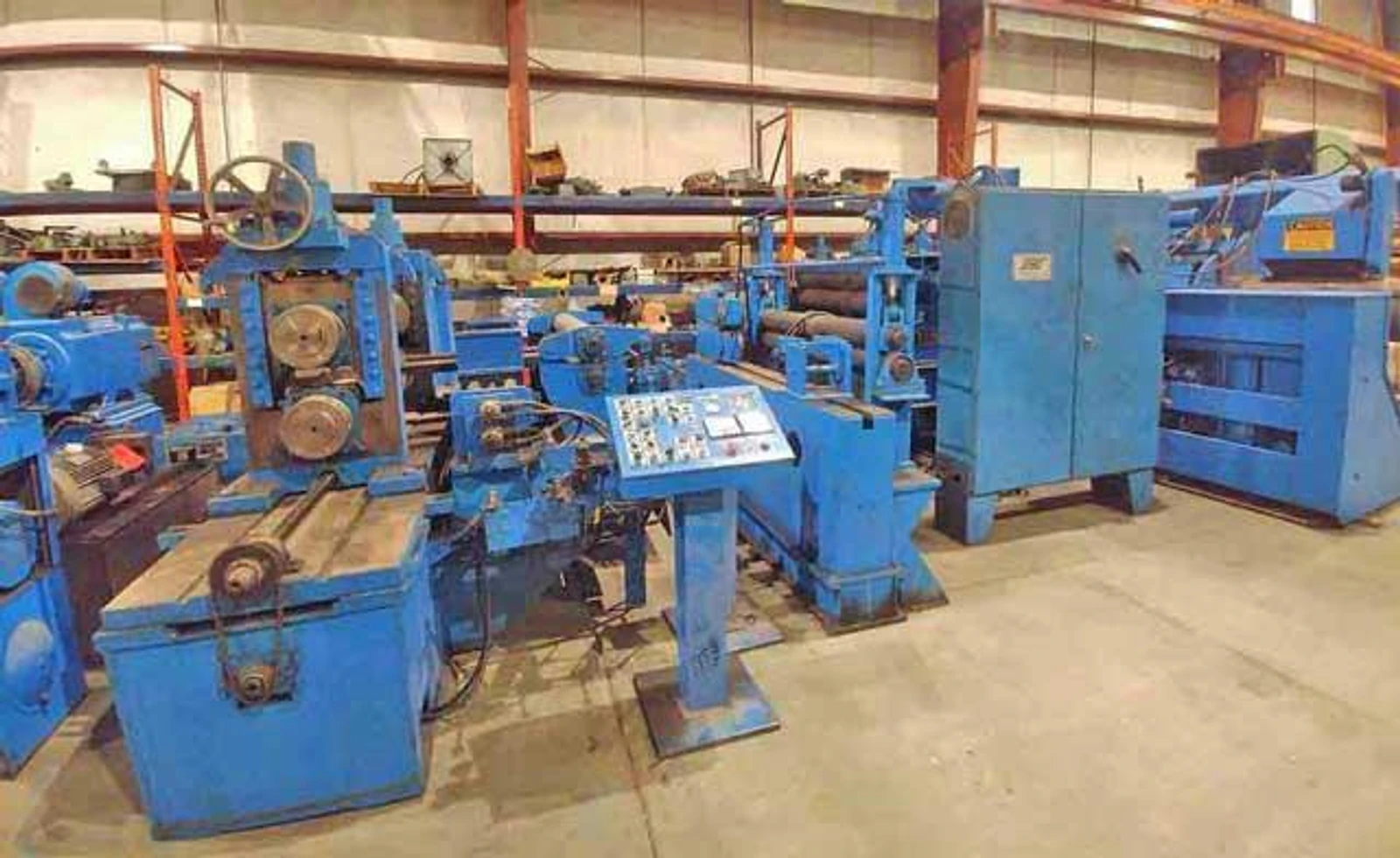

 -Removable Head Slitter (2 Heads):
   Entry Threading Table
   Entry Driven Pinch Rolls, 6" Dia. x 55.5" Face Rolls
   Entry Roller Side Guides - Hyd. Motor Adjustment
   7.5" Dia. x 52" Face Arbors
   Over the Arbor design.
   Outboard will travel in to 38" for heavier gauges
   30 HP, 1750 RPM, Foote Jones Helical Gearmotor, w/57.7:1 ratio
   30 HP, 1760 RPM, Pacemaker Motor, 230/460 V (Inline with Foot Jones motor)
   Passline Height: 50"
   Overall Size: 188" L x 84" W x 63" High (88" High with Head)

 -Recoiler:
   S/N: 38824 (rebuilt in 2000)
   Hydraulic Pushoff
   20" Dia. x 54" Face Drum
   Bolt on Pads for 24" Dia.
   Hydraulic Grip - Expand
   2 Speed Reducer
   125 HP DC Motor, 650/1950 RPM, 500 V, w/Blower
     ABB DCS 800 Drive
   Overarm Separator
   72" O.D. Capacity
   Passline: 54" from Floor to center of Drum
   Overall Size: 178" L x 129" W x 94" High

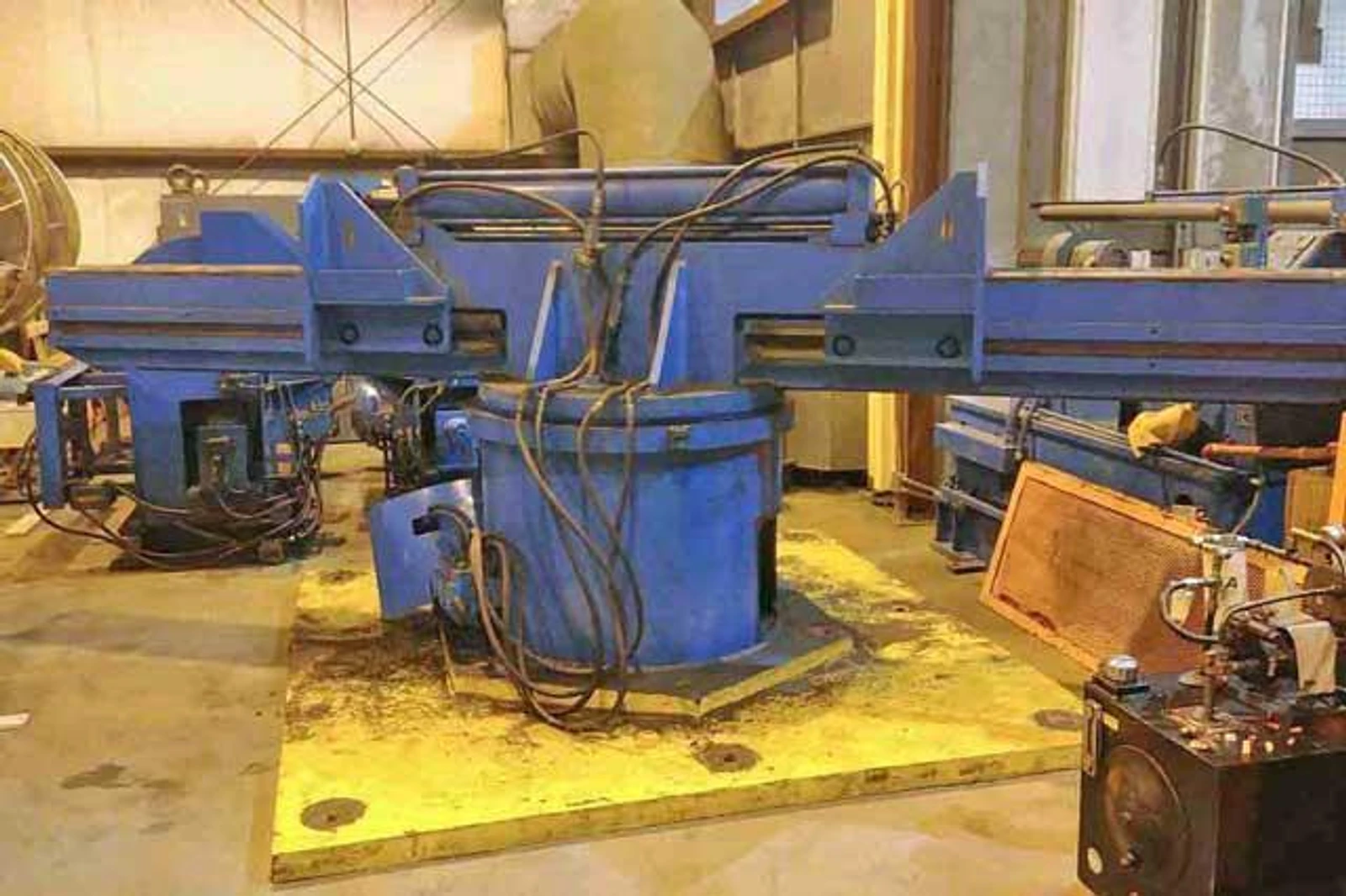

 -2 Arm Turnstile:
   C-Hook Type Arms w/6" Wide x 8" High Slot
   Approx. 57" useable Arm Length
   Powered Rotation
   Hydraulic Pushoff
   Overall Size: 190" L x 97" W x 73" High

 -(2) Scrap Winders:
   S/N: 1740-1741
   Dual Opposed Cones
   36" W x 38" Dia. Ball
   Hydraulic Level Wind
   Hydraulic Motor Powered
   Overall Size: 93" L x 54" W x 66" High

 -Main Electrical Panel:
   Overall Size: 67" L x 16" W x 84" High

 **Temporary Specifications Subject to Revisions**

 ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

 **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
