Title: CAN MAKING PRESS LINE 1831 BLISS PRESS 1103 BLISS SCROLL SHEAR DEXTER SHEET FEEDER AMM STRIP FEEDER LINER AND BAGGER
Type: Presses, Can Machinery
Brand: BLISS
Model: No model specified
Year: Not listed
Message
Information

CAN MAKING PRESS LINE 1831 BLISS PRESS 1103 BLISS SCROLL SHEAR DEXTER SHEET FEEDER AMM STRIP FEEDER LINER AND BAGGER

Brand
Model
Not specified
Stock #
2799
Year
Not specified
Condition
Good
Location
Ohio

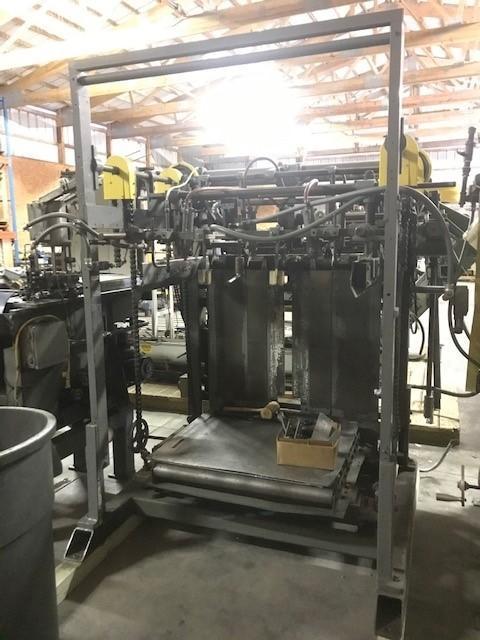

DEXTER SHEET FEEDER MODEL ......... 6MTF
LUBRICATION SYSTEM ................ BECKON

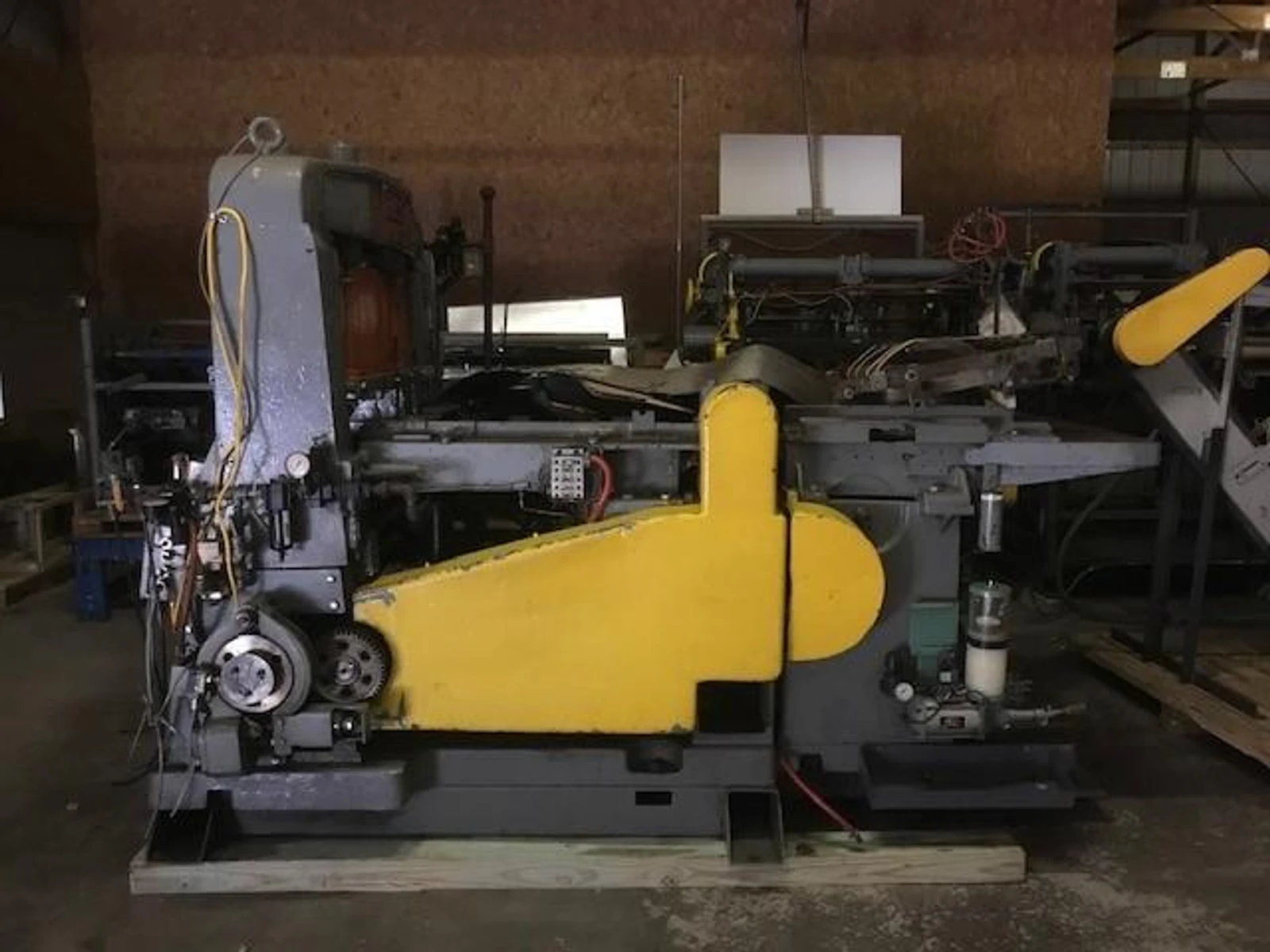

SCROLL SHEAR ...................... BLISS 1103

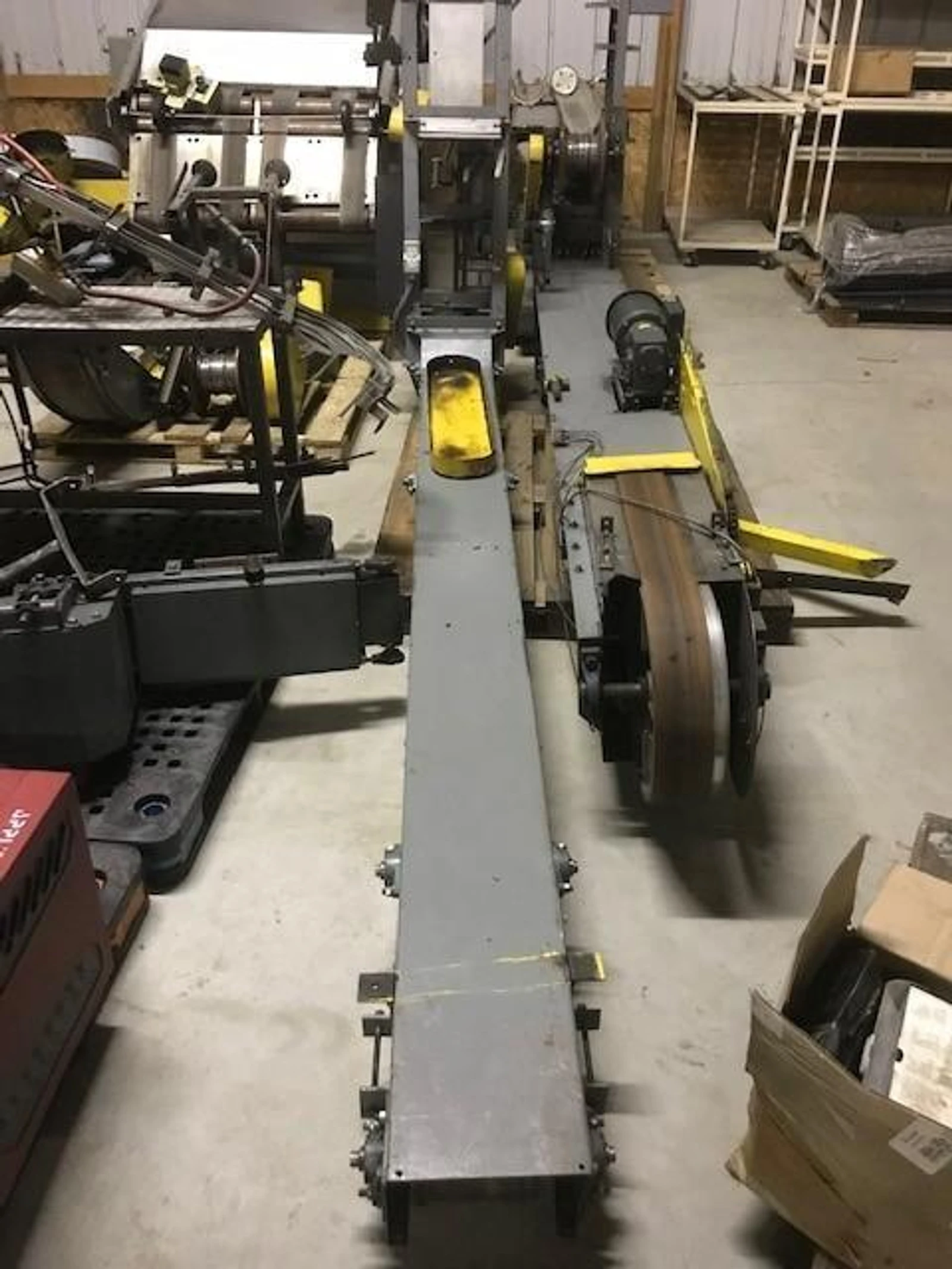

AMM LTD STRIP FEEDER .............. YES BETWEEN SHEAR AND PRESS
AMM COLLATOR ...................... YES

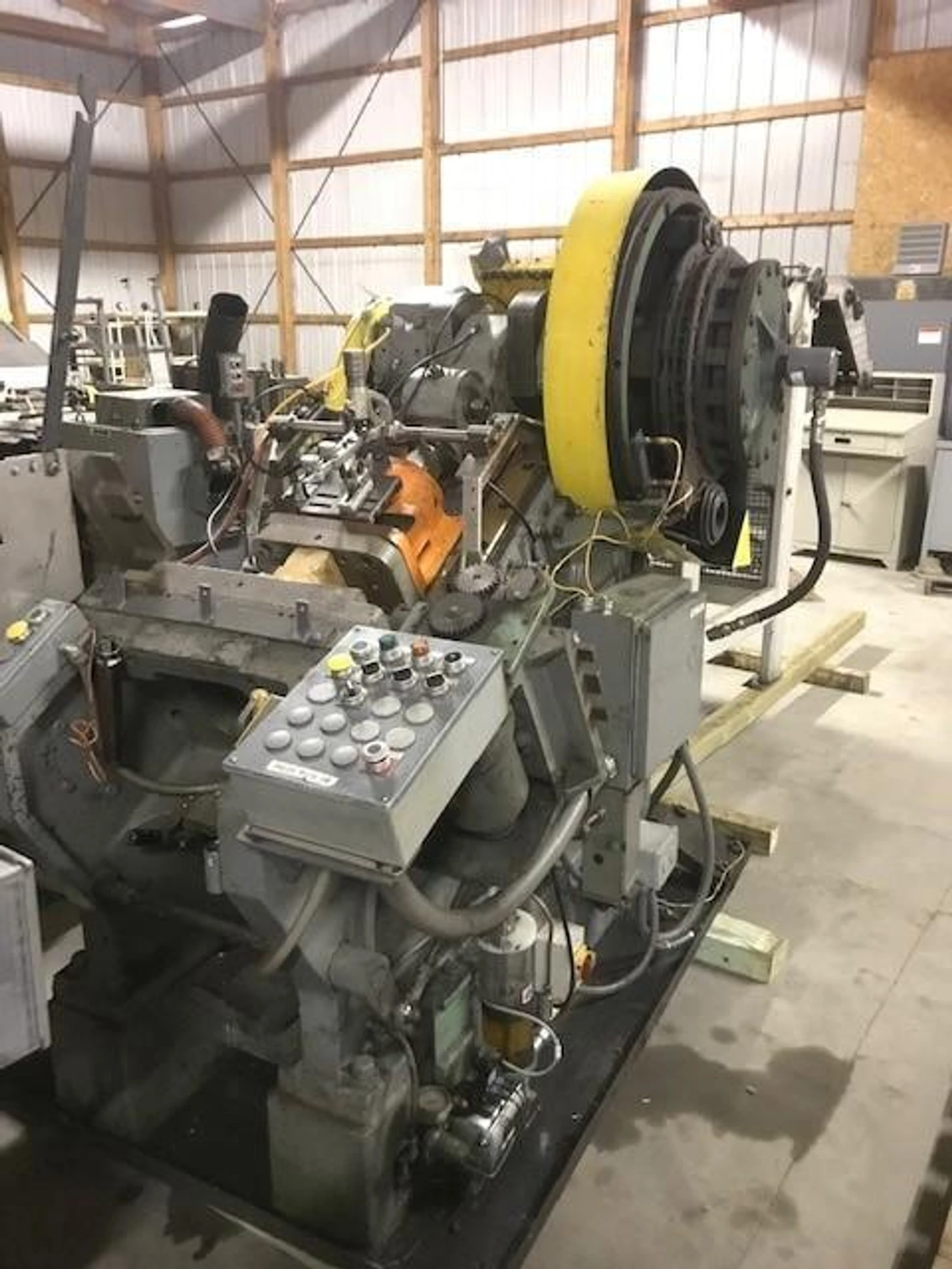

BLISS PRESS MODEL ................. 1831
D & A LINER MODEL ................. 25LS

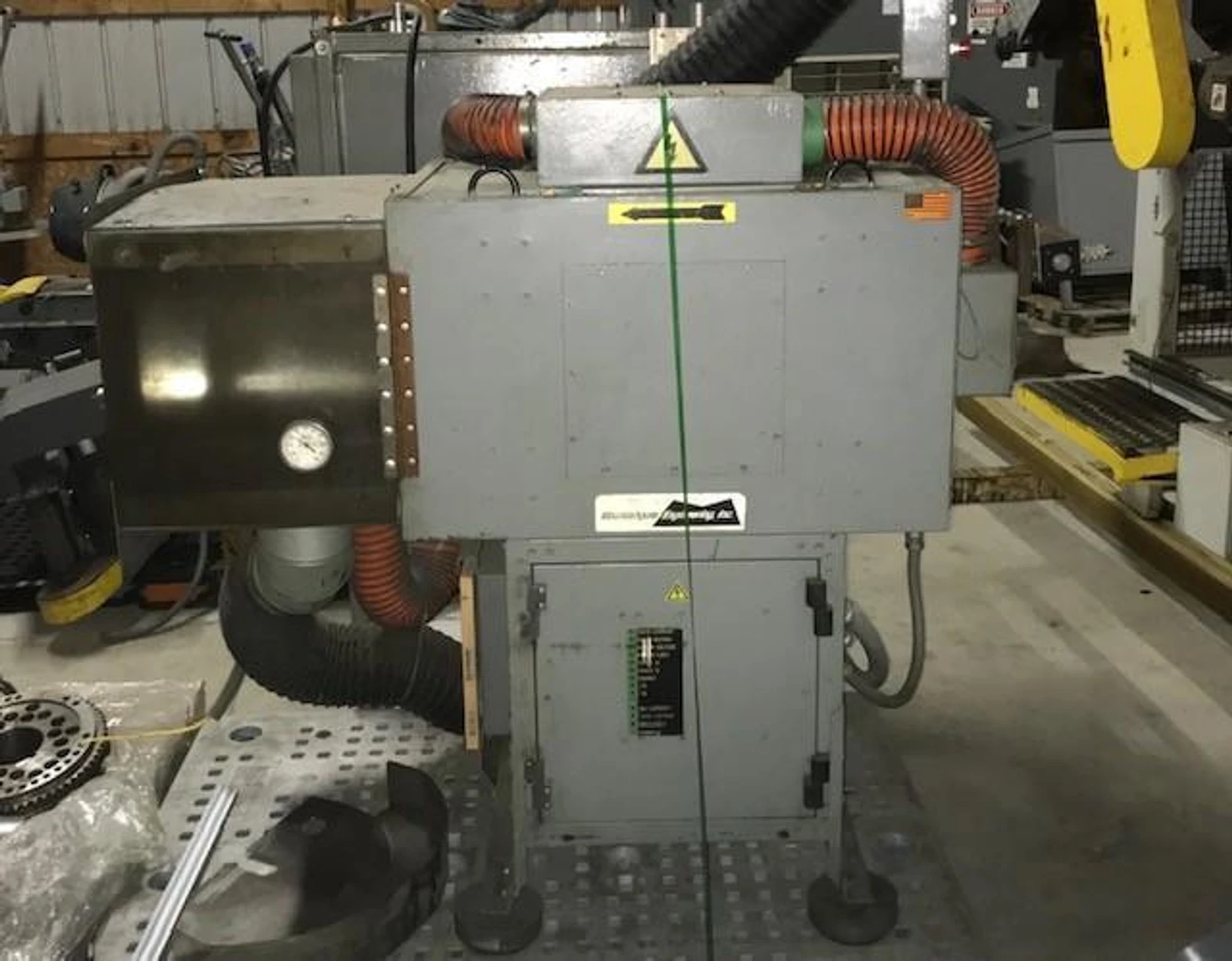

MOUNTAIN GATE OVEN MODEL .......... ICD-3S-SI-CE

FLEETWOOD MANUAL BOXING STATION ... YES
PRESS SPECS

Stroke Length ................. 1.75”
Ram Adjustment ................ 8.5”
Shut Height ................... 6.3125
Bed Size ...................... 45” L x 27” W
Thick Bolster ................. 2.625
Ram Size ...................... 4” diameter connecting ball, overall length 17”
SPM ........................... 275
Air Clutch (Yes/No)............ Yes
Air Brake ..................... No
Crank (Single/Double) ......... Single

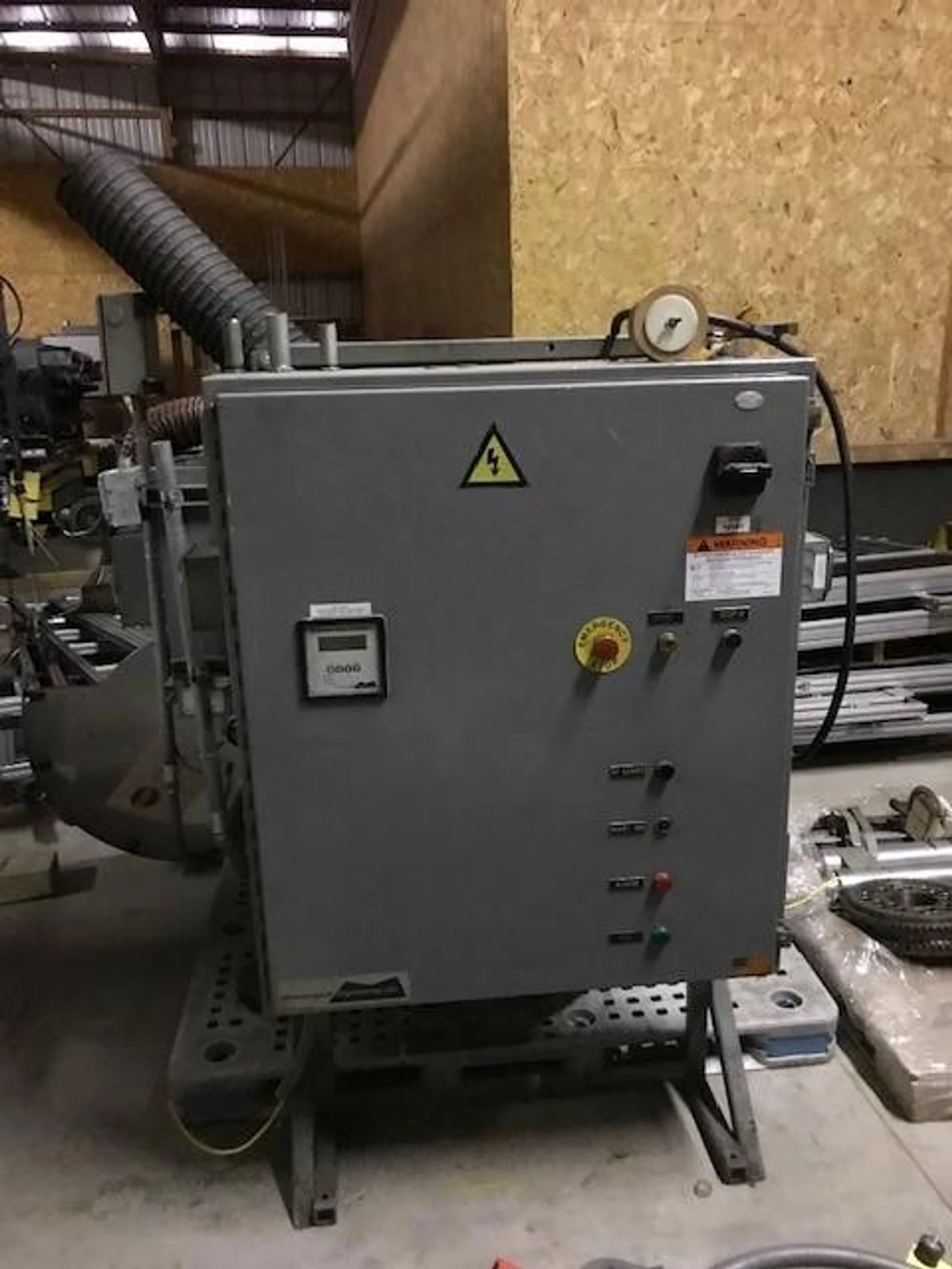

Type of CNC Control ........... Allen Bradley CompactLogix  (Several components have been remove from Electrical panel.)
Dimensions .................... 82.5”Length x 106” wide x 78” height press foot print
SCROLL SHEAR SPECS
Stroke ........................ 2”
Blade length .................. 38”
Pass line height .............. 45”
SPM ........................... 275
