Title: DIE QUIP FM/2 SEMIAUTOMATIC INTERNAL FINISHING MACHINE Our stock number: 114720
Type: Finishing Machines
Brand: DIE QUIP
Model: FM/2
Year: Not listed
Message
Information

DIE QUIP FM/2 SEMIAUTOMATIC INTERNAL FINISHING MACHINE Our stock number: 114720

Model
FM/2
Stock #
114720
Year
Not specified
Condition
Used
Location
Ohio
Link to our website listing http://uen.hsix.com/q/webinv/005700=x,114720

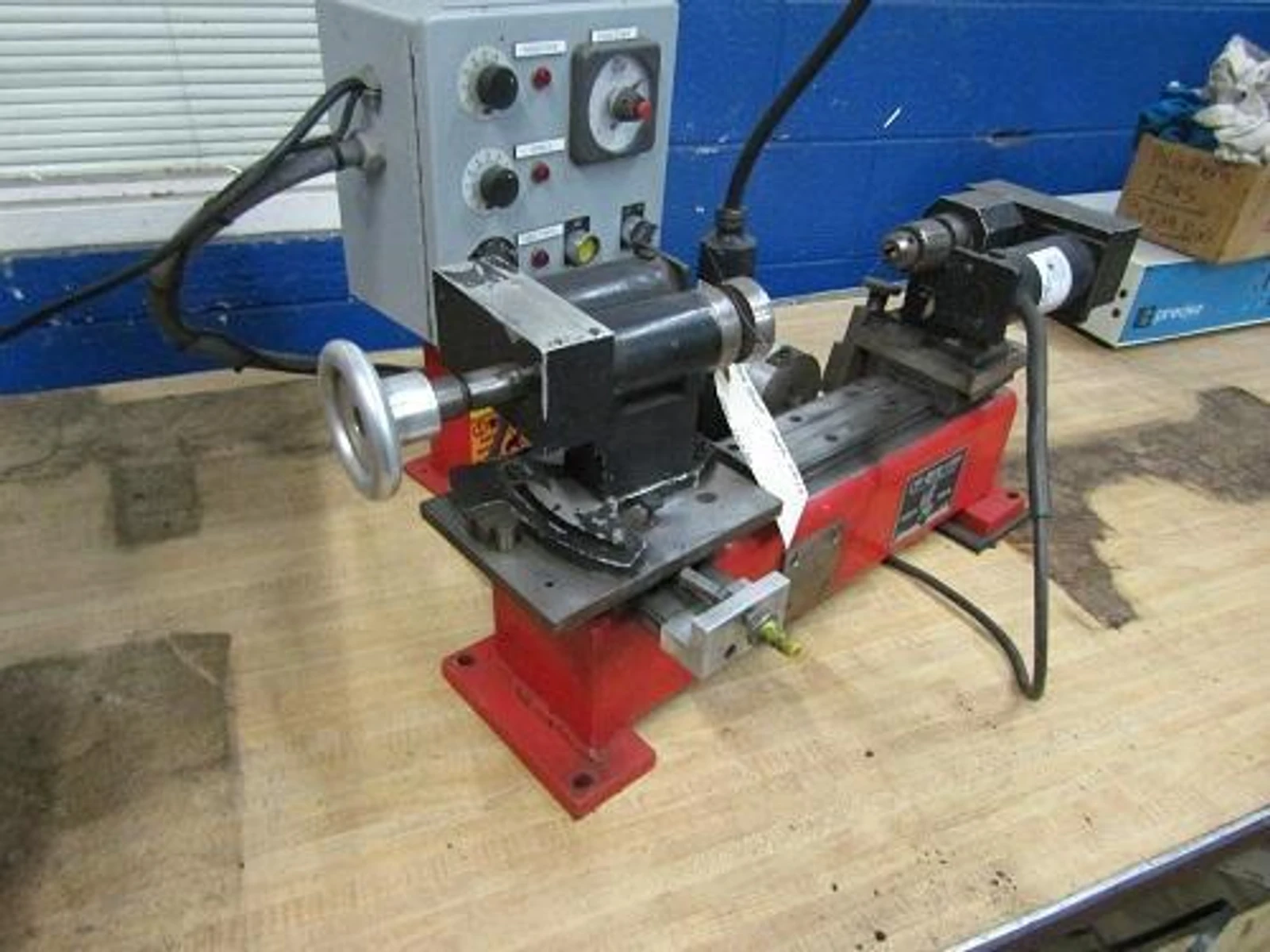

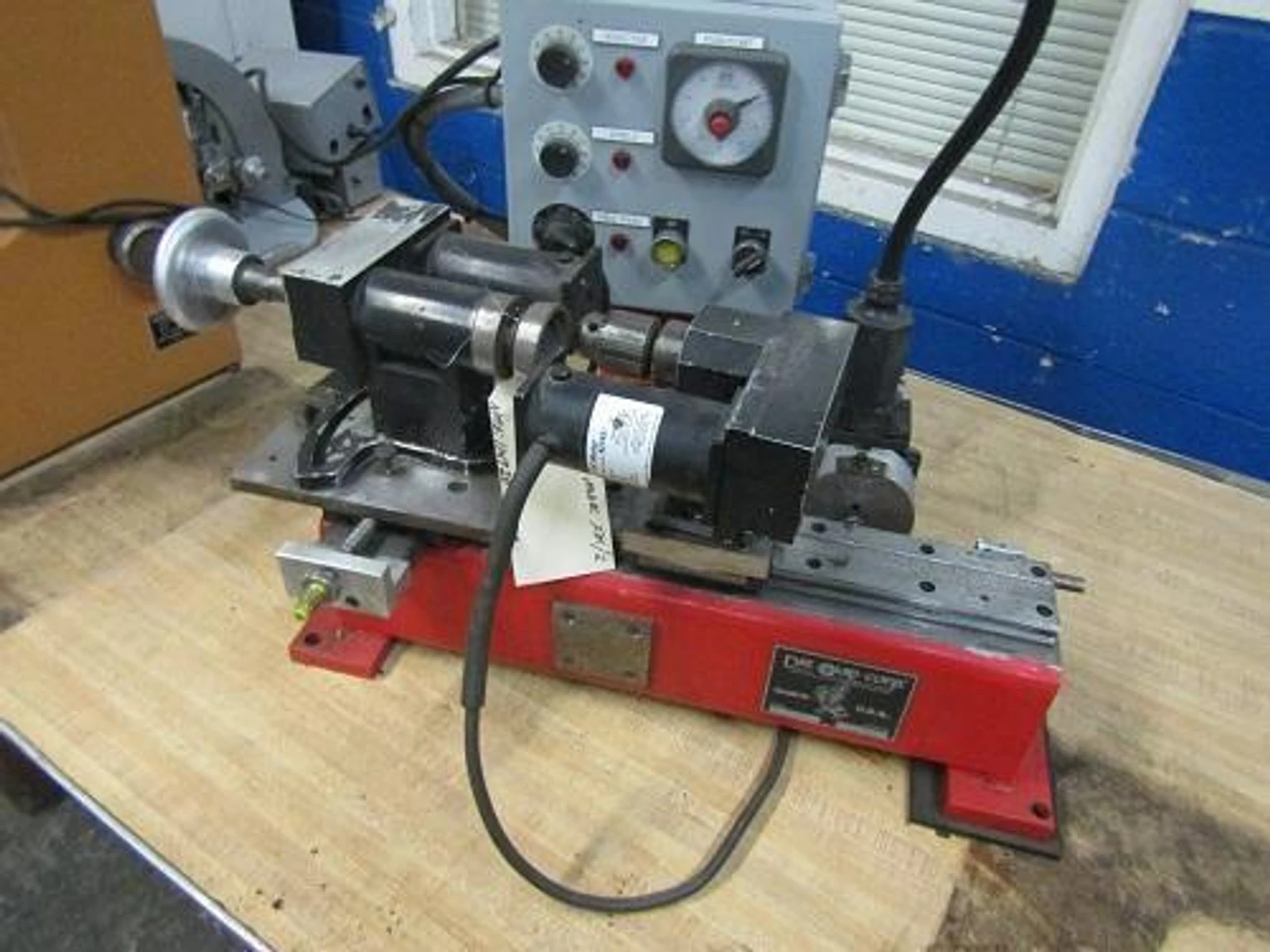

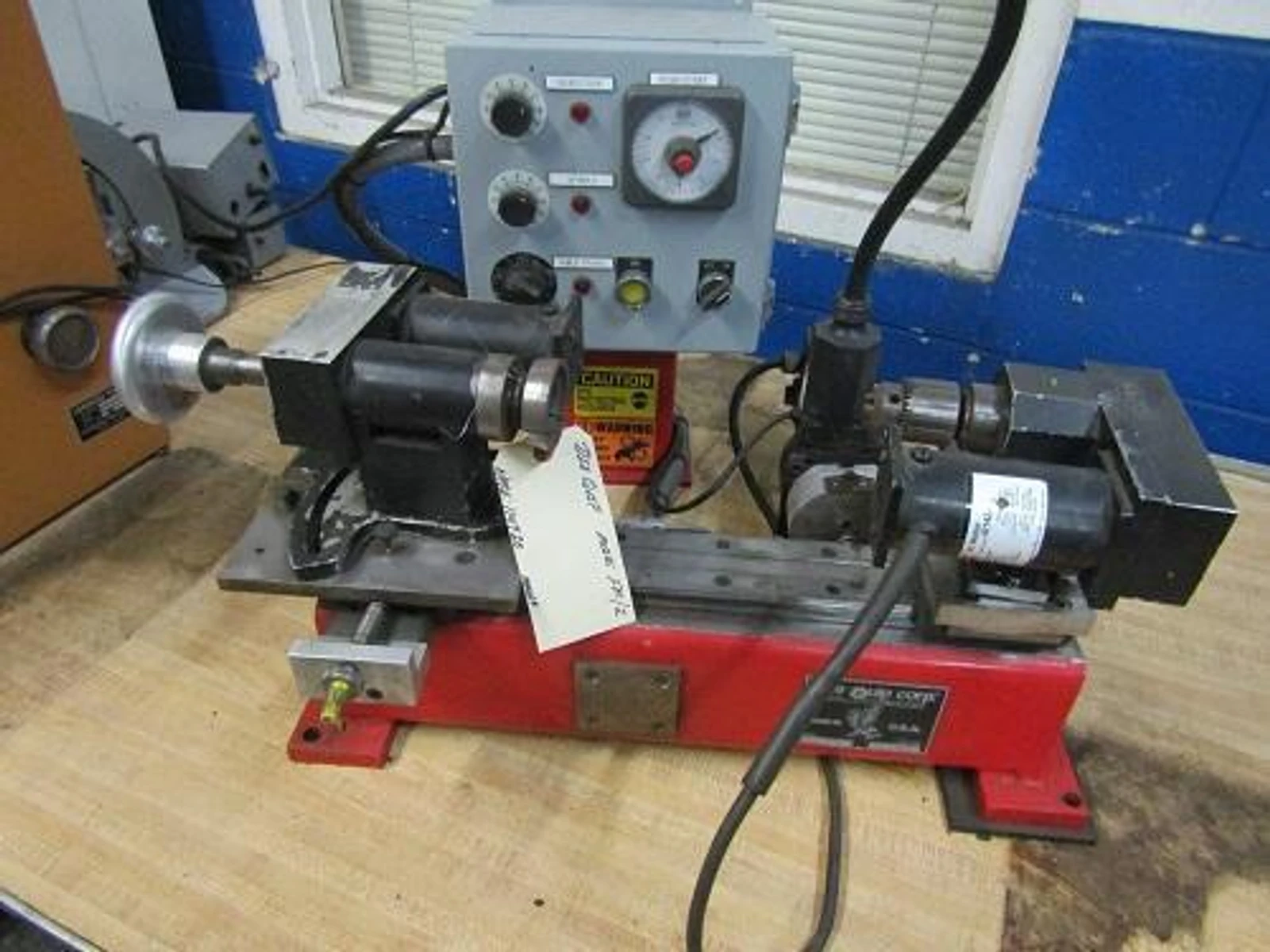

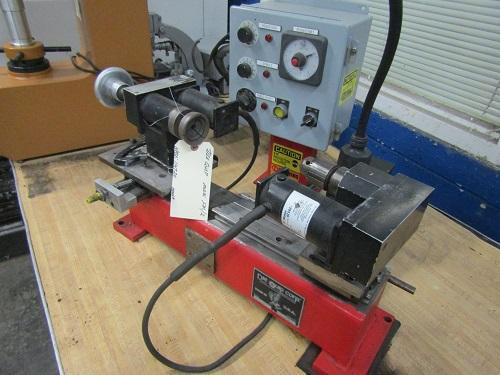

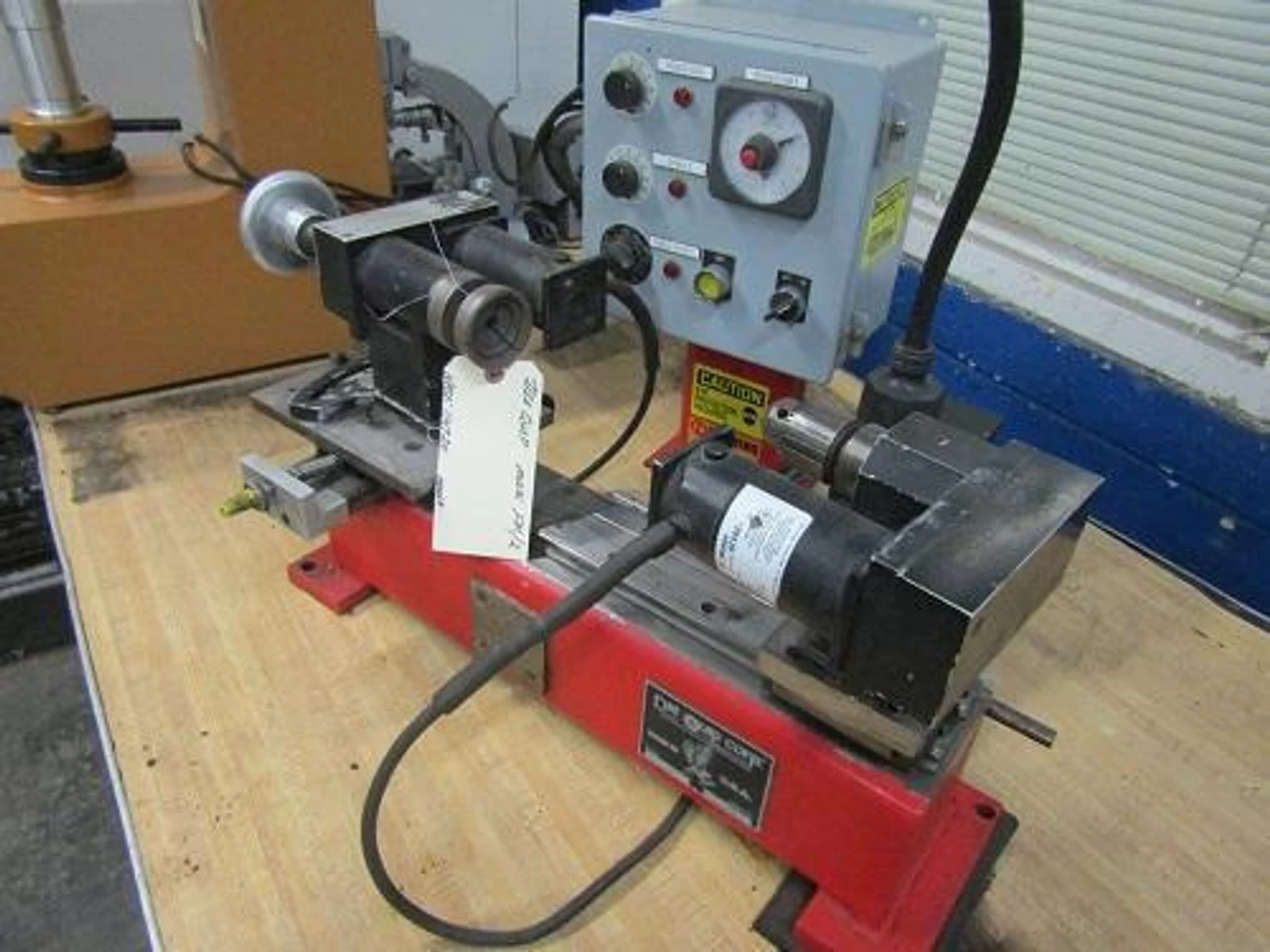

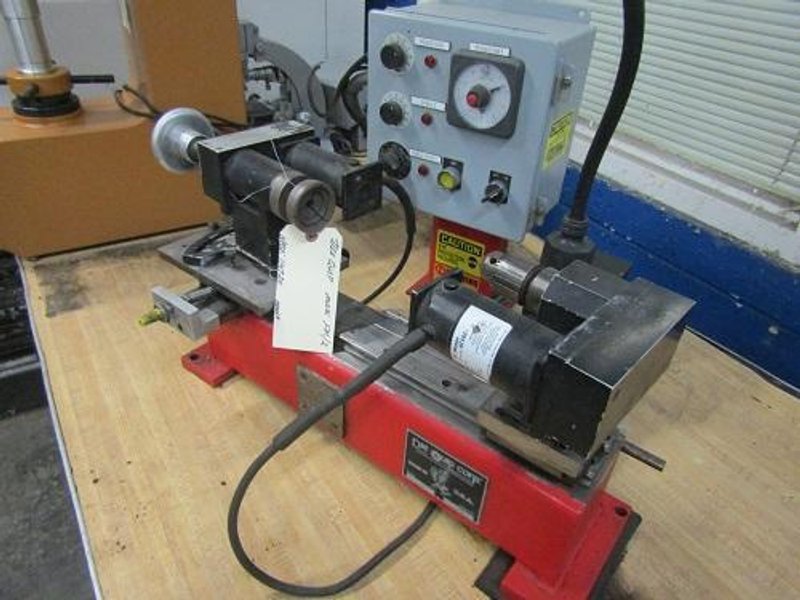

DIE QUIP FM/2 SEMIAUTOMATIC INTERNAL FINISHING MACHINE   Our stock number: 114720




MANUFACTURER - DIE QUIP CORP

MODEL - FM/2
YEAR - 1996
TYPE - SEMIAUTOMATIC INTERNAL FINISHING MACHINE

HEADSTOCK
WORKHEAD SPEED - 0 TO 1800 RPM VARIABLE
MOTOR - 1/27 HP, 0 TO 1800 RPM, 90 V, DC
MOTOR/SPINDLE DRIVE - 0.20" PITCH GEAR BELT
WORKHOLDING - 3 C COLLET, 1/64" TO 2" CAPACITY

TABLE TRAVEL
STOKE LENGTH - 0 TO 2.75" MANUALLY ADJUSTABLE
MOTOR SPEED - 0 TO 109 RPM VARIABLE
MOTOR - 1/27 HP, 90 V, DC
GEAR HEAD - 27 IN/LBS FL TORQUE, 16.5:1 RATIO

TAILSTOCK
MOTOR SPEED - 0 TO 1800 RPM VARIABLE
MOTOR - 1/27 HP, 1800 RPM, 90 V, DC
MOTOR/SPINDLE DRIVE - 0.20" PITCH GEAR BELT
TABLE TRAVEL BEARINGS - THK LM DOUBLE ROW ANGULAR CONTACT
TOOL HOLDING - 3/8" CHUCK, 0.032" - 0.375" CAPACITY

POLISHING CAPACITY
INTERNAL DIAMETER CAPACITY - .015" - .375:
ANGLE WORKING CAPACITY - 0 TO 60 DEGREE INCLUDED ANGLE

MACHINE DIMENSIONS - 27" W X 24" D X 12' H
CONTROL PANEL - 12" X 8" D X 20" H
TABLE AREA NEEDED - 48" X 30"
WEIGHT - APPROXIMATELY 130 LBS

ELECTRICAL - 115 V, 1 PHASE, 60 HZ, 2 AMP

Specifications Subject To Verification By Purchaser
